20kW Bodor premium S series - REMOVED

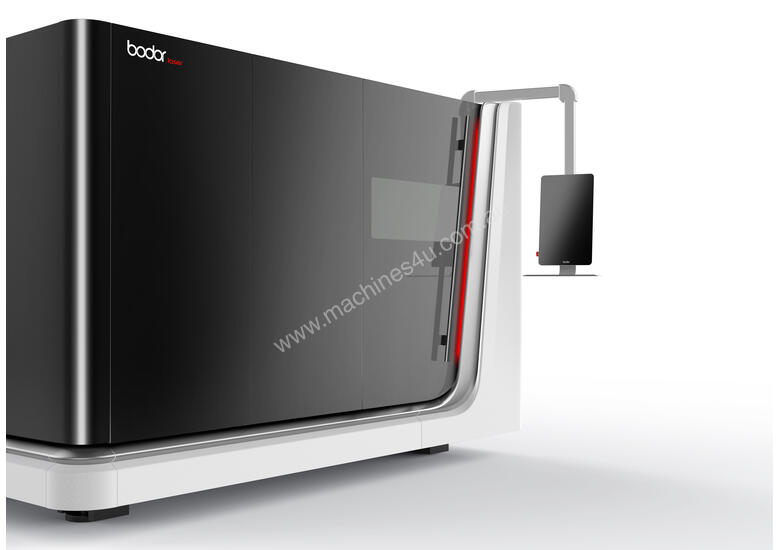

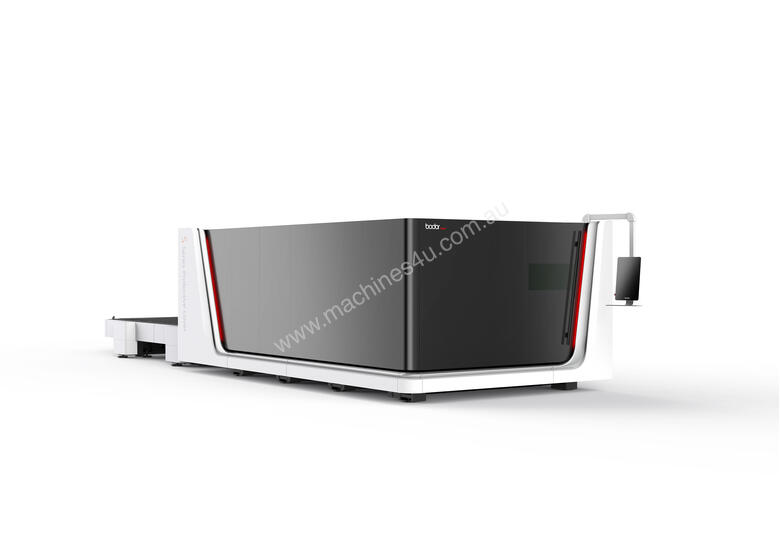

This machine is Bodors premium (Euro spec) system with everything you would expect from a mid to high end laser system. It features a Beckhoff control connecting the CNC via EtherCat bus control providing quick signalling and high-accuracy of sync, especially for high-speed cutting, Precitec Procutter head, all German rails and running gear mounted on Bodor's trusted cast iron machine bed for maximum stability and accuracy. The robust cutting table with hydraulic table lift has a twin drive chain for quick sheet changeovers. For more information download our PDF BROCHURE!

Highly productive system packed full of time saving features and locally supported.

The Bodor S has laser powers ranging from 4kW to 30kW and table sizes to 8m x 2.5m.
Packed with sensible production orientated features to maximise your productivity.

Machine is designed to cut thick and thin sheet steel 24/7


BASIC SPECIFICATIONS:

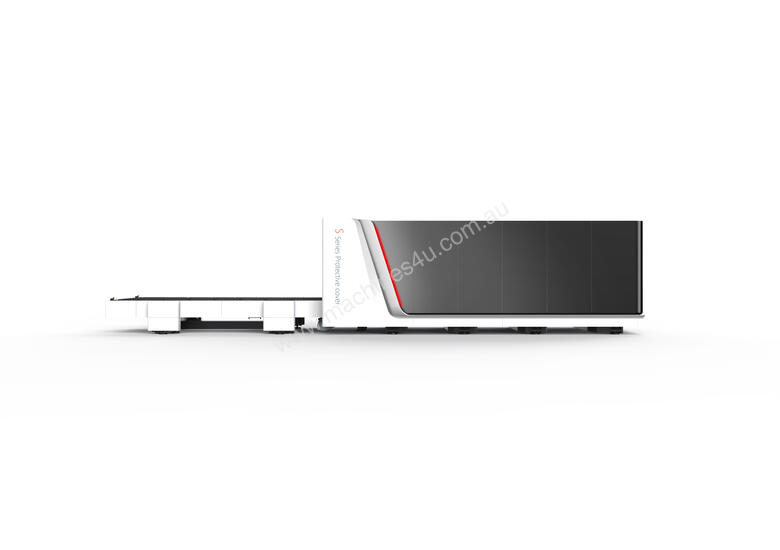

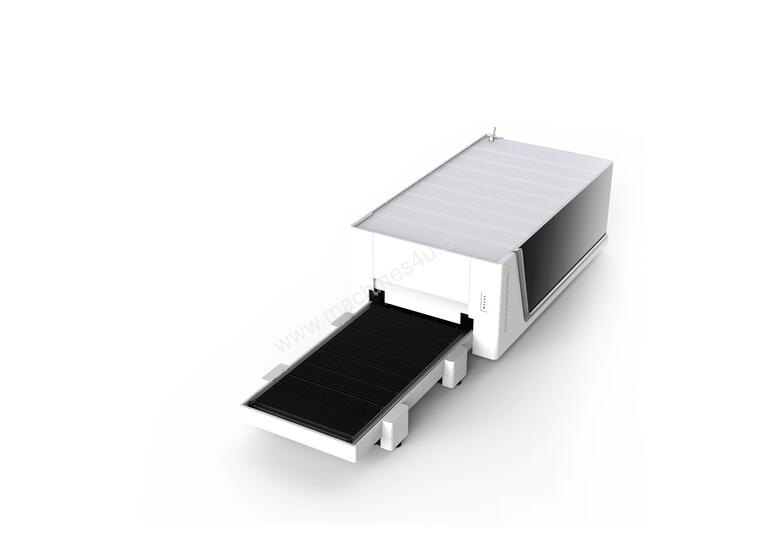

- 4,070 x 2,040 dual table with safety enclosure and camera
- Cast iron machine bed for guaranteed long life and precision cutting.
- 20,000 watt Max Photonics laser
- Precitec Procutter with programmable focus
- Auto Nozzle changer and tip cleaner as standard
- Atlanta (German) Rack & pinion With Beckoff drive (X & Y), ballscrew (Z)
- Auto lubrication system
- Max. Acceleration 2.8G
- Positioning accuracy 0.05mm
- Reposition accuracy 0.03mm
- Max. moving speed 200m/min
- Min. line width 0.1mm
- Machine dimensions 9950*3050*2100mm x 6000KG
- Beckoff control (German) with inbuilt internet system support and remote monitoring
- Radan (UK) Nesting software included
- Australian standard N2 and O2 gas regulators , hoses and floor mounted stand
- Exhaust fans (floor mounted)
- 2/3 year parts warranty with 1 year's on site support by Industrial Laser as standard
- Consumables package is included
- Automation Options Available

For information on shipping, specifications and more download our PDF BROCHURE today!

Comprehensive suite of automation options available from a simple canter leaver single sheet loader to the fully optioned multi sheet, multi material, multi thickness programmable iTower.

Price indicated is delivered installed and with training into a major metro area.
No hidden extras to worry about..we make your transition into laser worry free.

Call us to find out which laser system is the right choice for your application.

Who is Bodor?
Bodor are China's largest high power laser system exporter with over 26% of the market share.
Last year they produced over 1600 laser systems with over half being exported overseas.
They have some 800 staff of which 150 are engineers developing new products and supporting their local partners and customers.

Who is Industrial Laser?
Established in Melbourne in 1998 Industrial Laser is a family owned and operated business
that supports Australia and New Zealand Laser users.

Industrial Laser do not just sell systems, we have the experience to design and build custom laser systems.
We frequently upgrade existing systems whether in the field or at our factory in Hallam Victoria.
We have designed and developed our own 6 axis laser CNC with over 150 sold.
This expert knowledge in lasers and motion control combined with the full long-term support from Bodor gives us the edge over all of our competitors.

Why Industrial Laser?
• 21 years old - We have been a trusted partner designing building and supporting laser equipment since 1998
• Over 100 years of combined laser service and application experience
• 6 full time Laser service technicians
• Technical support staff with remote dial in assistance
• Authorised Australian distributors of IPG Photonics and Precitec
• Sole Australian Agents of Bodor Fiber Laser
• Large local spares stock – we are Australia's largest aftermarket supplier of laser consumables and spares
