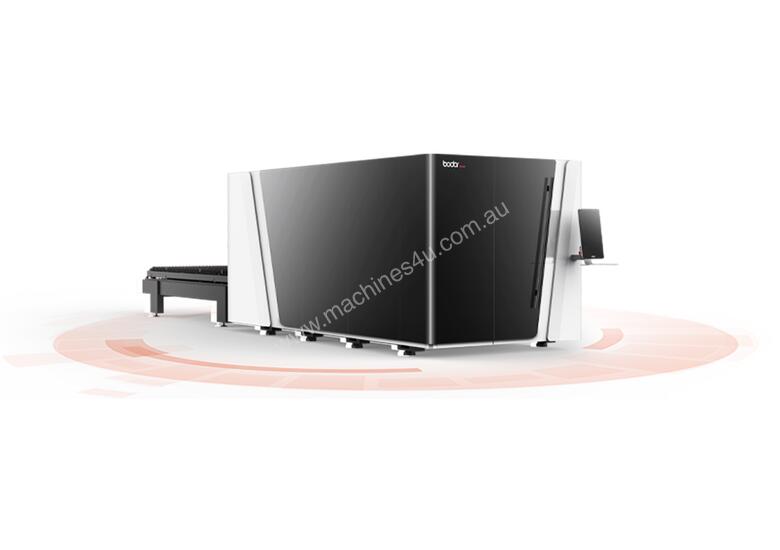

The C series are Bodor's new entry level system designed for your in house production needs.
This system has a twin table enclosed system and is the little brother of the P series.
It is also packed full of time saving productive features. Its easy to learn and operate.
With the programmable lens and collision avoidance as standard the C3 beats the opposition hands down.
Price includes delivery, installation and training into major metro area and 12 months all inclusive onsite support. No hidden extras. Delivery is 12 weeks from order.
We can normally accommodate payment terms of 30% with order and 70% on delivery to your factory.
Feel free to ask us which model is best suited to your application and budget.
3000w laser maximum cutting thicknesses.
20mm Mild steel
10mm Stainless steel
10mm Aluminium
BASIC SPECIFICATIONS: Bodor C3

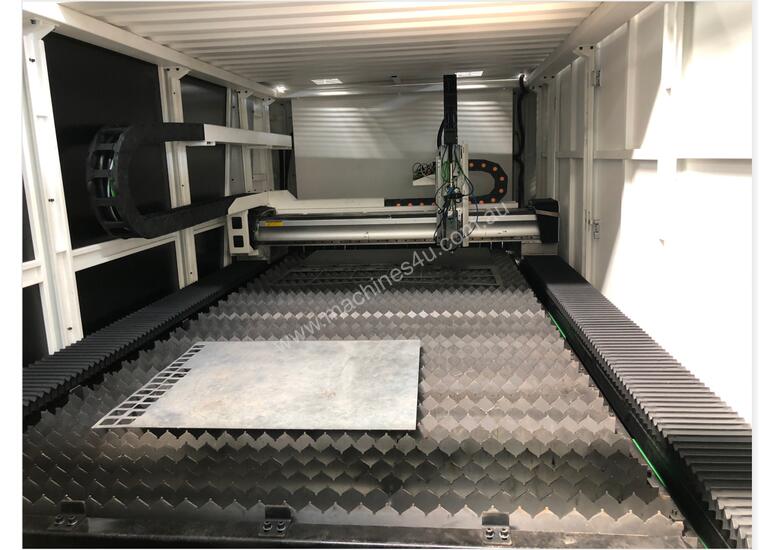

- 3048mm x 1524mm dual table with fabricated bed
- Safety enclosure with camera
- Fiber laser options (+6000w/4000/3000w/2000w/1500w/1000w available)
- Full Class one laser safety enclosure with door interlocks

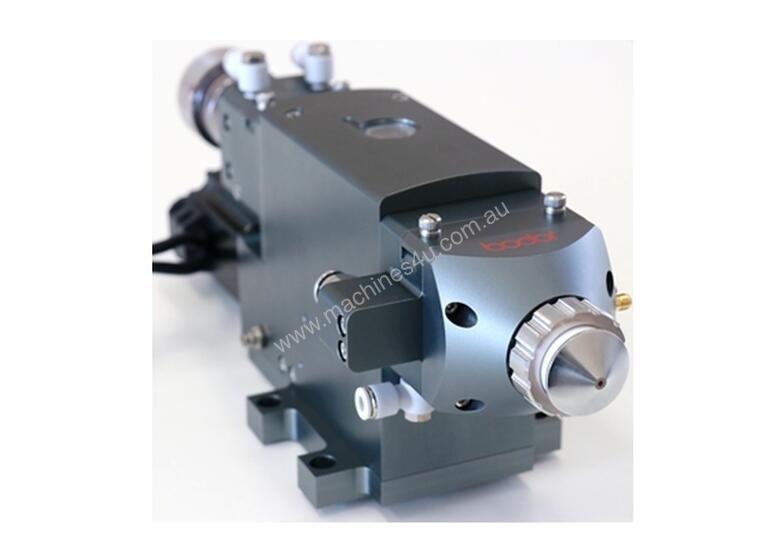

- Bodor’s own Genius cutting head with programmable motorised lens and Collision Protection
- Max sheet weight is 900kg
- Rack & pinion drive (X & Y), ballscrew (Z) servos & motors are Schneider France
- Positioning accuracy 0.05mm
- Reposition accuracy 0.03mm
- Max acceleration 1.5G
- Max. compound moving speed (X&Y) 130m/min
- Max. cutting speed 35m/min
- Min. kerf width 0.1mm

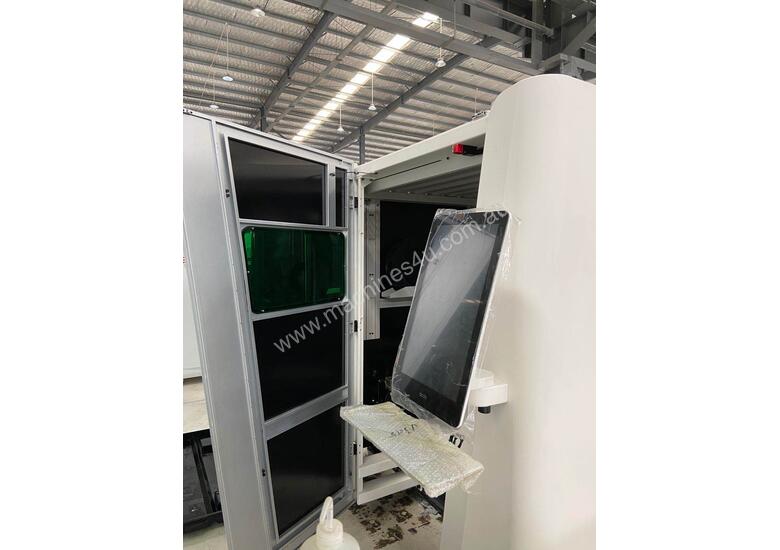

- Bodor Pro2.0 Control with 21.5 touch screen. Service dial in feature
- File formats accepted G Code, DXF,DWD,PLT,ENG
- Active obstacle avoidance function.
-
