STANDARD FEATURES
Multi-function, variable speed platform controls
Oscillating front axle
Proportional controls
Power line to platform (no sockets)
Amber beacon
Zero tailswing
Hour meter
Wide rough terrain tyres, foam-filled
Drive motion alarm
CE approved
OPTIONS
Special paint colours
AC generator 110/200w
Airline to platform
Cold weather package
Light package
Extreme environment package

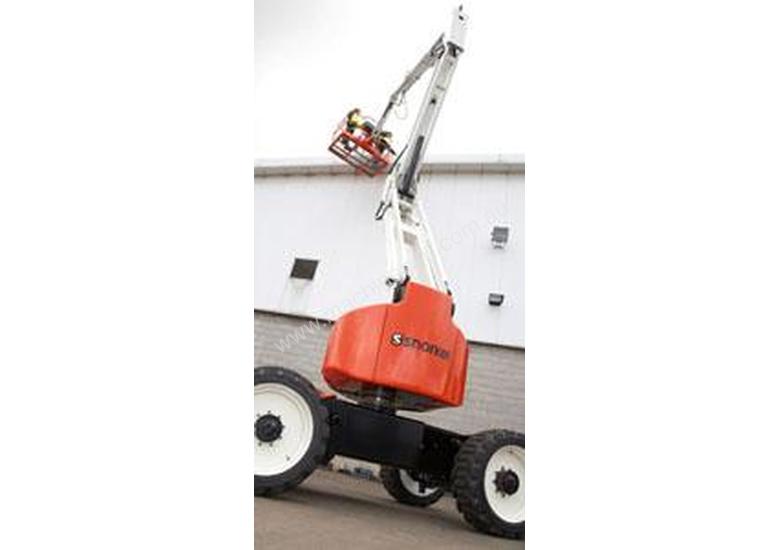

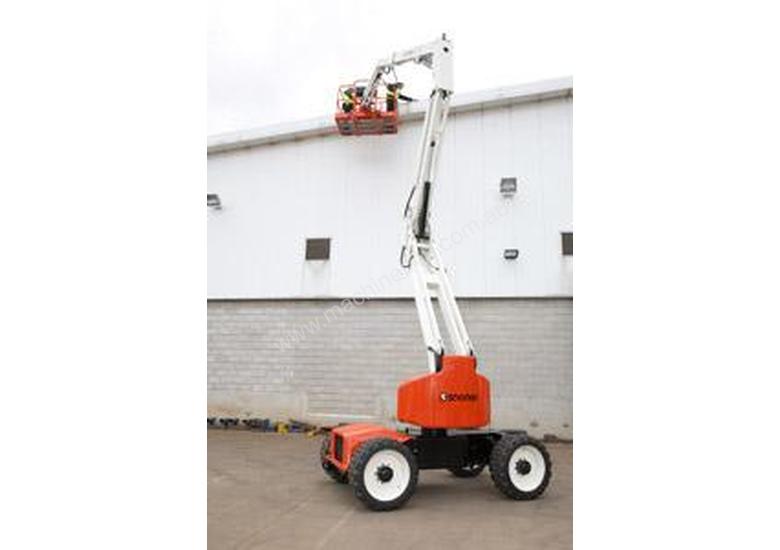

DIMENSIONS A46JRT
Max. working height 16.3m
Max. platform height 14.3m
Max. working outreach 7.4m
Platform size 1.0 x 1.85m
Overall width (A) 2.1m
Overall length (B) 5.6m
Stowed height (C) 2.1m
Ground clearance 330mm
PERFORMANCE
Platform capacity (SWL) 227kg
Max. drive height 14.3m
Max. drive speed (stowed) 7.2km/h
Max. drive speed (elevated) 1.2km/h
Jib length 1.5m
Jib arc 140°
Platform rotation 160°
Turret rotation 360° non-continuous
Raise/lower time 120/112 seconds
Gradeability 45%
Inside turning radius 0.80m
Outside turning radius 3.1m
Tyres High grip
355/55D625NHS 17.5
Controls proportional
Drive system 4 wheel drive
POWER
Power source Kubota V1505T Diesel
All Snorkel lifts and aerial work platforms are built to the highest standards and we carry out rigorous quality checks at every stage of production.
To ensure our customers have peace of mind in purchasing Snorkel products, all our lifts and aerial work platforms come with a Snorkel five-year structural warranty, plus a one-year warranty for parts and labour.
So if you do encounter a problem with your new Snorkel lift, your local Snorkel dealer will provide a quick solution.
