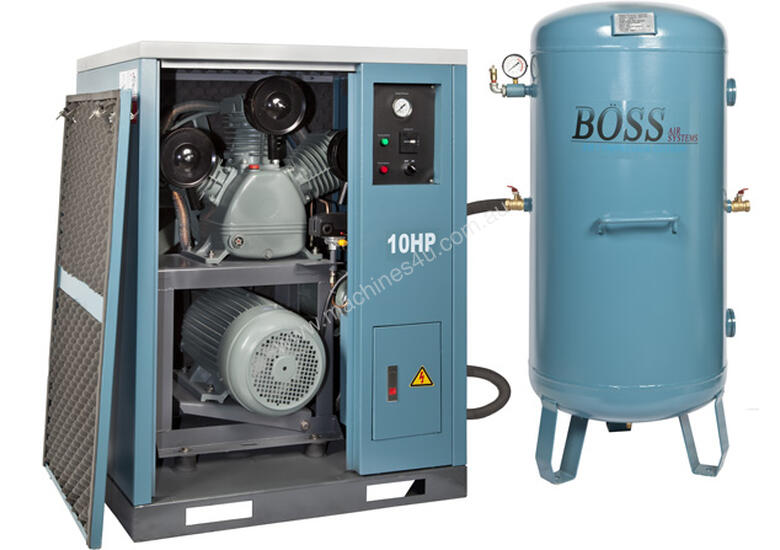

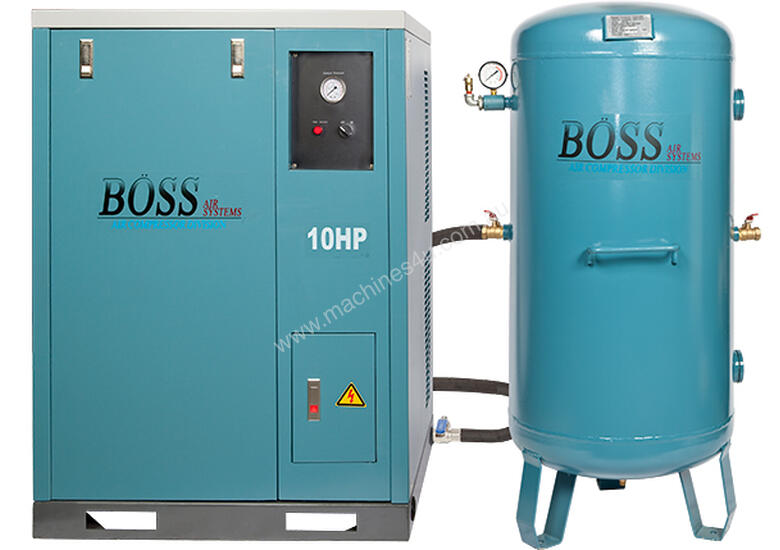

BOSS 48CFM/ 10HP Silent Air Compressor with 220 Litre Vertical Air Receiver.
Australian Standards AS1210
WHY SO SILENT?
These units are built with a special sound proof housing, with a unique fan-forced, ducted cooling system. This enables the unit to run up to 50% cooler than standard receiver mount compressors. All models are fitted with superior shock absorbers to ensure low noise and vibration. The future is here and every workshop deserves a quiet, modern design air compressor.
FEATURES
•Quiet By Design
Steel Cabinet lined in noise reduction insulation, large intake filters & low rpm.
•Low Speed Motor
High- Efficiency 1450rpm electric motors for maximum durability and extended life.
•Low Speed Pump
Cast iron pumps with stainless steel reed valves increase life of unit and low noise level.
•Cooling System

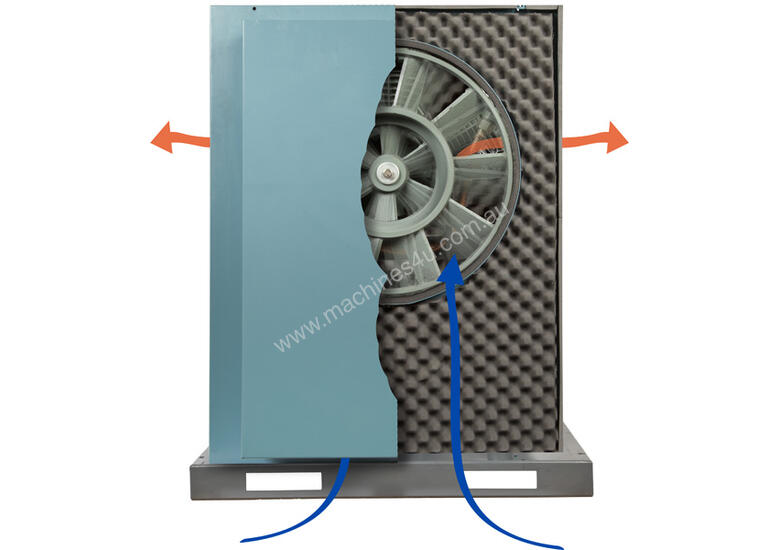

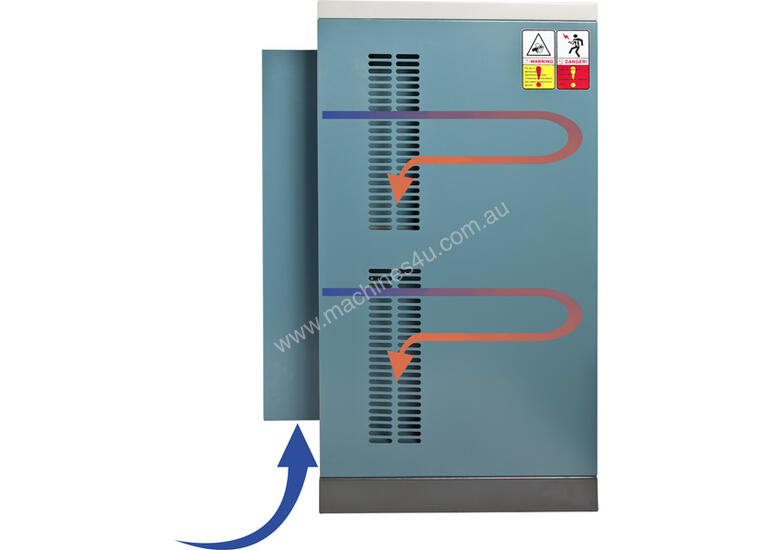

Fully ducted cooling system allows the unit to run cooler with a low discharge temperature.
•Large Air Receivers
designed and certified to Australian Standards AS 1210.
•Service Friendly
Easy access to adjust belt tension, all panels can be removed in minutes for easy maintenance.
•Quality Components
ASME Standard safety valve, Australia Standards V-belts, high quality telemecanique electrics, German condor pressure switch, all compressors are fitted with high quality components.
Specification
Pump Displacement: 48 CFM (1,363 L/min)
Free Air Dery: 30 CFM (900 L/min)
Number of Cylinders: 3 Cyl
Pump Speed: 850 RPM
Motor Power: 7.5 KW (10HP)
Power Circuit Required: 25 Amps
Tank Volume: 220L Vertical Tank
Maximum Outlet Pressure: 125 psi
Noise Level: 68 dB (A)
Outlet Size: 3/4" inch BSP F
Dimensions (Compressor): 85 x 75 x 111 cm
Weight (Compressor): 290 Kg
Dimensions (Tank): 50 Dia x 120 High (cm)
Weight (Tank): 80 Kg
Warranty: 12 Months Parts and Factory Labour Warranty
