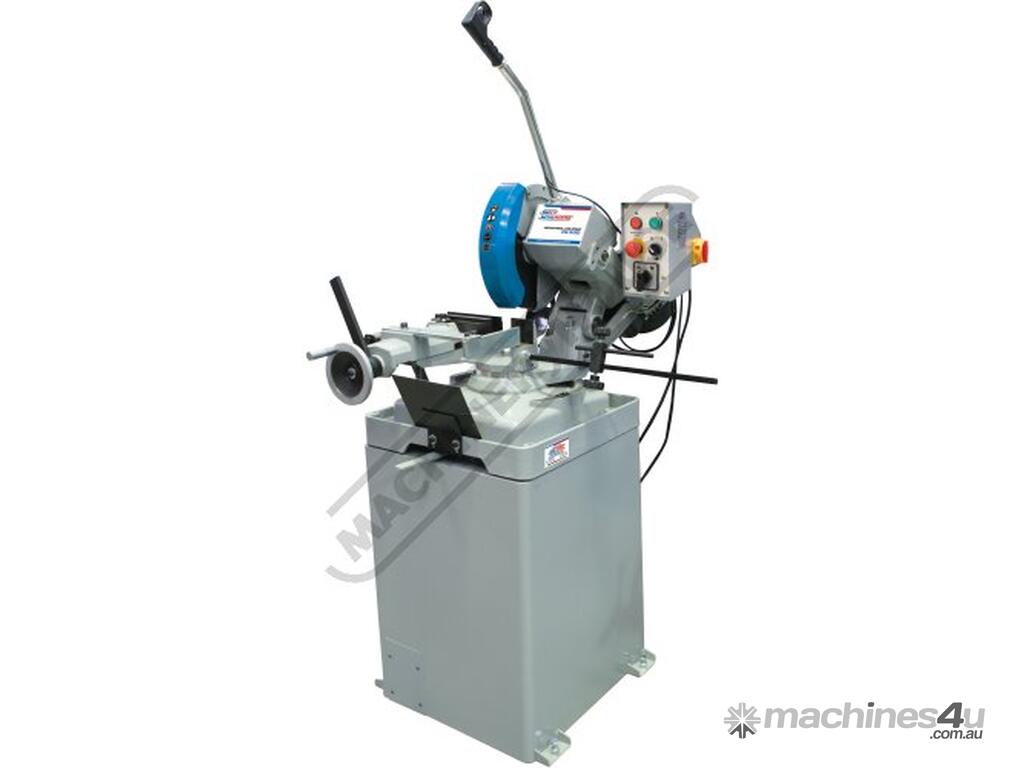

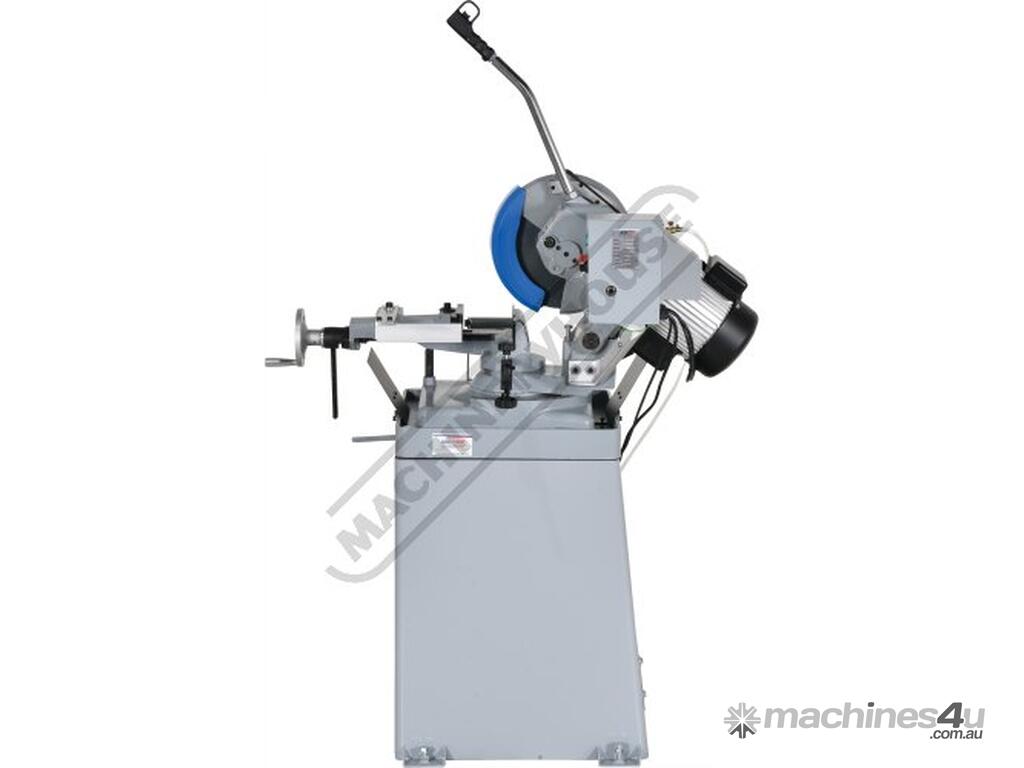

CS-315D Cold Saw, Includes Stand 110 x 70mm Rectangle Capacity Ø315mm Blade, Dual Speed 22 / 44rpm

HAFCO METALMASTER CS-315D Cold Saw, Includes Stand 110 x 70mm Rectangle Capacity Ø315mm Blade, Dual Speed 22 / 44rpm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S828

Manufactured in Taiwan

The Hafco MetalMaster manual cold saw consists of a 315mm circular saw blade that runs at a relatively slow speed in conjunction with a coolant system. These cold saws are designed to cut at 90º, or mitre up to 45º in either left or right side of the material simply by releasing the lever located at front of machine. Each machine comes standard with a very heavy and strong cast iron frame base with a cast dual pivot saw head supported by an industrial swivel base system, which makes a MetalMaster cold saw one of the most rugged machines on the market.

The MetalMaster manual cold saw head is well balanced and uses a long actuating handle giving the operator greater leverage and control to guide the saw blade through the work piece of tubing or pipe etc., with ease and utilises a quality head retraction system for returning the cold saw head to the start position. The vice clamps the work piece on both sides of a cut, which extends blade life because the cut off does not drop into the blade.

Features:
Rugged cast iron construction offers years of accurate cutting
Lock at any angle between -45° or +45° mitre in both directions via locking lever

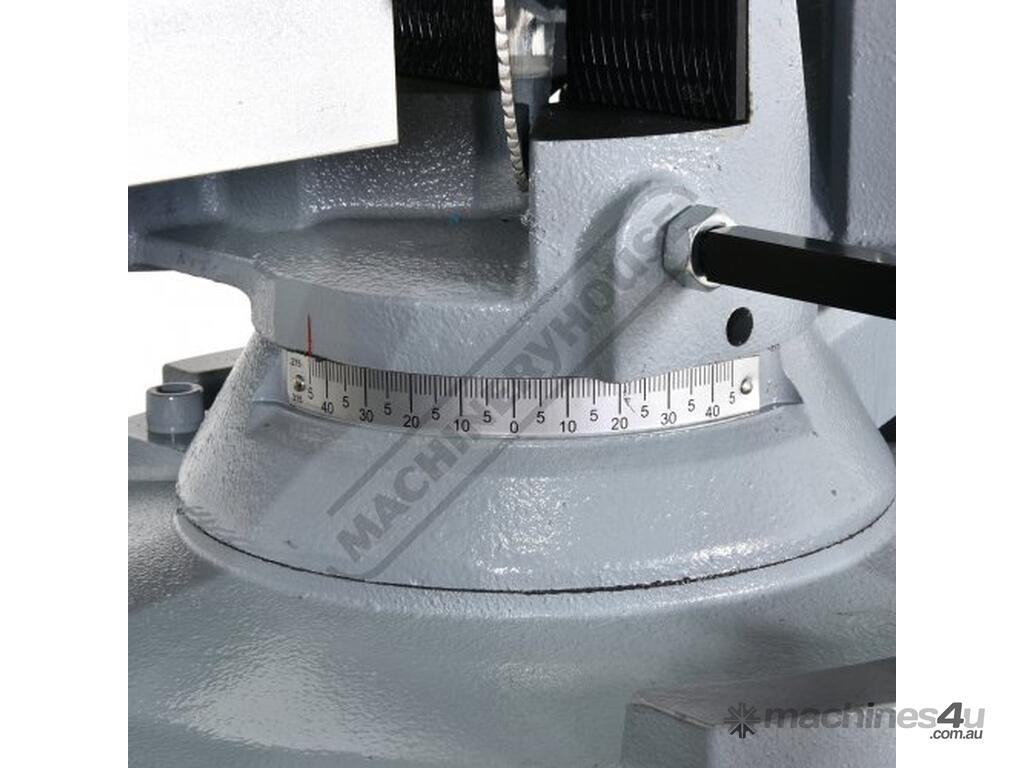

Degree markings engraved onto swivelling base for quick and accurate mitre cutting

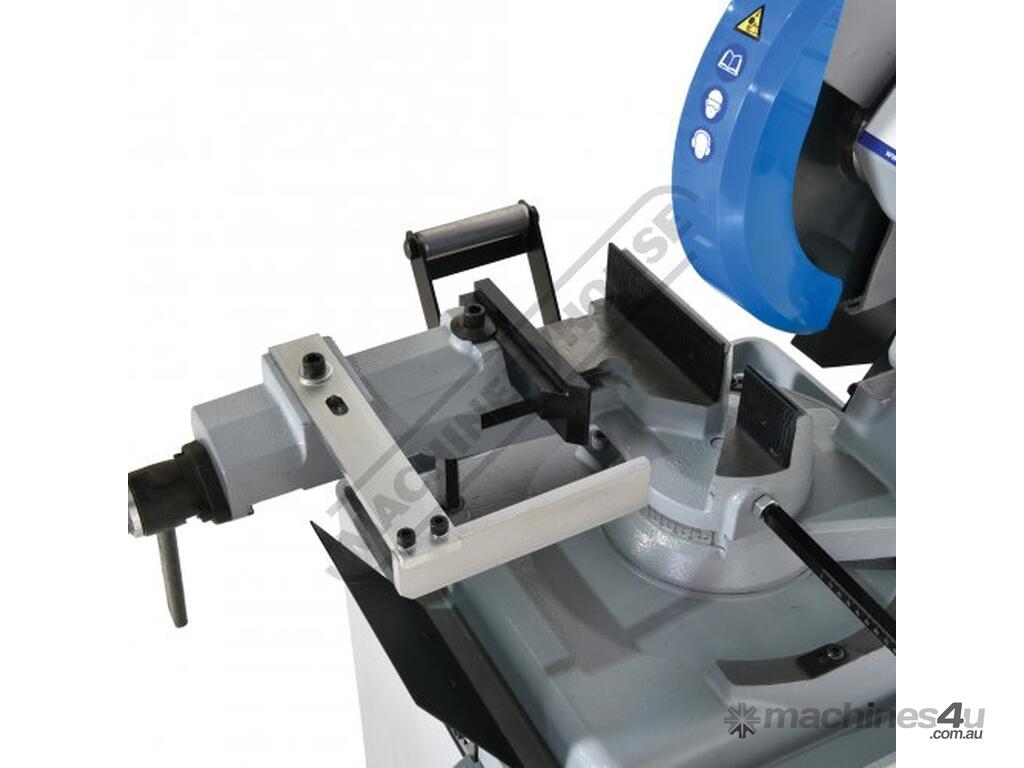

Dual material clamp system providing burr free cuts on both pieces of material
Quick action vice clamp lever designed to increase production

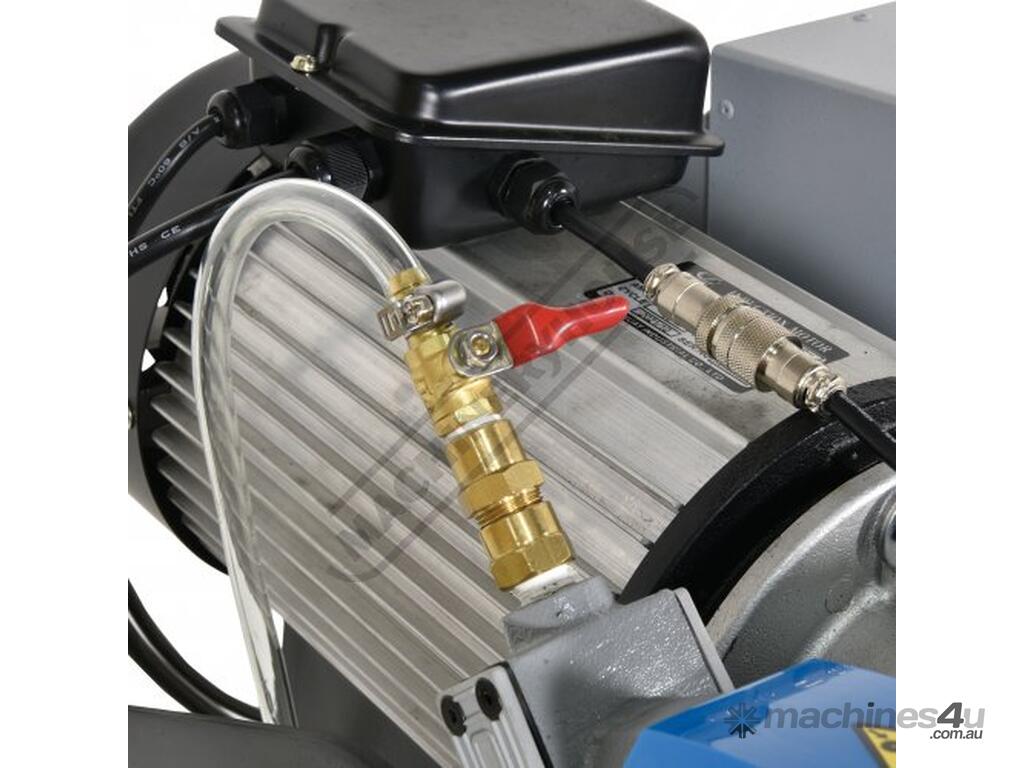

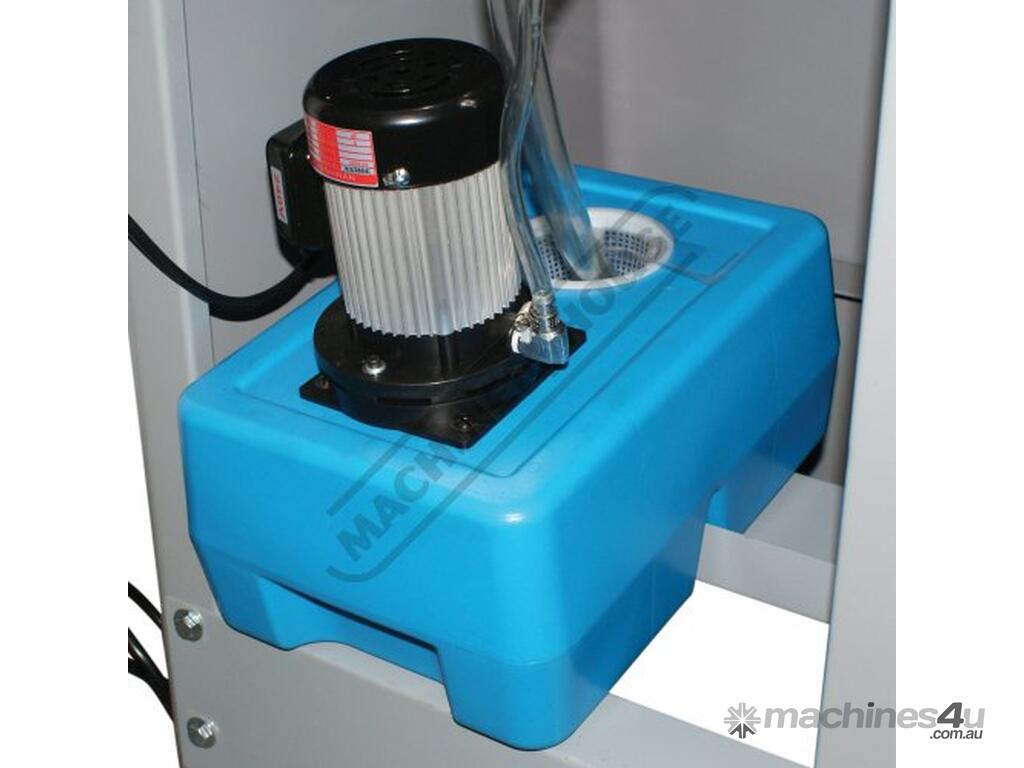

Built in blade coolant pump system with flow control valve
Oil sight glass located on right side of the gearbox so operator can maintain correct lubrication levels according to specifications provided

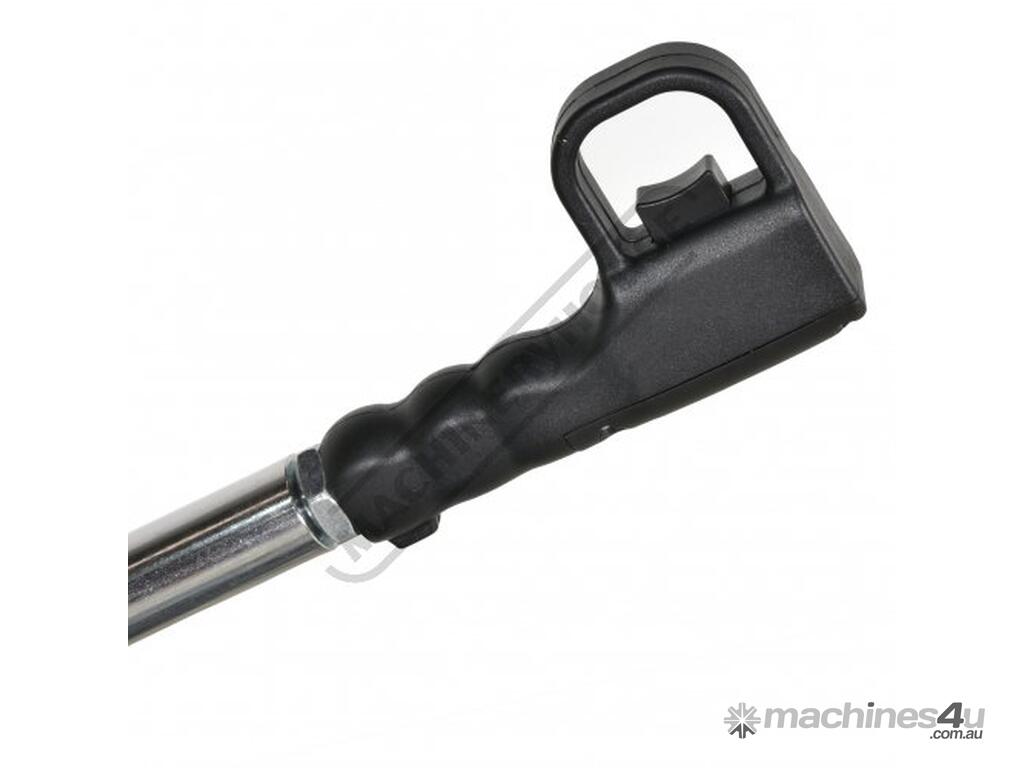

Dead man trigger switch located on cutting handle provides operator safety on/off power control
Automatic retract safety blade guard covers blade when returned to home position
Spring assisted head return provides a even balance during cutting operation and reduces operator fatigue
HSS cutting blade is included for general types of material and thickness

Includes:
- Blade
- Stand
- Coolant system

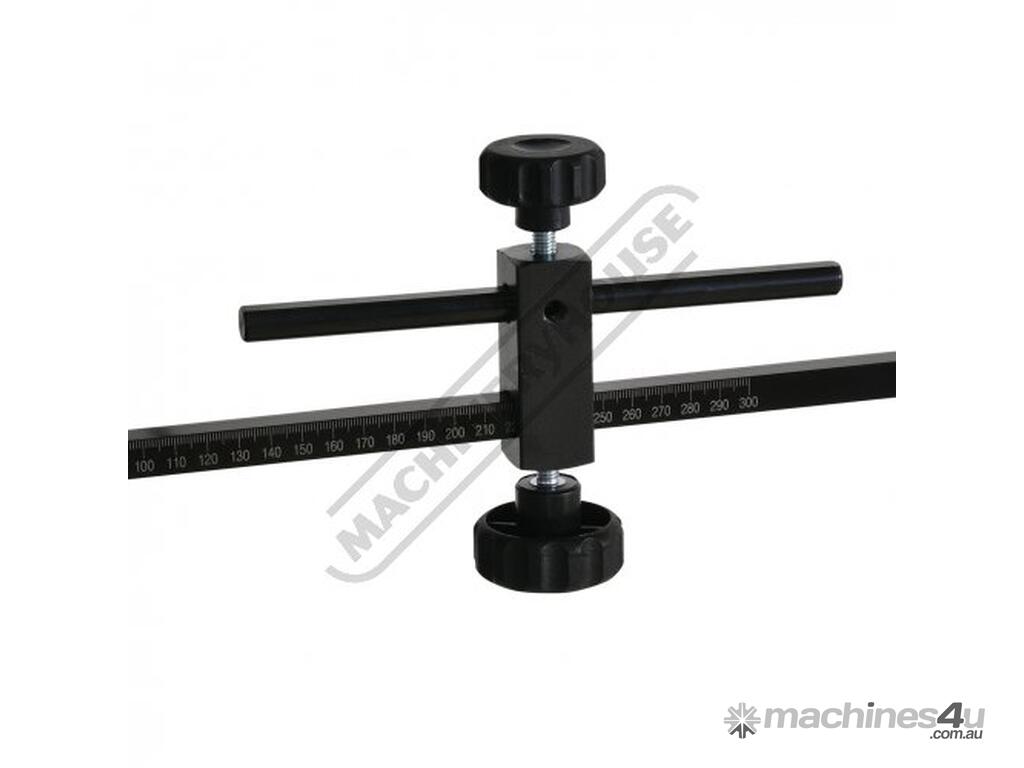

- Material length stop



Specifications:
ORDER CODE: S828
MODEL: CS-315D
Cutting Head Action: Manual
Operation Type: Swivel - Dual Mitre
Round Capacity 90º / 45º (mm): 100 / 90
Square Capacity 90º / 45º (mm): 82 / 75
Rectangle Capacity 90º / 45º (WxH) (mm): 110 x 70 / 85 x 70
Blade Size - Diametre. x Bore (Ø) (mm): 315 x 32
Vice Clamping Fixture: Manual
Coolant System: Yes
Table Working Height (with Stand) (mm): 980
Blade Speed (rpm): 22 / 44
Motor Power (kW / hp): 1.5 / 2
Voltage / Amperage (V / amp): 415
Shipping Dimensions (L x W x H) (cm): 94 x 63.5 x 94
Nett Weight (kg): 175
