ELUMATEC machining centre SBZ122/53 German Quality

Elumatec Profile Machining Centre SBZ122/53

The profile machining centre 122/53 is designed for the working of profiles on five sides in automatic door manufacturing with single or multiple locking along with other industrial applications.

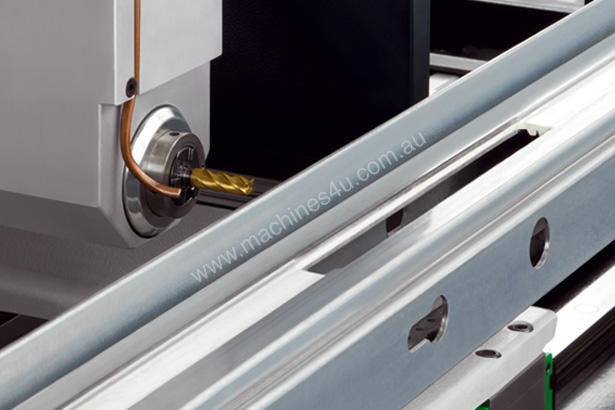

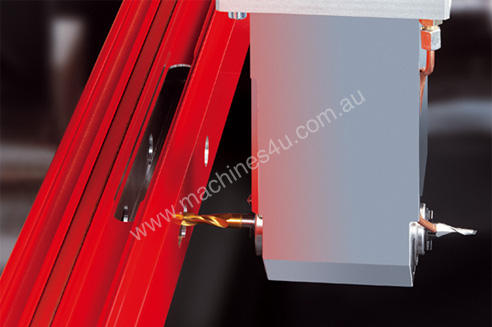

> A turning gear integrated in the spindle allows the adjustment of the rotating angle head to 0°, 90°, 180°, and 270°. That way a profile can be worked in the front, from behind, and on the face side with two different tools.
> For tapping an especially powerful torque in the lower rpm-range is provided for by the "Power Torque Spindle".

TECHNICAL SPECIFICATIONS:

Standard workable length 3,850 mm
Travelling capacity X axis 3,850 mm
Without processing of ends of profile
Travelling capacity Y axis 350 mm
Travelling capacity Z axis 280 mm
Fast feed Y – Z; max. 30 m/min.
Fast feed X axis; 60 m/min.
Positioning accuracy +/- 0.1 mm
Spindle speed 1-24,000 rpm
Power output router spindle 7.0 kW S1 Power Torque
Tool support for 6 tools
Tool Holder HSK F63


STANDARD FEATURES:

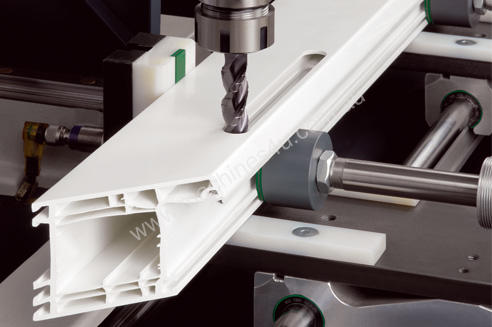

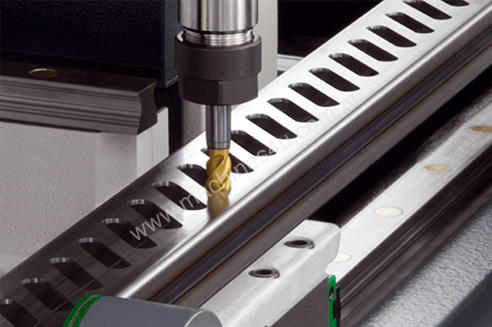

Efficient processing of aluminium, PVC and light steel profiles.
Workable length 3850mm.
Simple graphical operator guidance.
Automatic clamp position recognition.
1-sectional clamping system.
Continuous support table.
Complete profile processing on 5 profile faces, with the profile static to protect its visible surface.
Fast positioning of the processing unit (up to 60 m/min.) in the X axis by robust and abrasion proof direct drive.
High capacity three phase current servo drives with resolver and digital servo regulator.
Network connection RJ 45 10/100 Mbit.
Power torque router spindle for higher torque at lower rpm.
Latest technology CNC 3-axis Industrial PC control based on Windows 7.
Flat Screen, 15” with 2 x USB connections for on-line connection and optional barcode scanner .
Easy processing data input via EluCam 3-D display.
High resolution absolute encoders require no axis referencing.


STANDARD EQUIPMENT:

Automatic tool changer with 6 tool holders (without tools)
Front light barrier for operator protection
Four (4) horizontal pneumatic material clamps.
Automatic clamp position recognition.
Material stop. (Pivoting)
Central chip collection with chip tray.
Tool measuring gauge.
Pulsed spray coolant system.
High performance cutting fluid.
Spindle integrated turning device to allow the angle head to rotate to 0°, 90°, 180° and 270°.
Angle head is double sided so two different size tools can be used.
Left and right hand safety fences for protection from both sides.
