F150 OPTi OPTIMUM CNC MILLING MACHINE

F150 OPTi OPTIMUM CNC MILLING MACHINE
With Siemens 808AD CNC Control
(X) 750mm (Y) 500mm (Z) 500mm Travel

LIKE-NEW CONDITION – ONLY 20 HOURS OF OPERATION! ????
Priced to sell – A STEAL for a machine in this condition!
BONUS: Madaula Speed Increaser INCLUDED – A valuable upgrade at no extra cost!

Machine Overview:

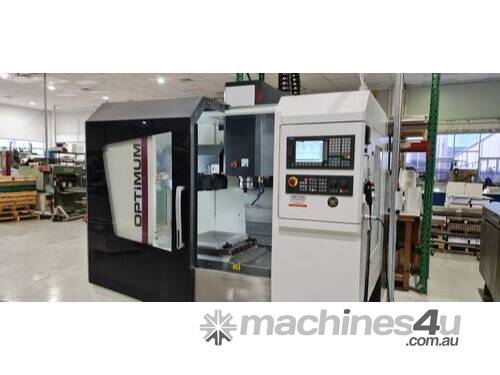

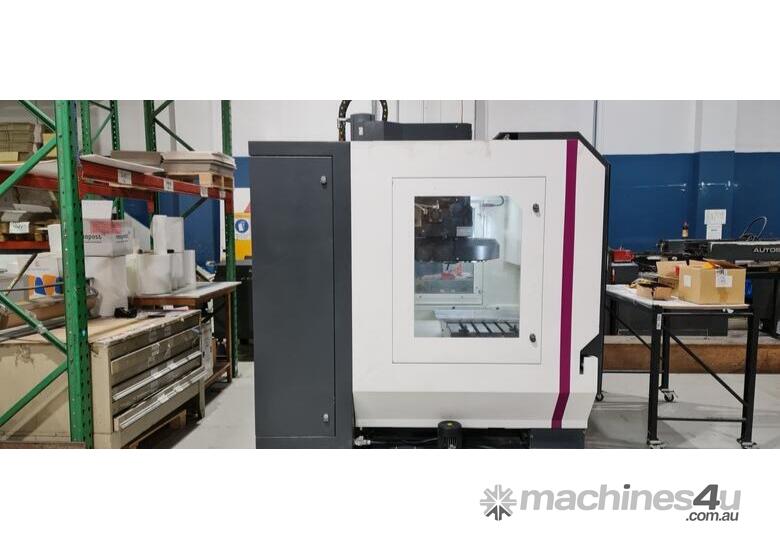

This F150 OPTi OPTIMUM CNC Milling Machine is essentially brand new, having been run for just 20 hours. Equipped with the Siemens 808AD CNC control, this machine offers a user-friendly interface, precise motion control, and exceptional efficiency.

With 750mm x 500mm x 500mm travel, a 10,000 RPM BT40 spindle, and a 16-tool automatic tool changer (ATC), this is the perfect investment for precision machining, prototyping, and small-batch production.

Why buy new when you can get this LIKE-NEW machine for a fraction of the cost? Plus, the Madaula Speed Increaser is included as a BONUS – saving you thousands!

Key Features & Benefits:
Only 20 hours of runtime – Like NEW!
Siemens 808AD CNC Control – Powerful and intuitive interface.
Large Working Area – 750mm x 500mm x 500mm travel.
High-Speed 10,000 RPM Spindle – BT40 spindle for smooth, precise operation.
16-Tool ATC – Quick, automated tool changes for seamless machining.
Heavy-Duty Cast Iron Frame – Superior rigidity and vibration resistance.
Built-in Coolant & Chip Management – Keeps your workspace clean.
Complete Tooling Package Included – Ready to go straight to work!
Bonus Madaula Speed Increaser – High-speed performance boost at no extra cost!

Technical Specifications:
Work Area & Travel:
X-Axis Travel: 750mm
Y-Axis Travel: 500mm
Z-Axis Travel: 500mm
Table Size: 900mm x 500mm
Table Load Capacity: 350kg
T-Slot Size: 16mm
Spindle & Tool System:
Spindle Taper: BT40
Max Spindle Speed: 10,000 RPM
Spindle Drive Type: Direct Belt-Driven
Spindle Motor Power: 7.5 kW

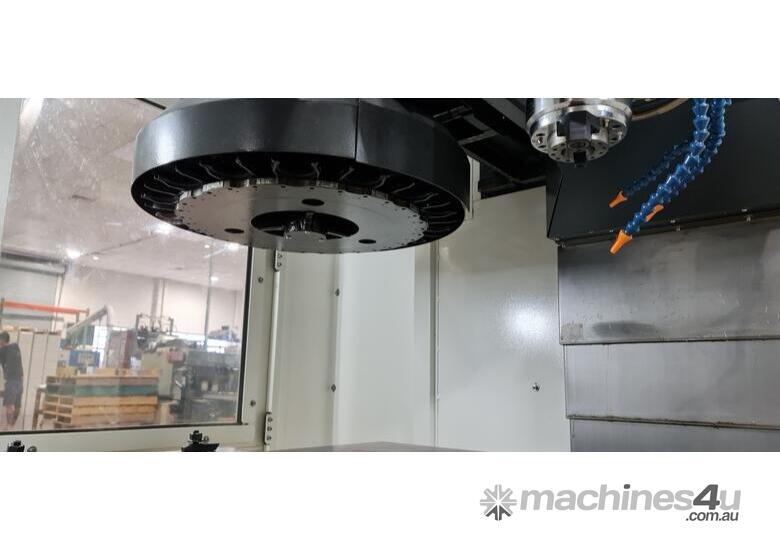

Tool Changer: 16-Tool Automatic Tool Changer (ATC)
Control System:

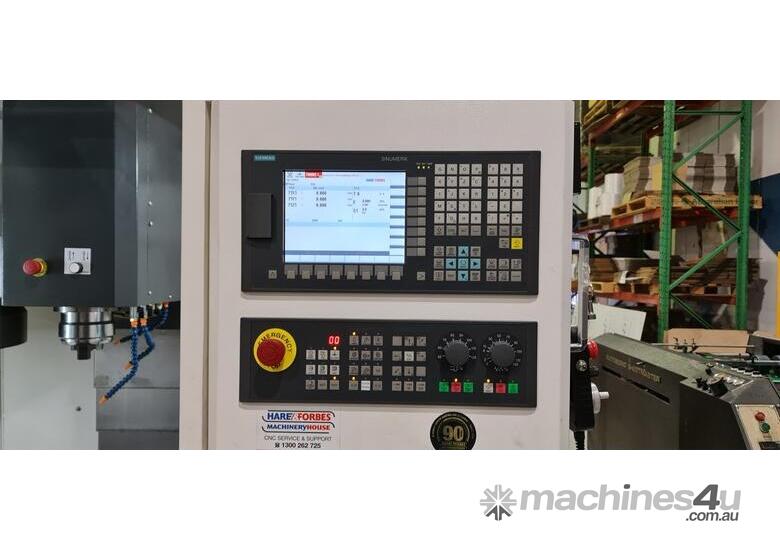

CNC Control: Siemens 808AD
Screen Type: LCD Color Display
Control Features:
User-friendly interface
High-speed interpolation
RS232, USB & Ethernet connectivity
G-code and conversational programming
Included Accessories & Tooling:
Collet Chuck: BT40-ER16-100 (Qty: 6)
Pull Studs: BT40X 45° 16mm (Qty: 6)
???? Madaula Speed Increaser: (Qty: 1) – BONUS!
Collets: ER 6-5mm (Qty: 5)
Clamp Kit: M12 (Suit 16mm slot) (Qty: 1)
Wrench: Suitable for ER16 Collet
Machine Construction & Build:
Machine Frame: Heavy-duty cast iron construction
Guideways: Precision linear guides for smooth and accurate movement
Cooling System: Integrated coolant and lubrication system
Chip Management: Efficient chip conveyor and collection tray
Electrical & Power Requirements:
Power Supply: 3-Phase, 400V, 50/60Hz
Total Power Consumption: 10-12 kW
Machine Dimensions & Weight:
Overall Dimensions: Approx. 2200mm (L) x 1900mm (W) x 2500mm (H)
Machine Weight: Approx. 2,500kg
Condition & Availability:
Condition: Used, but essentially brand new (ONLY 20 hours runtime)
Location: South East Melbourne
Availability: Ready for immediate dispatch
Shipping Options: Pickup
This machine is a rare find – Don’t miss out!
