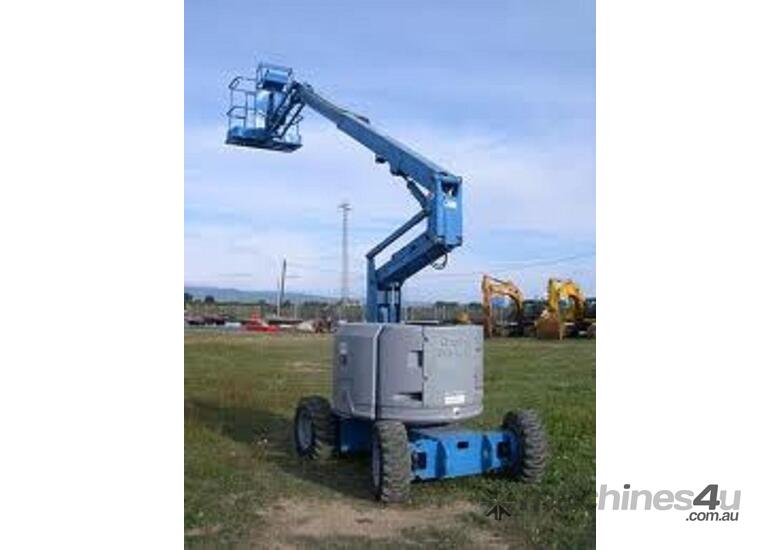

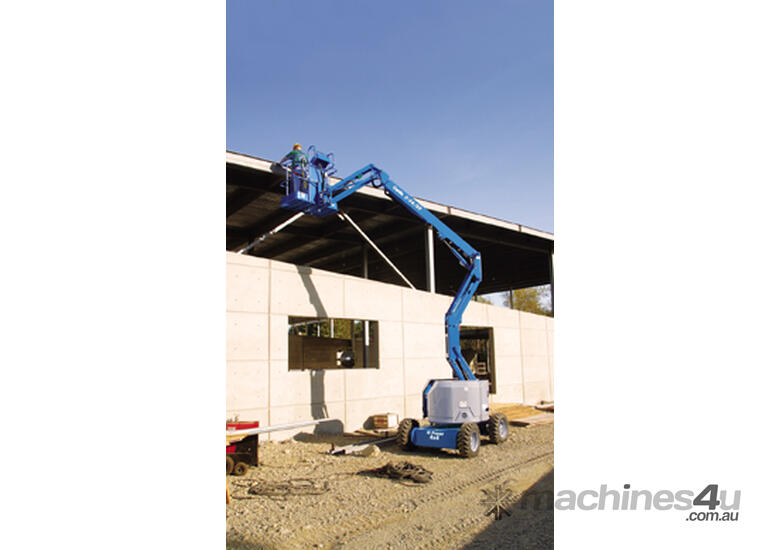

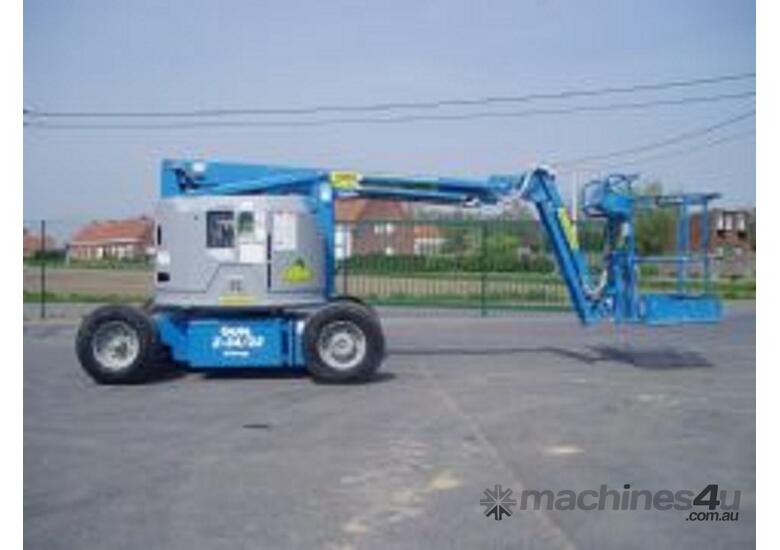

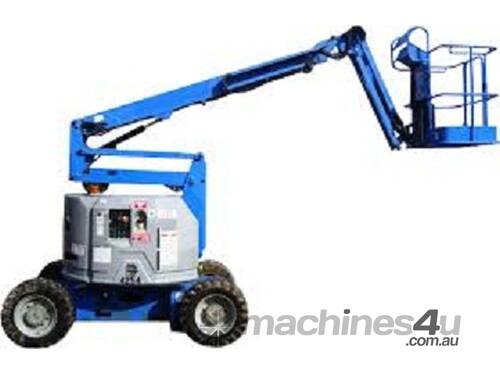

Genie Z34/22 4WD Diesel Articulating Knuckle Boom

Genie Z34/22N 4WD Diesel Articulating Knuckle Boom
Get the reach and reliable performance you need to get the job done from the ever-growing line of Genie® articulating booms. Electric or engine-powered – for indoor, outdoor or rough terrain applications – there's a Genie® lift for every job.
Genie® articulating Z™-booms provide the ultimate in versatility with up, out and over positioning capabilities for hard-to-access work areas.

One of the most popular and versatile boom lifts available.

Z34/22 IC Specs
• 12.62 m (40 ft 10 in) working height
• 6.78 m (22 ft 3 in) horizontal reach
• 4.57 m (15 ft) up and over clearance
• Up to 227 kg (500 lbs) lift capacity
PRODUCTIVITY
• 1.42 m (4 ft 8 in) steel platform
• 4WD
• Rough terrain foam-filled tyres
• 1.22 m (4 ft) jib with 139° working range
• Self-leveling platform
• Hydraulic platform rotation
• Fully proportional controls
• Drive enable
• Horn
• Hour meter
• Tilt alarm
• Descent alarm
• 355° non-continuous turntable rotation
• Locking turntable covers
• Zero tailswing and front arm swing
• Two speed wheel motors
• Engine gauge package
• Alarm package
• Dual flashing beacons
POWER
• 12 V DC auxiliary power
• Kubota D-1105 3-cylinder diesel
18 kW (25 hp)

STM Equipment is the market leaders in sales of new & used EWP equipment. We are also the factory appointed, Authorised Merlo Telehandler Dealer for the Sydney Basin and Regional NSW.

At STM Equipment we strive to be Australia’s number one provider of all facets of Access & Lifting solutions to new and existing customers. Our Sales & Operations team have a combined total of over 50 years’ experience in the access industry. We also specialise in 10-year re-certification of EWP equipment, preventative maintenance and scheduled servicing. In addition to this STM Equipment also carry out all Merlo warranty and service work in our area.

At STM Equipment no job is too big or small, and we are happy to assist you in any of your equipment needs Australia wide.

Need Transport? Then ask about our Nation-wide delivery service today.

Call our team of specialists today
