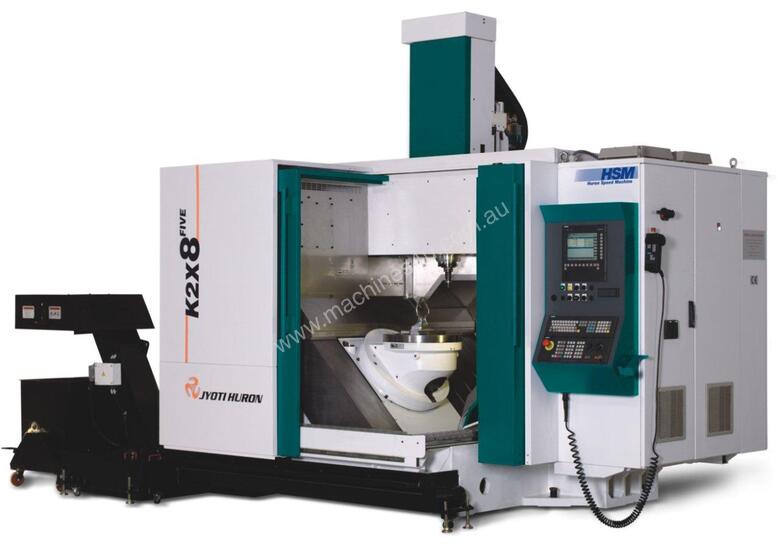

5 Axes machining center for machining complex and precision parts.
-Portal Architecture
- Rotary axes with Torque motors
- Direct Measurement in all 5 axes
- 5 Axes powerful algorithms in torque, speed, acceleration and jerk.
- Excellent performance during roughing as well as finishing.
Specifications :
Travels X/Y/Z (Linear Axes) 50 /700 / 450mm
Travel A (Rotary Axes) -45 / +180 deg
Travel C (Rotary axes) 360 deg
Spindle Taper HSK 63A
Spindle Speed Standard 24000 RPM
Spindle Power 18/24 KW
ATC 20 Pockets
We :
strive hard to minimise downtime
assure quick response to service calls
maintain stock of necessary spare parts to meet your needs
offer annual maintenance contracts
provide additional training for operating & maintenance of our machines when needed
have factory trained engineers to attend to field concerns
