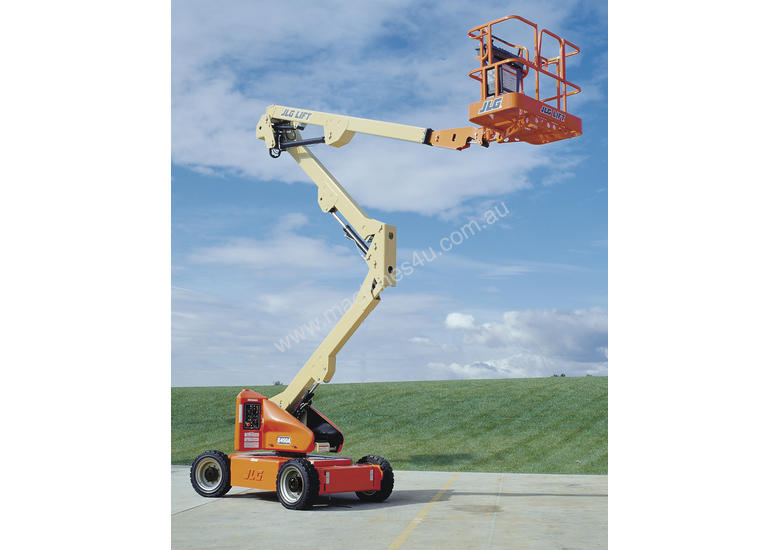

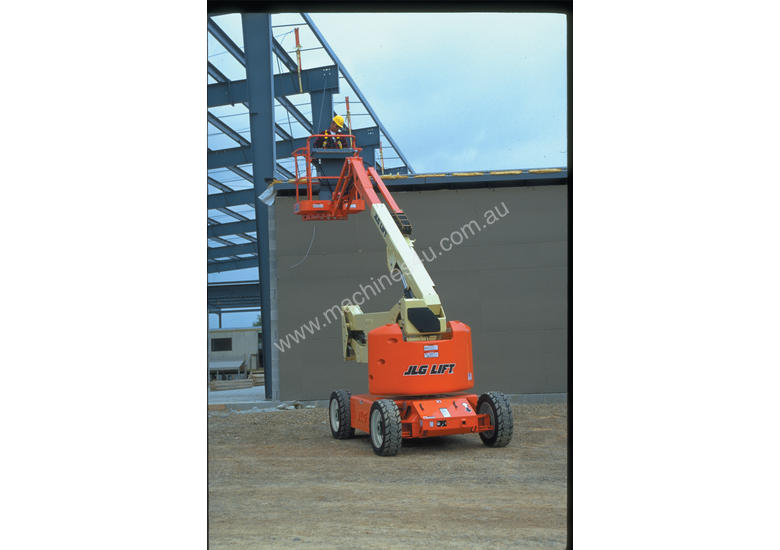

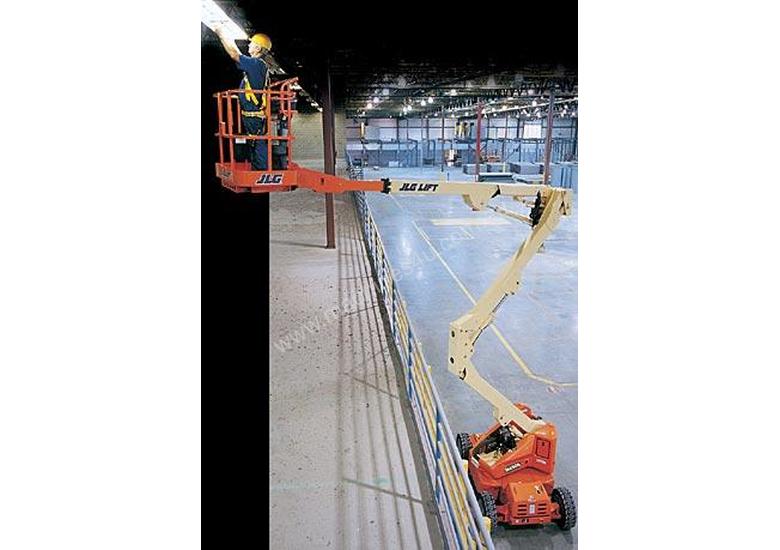

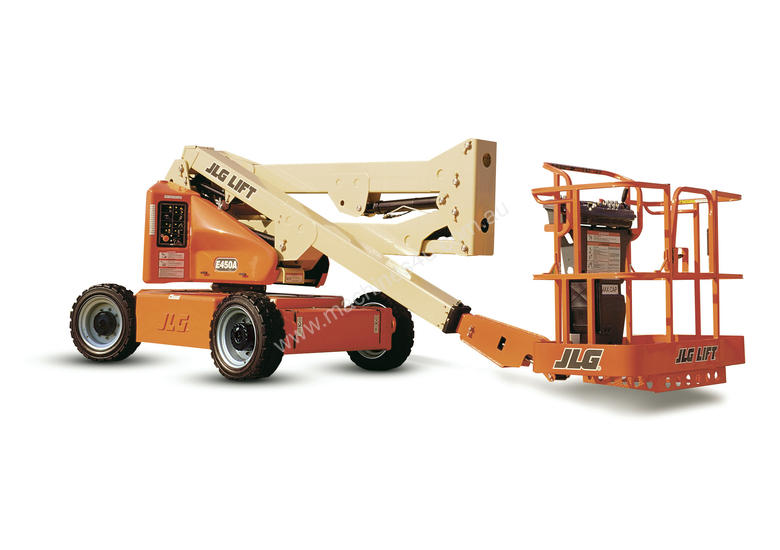

JLG M450AJ Electric Boom Lift

JLG - M450AJ Electric Boom Lift
Electric Boom Lifts - E450/M450 Series Electric Boom Lift

Think ORANGE to stay GREEN. Today, more people are demanding environmentally friendly equipment. JLG has a line of electric boom lifts to help your job site stay clean and green. You can go up to 60 feet, and still not have emissions or loud engines.

You can work on slab or off without hesitation with the non-marking all-terrain tires. With the Automatic Traction Control, optional all-wheel drive and oscillating axle, standard on the E600 Series, you won’t need to be shy about travelling over rough terrain.

The optional articulating jib, gives you even greater access to hard-to-reach places. And, the Multi-Power option gives you round-the-clock operation and faster battery charging with the QuikCharge GenSet Automatic Charging System.

Features:
Versatility – Three platform heights and jib and non-jib options; three chassis widths to fit any workspace; electric or multi-fuel
Accessibility – up and over access, optional jib
Maneuverability – move over uneven surfaces with the Automatic Traction Control option
Productivity – work longer with longer duty cycles
Environmentally friendly – zero emissions

Quick Specs:
Platform Height Elevated – 45 ft
Overall Width – 5 ft 9 in
Platform Capacity – 500 lb

Dimensions:
Platform Size- 30 x 60" / 0.76 x 1.52 m
Overall Width- 5' 9" / 1.75 m
Tailswing- Zero
Stowed Height- 6' 7" / 2.01 m
Stowed Length- 21' 2" / 6.45 m
Wheelbase- 6' 7" / 2.01 m
Ground Clearance- 8.5" / 22 cm
Weight*-14,700 lb / 6,668 kg
Ground Bearing Pressure**- 75 psi / 5.25 kg/cm²

Reach Specifications:
Platform Height- 45' / 13.72 m
Horizontal Outreach- 23' 9" / 7.24 m
Up and Over Height- 25' 3" / 7.7 m
Swing- 360º Non-Continuous
Platform Capacity- 500 lb / 227 kg
Platform Rotator- 180º Hydraulic
Jib (Range of Articulation)- 141º (+86, -55) Vertical

Chassis:
Drive Speed- 3.2 mph / 5.2 kmph
Gradeability- 30%
Turning Radius (Inside)- 2' / 61 cm
Turning Radius (Outside)- 10' 4" / 3.15 m
Tire Size- 240/55 x 17.5
Tyre Type- Pneumatic

Power Source:
Electrical System- 48V DC
Batteries- 8 x 6V, 370 amp-hr
Drive Motors- Dual Electric Traction
Brakes- Spring Applied Multiple Discs
Hydraulic Motor/Pump- Perm. Magnet Motor/Gear Pump
Hydraulic Reservoir- 4 gal. / 15.14 L
Generator Set (M Models)- 45 Amp Kubota 6.7 hp Air-Cooled Engine
Engine Fuel Tank (M Models)- 4 gal. / 15.14 L
Noise Level- 70 dBa 7 meters

Available Options:
-Fall Arrest Platform 36" x 72" (.91 m x 1.83 m)
-Padding for Platform
-Solid Non-Marking Tires
