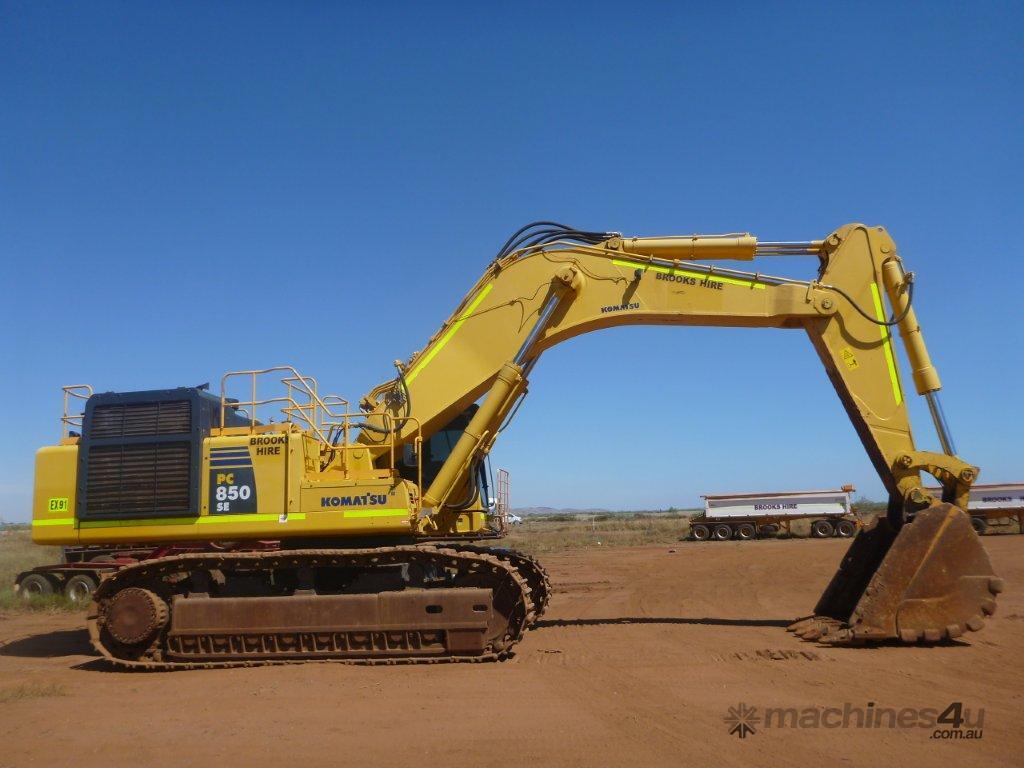

Komatsu Excavator PC850-8EOSE, YOM 2011, Operating Weight 79800 kg, Fire Suppression Auto S&F

Serial Number: 65022
Engine Number: 537537

Inclusive of:
Arm 2900mm SE,
Boom 7100mm SE,
Shoes 610mm DG Holes,
Top/Guard,
Level 2, Autogrease S&F 22pt/10kg VOGEL;
Battery Isolation Switch Only,
Canvas Seat Cover,
Fast Fuel & Evacuation HYD ENG;
Fire Suppression Auto S&F,
Idle Timer (Turbo Timer);
Radio 40 Channel UHF/CB, Radio AM/FM & CD,
Window Tinting,
Workshop Manual;
BKT Rock 2090/4.5 HEN tth CONT

PERFORMANCE
Operating Weight 79800 kg
Swing speed 6.8 rpm
Bucket digging force (ISO) 30000 kgf
Arm crowd force (ISO) 32300 kgf
Digging depth – maximum (mm) 8445
Digging reach – maximum (mm) 13660
Maximum reach ground level (mm) 13400
Horsepower, Gross – SAE (kW) 370
Horsepower, Net – ISO (kW) 363
Horsepower, Net – SAE (kW) 363
Rated RPM 1800
Fan drive method, Mechanical
Displacement (litres) 15.24
Number of cylinders 6



DIMENSIONS
Overall height 12960mm
Overall Length 4300 mm


WORKING RANGE

Max. digging height 11955 mm
Max. dumping height 8235 mm
Max. digging depth 8445 mm
Max. vertical wall digging depth 5230 mm
Max. digging depth of cut for 8? level 8310 mm
Max. digging reach 13660 mm
Max. digging reach at ground level 13400 mm
Min. swing radius 5985 mm
