Product Specifications:
Support material: FullCure 705 non-toxic gel-like photopolymer support
Material cartridges: Four sealed 1 Kg (2.2 lbs) cartridges
Net build size: 294 x 192 x 148.6 mm (11.57 x 7.55 x 5.85 in.)
Minimum layer thickness: 28 microns (0.0011 in.) for Tango materials; 16 microns (0.0006 in.) for all other materials
Build resolution: X-axis: 600 dpi; Y-axis: 600 dpi; Z-axis: 1600 dpi
Accuracy: 0.1 mm (0.0039 in.) may vary depending on part geometry, size, orientation, material and post-processing method
Size and weight: Machine: 82.5 × 62 × 59 cm (32.28 × 24.4 × 23.22 in.); 93 kg (205 lbs)
Workstation compatibility: Windows XP, Windows 7, Windows 8
Network connectivity: Ethernet TCP/IP 10/100 base T
Jetting heads: 2 printing heads; SHR (Single Head Replacement)
Power requirements: Single phase: 100-120V~; 50-60Hz; 7A / 200-240V~; 50-60Hz; 3.5A
Regulatory compliance: CE/FCC/RoHS
Operational environment: Temperature 18 C-25 C (64 F-77 F); Relative Humidity 30-70 % (non-condensing)
Twelve 3D Printing materials on your Desktop:
Explore new possibilities for desktop 3D printing. Print precise consumer-product prototypes with smooth surfaces and flexible components. Use Rubber material to prototype gaskets, plugs and seals. 3D print usable medical implements – like ear forms or surgical guides – that require prolonged contact with skin.

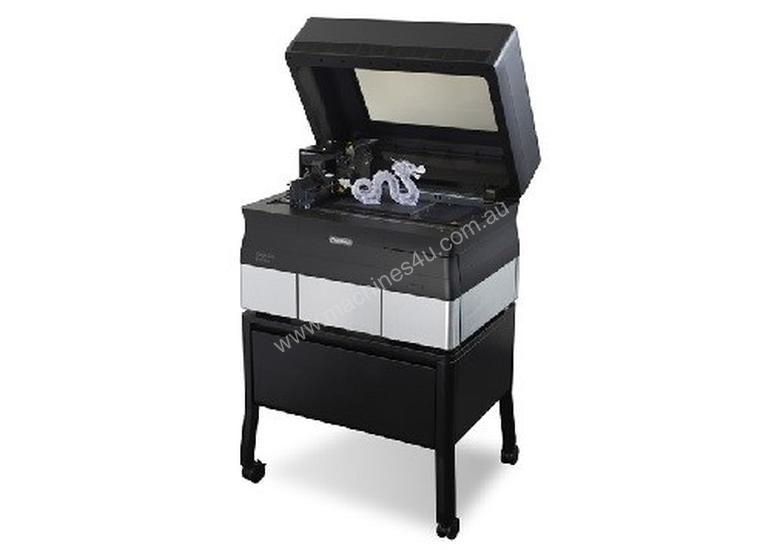

The Objet30 Prime also delivers versatility with three print modes: high-quality, high-speed, and new draft mode, a fast, economical mode exclusive to the Prime. Try out even your boldest ideas in three dimensions, from the moment of inspiration to late-stage design reviews.
Whatever you’re 3D printing, the Objet30 Prime’s productivity, quiet operation and small footprint will make it a welcome addition to your office.
PolyJet Materials:
The Objet30 Prime offers the broadest range of materials available on a desktop system, including:
Rigid Opaque materials (Vero family in a variety of colors including white, gray, blue and black
Transparent (RGD720 and VeroClear) for prototyping clear and tinted products with great dimensional stability and surface smoothness
High Temperature (RGD525) for advanced functional testing, hot air and water flow, and static applications
Simulated Polypropylene materials (RGD450 & RDG430) with toughness and durability to create smooth prototypes with living hinges, flexible closures and snap-fit parts
Rubber (Tango Gray or Tango Black) suitable for a range of applications requiring non-slip or soft surfaces
Bio-compatible (MED610) suitable for medical-device prototyping.
Objet Studio Software:
Objet Studio makes it simple to build high-quality, accurate 3D models. It automatically transforms STL and SLC files from any 3D CAD application into 3D modeling slices, including both build material and support. With click-and-build wizards, you can quickly edit trays, manage job queues and perform routine system maintenance.
Objet Studio features:
Easy tray build setup including multiple models and materials
Automatic support generation
On-the-fly slicing so 3D printing can start right away
Auto-placement of trays for accurate, consistent positioning
Multi-user networking
