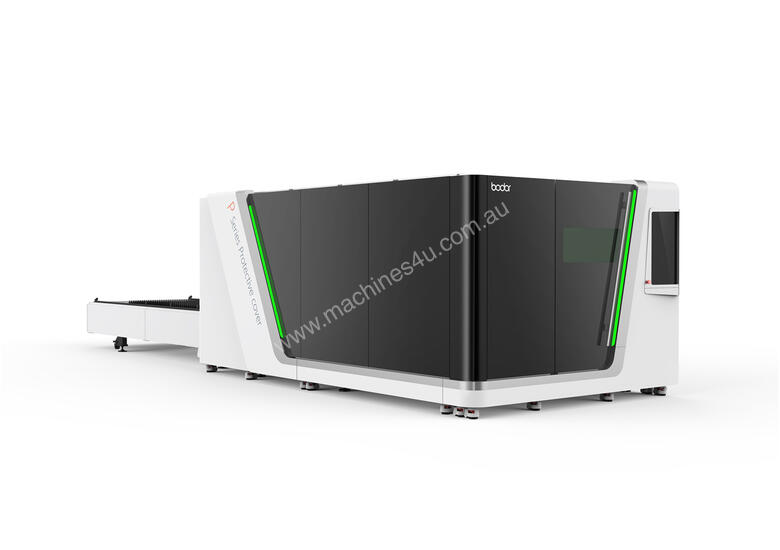

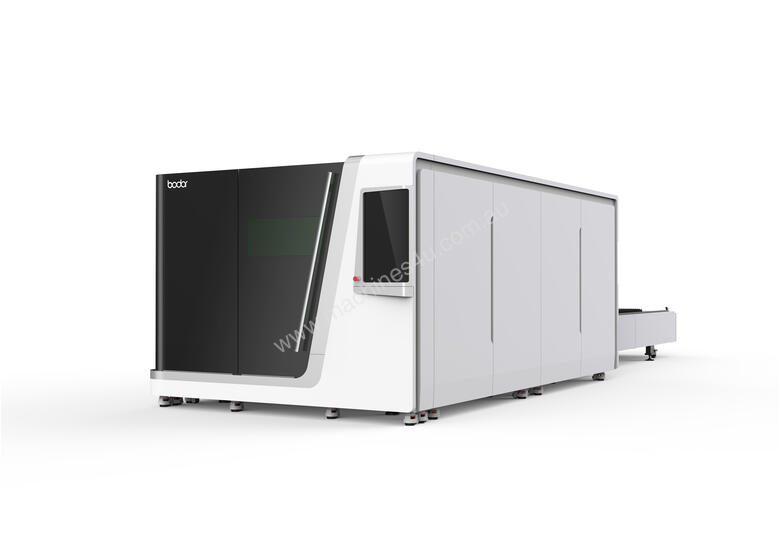

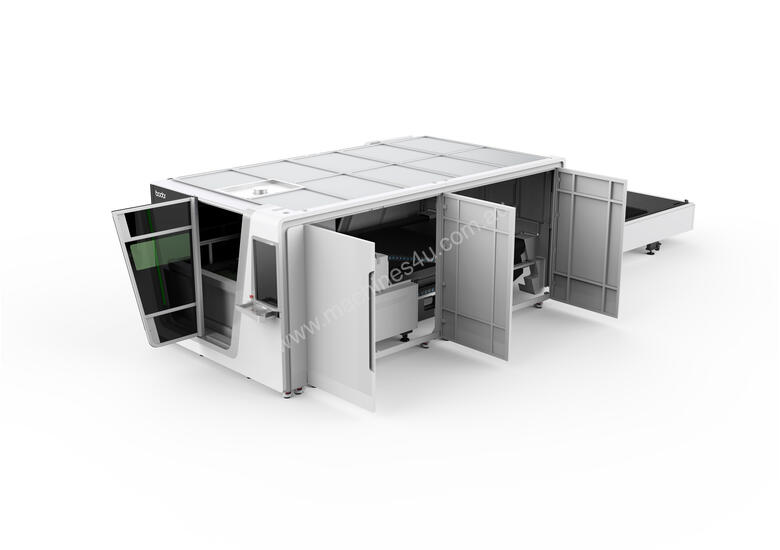

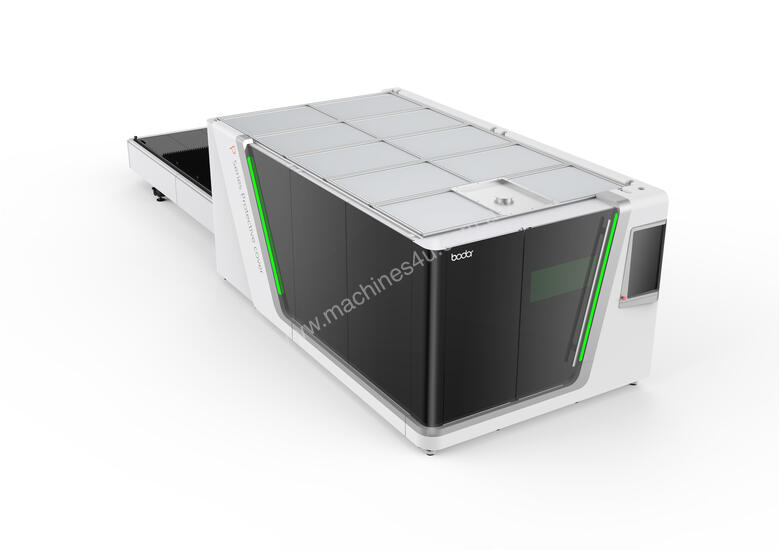

P3015 2kW Fiber Laser cutting system - REMOVED

Price includes delivery, installation and training into major metro area and 12 months all inclusive onsite support. No hidden extras. Delivery is 8 weeks from order.

We can normally accommodate payment terms of 30% with order and 70% on delivery to your factory.

The P series is a highly productive 24/7 mid-range system and is packed full of time saving productive features. Its easy to learn and operate.

With over thirty Bodor P Series lasers now installed into Australia it is Bodors most popular sheet cutting system.

2000w laser cutting thicknesses.
16mm Mild steel max
6mm Stainless steel max
6mm Aluminium max



BASIC SPECIFICATIONS:
- 1,500mm x 3,000mm dual table with safety enclosure and camera
- Cast iron machine bed for guaranteed long life and precision cutting.
- Max Photonics Fiber laser, IPG option available
- Bodor Genius non contact cutting head with programmable motorised lens
- Auto Nozzle changer and tip cleaner as standard
- Rack & pinion drive (X & Y), ballscrew (Z), and auto lube system included
- Positioning accuracy 0.05mm
- Reposition accuracy 0.03mm
- Max. moving speed 140m/min
- Max. cutting speed 35m/min
- Min. line width 0.1mm
- Machine dimensions 9950*3050*2100mm x 6000KG
- Procut V2 control with inbuilt internet system support and remote monitoring
- Nesting software included
- Australian standard N2 and O2 gas regulators , hoses and floor mounted stand
- Exhaust fan (floor mounted)
- 2/3 year parts warranty with 1 year's on site support by Industrial Laser as standard
Consumables package is included
- Automation Options Available


Comprehensive suite of automation options available from a simple canter leaver single sheet loader to the fully optioned multi sheet, multi material, multi thickness programmable iTower.

Laser power options range from 1000w to 6000W.
Table sizes are available up to 6m x2.5m and has an auto sheet loader/ unloader option in the 3.0x1.5m table size.
Renting options available from Industrial Laser from 3 or 5 years.

Want more power or higher speeds - The Bodor S series which covers users from 4kW to +20kW laser powers. It incorporates the Precitec Procutter cutting head and Beckoff control. Acceleration is 4G.

Looking for an entry level with similar specifications to the P series but at a low price point then please ask about our new C3 from Bodor.




Who is Bodor?
Bodor are China's largest high power laser system exporter with over 26% of the market share.
Last year they produced over 3,000 laser systems with over half being exported overseas.
They have some 1200 staff of which 150 are engineers developing new products and supporting their local partners and customers.

Who is Industrial Laser?
Established in Melbourne in 1998 Industrial Laser is a family owned and operated business
that supports Australia and New Zealand Laser users.

Industrial Laser do not just sell systems, we have the experience to design and build custom laser systems. Our latest cutting system incorporated two high power lasers and 11 servo axis in our 14m long system.
Our staff have installed many hundreds of systems, and carried out major laser refurbishments and upgrades. We have 5 full time field engineers backed up by two in house making us one of the largest and technically competent companies for after sales service support.

We frequently upgrade existing systems whether in the field or at our factory in Hallam Victoria.
We have designed and developed our own 6 axis laser CNC with over 150 sold.
This expert knowledge in lasers and motion control combined with the full long-term support from Bodor gives us the edge over all of our competitors.

As Australia's largest aftermarket laser consumable supplier we also carry consumables for many brands of Co2 and Fiber laser systems - Ask us for a catalogue on your machine.
We are also your local Precitec distributor for parts and service.

Why Industrial Laser?
• 21 years old - We have been a trusted partner designing building and supporting laser equipment since 1998
• Over 100 years of combined laser service and application experience
• 5 full time Laser service technicians
• Technical support staff with remote dial in assistance
• Authorised Australian distributors of IPG Photonics and Precitec
• Sole Australian Agents of Bodor Fiber Laser
• Large local spares stock – we are Australia's largest aftermarket supplier of laser consumables and spares
