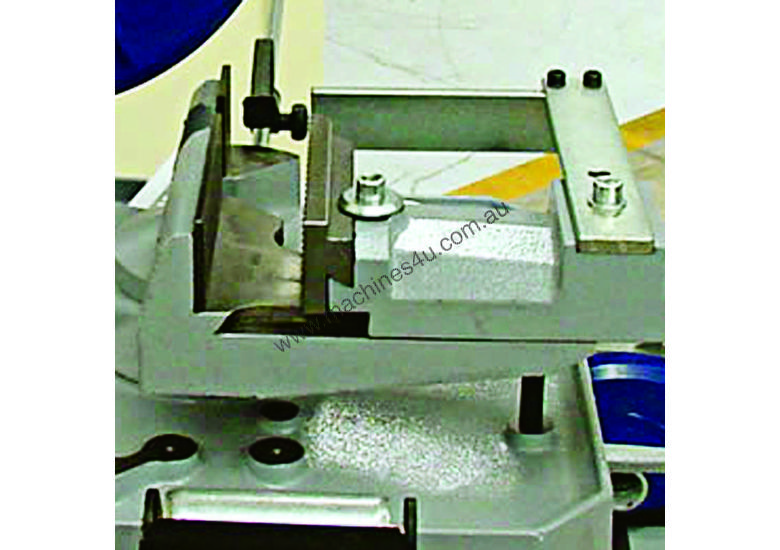

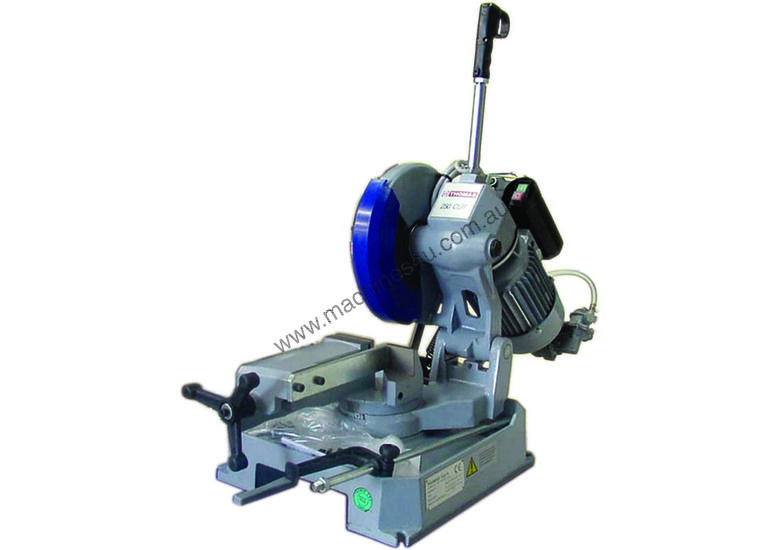

This feature packed cold saw is ideally suited to shops that cut a lot of thin walled tubing. It includes a V-notched vise that supports the workpiece on both sides of the cut, a quality HSS blade, a coolant pump to ensure optimum blade life and finish cut and a robust gear box that transfers all of the horsepower into the blade. Use the work stop to set your length of cut, clamp in your workpiece and go!
Features
?Thomas coldsaws have been sold in Australia for over 30 years
?heavy duty design and construction
?simple, quick action 45° left and right hand mitre cutting

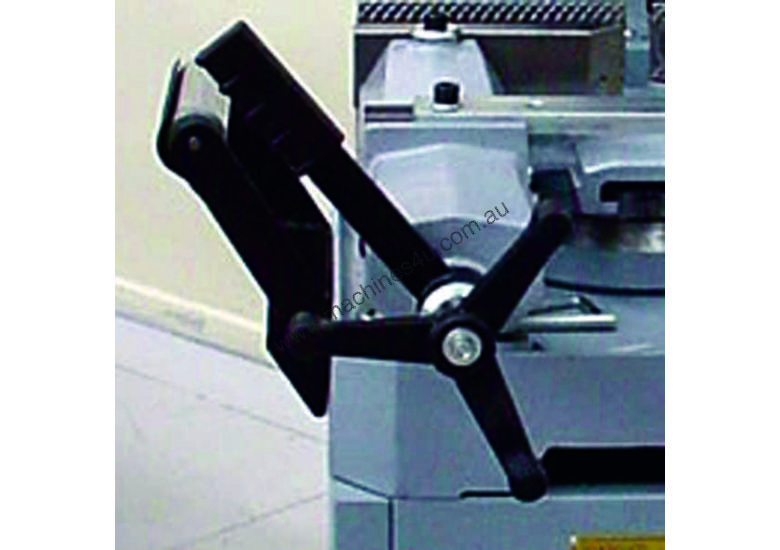

?quick lock dual clamping system
?anti-burr jaw
?in-feed roller guide standard

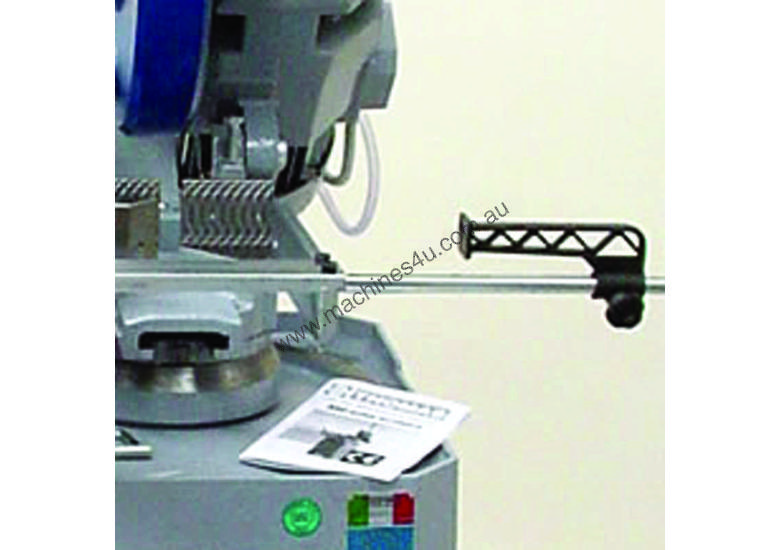

?adjustable length stop standard
?available in single or three phase with a full range of options
?semi-auto and full-auto models are also available on request
?stand optional
?CE compliant
Technical Data
Cutting capacities ø (w x h)
Round hollow
90°: 70mm
45° 60mm
Square hollow
90° 65mm
45° 55mm
Rectangle hollow
90° 100mm x 45mm
45° 65mm x 50mm
Square/Round solid
90° 70mm
Blade size 250mm x 2.5mm x 32mm(od x w x id)
rpm range / 240V (rpm) 40
Table working height 885mm (on stand)
Motor power (kw) 1.1 / 240 (SKU 15-0102)
Optional accessories - HSS coldsaw blades
Sku Model to Suit Diameter x Width x Bore Pitch
15/2001 250 export 250 x 2.5 x 32 4 tpi
15/2002 250 export 250 x 2.5 x 32 6 tpi
15/2003 315 super 315 x 2.5 x 32 4 tpi
15/2004 315 super 315 x 2.5 x 32 6 tpi
15/2005 315 super 315 x 2.5 x 32 8 tpi
15/2006 350 super 350 x 2.5 x 32 4 tpi
15/2007 350 super 350 x 2.5 x 32 6 tpi
15/2008 350 super 350 x 2.5 x 32 8 tpi
Asset Plant Offer a wide range of coldsaws, bandsaws to cover all applications, including a wide range of blades, consumables and spare parts – Call Now!!!
#######################################
Machines Can Be Demonstrated Under Power at 8 Capital Drive Dandenong, Vic.
Or See Videos or online
Otherwise call Us On And We Can Discuss Your Requirement
Asset Offer Full Sales Service, Parts & Accessories For Your Support!!!
#######################################
Steelmaster Industrial's line of metal cutting Band Saws offers customers many choices to best fit their needs. With two styles to choose from horizontal band saw and vertical bandsaws, customers will always find the right saw at the right price. Our bandsaws are built using only the highest quality design and components that allows for some of the tightest cut tolerances and fastest cut times in the industry. The tight tolerances, and fast cut rates make these a real profit maker for any manufacturing setting. Steelmaster offer our bandsaws from the smaller hydraulic down feed horizontal models, through to the heavy industrial, twin column machines for the heavy industrial metalworker.
Steelmaster's line of Horizontal band saws includes saws that range from 180mm x 245mm maximum rectangle cutting capacity through to our heavy duty column range that will handle jobs up to 2000mm in diameter. We offer our range in manual, semi-automatic, and fully automatic operation. With over 20 models to choose from, finding the right Steelmaster horizontal bandsaw is easy. Looking to cut more intricate shapes and round radii? Try a vertical band saw range. Based on Capacity and throat depth Steelmaster Industrial's vertical bandsaws, are a must have in any metal fabrication shop.
Along with the perfect band saw, Steelmaster also offers metal cutting band saw blades for any application. It does not matter if you own a Steelmaster bandsaw, you can still own the same high quality band saw blades that we use on our own saws.
For More information on our machine, go to or contact a Steelmaster industrial Rep
or vist our extensive website.
MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
