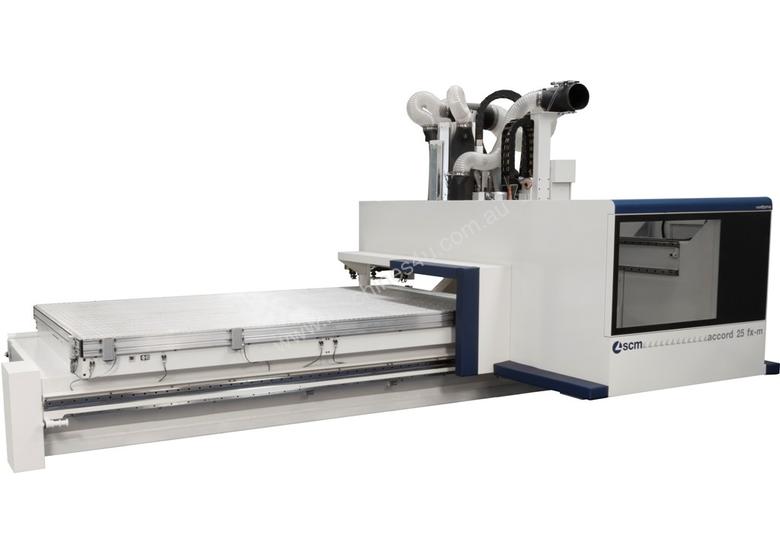

CNC Machining centre for highly flexible productions requiring superior precision and finish quality regardless of component shape and dimensions.
Equipped with the high-performance SCM multifunction worktable in aluminum, guaranteeing high standards of accuracy. Ideal solution for boring-routing operations on solid wood components and panels of plastic, composites, resins and light alloys also with Nesting technology.
Advantages:

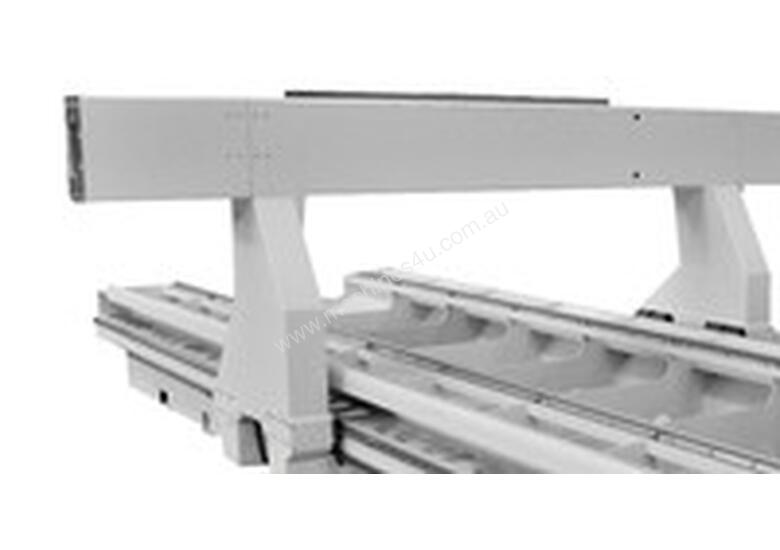

TOP FINISH QUALITY THANKS TO THE RIGID MOBILE PORTAL STRUCTURE
The rigid mobile portal structure, equipped with both front and rear sliding guides, ensures maximum precision and finish quality on the entire machining area. It is possible to process components of maximum length 6170 mm, width 2120 mm and thickness 250 mm.
EXCLUSIVE PRECISION WITH THE SCM MULTIFUNCTION WORKTABLE
The SCM aluminum multifunction worktable ensures precision and reliability. Characterized by lasting perfect planarity, it does not deform despite changes in ambient factors such as temperature and humidity. For maximum precision, the worktable is worked in the cnc machining centre. Direct integrated vacuum and specially designed T-shaped grooves allow optimum locking and positioning of any type of support. Different possible fixtures: MPS suction cups, jigs, spoil board or locking devices.

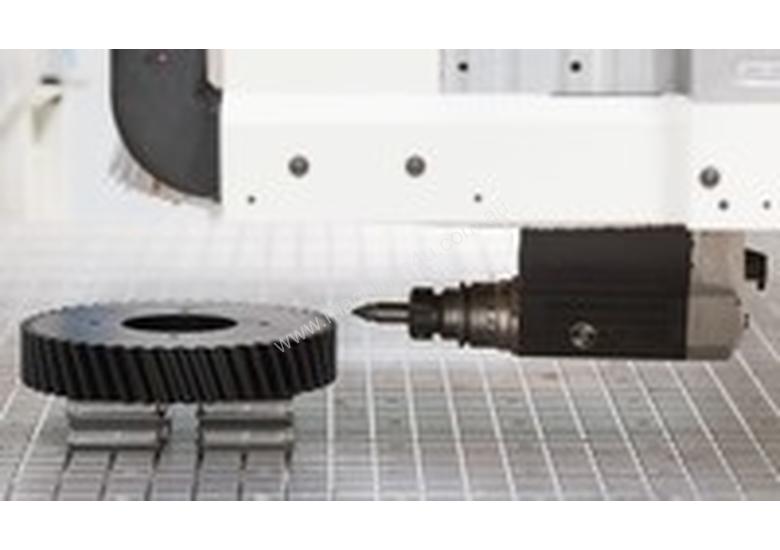

EASY TO USE SMART TECHNOLOGY WITH 5 -AXIS MACHINING HEAD AND 3D SOFTWARE
Prisma Machining head with 5 interpolating axes enablesprocessing of complex three-dimensional surfaces even in reduced space, thanks to its compact design. It is equipped with an electro-spindle, designed and manufactured by SCM, matching high power (up to 12 kW) and high speed (up to 24000 rpm) for optimal use in different applications.
Maestro 3D software allows to design and create threedimensional objects through powerful CAD tools in the easiest and quickest way.

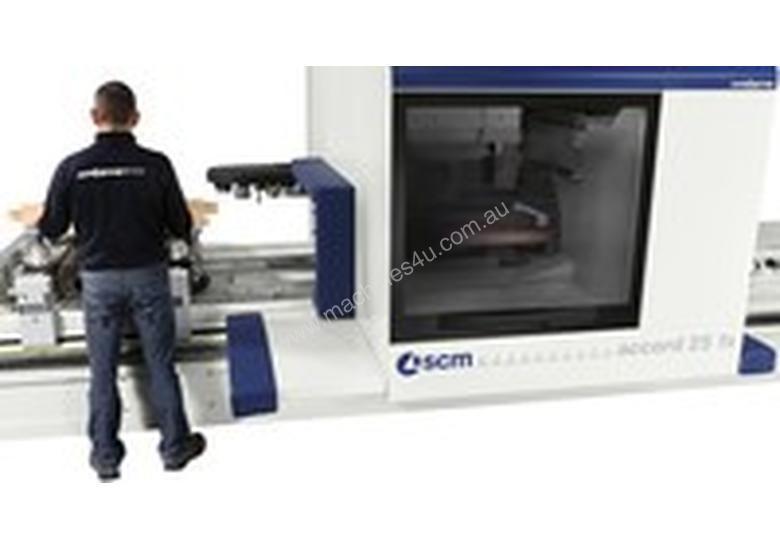

ERGONOMICS AND SAFETY
The new safety system “Pro Speed” with horizontal photocells and new bumpers on the mobile protection (SCM patent), marries maximum accessibility to the work table and safety for the operator in the workpiece loading/unloading operations, whilst maximum speed and productivity are reached during machining.
SAV€NERGY, high performance and energy saving.
Technical data:
X-axis Working area mm from 3650 to 6170
Y-axis Working area mm from 1320 to 2120
Component passage mm 250
Electrospindle power kW from 12 to 15
Tool-changer nr. positions from 16 to 44
