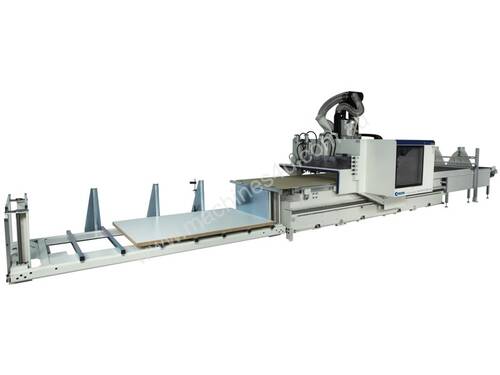

A complete range of CNC machining centres integrated with automatic loading and unloading system for the control of the complete work cycle from a single operator. Optimal solutions to meet the specific needs of a flexible production with nesting tecnology and suitable to process panels of different materials: lamellar wood, plywood, chipboard, MDF, plastic, composite, resins and light alloys.
Advantages:

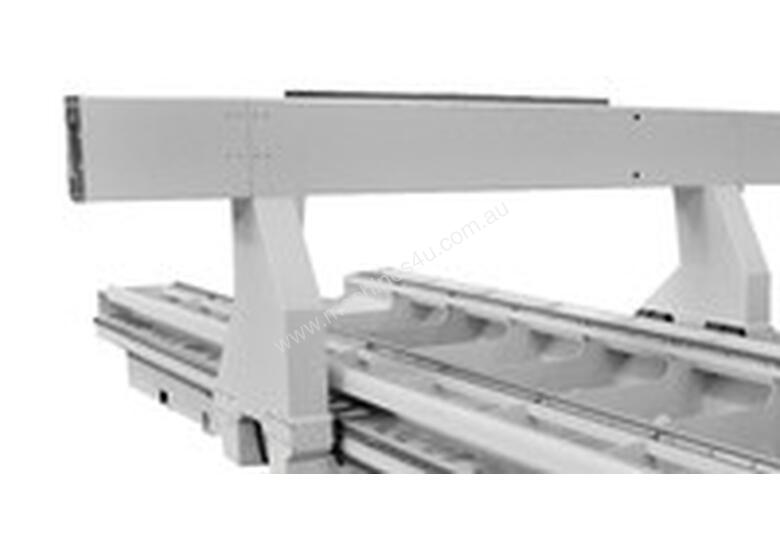

TOP QUALITY FINISH THANKS TO THE RIGID MOBILE PORTAL STRUCTURE
The rigid mobile portal structure “gantry”, equipped with both front and rear sliding guides, ensures maximum precision and finish quality on the entire machining area.

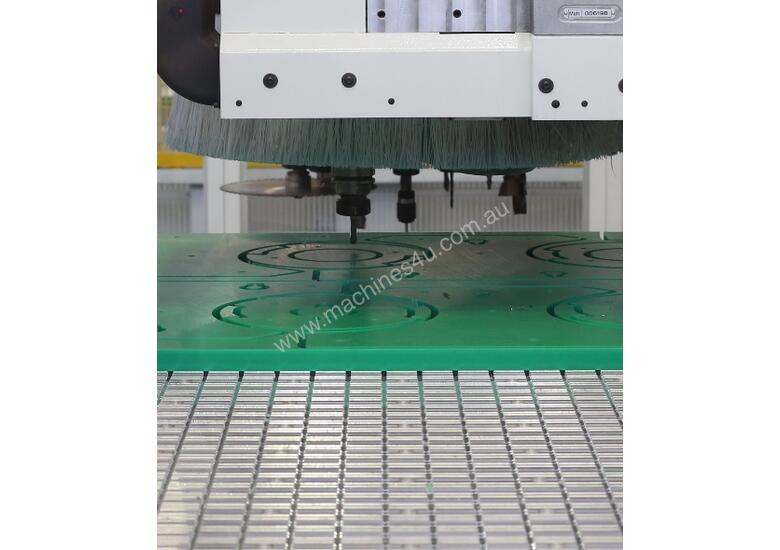

EXCLUSIVE PRECISION WITH THE SCM MULTI-FUNCTION WORKTABLE
The SCM aluminum multi-function worktable ensures precision and reliability. Characterized by lasting perfect planarity, it does not deform despite changes in ambient factors such as temperature and humidity.
For maximum precision, the worktable is worked in the cnc machining centre. The integrated vacuum system uses sized channels for high airflow, ensuring optimal direct locking of the panel even in complex situations: small pieces, materials with reduced transpiration, overlapping panels etc.
GREAT PRODUCTIVITY THANKS TO THE 5-AXIS MACHINING HEAD
3-, 4-, 5-Axis machining head equipped with the SCM electrospindle with high power (up to 12 kW) and high speed (up to 24000 rpm), enabling flexible manufacturing at higher levels. The compact design of the machining head makes possible to exploit the entire work area.
LOWER PRODUCTION COSTS THANKS A SOFTWARE EASY, INTUITIVE, EFFECTIVE
Mestro Nest software provides all the functions necessary to manage the "Nesting" process: from a simple "rectangular" piece to the most varied and complex "free form" geometrical shapes. Tool path is optimized, in order to develop a "nesting project" ensuring high saving in machining time and reduction in material waste.
Maestro Nest includes Maestro Label for the management of a labelling station for the pieces in outfeed, making nesting machining even more advantageous.

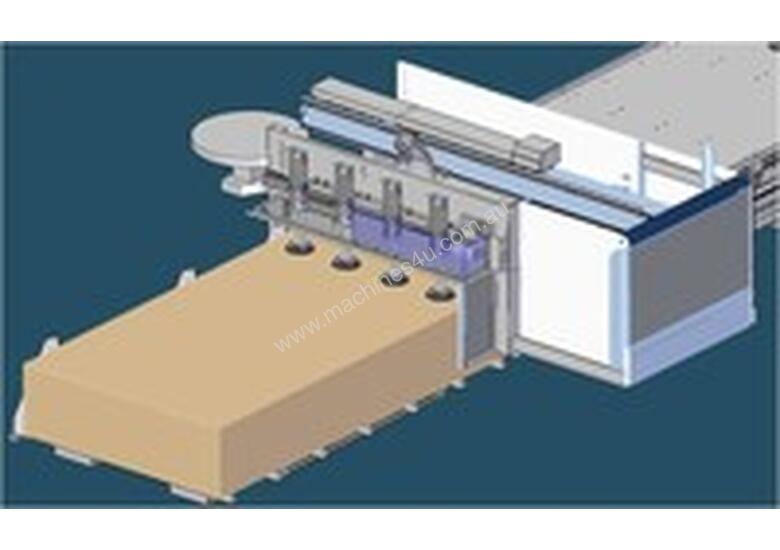

AUTOMATIC CONTROL OF THE WORK CYCLE
The work cycle is fully automatic thanks a loading and unloading system composed of loading platform equipped with suction cups and expulsion device with panels cleaning.
SAV€NERGY, high performance and energy saving.
Technical data:
X-Y Panel dimensions
mm 3650x1600
mm 3650x2120
mm 4250x2120
Electrospindle power kW from 12 to 15
Tool-changer nr. positions from 12 to 36
