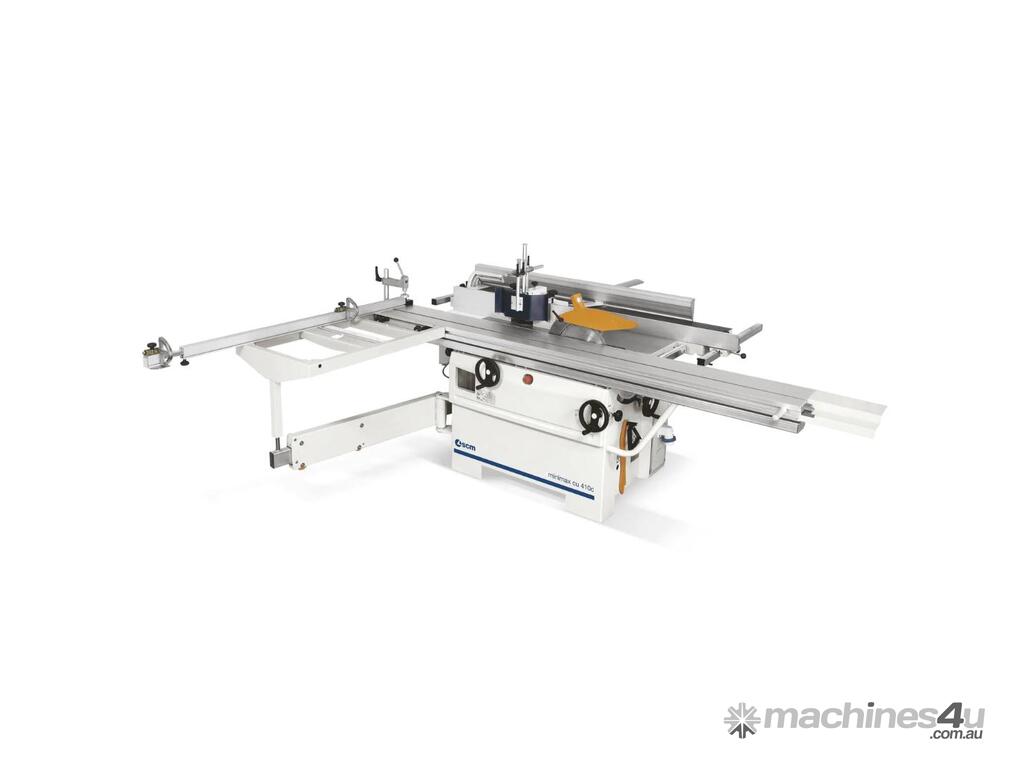

Universal combined machine with all minimax quality, at the most affordable price, ideal for demanding hobbyists and crafts woodworking workshops.
Planer
Useful working width: 410mm
Cutter block diameter: 72mm
Max. stock removal: 4mm
Surfacing tables total length: 1800mm
Thicknessing table dimensions: 605 x 410mm
Feed speeds on thicknesser: 7 m/min
Min. ÷ max. working height on thicknesser:
3 ÷ 230 mm
Circular saw
Cast iron saw-spindle moulder worktable dimensions: 1115 x 335mm
Blades tilting: 90° ÷ 45°
Max. saw blade Ø with scoring blade installed: 315mm
Max. saw blade projection from table at 90°/45°: 100/78 mm
Max. squaring stroke: 2600mm
Cutting width on parallel fence: 900mm
Spindle moulder
Max. useful spindle length: 100mm
Spindle moulder speeds (at 50 Hz):
3500/7000/10.000 rpm
Max. tool diameter when profiling: 210mm
Max. Ø of tool lowered under the table at 90°: 180mm
Additional information
Thee-phase motors S6: 4kW (6.6hp) 50Hz
Single-phase motors S6: Special order from Italy
Exhaust outlet diameter: 120mm
Spindle moulder available dimensions: 30mm
Weight: 716kg
Dimensions: 293 x 162 x 110 cm
