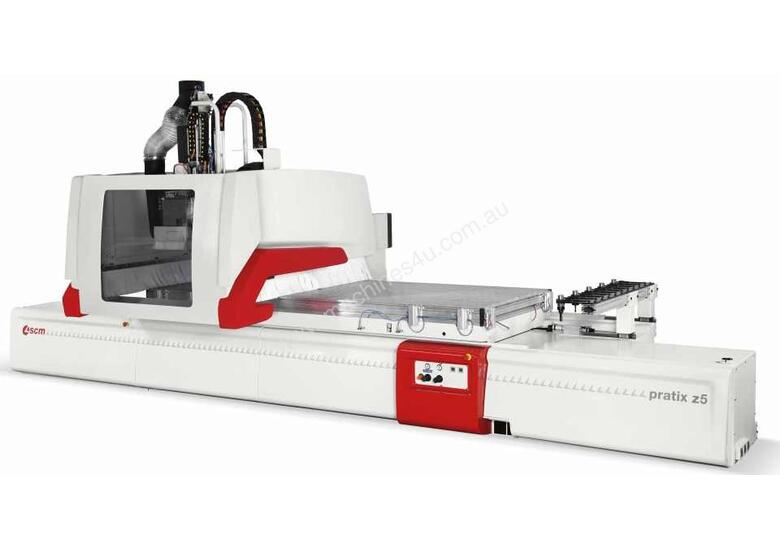

The very best multipurpose machine available due to the possibility to size nested panels and bore-router already sized panels (also for alternated work process).
Optimised time and resources thanks to the Netline integration.
Advantages:

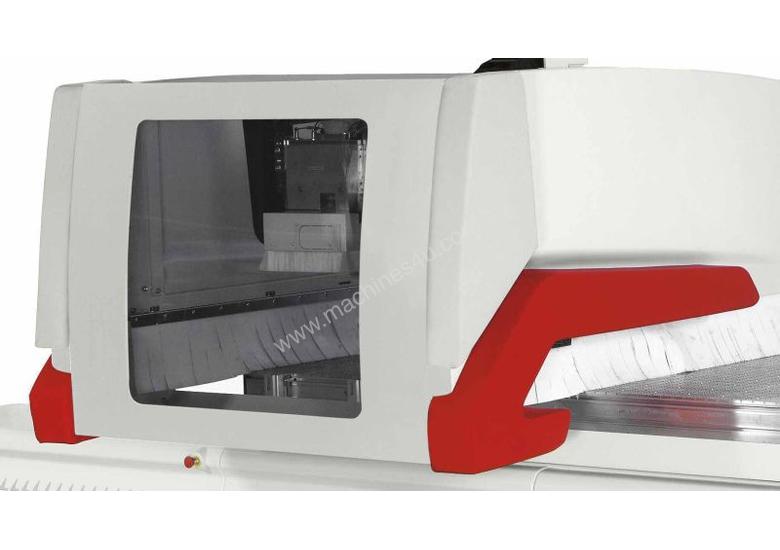

“PRISMA 5” ELECTROSPINDLE: SUPERIOR TECHNOLOGY FOR MACHINING WITH 5 AXES
Reduced maintenance, maximum flexibility and optimal finishing quality with the BEL.TECH technology (Belt technology system), the belt transmission system which eliminates vibration and heat from tools to the motor. This system (in use on the spindle for machining metals) due to the compact structure, allows easy operations in limited spaces. The mechanical locking of the spindle in the vertical position, transforms the unit into a perfect 3 axis operation.
“BUMPERS”: THE PERFECT COMBINATION OF SAFETY AND PRODUCTIVITY
The “bumpers” safety system is the only one that can fully exploit the potential of machining centres, without placing restrictions or constraints on the use of the machine: maximum productivity, ease-of-use, more compact dimensions and guaranteed safety.
RO.AX SPINDLE: FOR PERFECT BORING
Zero play during machining with the new RO.AX technology (Rotoaxial spindle technology), the most efficient spindle on the market with rotation speeds up to 8000 rpm to configure the machine with different boring units from 7 to 50 independent spindles, for customers demanding high levels of boring.

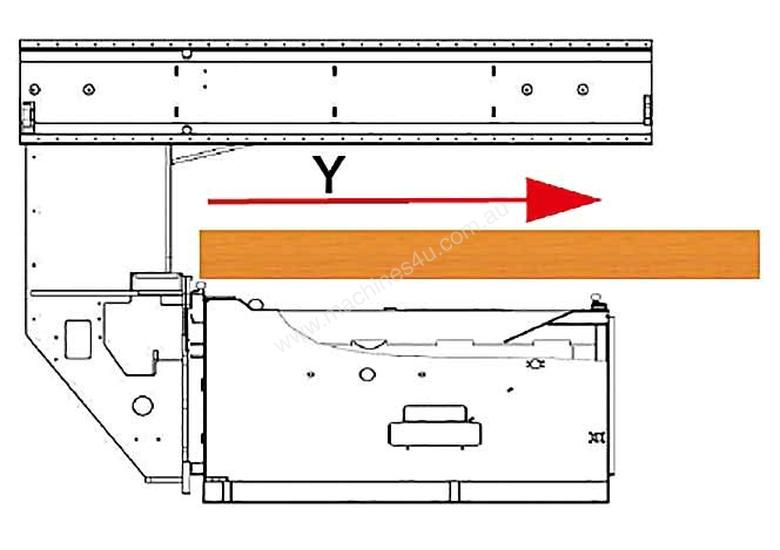

CANTILEVER STRUCTURE: UNIQUE AND EASY TO USE
The only structure that allows the loading of componentsalong the “Y” axis far larger than the working capacity of the machine.

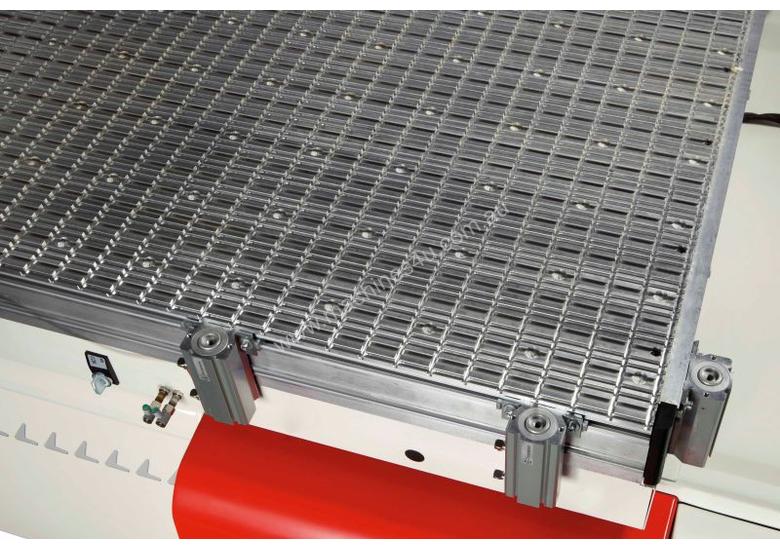

MULTIFUNCTION ALUMINIUM WORKTABLE WITH “T”-SHAPED GROOVES
Flexibility of use at the very best levels of production with the possibility to add to the standard vacuum worktables systems, support for panels or suctions cups. Also within the network of grooves, any type of support can be mechanically fixed to the table.
Technical data:
pratix z5-31 z5-52
Axes
Working area along X-Y-Z axis mm 3110 - - 1550 - 160
Panel length along Y axis mm 1550 1550
Panel length (for alternated work process) mm 1390 2460
Vectorial speed X-Y axes (optional) m/min 83 83
Boring head
Vertical spindles up to no. rpm 18 (10X / 4+4Y)8000 18 (10X / 4+4Y)8000
Horizontal spindles up to no.rpm 8 (4X / 4Y)8000 8 (4X / 4Y)8000
Integrated blade in X Ø mmrpm 10000
Electrospindle
Standard motor power (S6) kW (Hp) 12 (16,5) 12 (16,5)
Max. speed rpm 24000 24000
Tool changer on the carriage in X / base places 16 / 10 16 / 10
