For sale is our new ACP&S model ACPD20A compresssed air refrigerated dryer rated at 104cfm for effectively drying compressed air.
AIR COMPRESSOR PRODUCTS AND SERVICES PTY LTD...
the air compressor experts

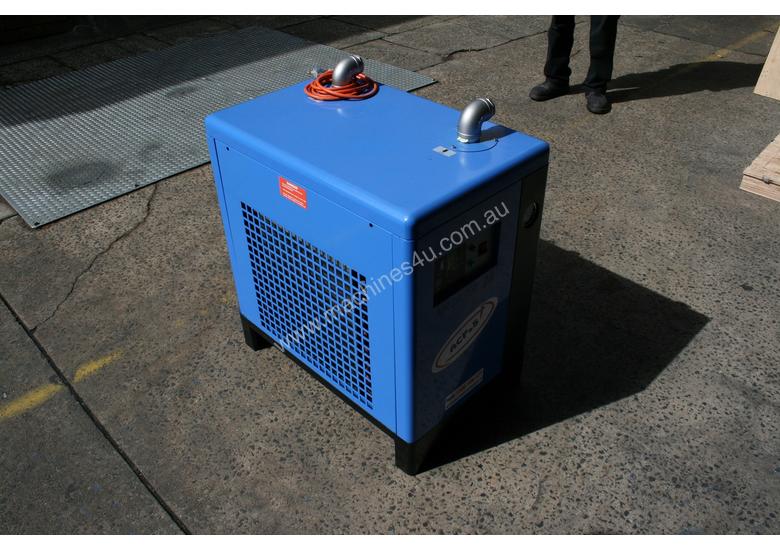

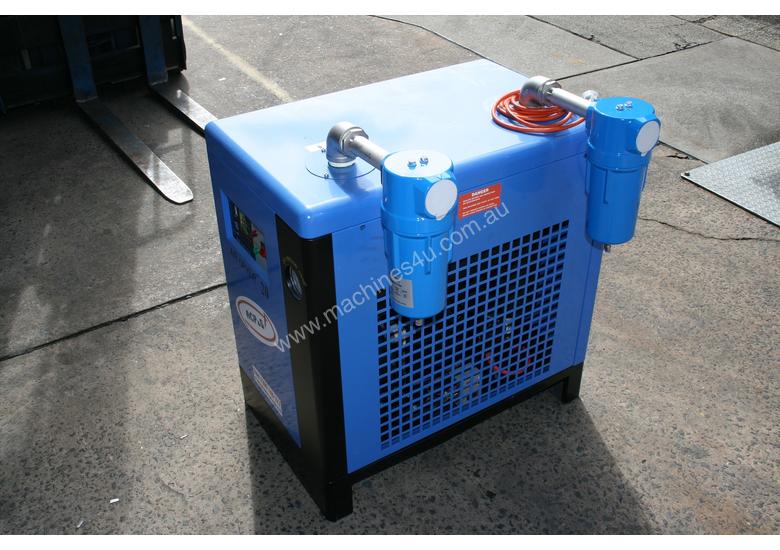

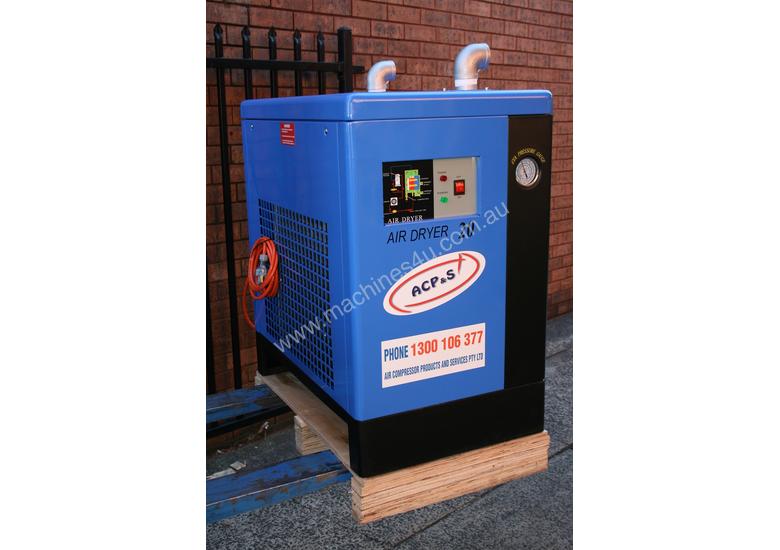

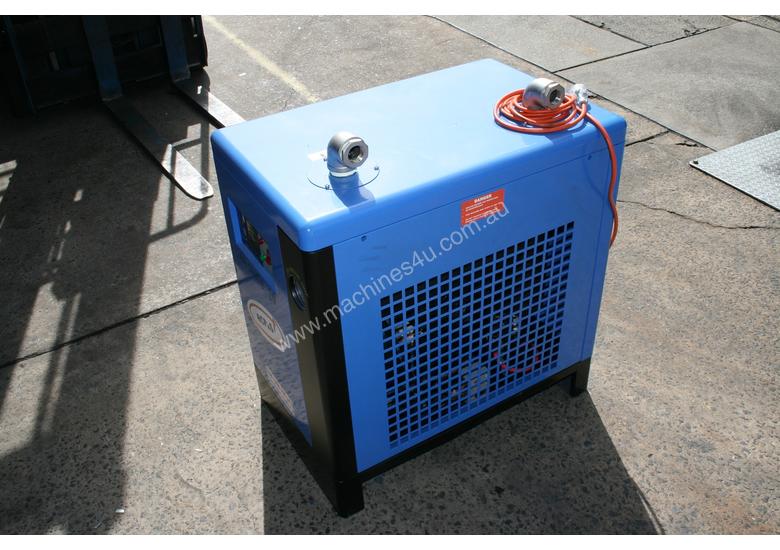

For sale is our new ACP&S model ACPD20A compressed air refrigerated dryer with moisture separator and automatic draining system.
INCLUDES OUR 12 MONTH WARRANTY ON THE COMPLETE UNIT.
These dryers will last for many years with trouble-free operation and they have been gassed with the locally available, environmentally friendly, R410A refrigerant.
We have a range of dryers in-stock in Australia from 13cfm to 780cfm... larger units will need to be ordered-in.
BRAND NEW REFRIGERATED COMPRESSED AIR DRYER WITH 240VOLT PLUG AND LEAD CONNECTED - RATED AT 104CFM.
PLEASE NOTE WE HAVE OTHER NEW AND USED AIR COMPRESSORS, AIR RECEIVERS, REFRIGERATED DRYERS AND FILTERS AVAILABLE.
This 104cfm refrigerated compressed air dryer will remove moisture from compressed air systems which ensures a longer life for down-stream production machinery and air tools.
Reliability and Long-Life:
This refrigerated dryer is designed for reliability and long-life with an efficient and smart refrigeration system built in to every unit.
Automatic Draining:
This refrigerated dryer has an automatic draining system to ensure the best possible result.
Technical Data
Capacity - 49 litres / second (104cfm) at our normal design parameters
Maximum Pressure - 150psi
Refrigerant Gas - Environmentally friendly R410A
Dimensions - 750mm wide x 480mm deep x 850mm high
Weight - 55kg
Pipe Connections - 1 1/2 inch BSP male top entry inlet and outlet connections
Voltage Required - 240 Volt
Refund:
A refund will be provided upon return (in good condition and within 30 days) if you're not 100 percent happy with the dryer.
If you're not sure how to size a refrigerated dryer, please call our office for assistance.
A 1 micron pre-filter should always be installed prior to the dryer.
Pick up from our workshop at Peakhurst or we can organise transport at a small cost.
We currently have a few 7.5kW to 18.5kW used rotary screw compressors available...
