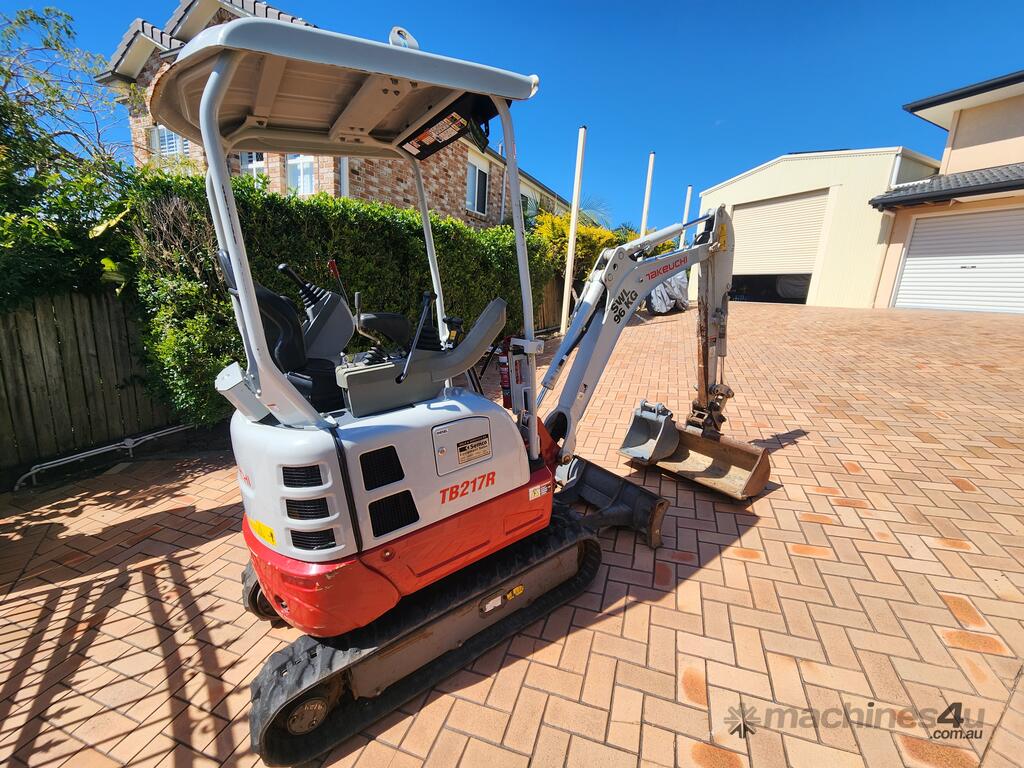

TAKEUCHI TB217R - Reduced Radius Excavator
811hrs
2023 model
OPERATING SPECIFICATION:
Approximate Operating Weight: 1680Kg
Overall Width: Crawler retracted 980mm; Crawler extended 1300mm
Overall Height: 2345mm
Transport length: 1570mm
Max Dump height: 2545mm
Max Dig depth: 2390mm
ENGINE:
Yanmar 3TNV70 EU Stage V Emission compliant
Rated Output (ISO 14396) 11.5 kW/2,400 min-¹
Maximum Torque 52.6 Nm/1,800 min-¹
HYDRAULIC SYSTEM:
System: Variable Displacement
Variable Displacement Pump
Straight Travel Circuit
Hydraulic Joystick Controls
Foot Pedal Control for Service Port 1
Auxiliary Hydraulic Circuit Plumbed to Arm
Hydraulic Tank with Fluid Level Sight Gauge
Dual Auxiliary Circuits; 2-way flow selectable.
Service Port 1(SP1); Flow Rate 33.6L/min, Hydraulic pressure 21.0MPa
SP2 Auxiliary circuit; 10.8L/min, Hydraulic pressure 20.0MPa
SP3 Hydraulic pressure 20.0MPa
BOOM & ARM CONFIGURATION:
Independent Mono Boom Swing
Cushioned Boom and Swing Cylinders
Top Mount Boom Cylinders
930 mm Arm
1,130 mm Arm
Arm and Boom Holding Valve with
Lift Alarm (Optional)
Pattern Change Valve (ISO or G)
INCLUDING:
Canopy, Rubber tracks, Long Stick Arm, Long Dozer Blade, 2-Way Lever, Travel Alarm, Stop Valve
(1way/2way), PVC Deluxe Seat, Accumulator, Double Element, Heavy Counter Weight
Half hitch, 1000mm mud bucket
300mm general purpose bucket
