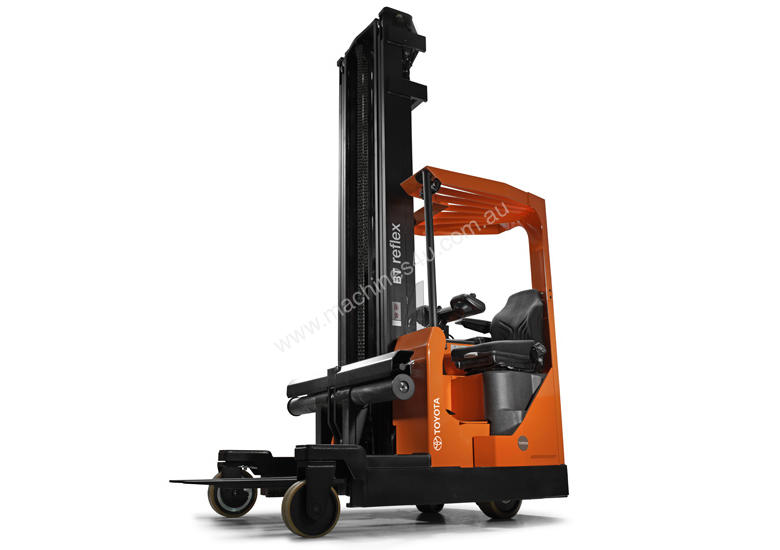

Toyota BT Reflex AC F-Series is a 4-way reach forklift truck which provides the combined benefits of advanced design and AC power for applications which require long-load handling, as well as the ability to handle conventional pallets in confined situations.
Reflex AC offers 2.700kg handling capacity and the fork width is hydraulically adjustable.
Reflex AC trucks are developed from the world-leading Reflex AC range and incorporate many advanced features.
Performance
The direction of the forklift is determined by rotation of the turnable support arm wheel, which enables the forklift to travel forwards, backwards or sideways - which means that it can operate as a side loader. This remarkable level of manoeuvrability is further enhanced by electronic and progressive 360° steering for the main drive wheel.
Two different hydraulic fork spreaders available. Over support arms - ranging from 540mm up to 2160mm - & between support arms, ranging from 400mm up to 960mm.
The turnable support arm wheel on FR series forklifts may be turned through 90°, thereby changing the direction of travel.
Drive & castor wheels are built on a cross-mounted bogie to allow traction on uneven floors.
AC power means exceptional performance levels, combined with reduced energy consumption and lower service and maintenance requirements, due to fewer components and the absence of major wear items such as carbon brush
Comfort / Ergonomics -
The driver compartment is fully adjustable to provide a comfortable driving position, with a clear view of the handling process.
The braking system is electronic, progressive and regenerates energy to the battery. It can also be programmed to suit driver preferences.
Ease of Use -
Three push-buttons located on the dashboard allow easy selection of performance parameters. Standard set-up choices available.
Optional extras include:
Electronic height indicator
Electronic height pre-selector
Rear-view mirror
Sideshift - Only available together with fork spreader between support arms.
Reliability -
Like all Toyota forklifts, the Toyota Reflex range of reach trucks is built according to the famous Toyota Production System, assuring the highest levels of quality, durability and reliability.
