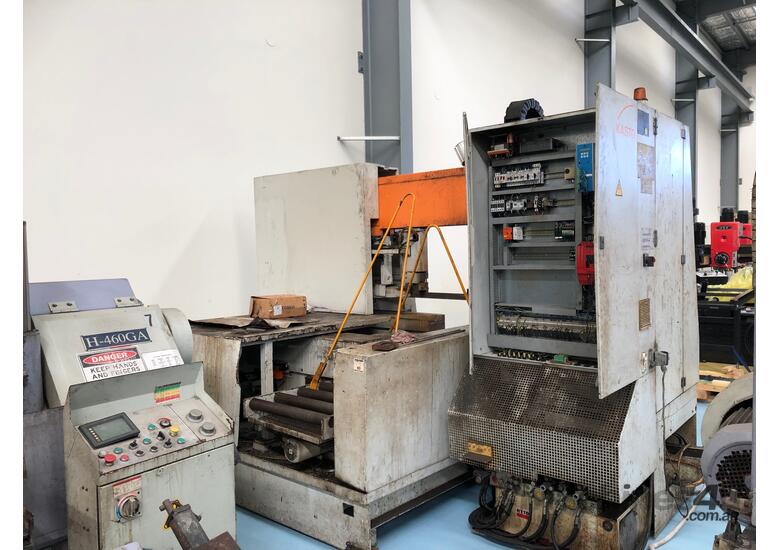

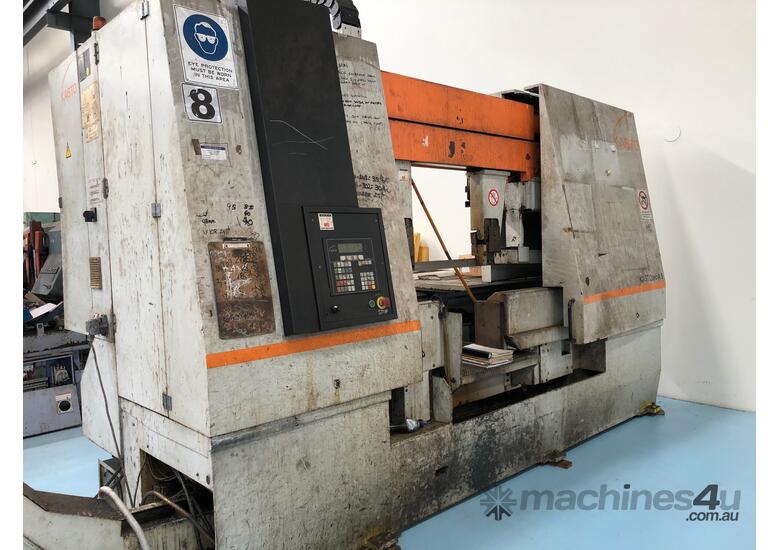

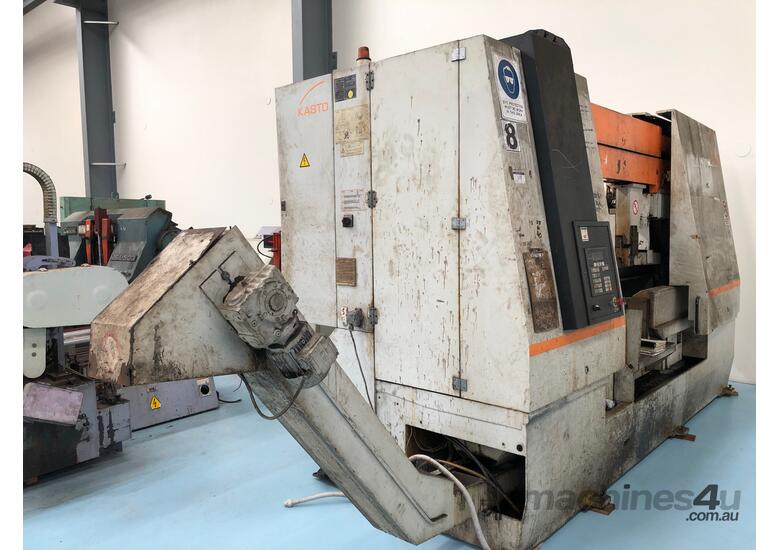

USED KASTO MODEL KASTOTEC A5 BANDSAW
**Can be seen under power operating**
Fully hydraulic and automatic high-performance bandsawing machine of robust construction, with saw blade moving parallel in horizontal direction, for cutting of round, square and flat material, of tubes and profiles of all qualities, particularly for tool steels and material which is difficult to cut such as titanium, Hastelloy, Inconel etc.
FEATURES
• Sawband guide via hydraulically pretensioned carbide slideways
• Electronic monitoring of the hydraulic blade tension
• Infinitely variable cutting speed, to be adjusted at central control panel
• Fully automatic, rapid height adjustment of the saw unit via light barrier
• Hydraulic horizontal vices, clearance stroke is standard
CUTTING RANGE
• Form Cutting range 530 x 630 mm / 530 x 530 mm / 530 mm
• Cutting range bundle H x W (option) 530 x 630 mm
• Clamping range 0 – 630 mm
• Smallest dimension to be cut 10 x 10 mm
• Shortest length of residual piece, single cut 10 mm
• Shortest remnant length in automatic operation, possible (only if the material has a perfect geometric surface) 35 mm
• Shortest cut-off length 6 mm
MASS AND HEIGHT
• Length 2.225 mm
• Width with chip conveyor approx. 5.215 mm
• Height (saw frame in lowest position) approx. 2.415 mm
• Height (saw frame in highest position) approx. 2.680 mm
• Total weight 5.500 kg Material support height 700 mm
PERFORMANCE CHARACTERISTICS
• Connected load 9,5 kW
• Power of saw motor 5,5 kW
• Power at running wheel 5,23 kW
• Cutting speed infinitely variable 12 – 120 m/min
• Material feed length – individual feed 600 mm
• Multiple feed 9.999 mm
• Clamping force of machine vice 2.000 – 10.000 N
• Clamping force of feed vice 2.000 – 20.000 N
• Saw blade dimensions 7.675 x 54 x 1,3 mm
• Saw blade dimensions option I 7.675 x 54 x 1,6 mm
• Saw blade dimensions option II 7.675 x 67 x 1,6 mm
Note: Specs & Features listed below are taken from those when the machine was new.
Buyers should be aware that some equipment and operational features detailed here may not be available on or included with this used machine.
