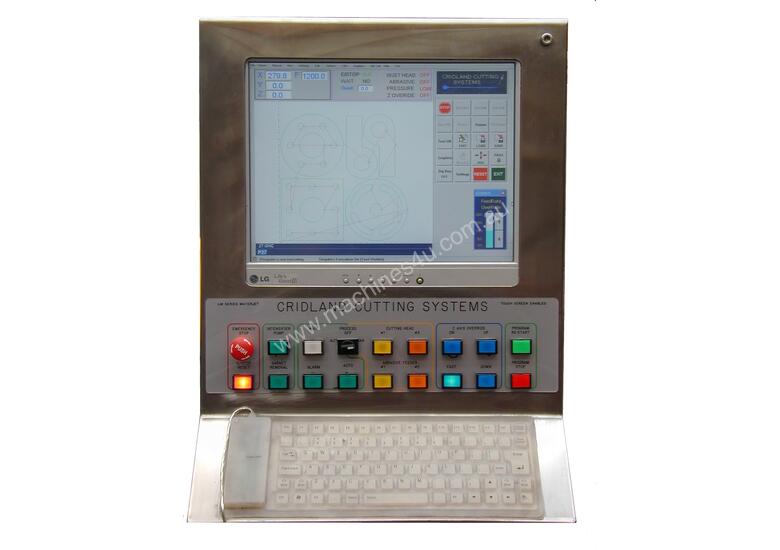

WATERJET CUTTING CNC PROFILE CONTROLLER
Will retrofit to any Table, including PLasma - Oxy - Router.
Standard Features include:
• Touch Screen.

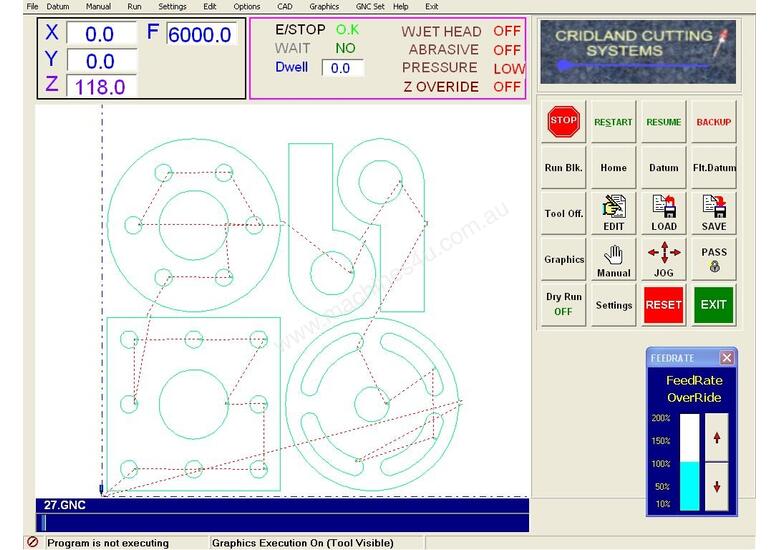

• On Screen Path following
• G-Code Programmable.
• Nesting Programs Supplied offline by SigmaNEST.
• LAN Connection , Floppy or CD available.
• Up to control of 2 Waterjet heads from the Control Panel.
• Automatic Low / High Pressure Piercing for Brittle Materials.
• Integrated Emergency Stop Circuits.
• Retrace cut Path functions under Automatic Control.
• 10–200% Speed Over–ride, 0–100% Acceleration Over–ride.
• Dynamic Piercing, Common–line & Bridge cutting, Marking, Etching.
WATERJET PROFILE CONTROLLER Standard Specifications Safety
• Integrated Emergency Stop System.
• Over–Travel Safety Limit Switches.
• Home Position Limit Switches.
• Operator Manual Cutting and Abrasive On Over–ride Buttons On Screen Messages to Identify Fault Conditions.
• Automatic E/stop in Fault Conditions.
Manual Control
• X,Y Z Touch Screen Control.
• Rack and Pinion
• Adjust Kerf Compensation,
• Part Program Editor, Job Editing.
• Automatic Control Functions
• On–screen Display of Downloaded Program, Zoom in and out.
• Dynamic Piercing.
• Etching, Marking or Cutting.
• Automaticc Speed Reduction for Small Holes or Corners.
• Dry Run Mode.
Warranty:
• 12 Months or 2000 Hours* against faulty materials or workmanship.
• Does not include Travel and Accommodation charges.
• Subject to Placement of order for Payment if Warranty Not Accepted by the Manufacturer.
