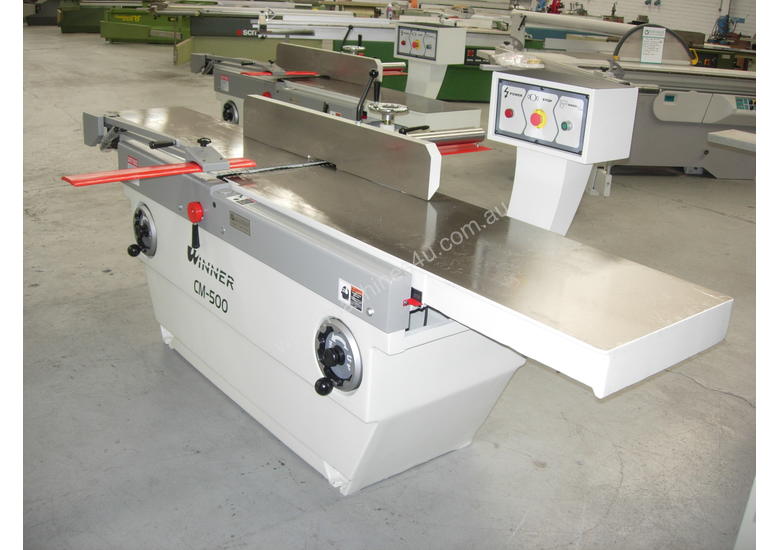

WINNER CM 500E PLANER JOINTER SPIRAL CUTTER HEAD WITH DISPOSABLE CUTTERS
CM-5000E SPIRAL CUTTER HEAD WITH DISPOSABLE CUTTERS
• table area (LxWxH) 2850x500x105 mm
• max. planing width 500mm
• table height 800 mm
• fence slant 0~45°
• cutterhead speed 5000 rpm
• Ideal for heavy machining

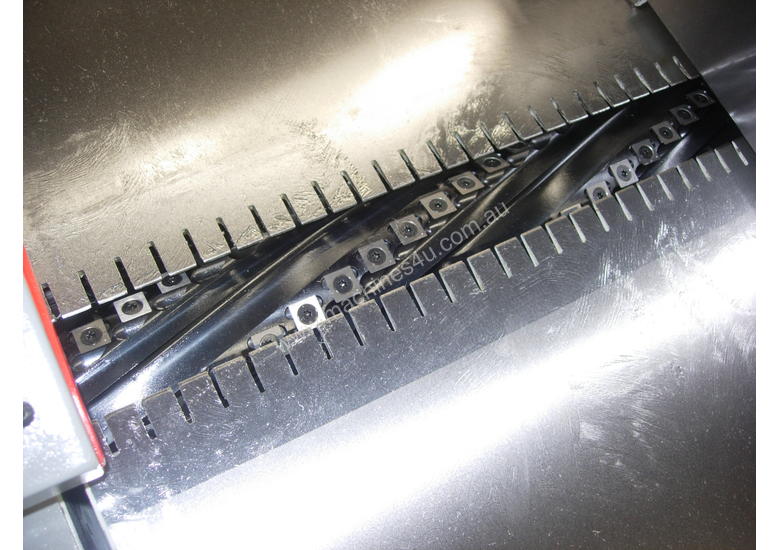

.Spiral cutter head fitted with two -edge tungstan carbide knives insert
.Disposable knives 14 x 14 x 2mm
.Cast Iron frame
.Digital position control of infeed table (optional)
.Tilting fence.
2 x 125mm dust outlets
• net weight 730 kgs, motor 5hp, 415V
