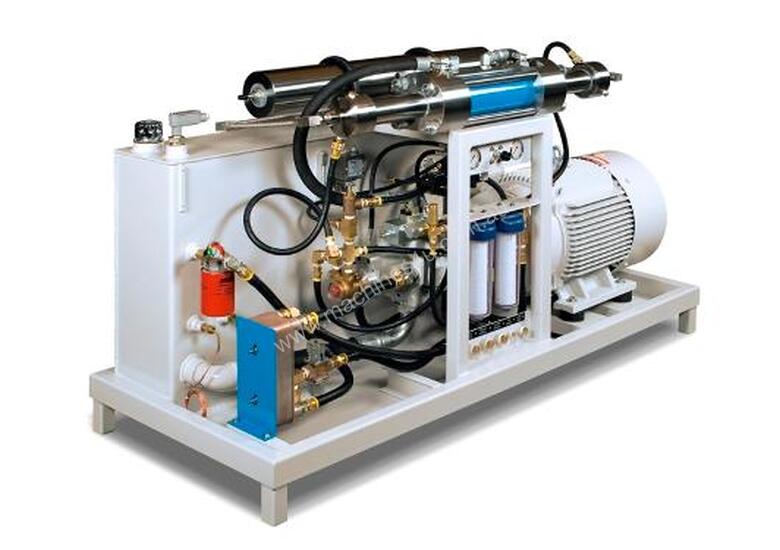

WSI, MADE IN USA 37KWatt 60KPsi WATERJET INSIFIER.
Design Pressure:
60,000 psi (4,140 bars)
Maximum Operating Pressure:
55,000 psi (3,800 bars)
High-Pressure Flow Rate:
1.00 gpm (3.78 lpm)
Intensifier Cycle Rate:
22 cycles/min. at max. flow rate
Electrical System:
Main Motor: 50 hp / 37 kW (TEFC)
380v / 3 ph. / 50 Hz
Booster Pump Motor: 1/3 hp / 0.25 kW (TEFC)
1500 rpm 50 Hz
Controls:
24 VDC
Safety Shutdown Circuits:
High Oil Temperature
Low Oil Level
Low Water Pressure
Intensifier Over-Speed
Intensifier Stall
Hydraulic System:
Piston Pump
Max. Operating Pressure: 3,000 psi (207 bars)
Cooling Water Flow Rate: 2 gpm (7.56 lpm)
Low Pressure Cutting Water System:
Optimum Inlet Pressure: 65 psi (4.50 bars)
Booster Pump Setting: 175 psi (12 bars)
Orifice Capacity at 55,000 psi (3,800 bars):
Quantity / Orifice Diameter
1 – 0.014 in. (0.35 mm)
2 – 0.010 in. (0.25 mm)
4 – 0.007 in. (0.17 mm)
8 – 0.005 in. (0.12 mm)
Physical Dimensions:
Height: 1.27 meters
Width: 0.76 meter
Length: 2 meters
Weight: 1,452 kg
