3200mm x 90Ton - Best Featured NC Hydraulic Pressbrake on the Market For The $$

SM-PB90/3200NC-S. ABSOLUTE. Hydraulic Pressbrake. 3200mm x 90Ton. 2 Axis NC Estun E21 Controller, Top & Bottom Tooling, 320mm Side Throat, 2650mm Between Frames, Leadscrew Backguage with 4 Fingers.

Our new "S" Series Steelmaster Pressbrake now offers purchases a new machine, with all modern
day features at a price that you would expect to pay for a used machine.
Etsun 2 x axis E21 NC programmable controller is standard. Deep side throats, large frame widths,
this list goes on!
Offering all the features, new machine warranty, at the right price in this challenging market!

Features
?hydraulic synchronised positive stop design, electronically controlled by Etsun NC programmable controller assuring accurate repeatability and ease of use.
?deep side throats and wider distances between the vertical frames offering you more application scope.

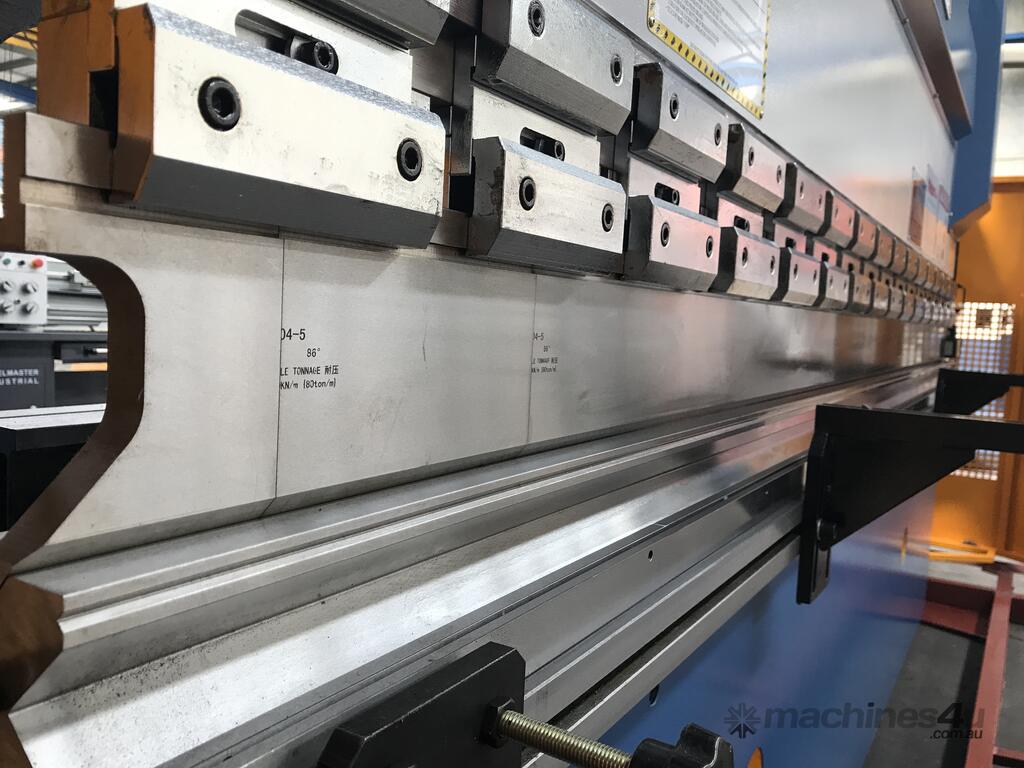

?segmented heavy duty 86° offset top tool, segmented for return bend clearance.

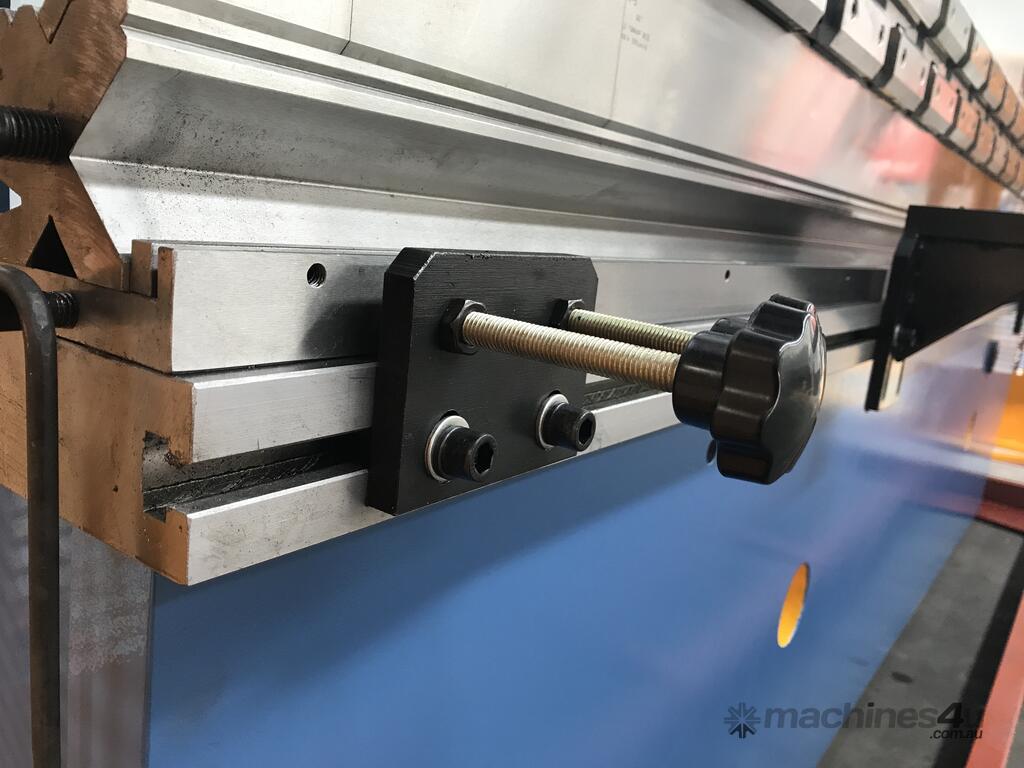

?full length Multi Vee bottom block with a smart selection of openings also including safety edge vee ('V') for over bending.

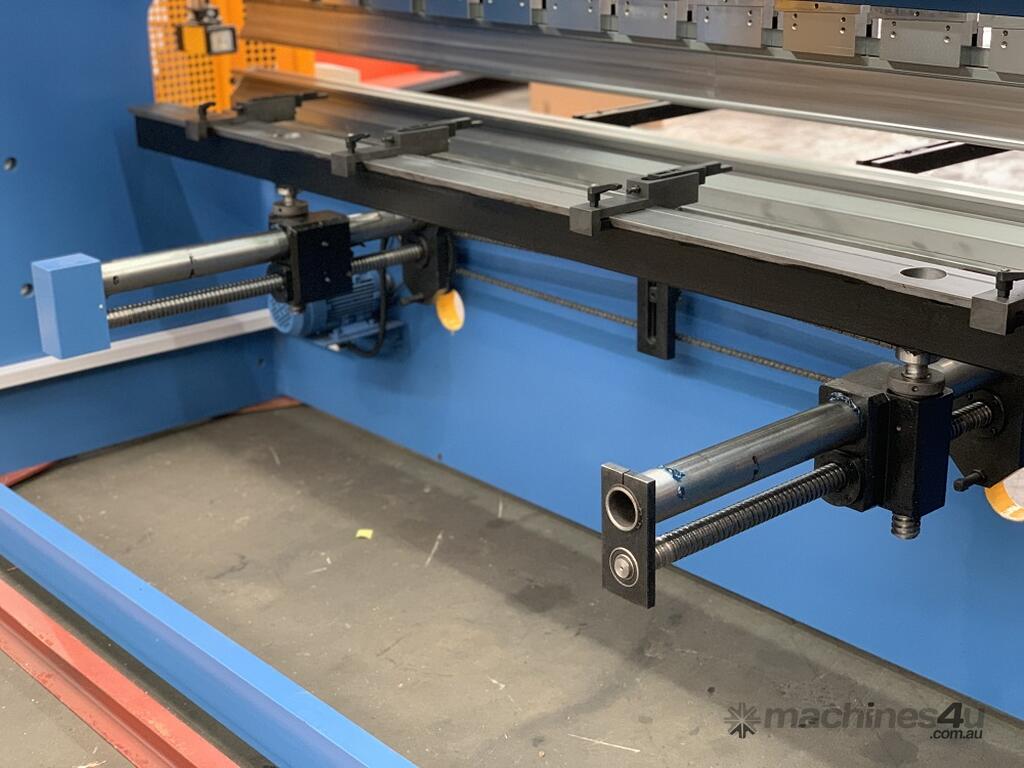

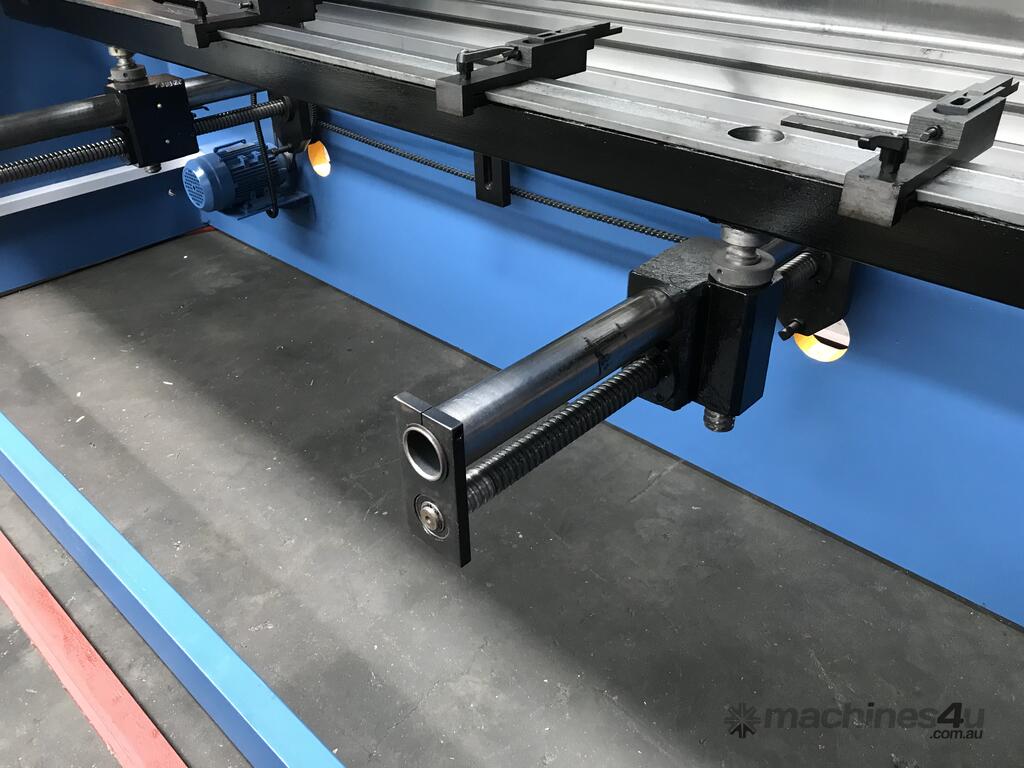

?power operated back gauge with quality support fingers also with vertical adjustment

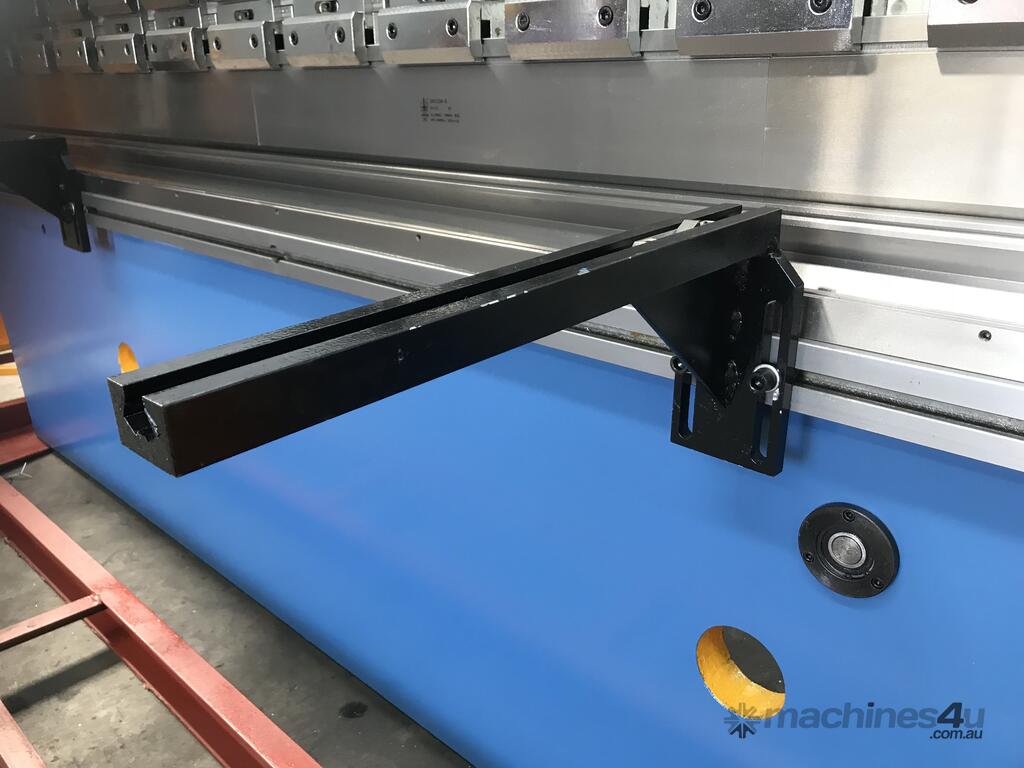

?front sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height.

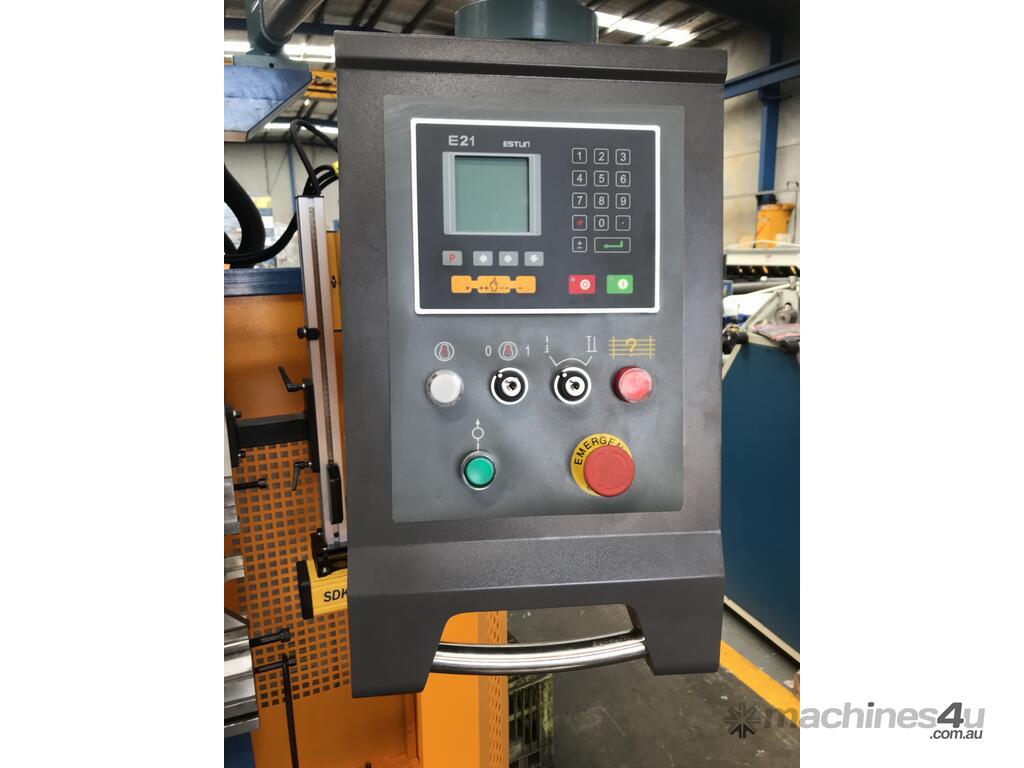

?conveniently mounted control box on pendant for quick swivel and adjustments.
?integrated hydraulic system allowing rapid approach switching automatically to slow bend.
?modern designed pendant foot pedal operation with stainless braided cable.
?variable hydraulic pressure control valving fitted standard
?safety and material selection bending charts mounted on front beam for easy access.
?supplied pre commissioned prior to delivery
?pre commissioned prior to delivery
?CE compliant

Technical Data Snap-Shot
?Etsun E21 NC Controller
?90 Ton Bending Capacity
?2 axis programmable controller
?3200mm Bending Length
?2650mm Distance Between Frames
?320mm Side Throat Depth
?100mm Ram Stroke
?355mm Open Height
?600mm Back Gauge Travel
?7.5Kw / V Motor Power
?3500mm x 1725mm x 2355mm Footprint
?7500Kg Weight

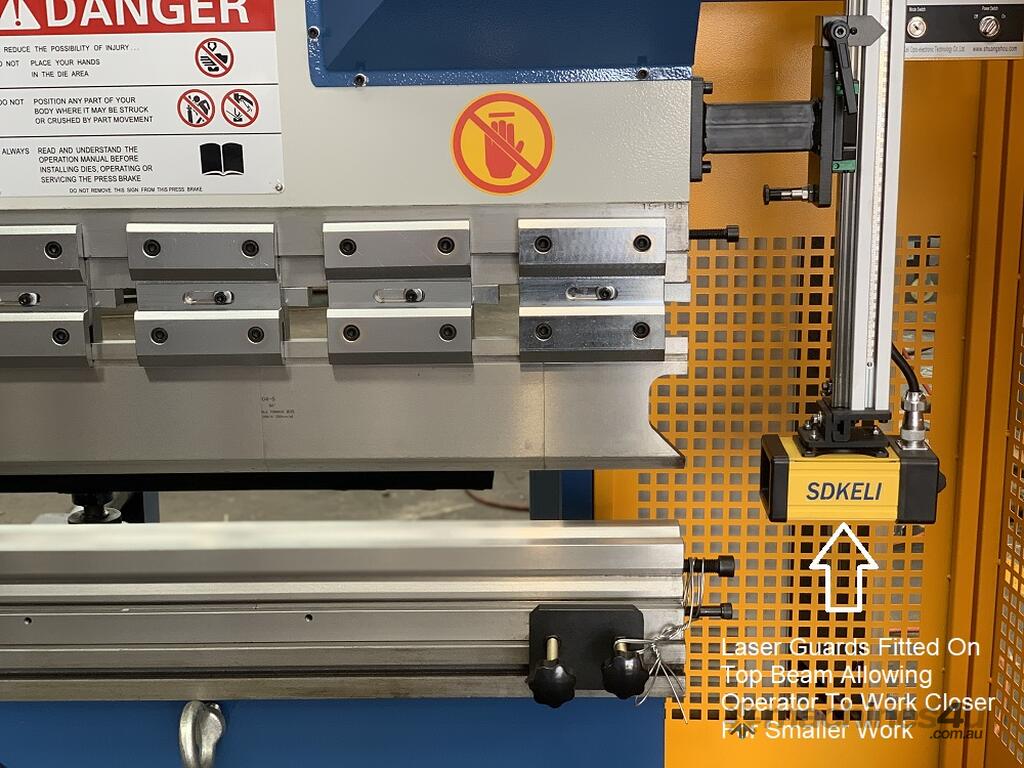

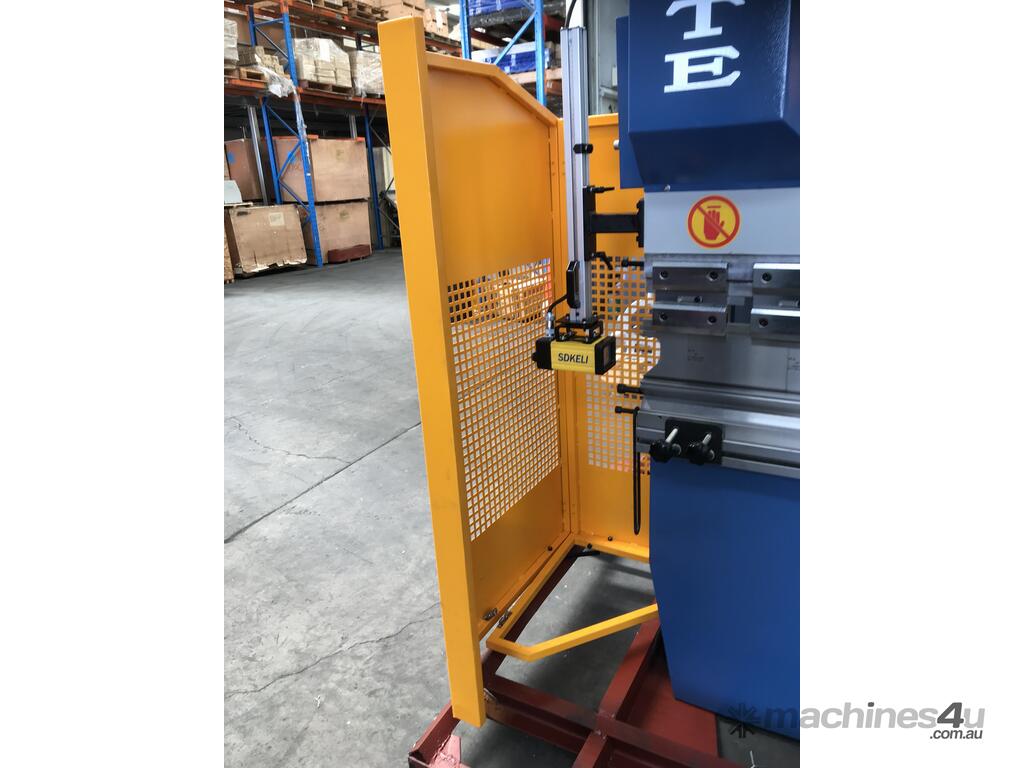

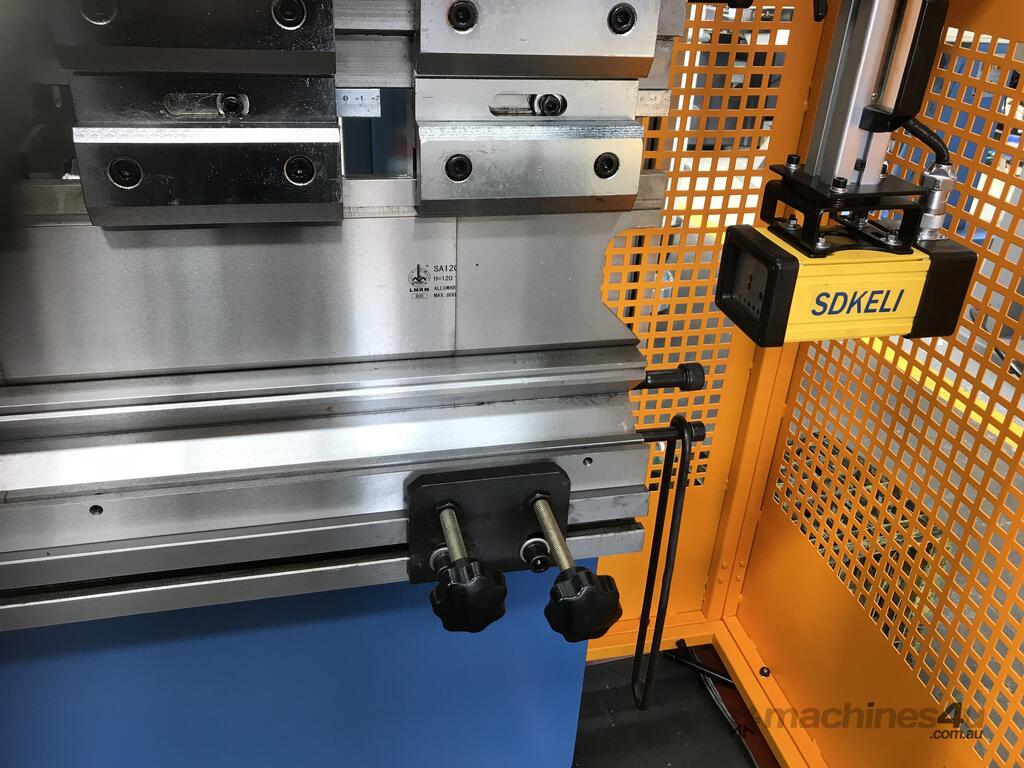

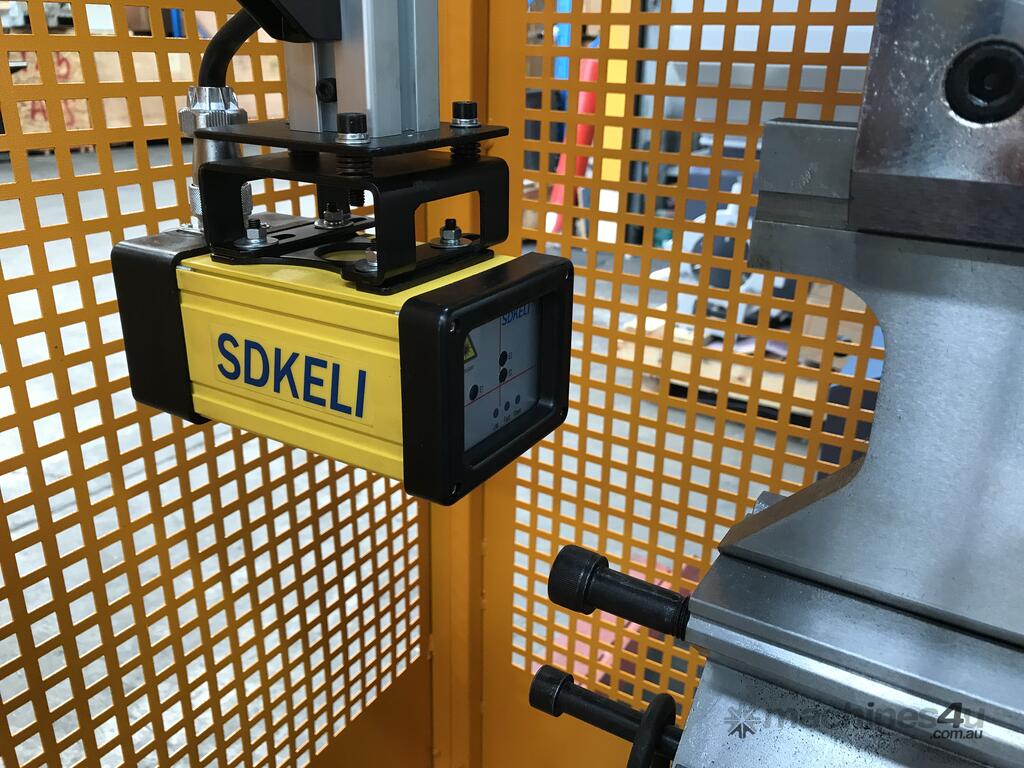

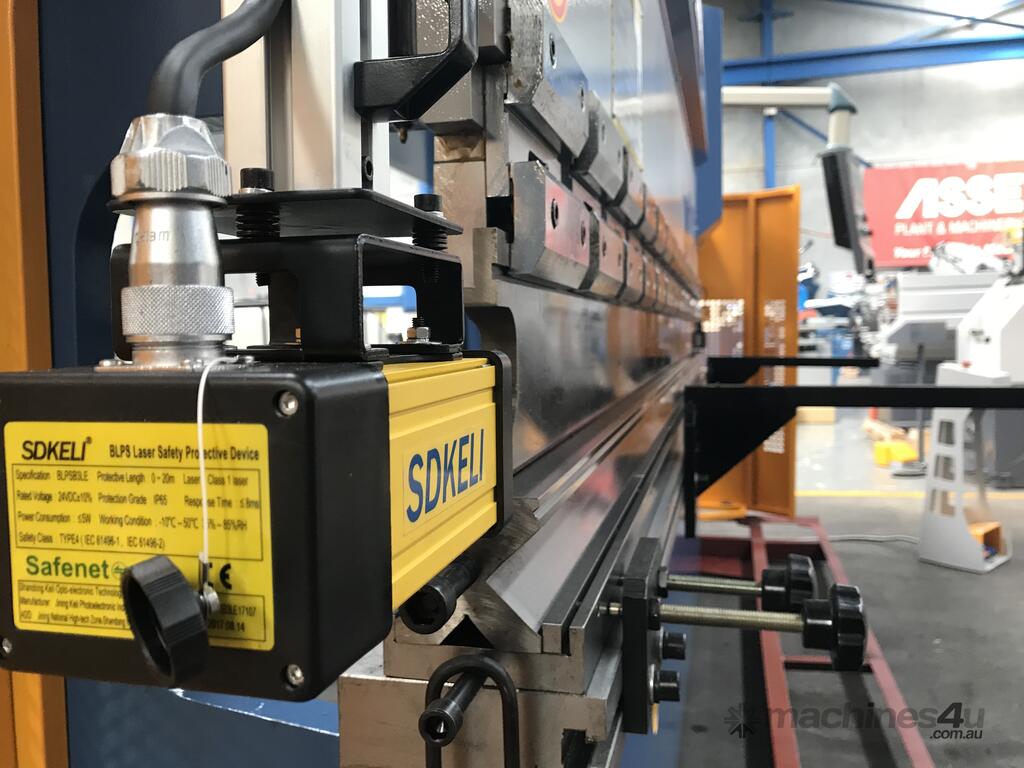

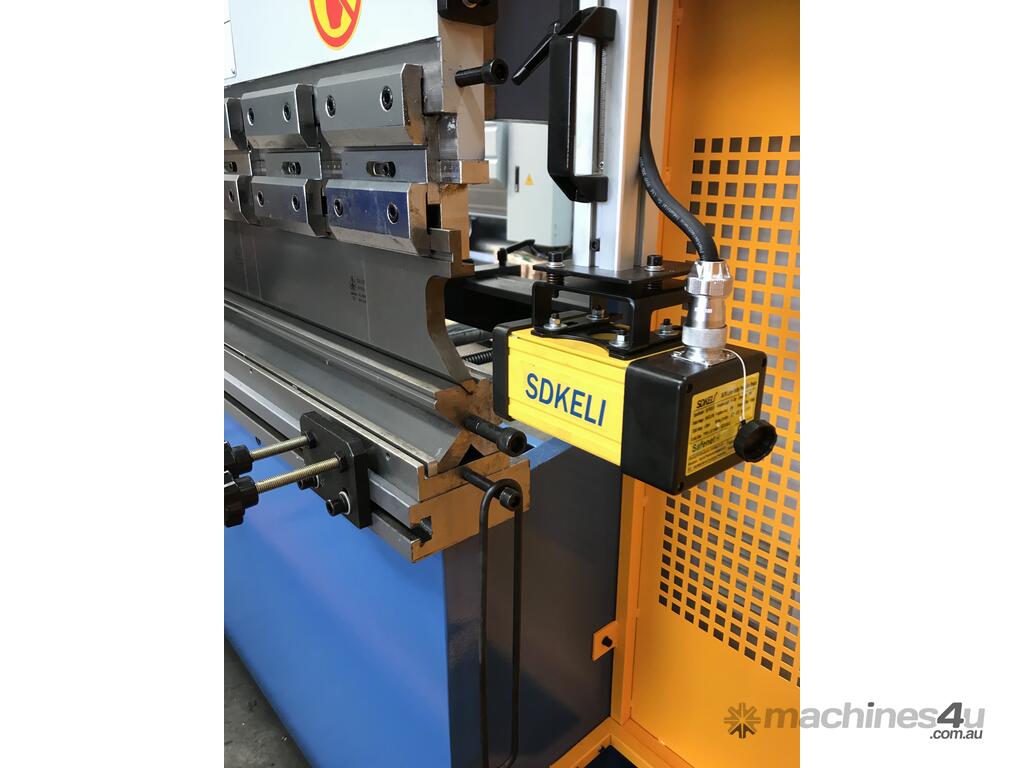

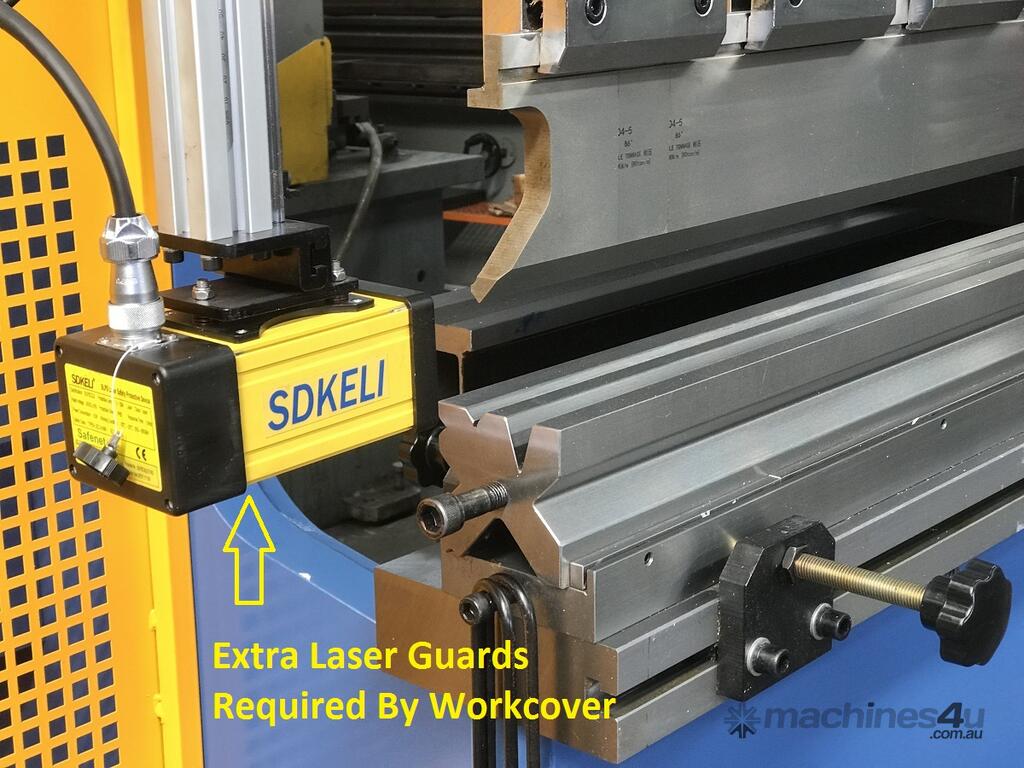

?Front Laser Safety guards as shown are additional cost.
