The Pegasus+CN is equipped with Automatic /Semi-Automatic operation of the cutting cycle, touch screen CNC control for ease of use. The Pegasus+CN offers increased productivity along with automatic positioning of the bow for mitre cutting from 0-60° during the cutting cycle.
Key Features:
- Cutting capacity round Ø 330mm, section 330 x 460mm
- Optional bundle cutting 200 x 410mm
- Fully programmable mitre cut in the cycle from 0 to 60°, hydraulically locked in position
- Fully automatic/semi-automatic operation

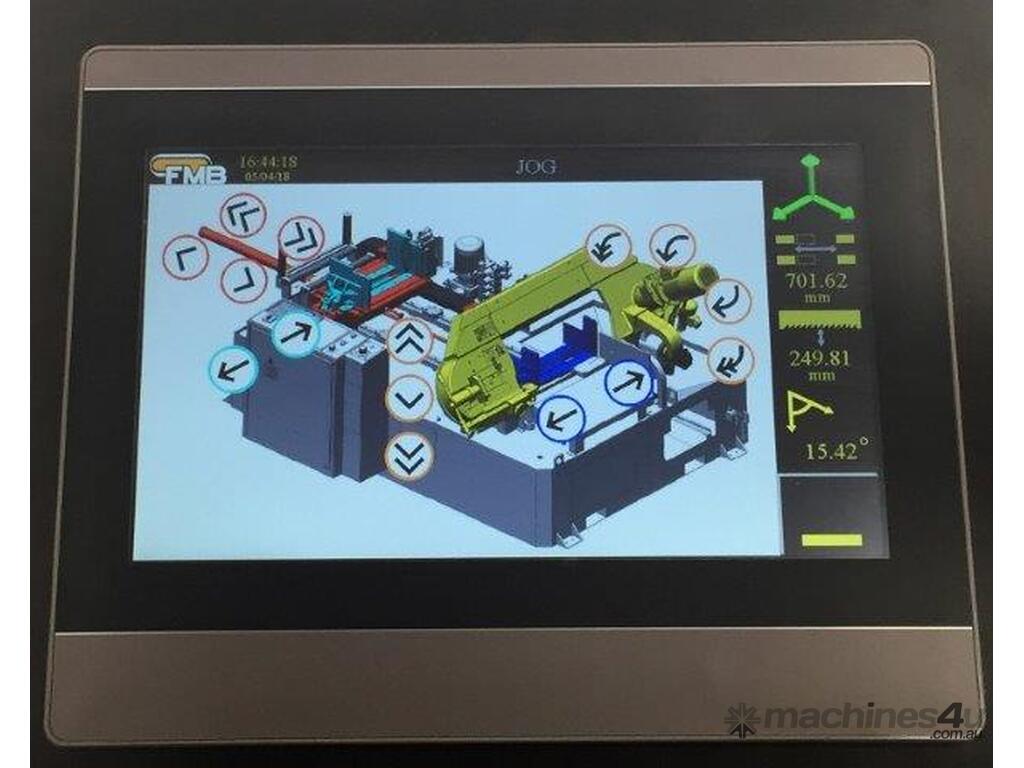

- 10? colour touch screen display
- Infinitely variable cutting speed via inverter 16-120 m/min
- Infinitely variable down feed of the bow
- VDA – Head decent speed visualisation
- SENS+SD – Blade rotation sensor + stress detector
- BP – OH&S protection barriers

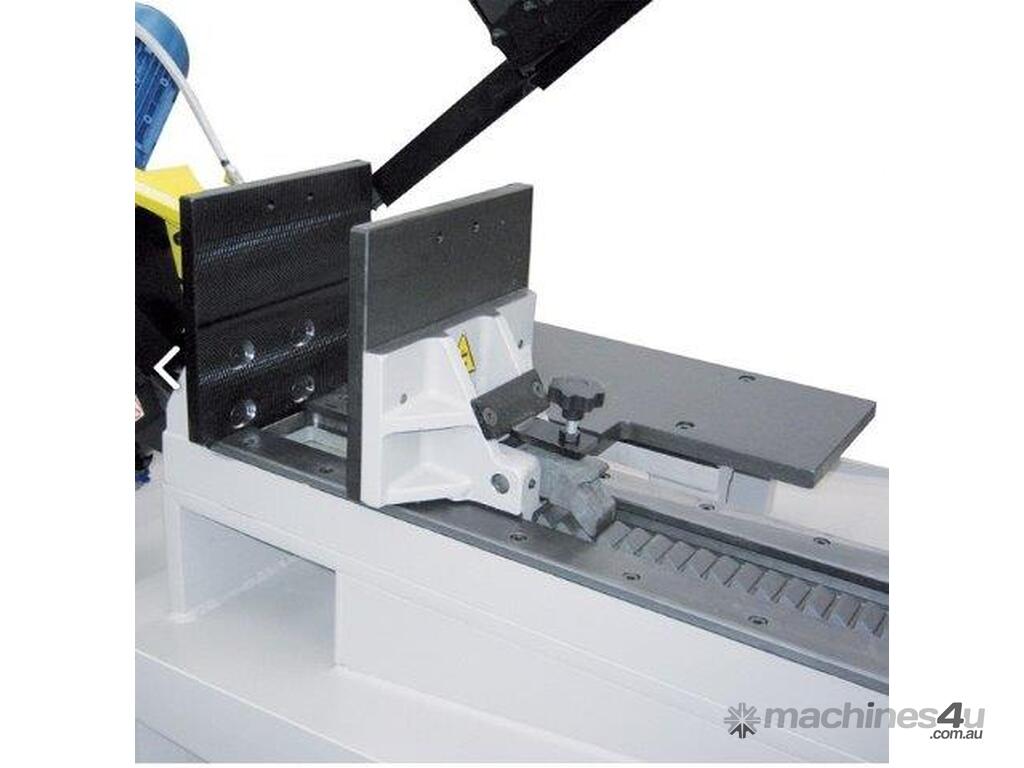

- Manual positioning vice with hydraulic quick action clamping
- Head vice and carriage movement via huydraulic cylinder
- Rugged support surface for easy loading of the material
- Heavy duty machine base with locking cabinet
- Feed stroke 1000mm / speed 4.2m/min
- Length of final scrap 310mm
- The accuracy of the system is ± 0,2 mm

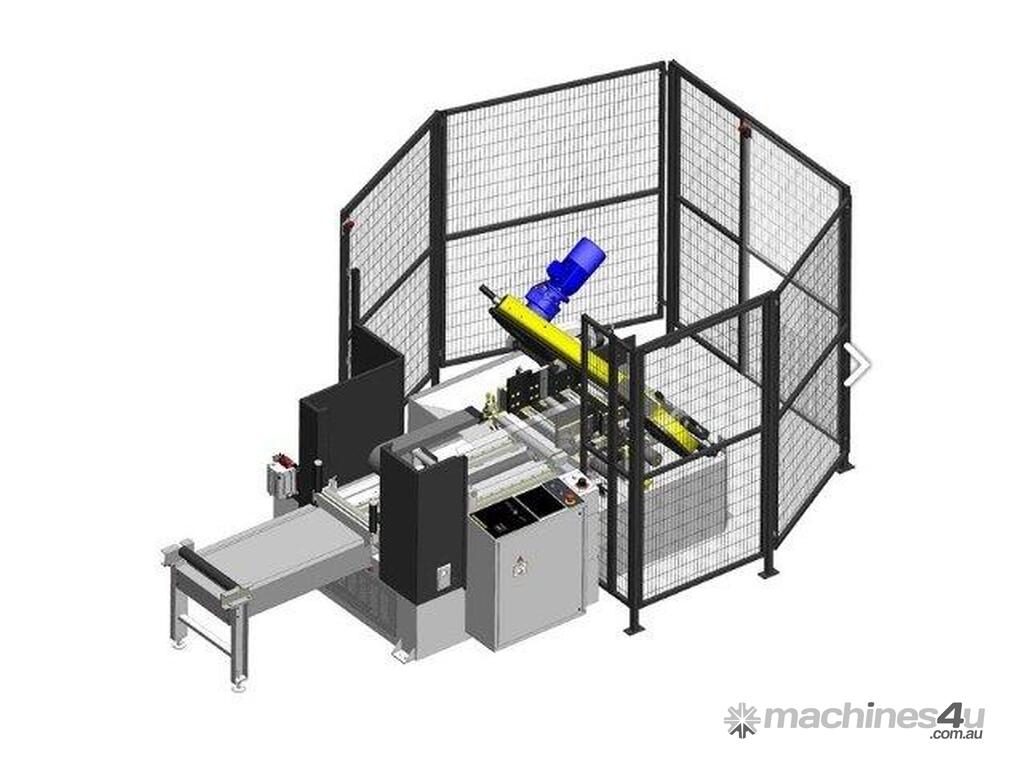

- Safety barriers with easy access for servicing equipment
- Roller table connected to the machine for material support in loading side – length 1000 mm.
- Helical gearbox with 95° efficiency
- Blade guides with a combination of side bearings, carbide plates and top bearings
- Fabricated heavy duty machine base with locking cabinet
- Broken blade detection automatically shuts down the machine

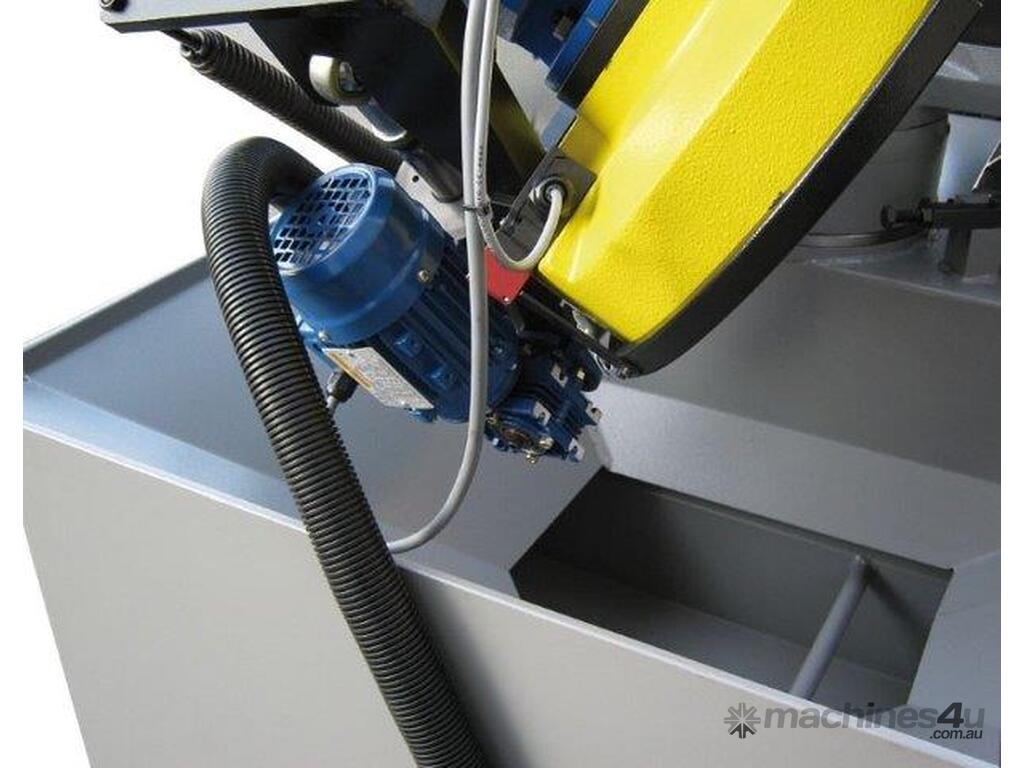

- Integrated motorized blade cleaning brush
- “Factory Order” . Price ex Works Bergamo Italy
