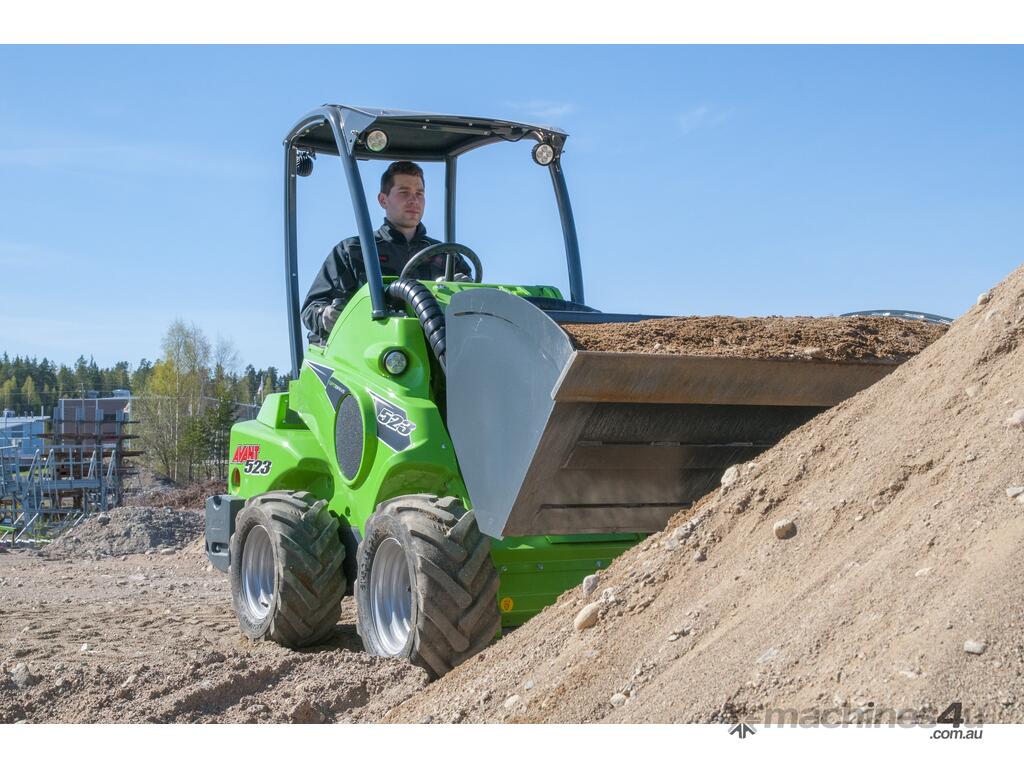

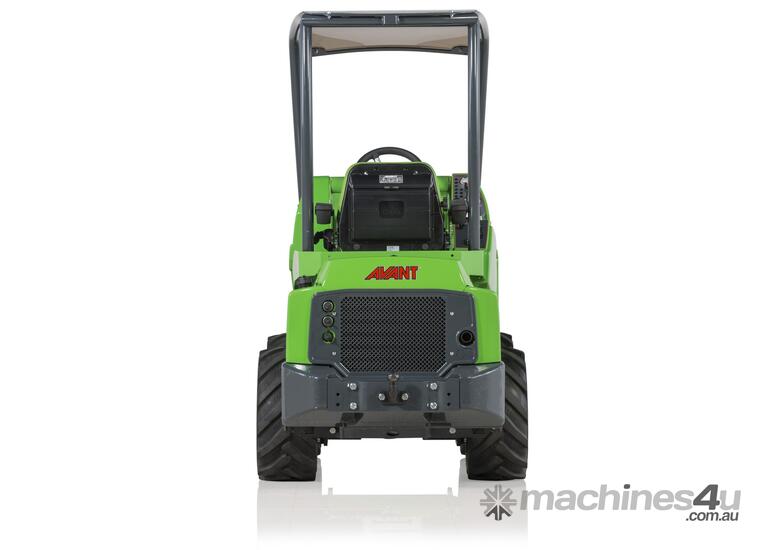

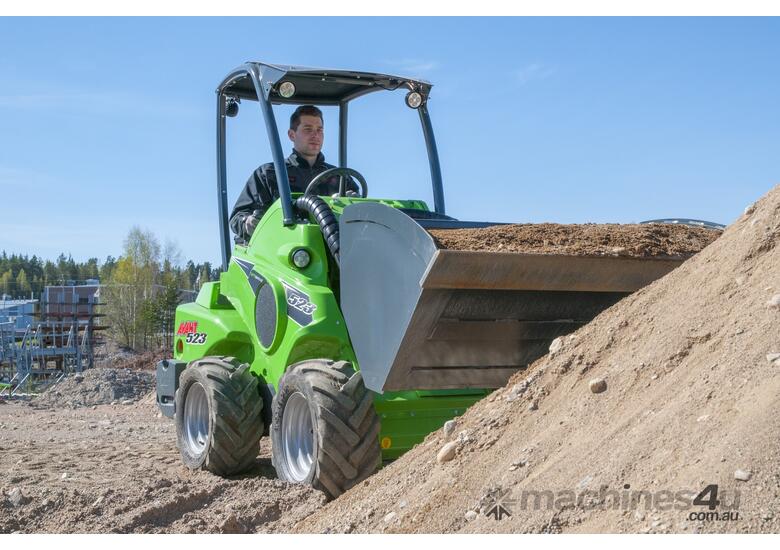

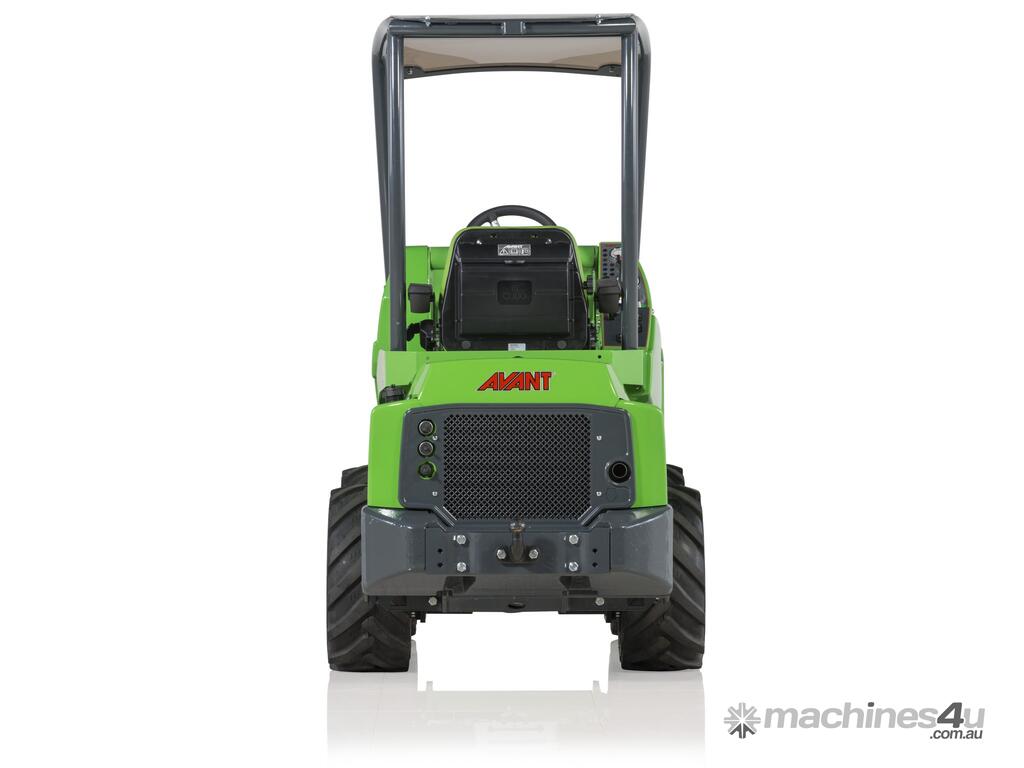

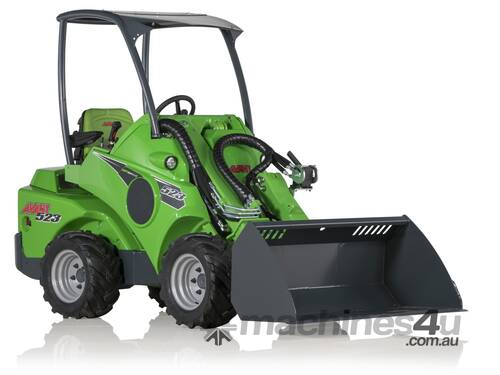

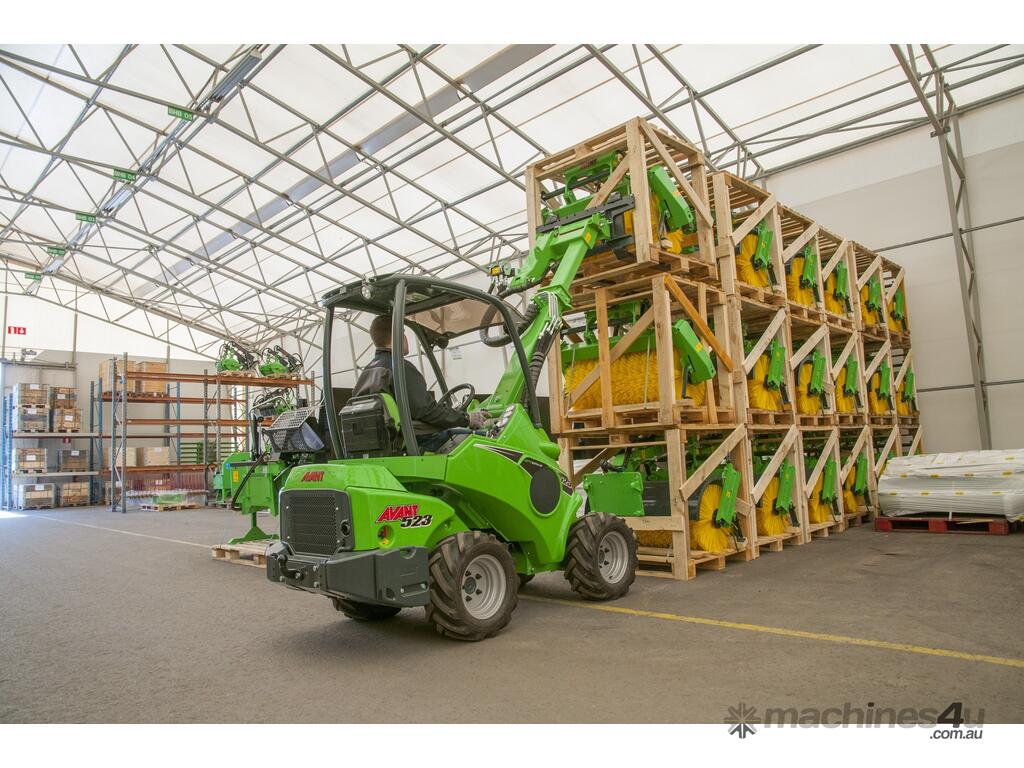

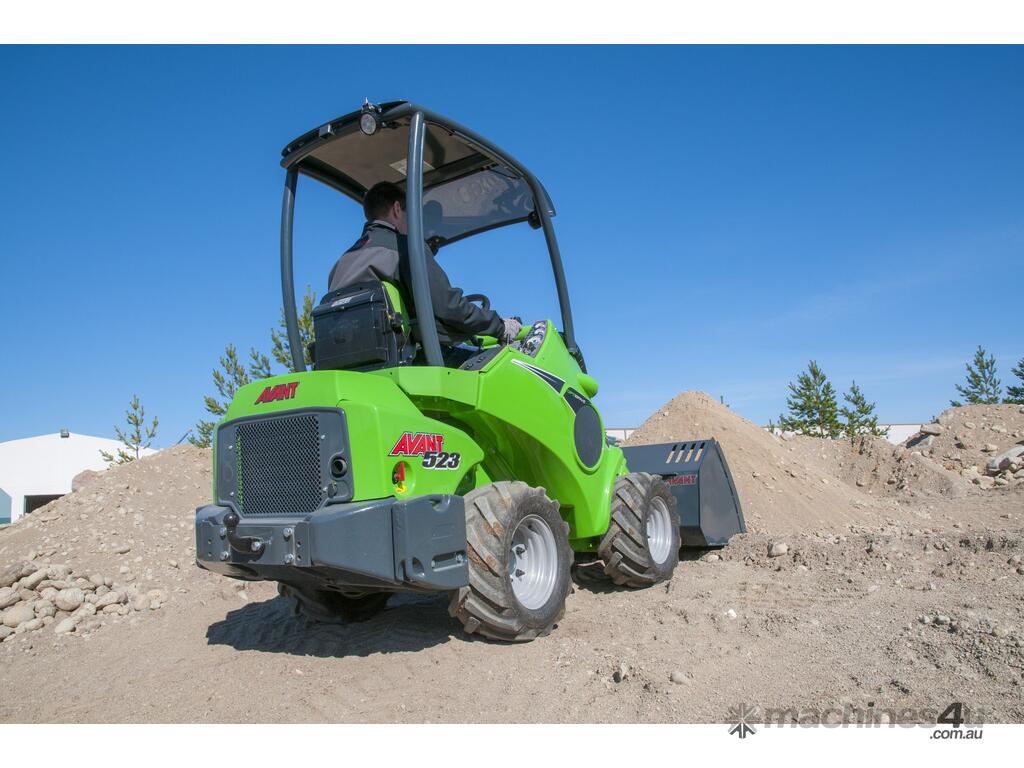

Avant 523 Articulated Compact Multipurpose Loader w Telescopic Boom

Lift capacity 800 kg | Lift height 2.8 m | Engine power 22 hp | Drive speed 12 km/h
Unbeatable power - price ratio. Kubota Diesel Engine

Avant 523 compact loaders are ideal for a wide range of industries thanks to their power and straight forward hydraulics. It can lift amazingly heavy loads compared to the size of the machine.

- Telescopic Boom
- Lift capacity 800 kg
- Lift height 2.8 m
- Engine power 22 hp
- Drive speed 12 km/h
- Optidrive™ drive circuit gives more power for the drive and hydraulic attachments.
- Simple, effective hydraulics means good power and low operating costs
- Easy to transport with a car trailer
- Optional Cab options available
- Over 200 attachments available for a wide range of industries
- Made in Finland

Technical Specifications
- Kubota Diesel D902 16kw / 22hp
- All New OptiDrive System

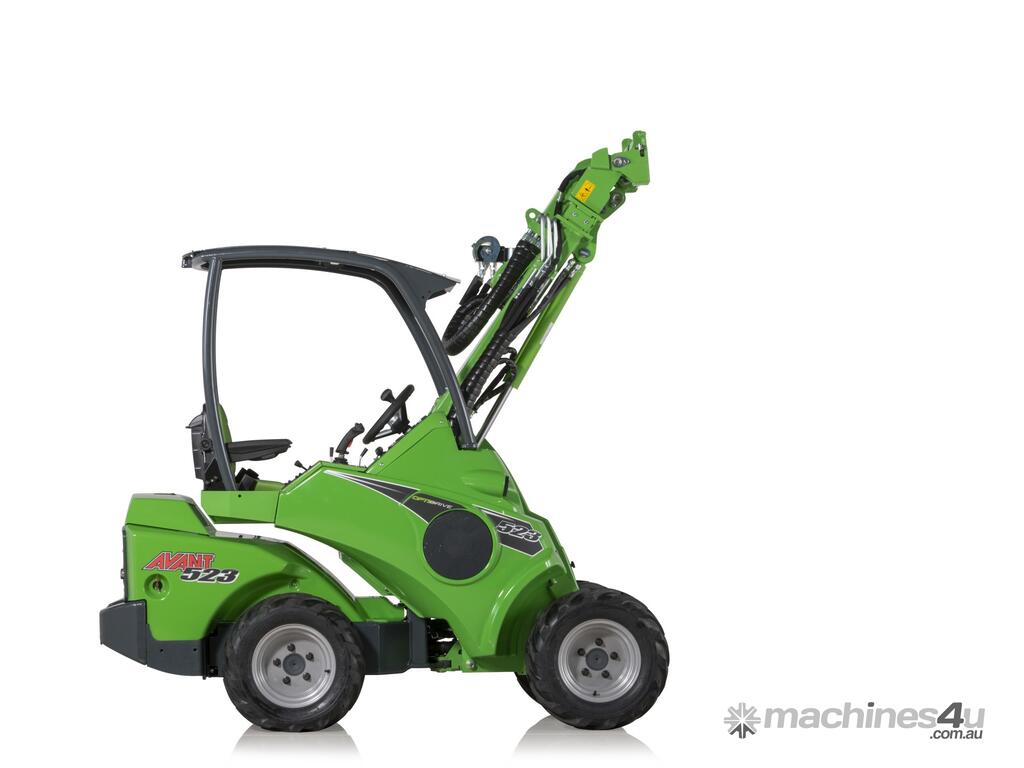

- Telescopic Boom with 2790 mm Lift height
- Self-levelling Boom
- Hydrostatic 4 Wheel Drive
- Hydraulic Pilot Operated Drive Pedal
- Direct Drive, 4 Hydraulic Motors
- Drive Speed 0 – 12 km/hr
- Auxiliary hydraulics, 1 Gear Pump 34L/min
- Hydraulic oil Cooler With Single Fan
- Drive release
- Suspension Heated Seat with Seat Belt and Arm Rests
- Hour Meter, Temperature Gauge, Tachometer
- Joystick 6 Function
- 2 Front Work Lights LED
- Poclain Wheel Motors
- Hydraulic Parking Brake
- Multi Connector on Aux. Hydraulics
- Heavy Duty Cover Panels
- ROPS & FOPS
- 23” * 10.50-12 Wheels & tyres 1090mm Wide
