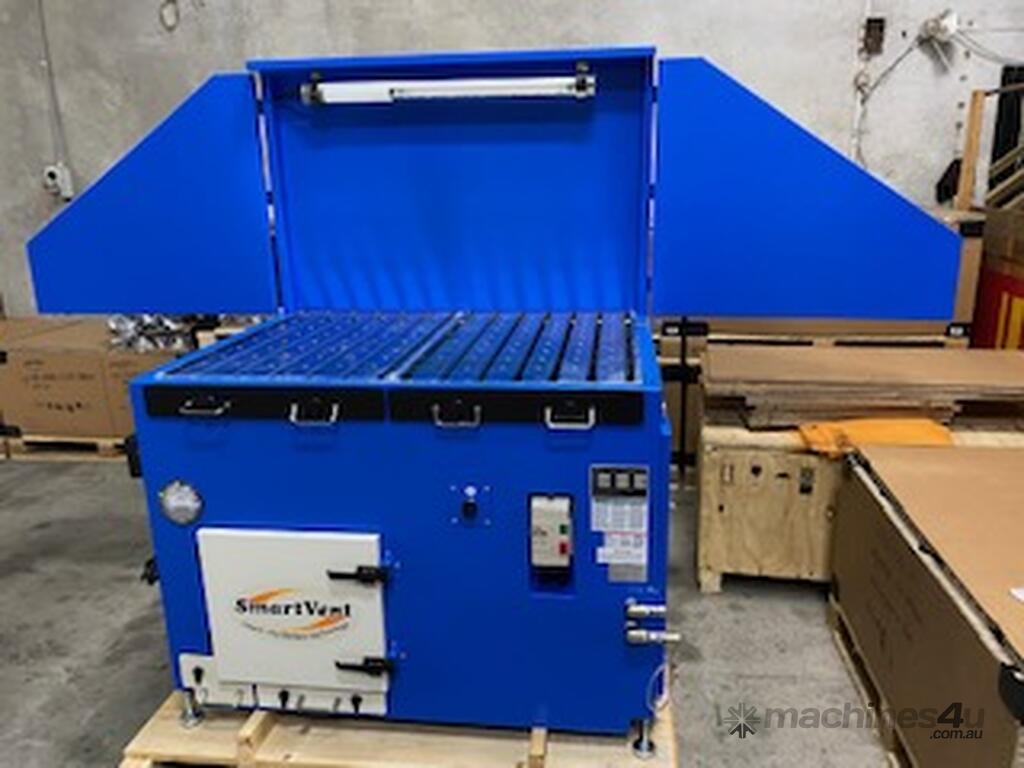

SmartVent Downdraft Tables
Manual Air Pulse Jet Cartridge Cleaning.
Cartridge: 99% of 1 Micron filter efficiency

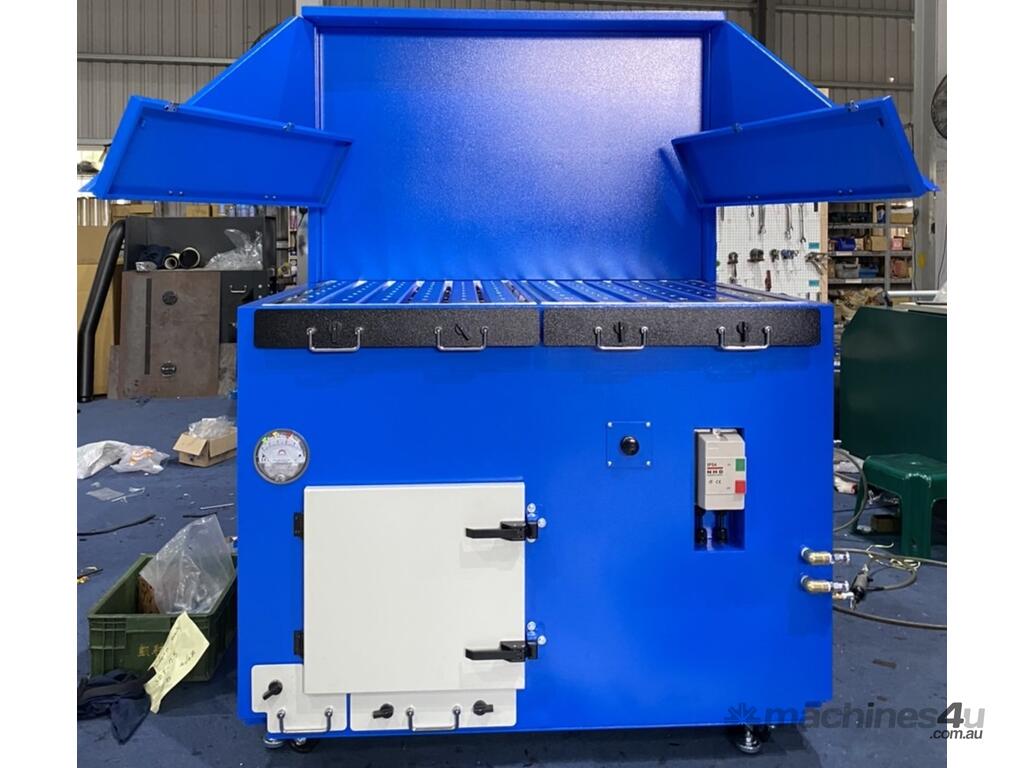

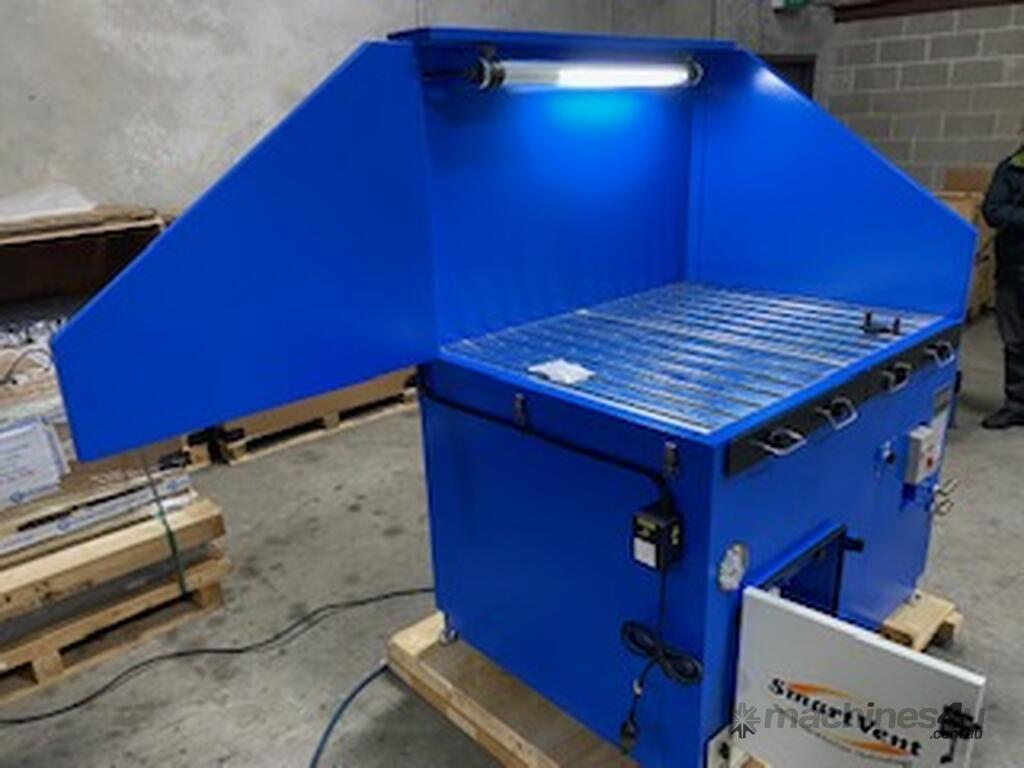

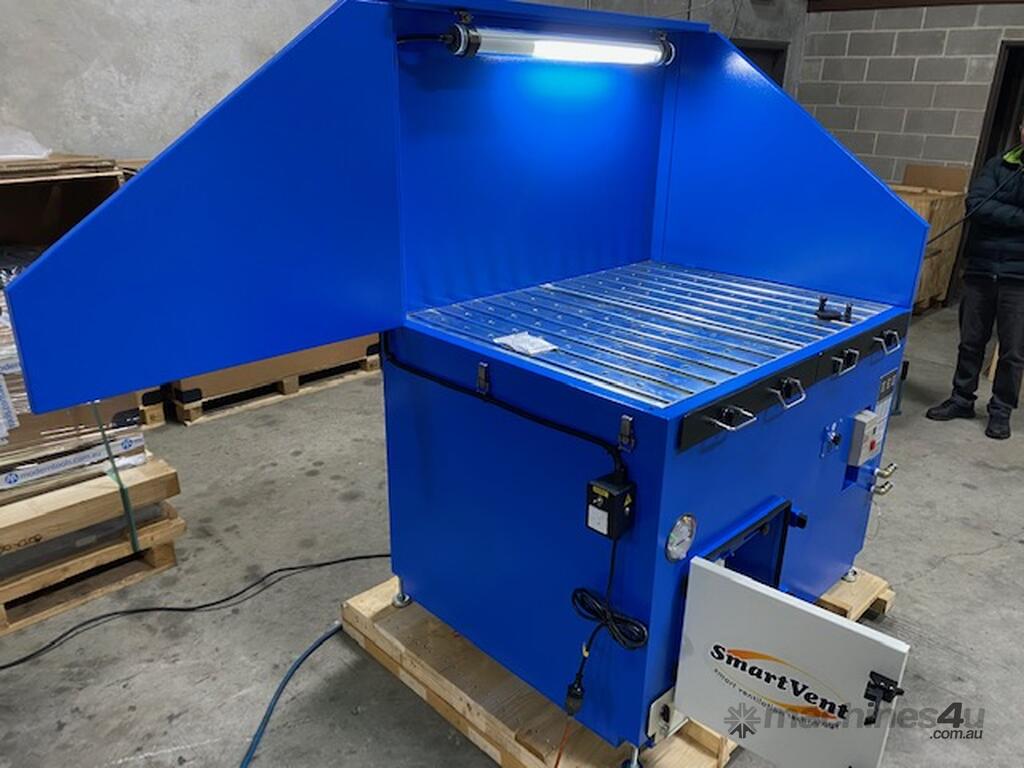

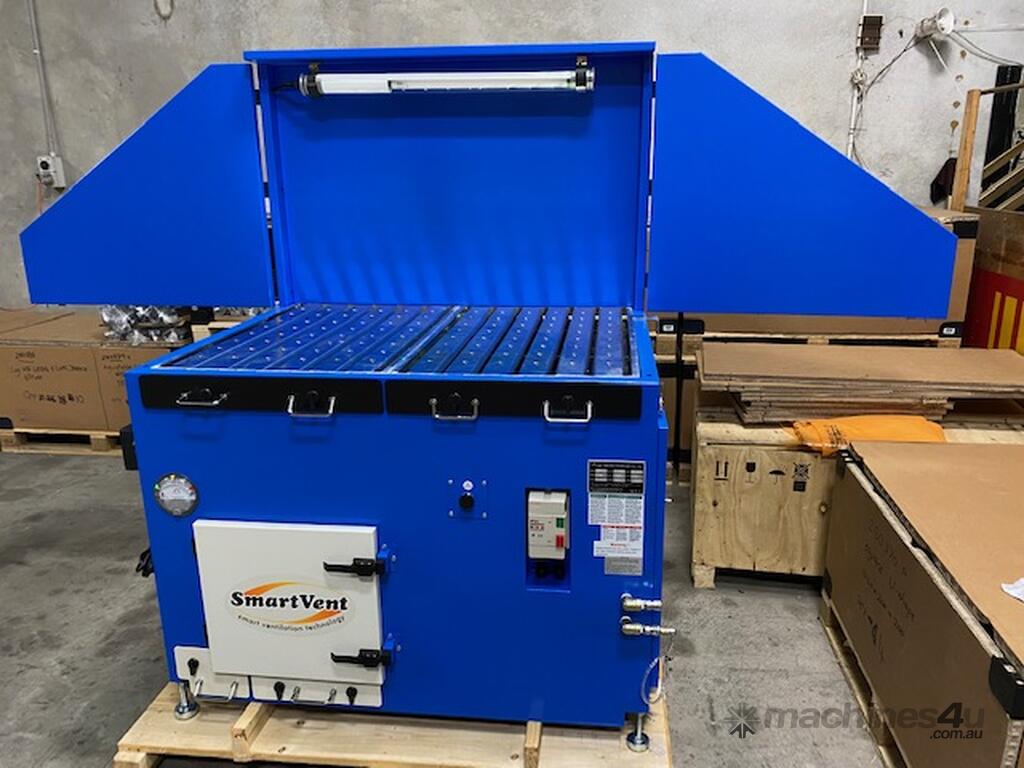

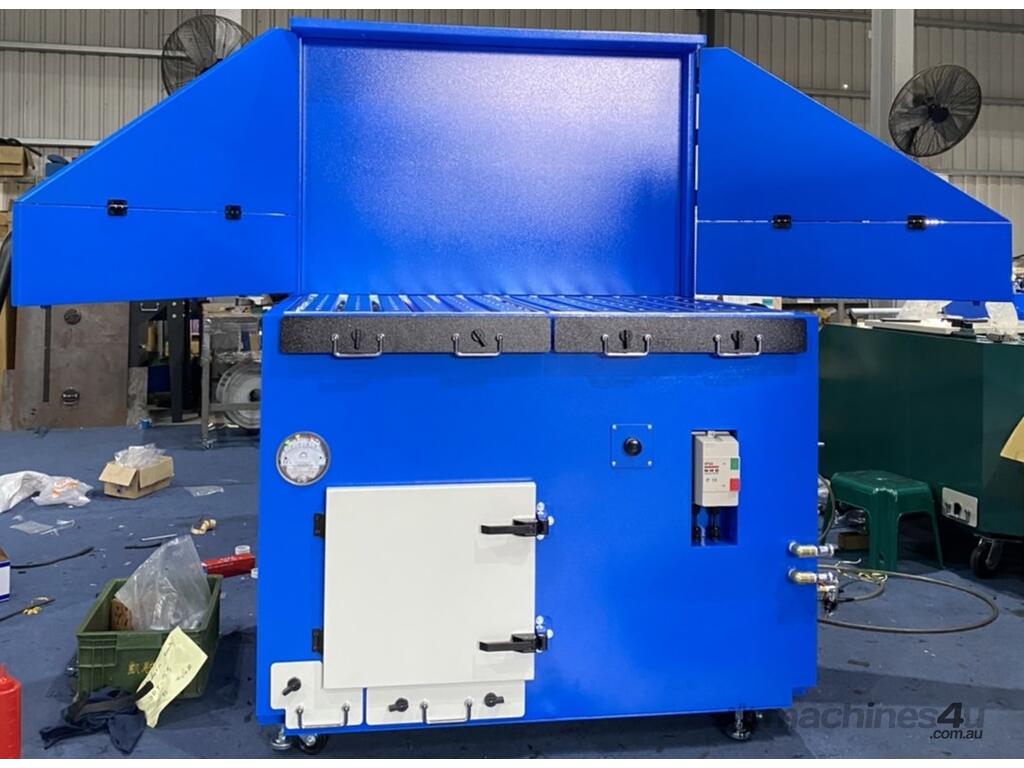

Side panels open out to allow large items to be worked on table surface

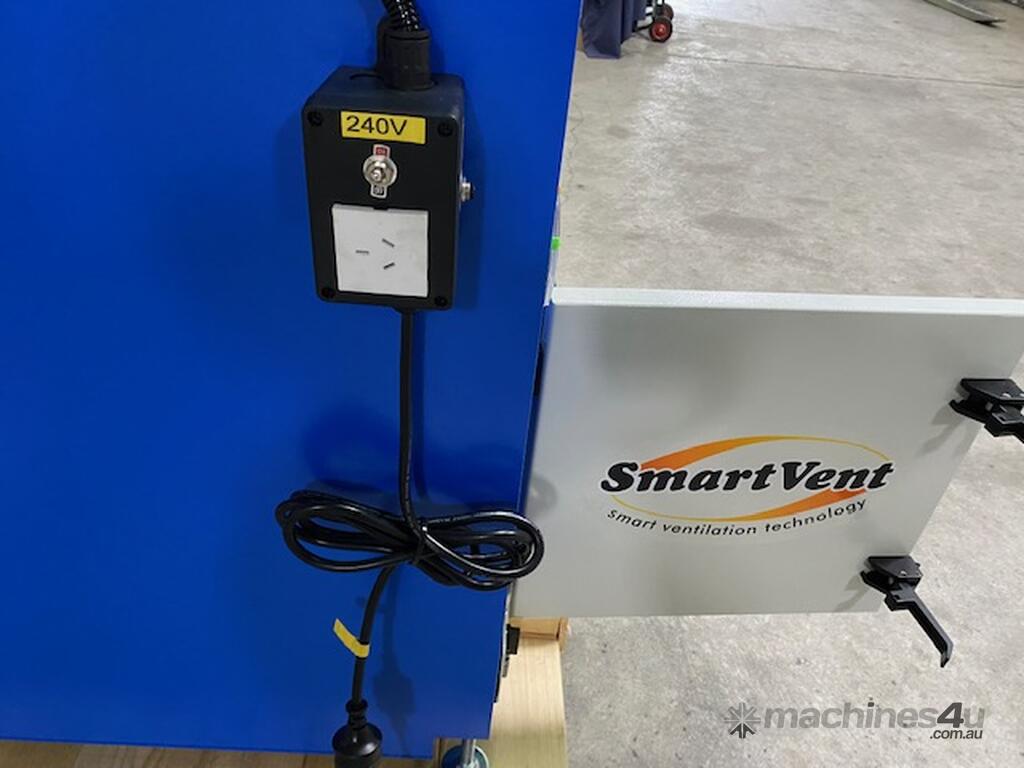

240volt power point on side of machine for easy electrical tool connnection

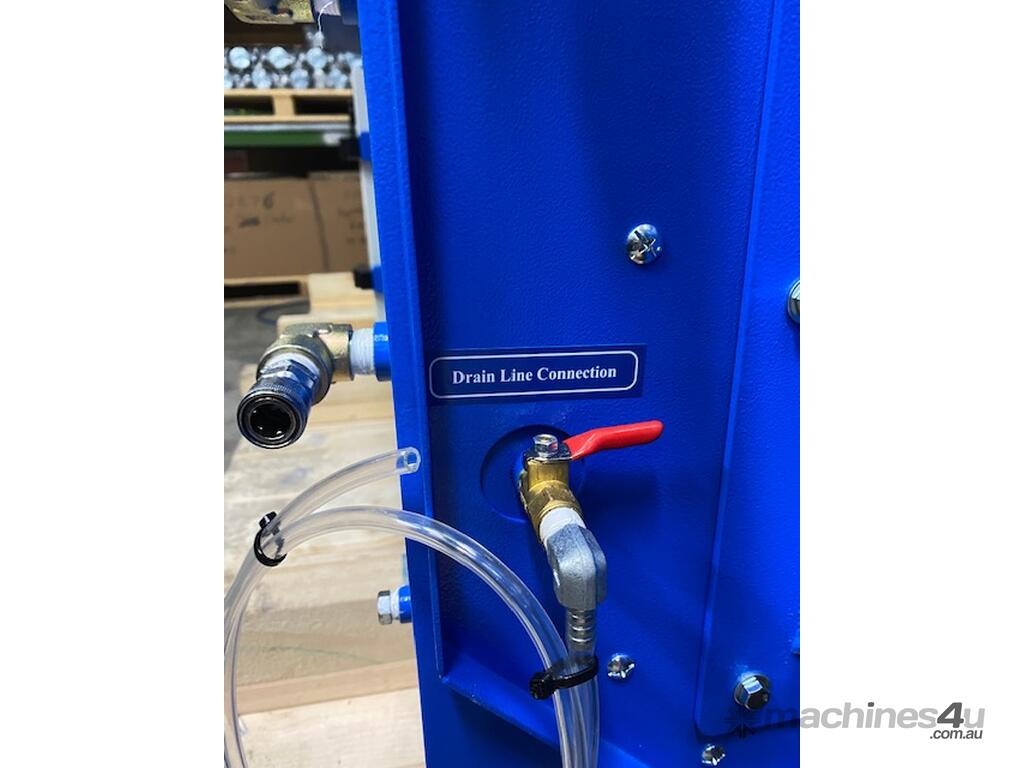

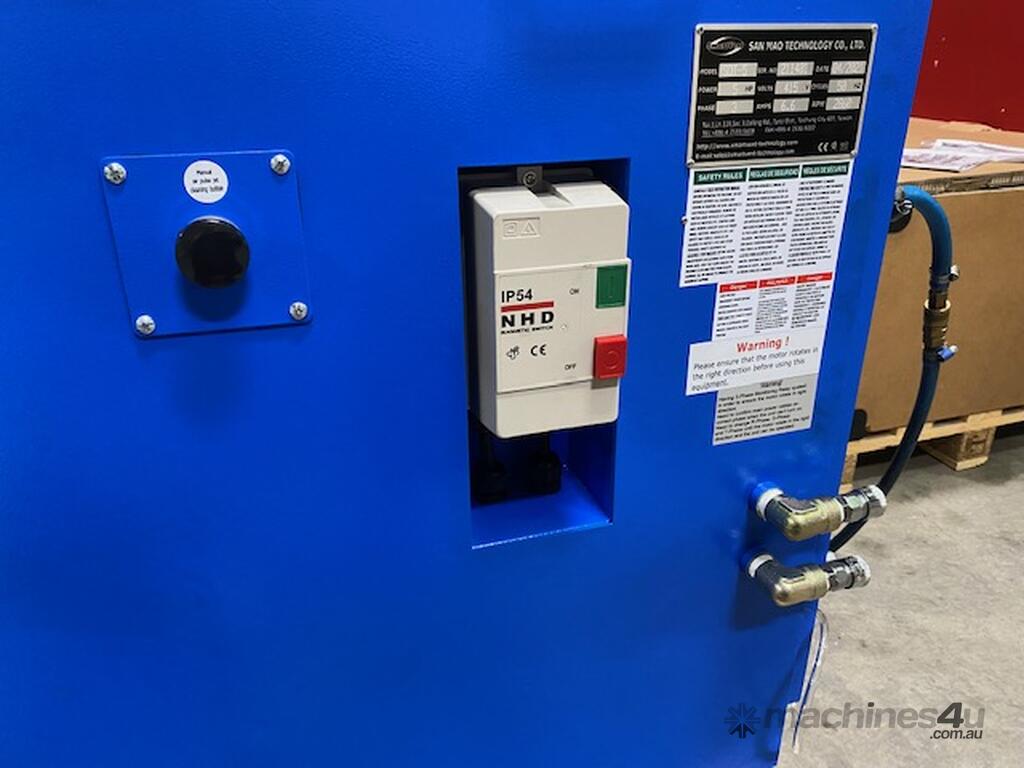

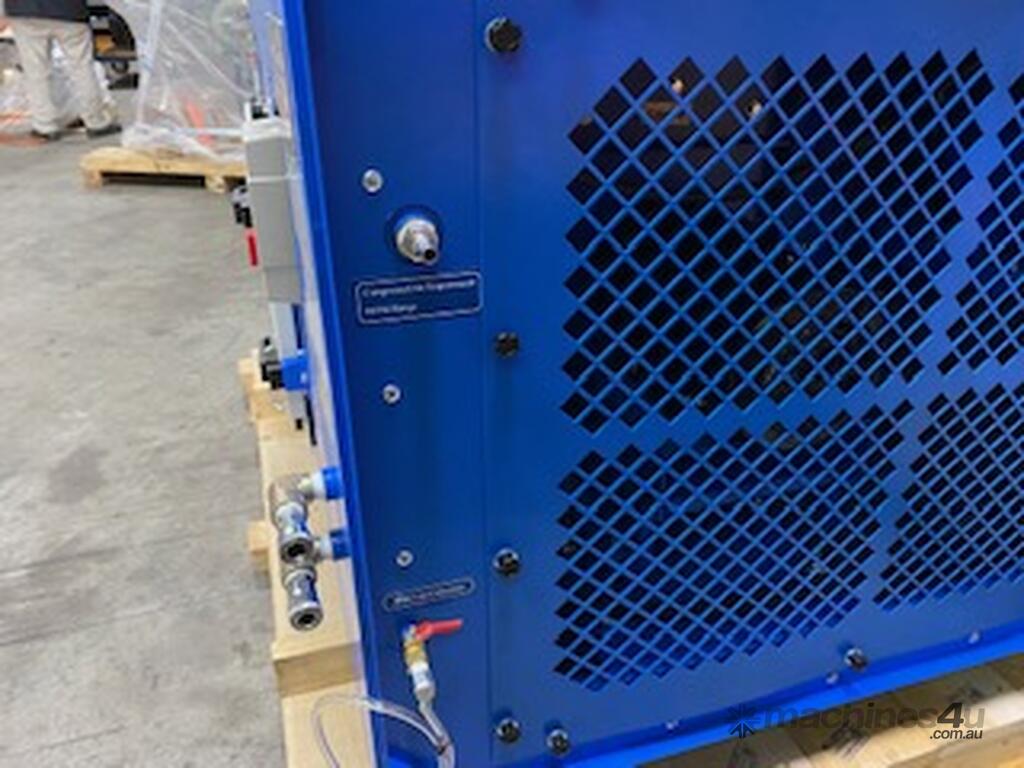

Compressed air fittings on machine for air tools
Heavy gauge powder coated steel

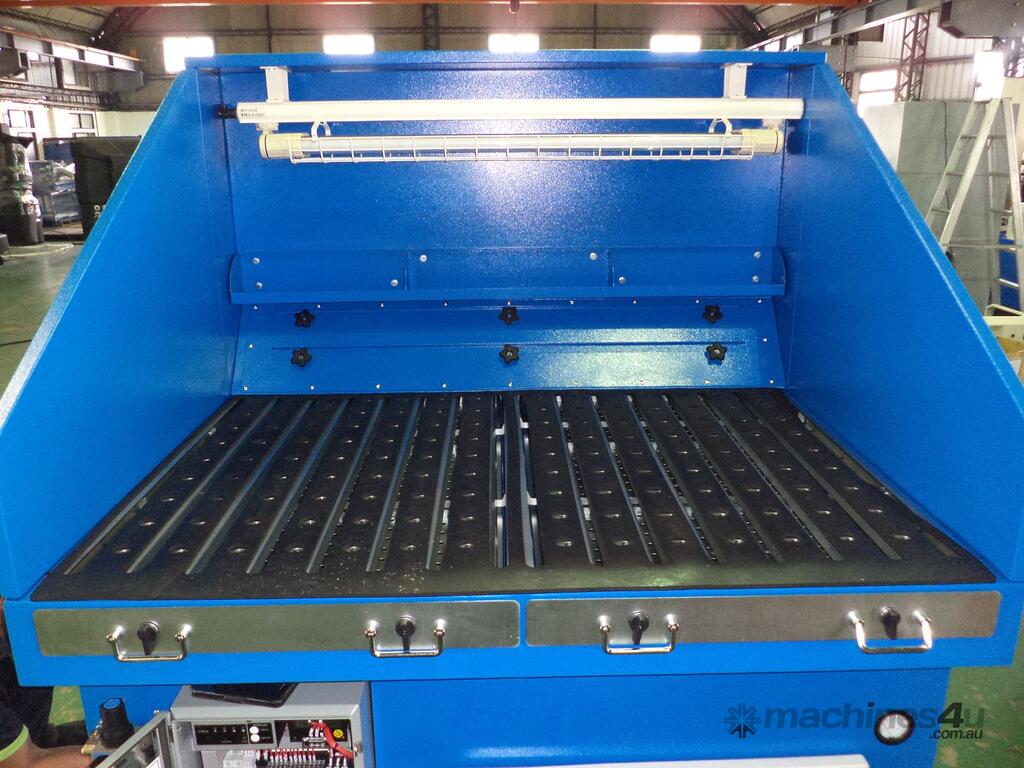

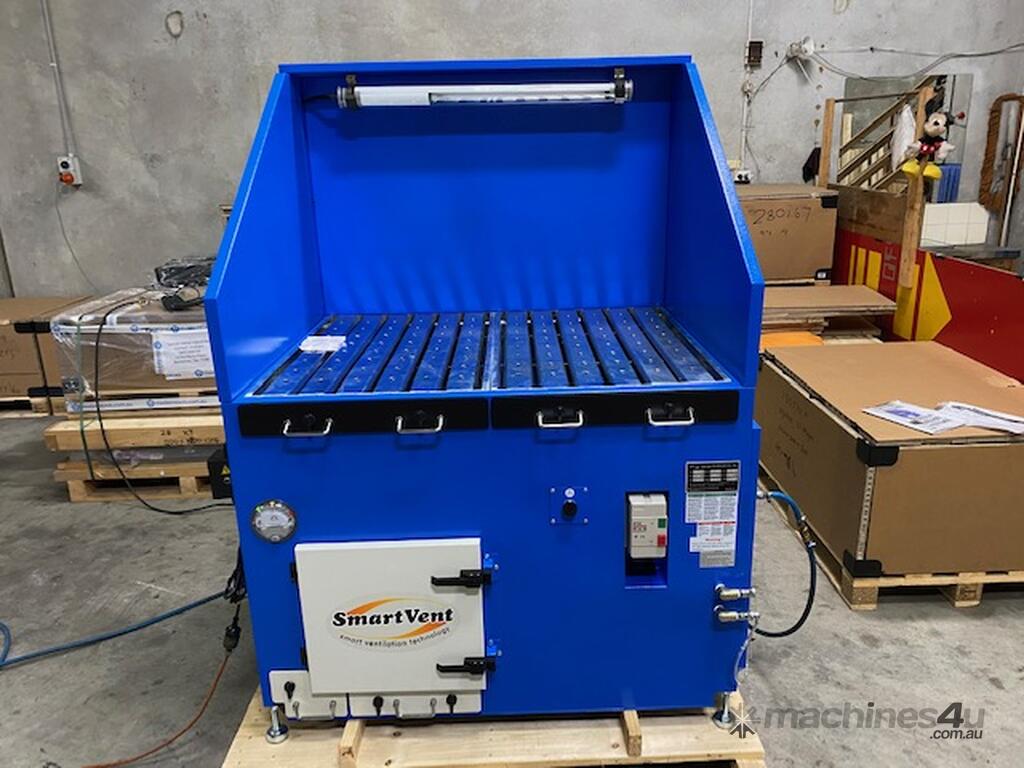

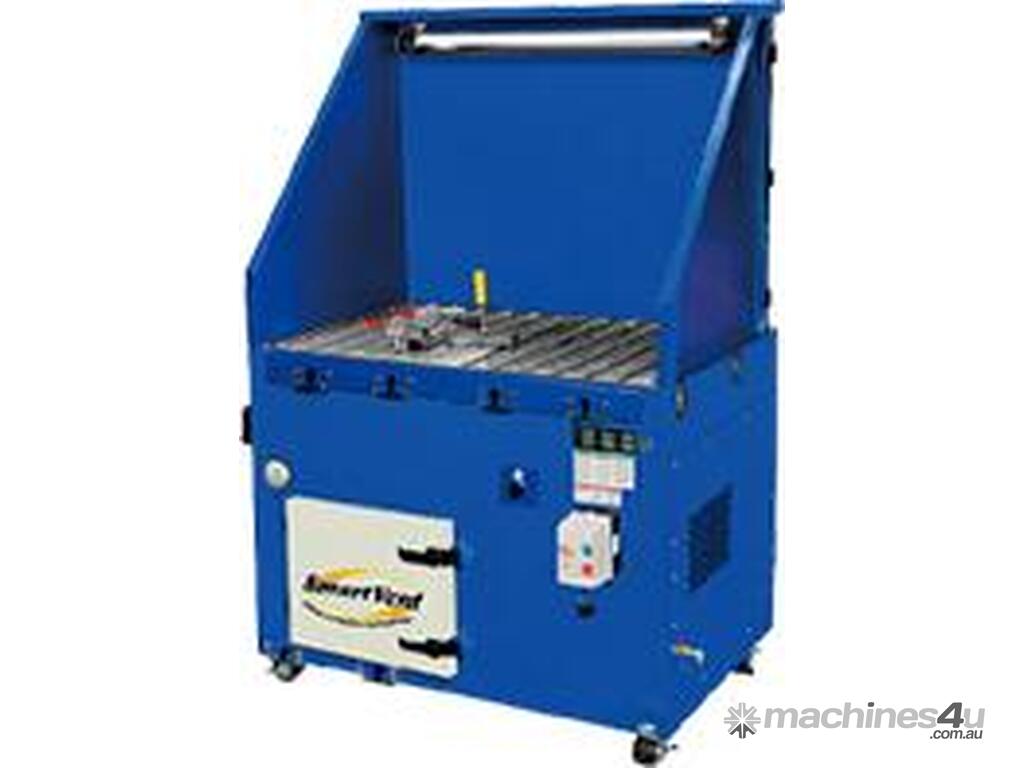

Downdraft table
• Motor = 3 HP
• CFM = 1500
• Cubic metre per hour = 2547
• No of cartridges = 3 ps
• Machine size = 1,470 x 1,185 x 1,790 mm
• Net Weight 548 kg Gross Weight 615 kg
• Noise level = 73 Decibel
• Worktable size = 1,240 x 930 mm
• Maximum Load capacity = 800kgs
Appliance
1. Welding Fume Collection
2. Grinding Dust Collection
3. Dry Dust Collection
Option
1. HEPA Module
2. Backdraft Module
3. Caster wheels

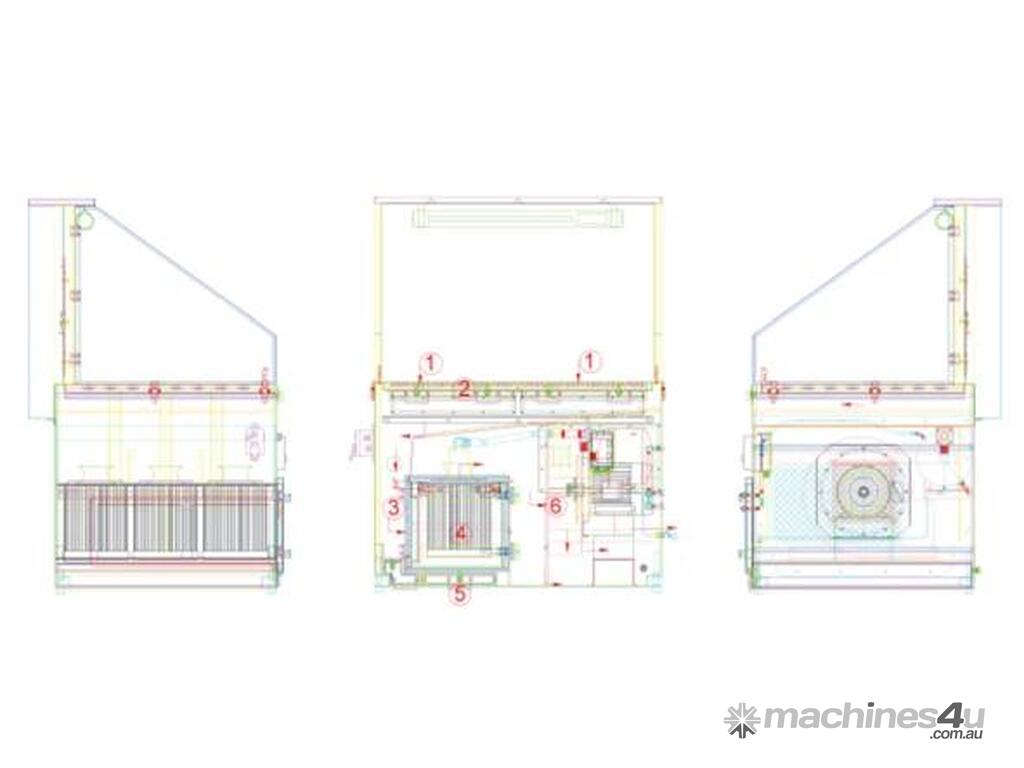

How it works
STEP 1

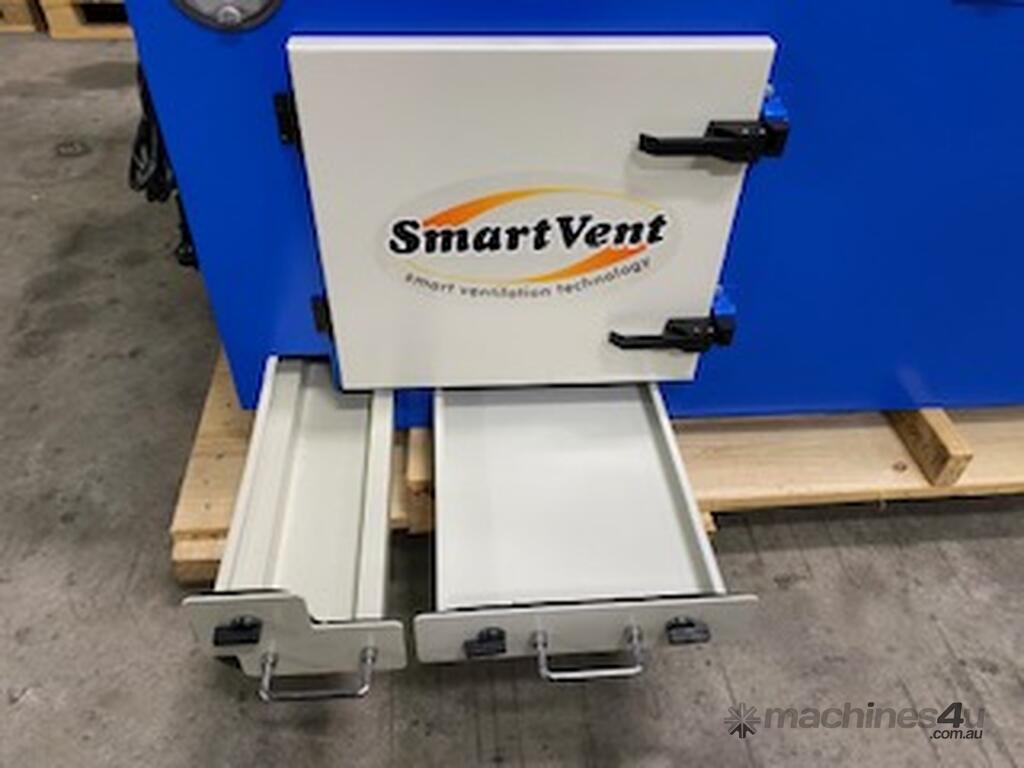

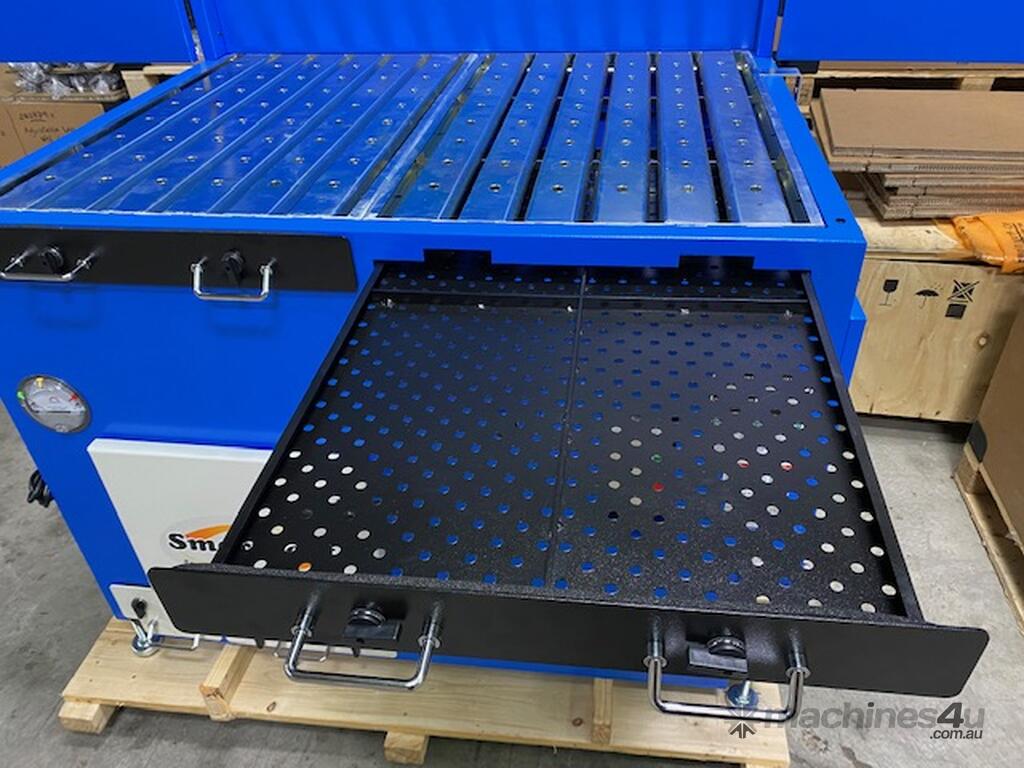

Pre-& after dust drawer
Trapping large welding waste to protect the filter media.
STEP 2

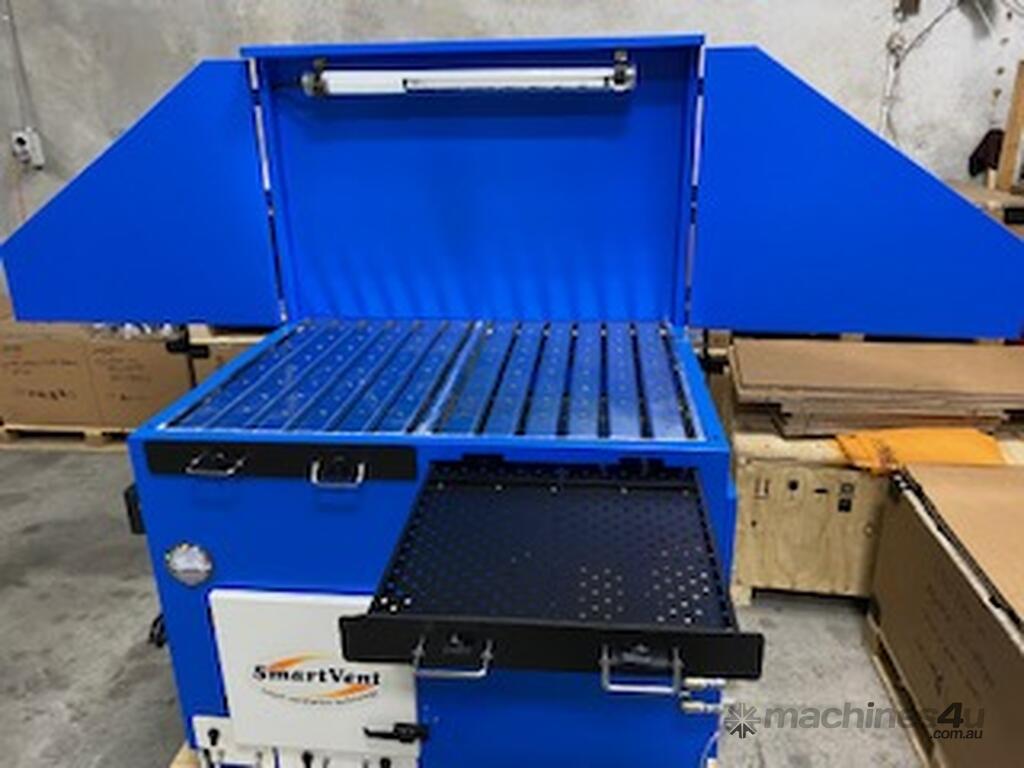

Aluminium Mesh (1)
Capturing sparks and steel chips.
STEP 3

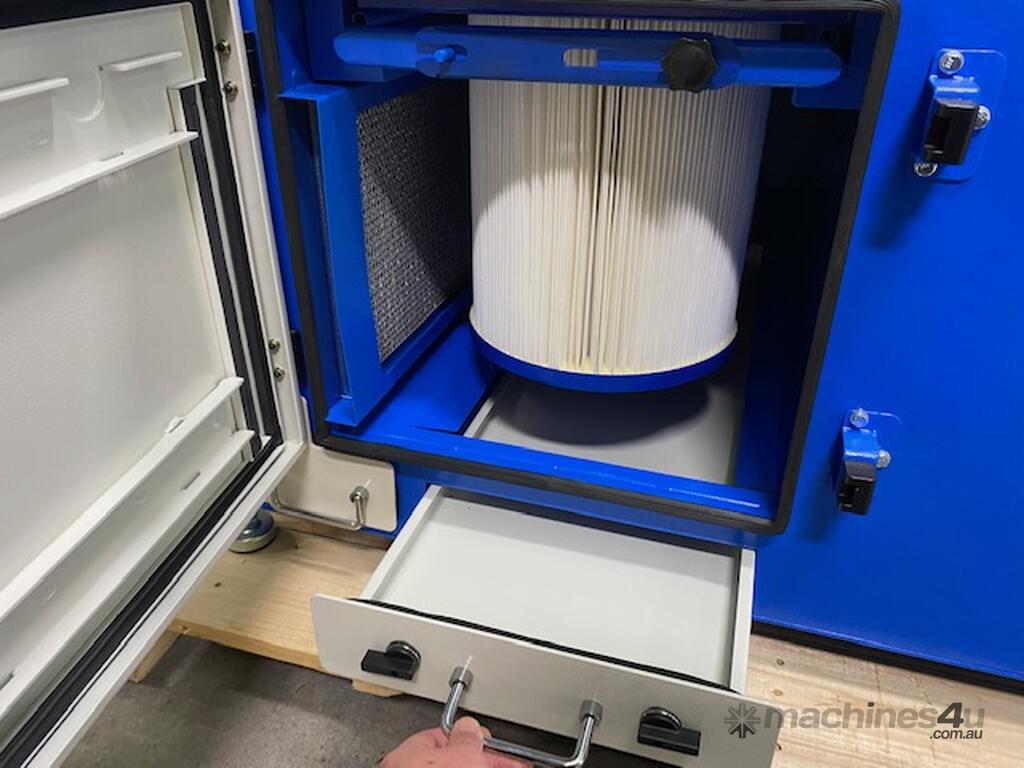

Cartridge Filter (3)
being coated with TEFLON, featuring 99% of 1-micron filter efficiency.
Model No. SDT-3
Motor 3 HP
Airflow 1500 ft3/min
2547 m3/hr
Table Size (mm) 1240 x 930
G.W. (kg) 615
