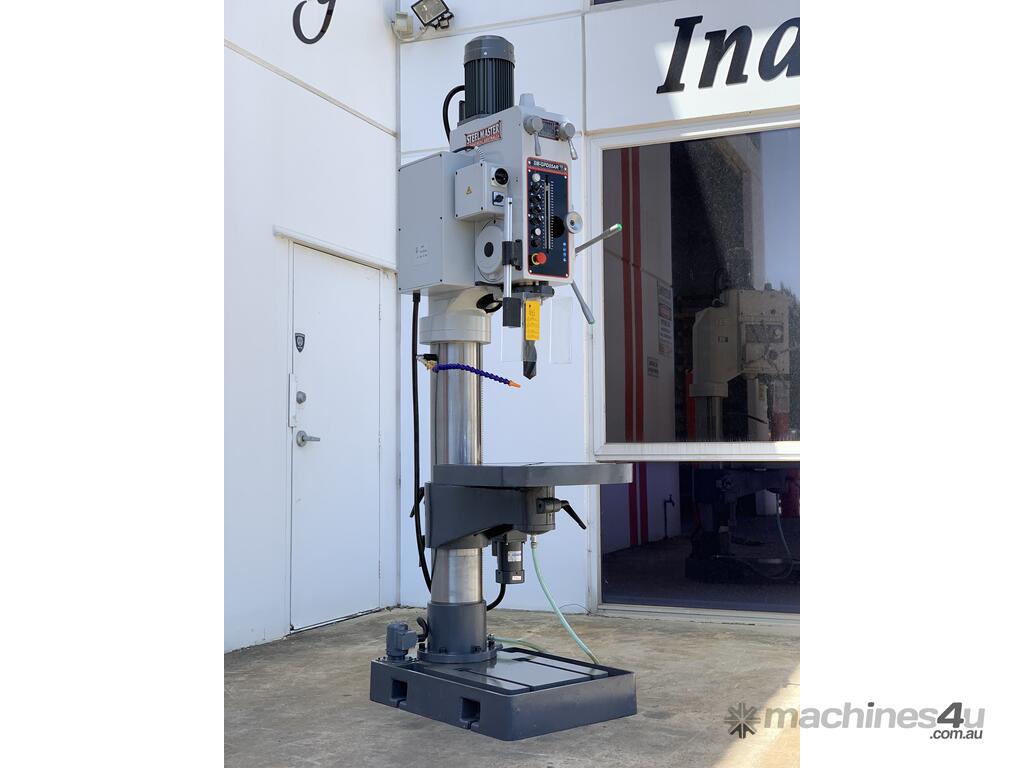

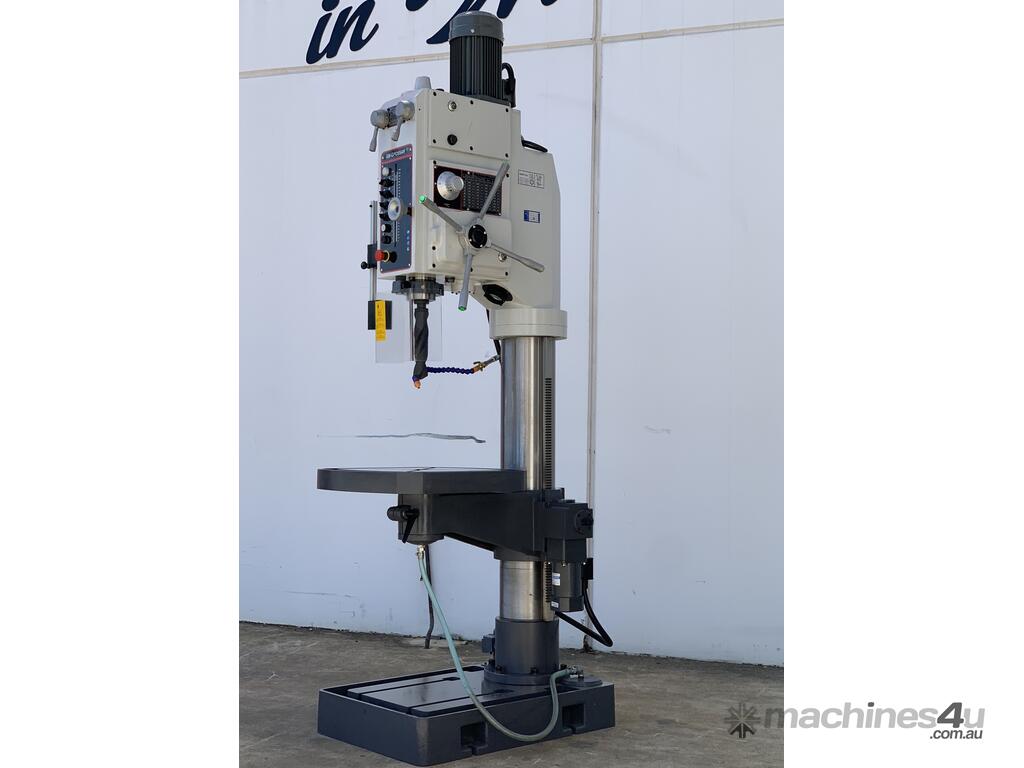

Powerful Heavy Duty 55mm Capacity Industrial Drill With Power Table Up & Down

## 54 ~ 2090 rpm - POWER TABLE UP & DOWN, DRILL EJECT AND MORE##

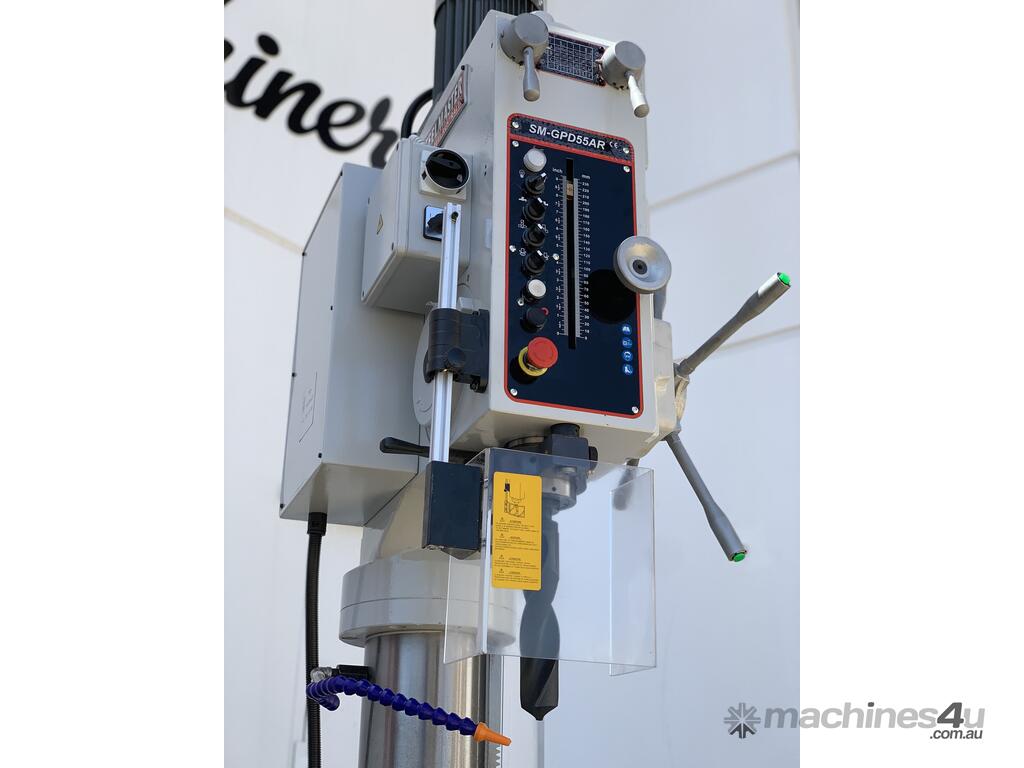

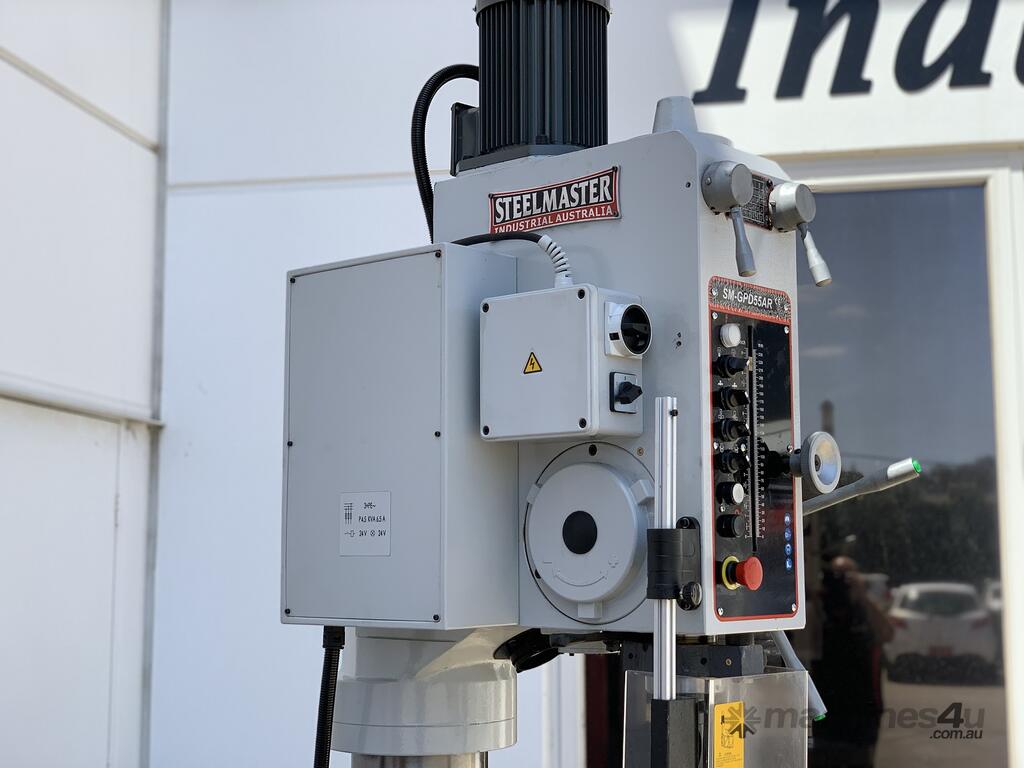

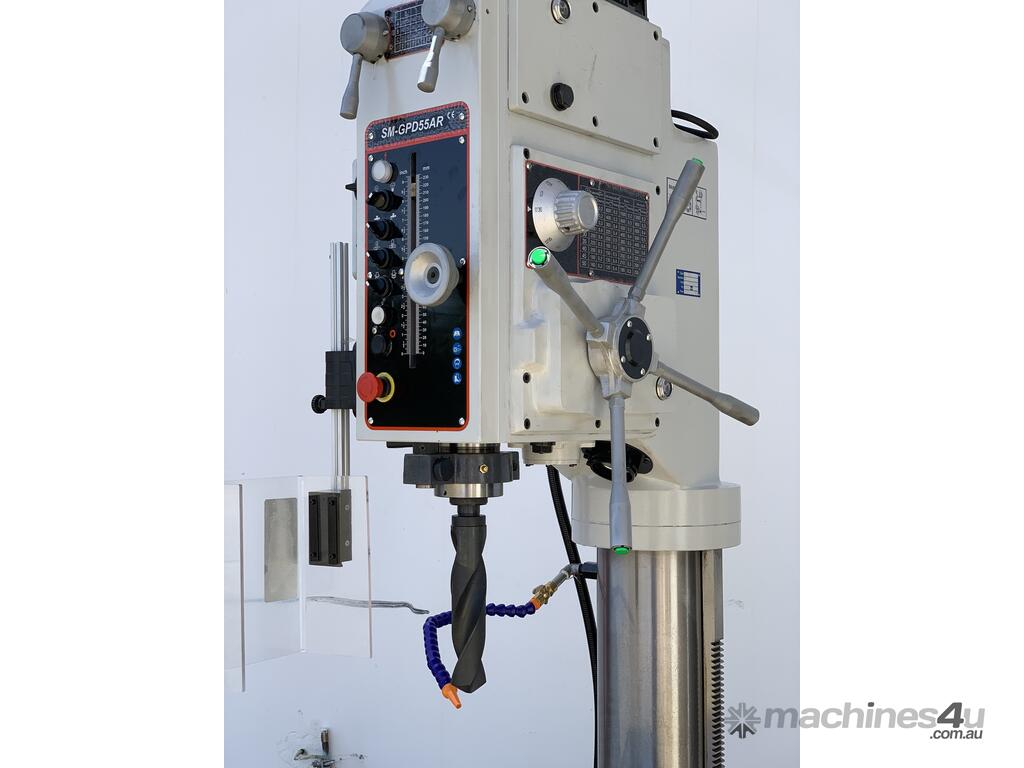

SM-GPD55A – 50mm Industrial Series – Power Table Up / Down & Power Feed

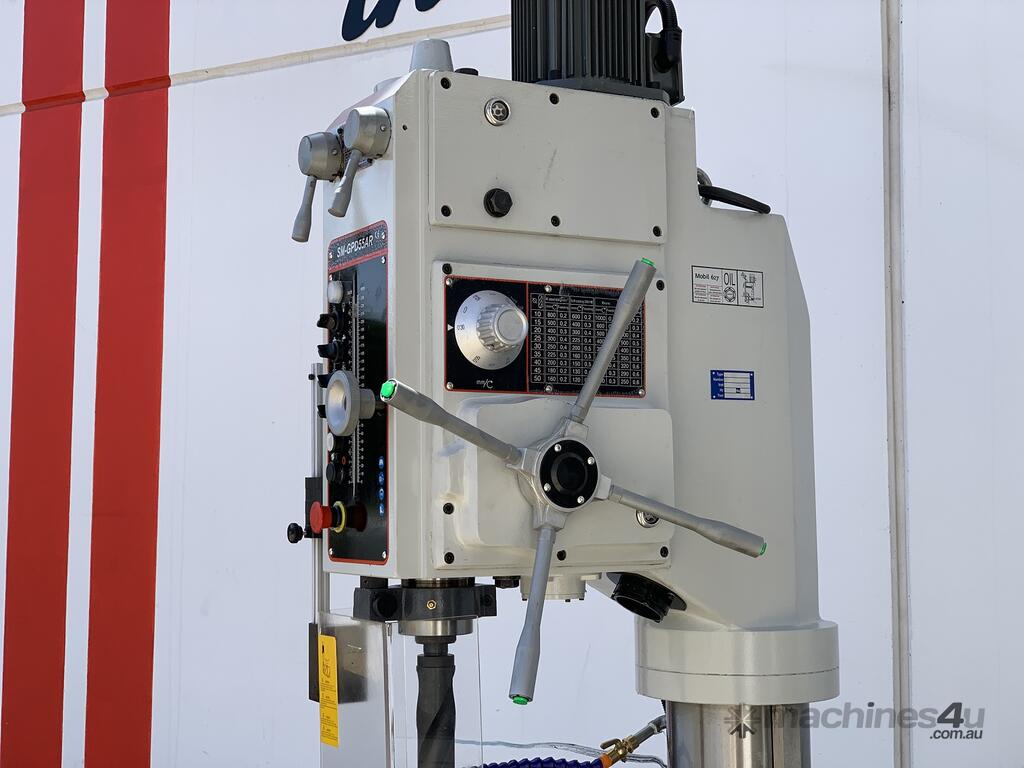

This is an excellent buy in a heavy-duty geared head Drill Press. Equipped with a large tee slotted table and power feed, this machine is robust enough for milling, drilling and boring. And the head is adjustable on the column! Head also swivels left and right. These features expand the capacity of this machine. You can also change speeds quickly and easily.
Heavy-duty thick-walled column, power table raise & lower, power down feed, tapping switch, coolant, digital depth display, halogen work light - What more can you ask for???

Features
rigid cast iron construction
tapping selector fitted when used in conjunction with tapping head (GPD40A & 50A only)

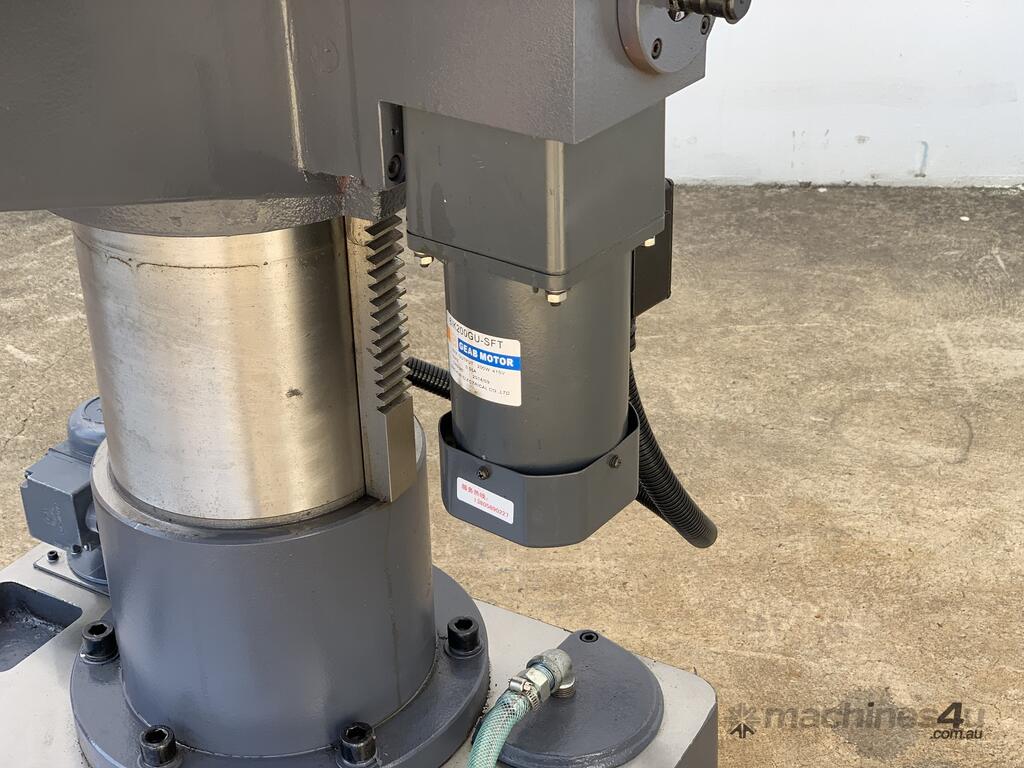

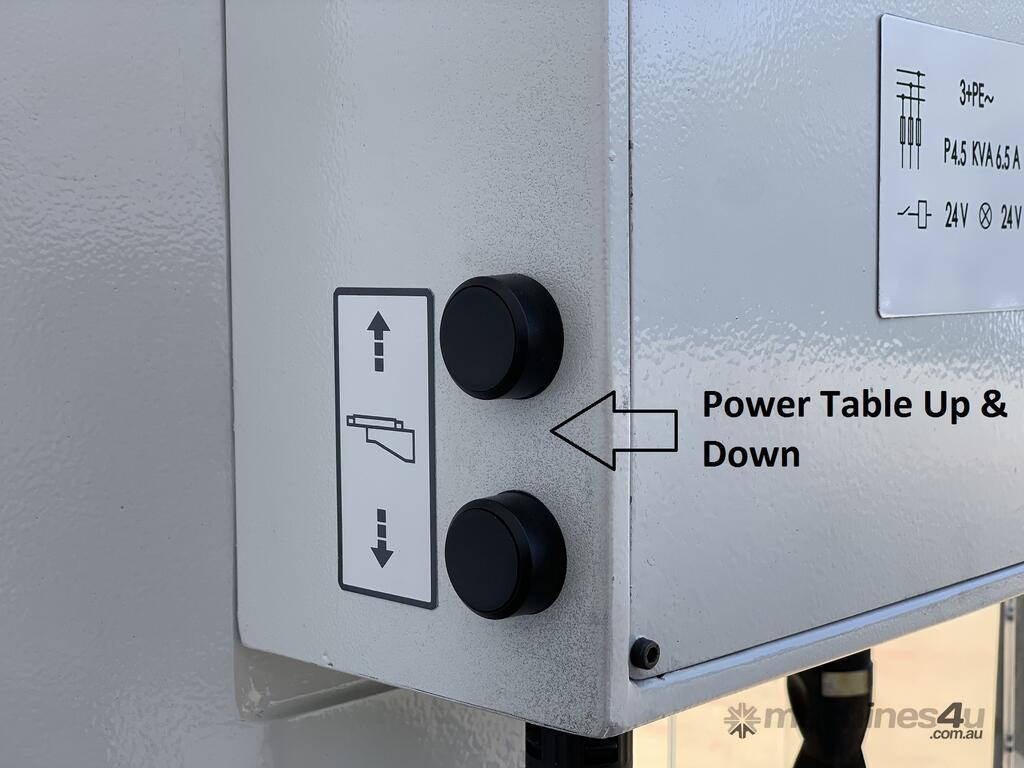

power raise and lower of table (GPD50A only)
large throat up to 360 mm
halogen work light as standard

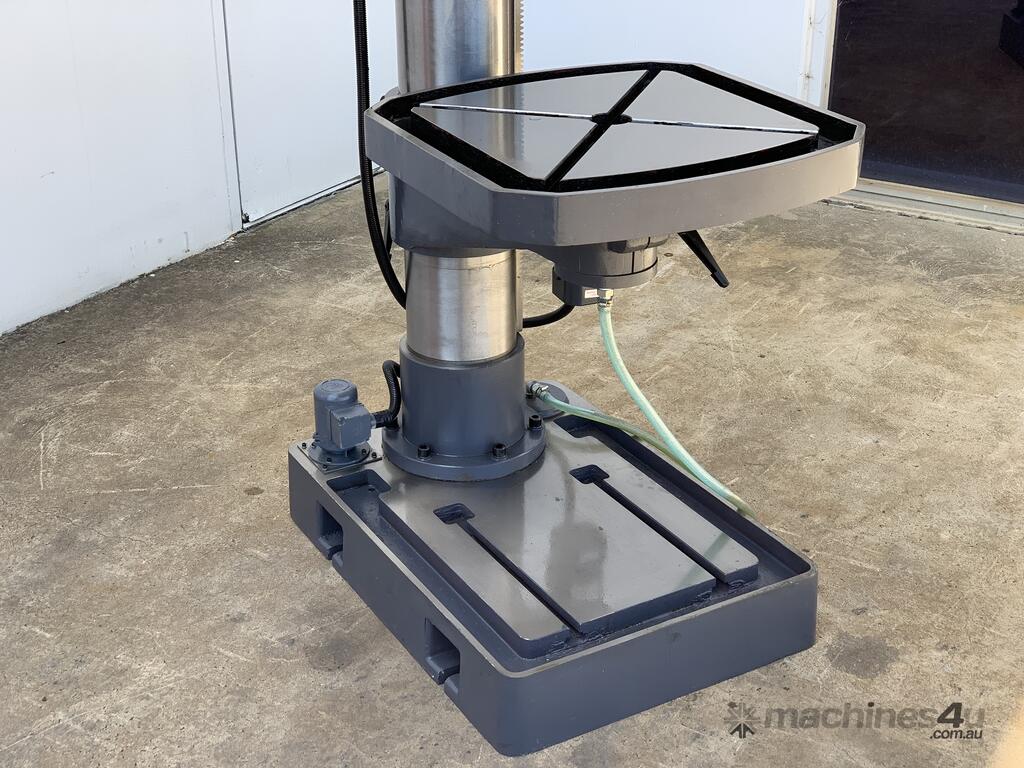

tables rotates 180 and swivels 45°

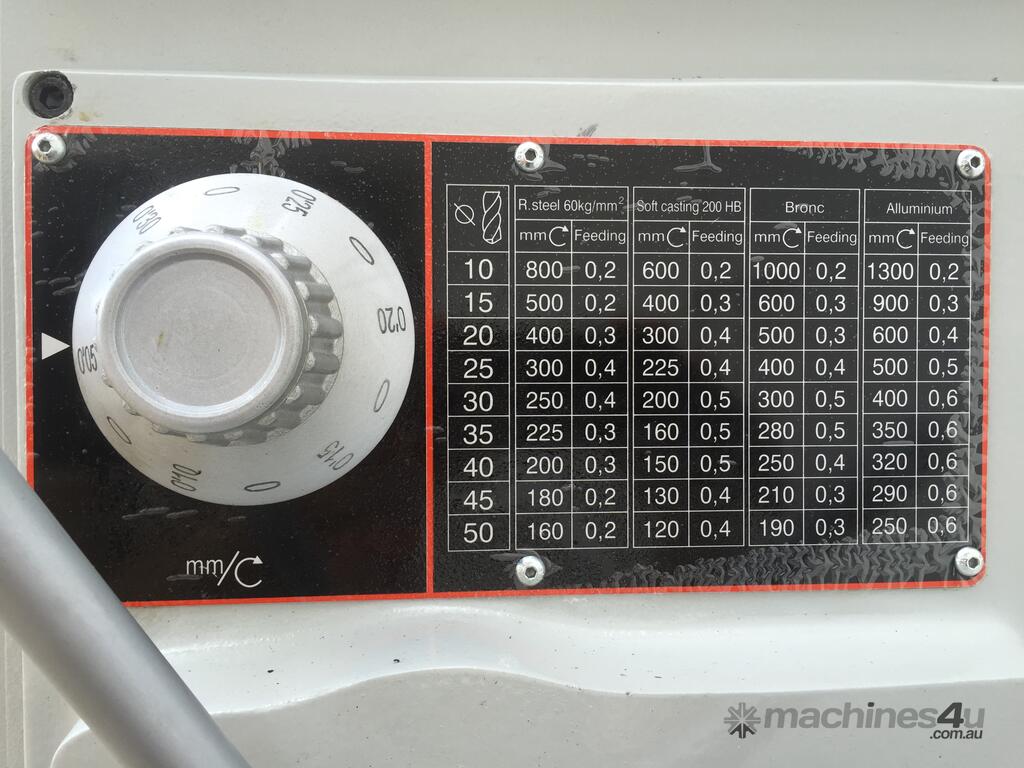

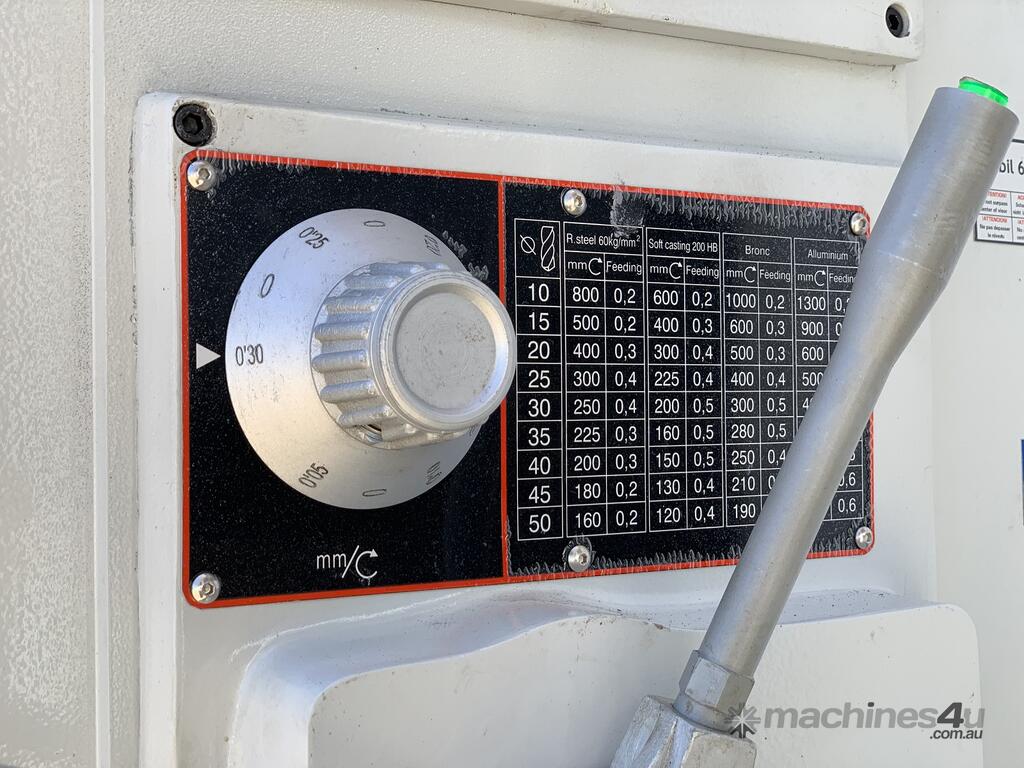

4 step automatic feed
adjustable depth stop
180mm thick-walled column
extremely easy tool change

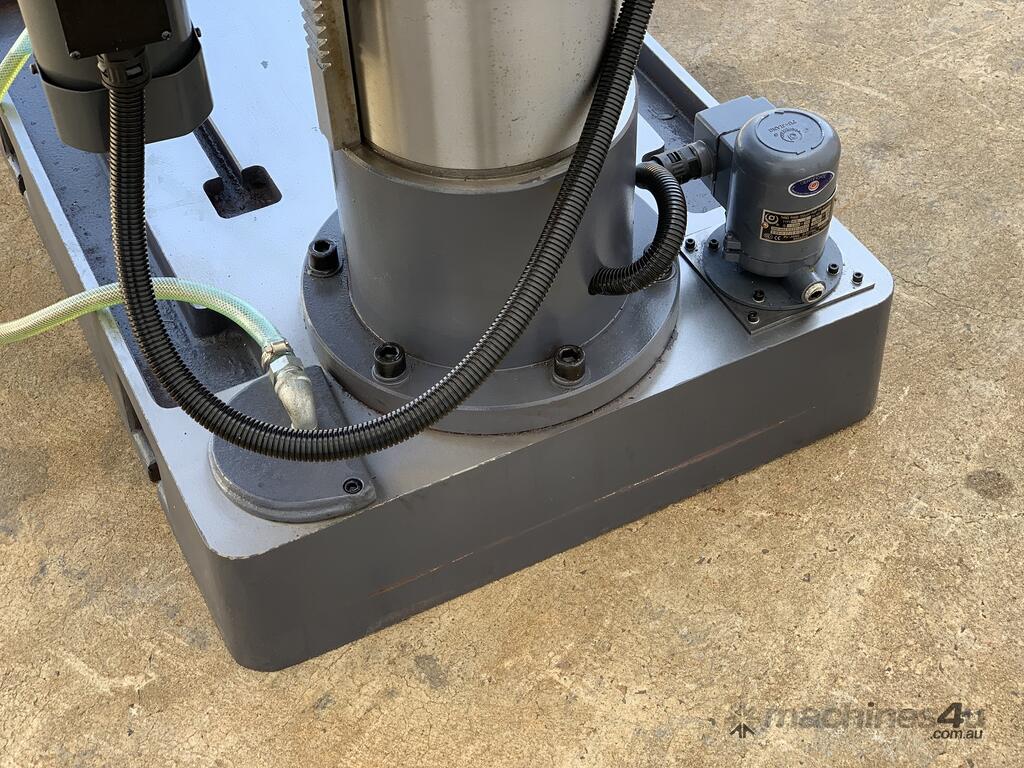

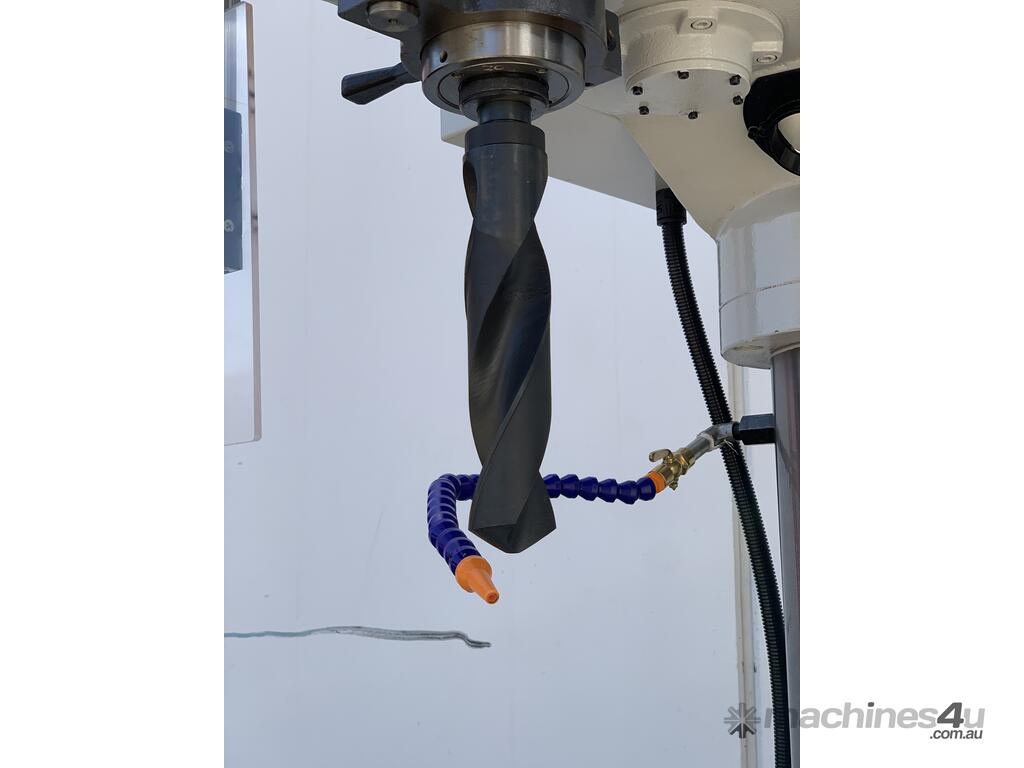

coolant system

TECHNICAL DATA
drilling capacity (max) (mm) 55
threading capacity (max) (mm)27
spindle travel (mm) 250

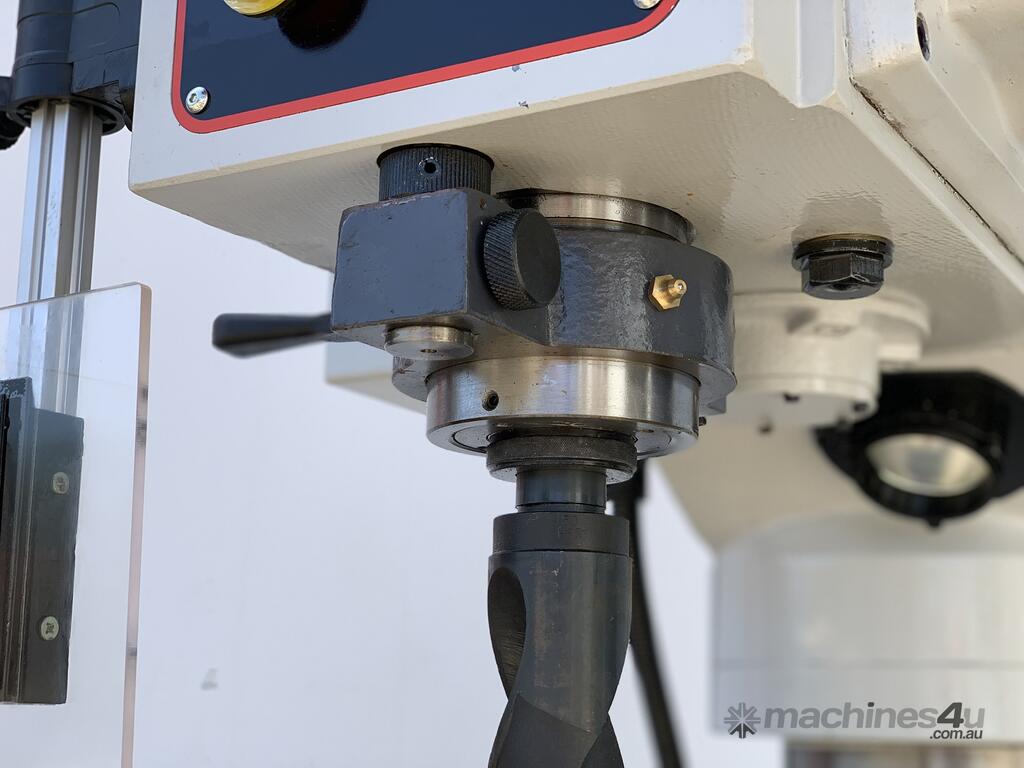

spindle holding fixture (mt) 4

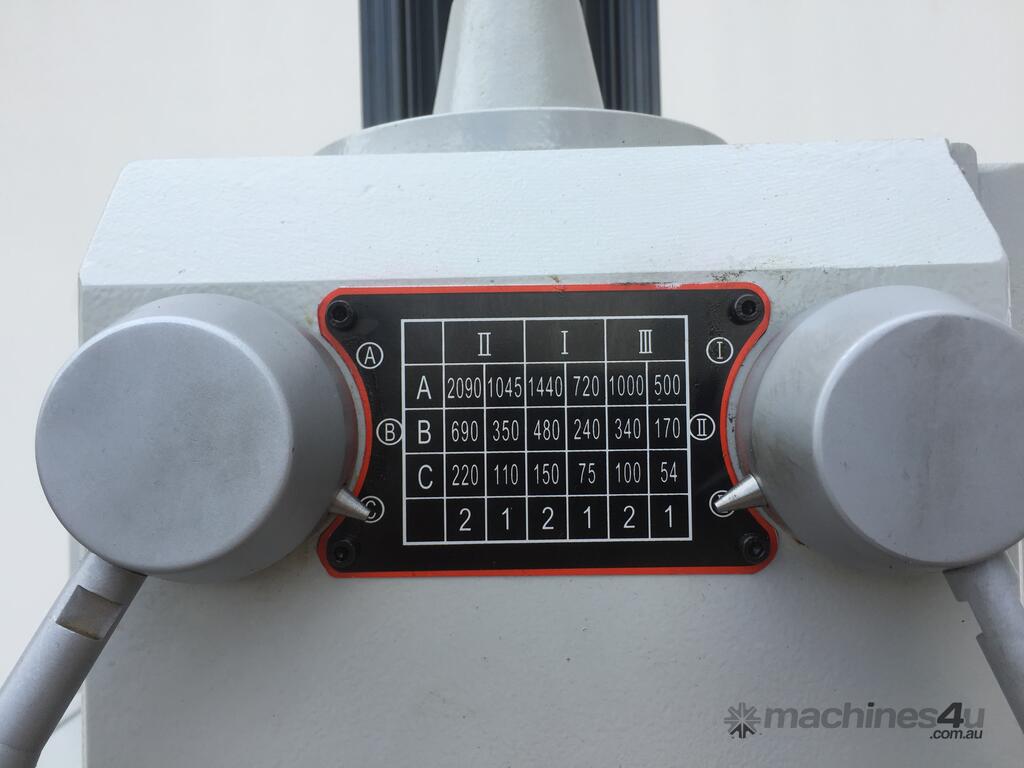

spindle speeds (rpm) 54 ~ 2090
number of steps (steps) 12
throat depth (mm) 360

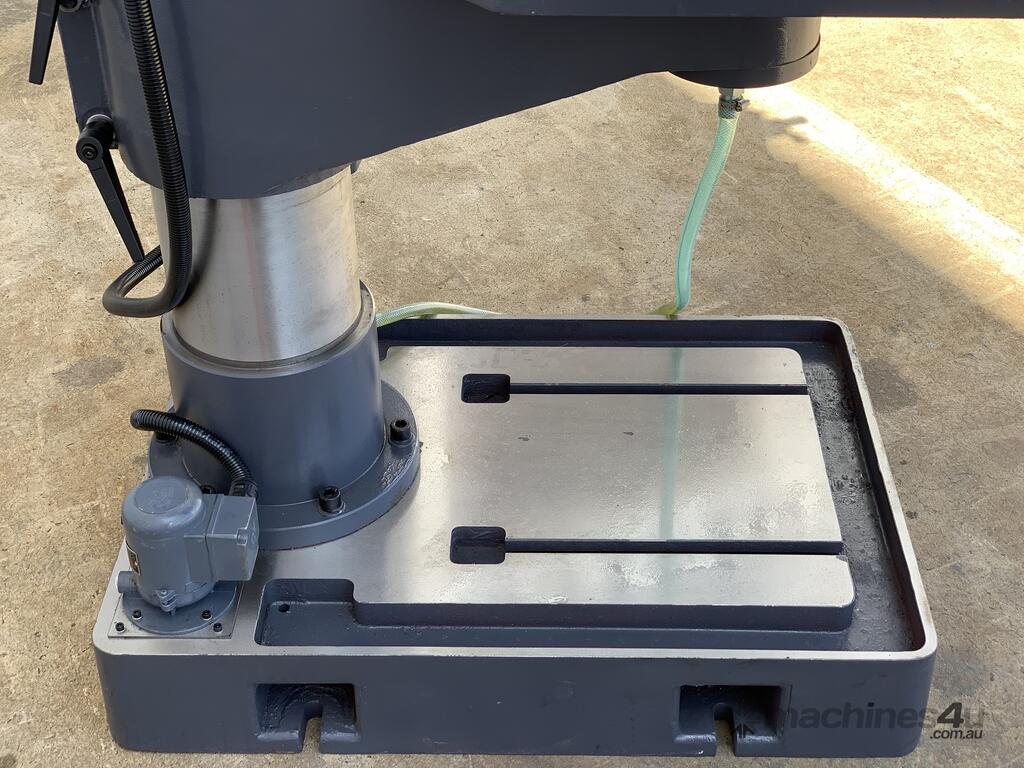

working table surface (l x w) (mm) 500 x 600
t-slot size (mm) 14
motor power (kw/V) 3.0 / (11-0208)
dimensions (l x w x h) (mm) 1050 x650 x 2330
weight (nt) (kg) 750

Asset Offer a Wide Range of Drilling & Milling Machines Which Can Be Viewed Online.

Steelmaster Metal Drilling Machines.
When looking for a quality metal drill, look no further than Steelmaster Industrial. Steelmaster Industrial metal drilling machines offer the machinist a very high-quality machine with superb features and tight tolerances at reasonable prices. Steelmaster carries over 12 models of metal drilling machines in stock at all times for quick shipments. Steelmaster Industrial's ever-growing line of metal drilling machines consists of belt drive drills, magnetic based drills, mill drills, radial arm drills, along with a large range of accessories. Depending on your needs we have the drill for you, starting with our cost-effective belt drive drills to our large radial arm drills.

Belt Drive Drills
Depending on your needs, Steelmaster has a great line of cost-effective belt drive drilling machines. With several models to choose from these models give the best ``bang for the buck`` of any of the Steelmaster drills. These metal drilling machines come standard with many of the features that are most important. Each drill comes standard with a stand, tee slotted table, adjustable height control, calibrated depth setting, generous spindle mount sizes, safety guards and interlocks are also all included.

Mill Drills
Steelmaster Industrial offer one of the best selections of milling and drilling machines around. From our belt drive SM-B32 to our fully spec's SM-MD45XL with 3 Axis DRO and Power up and down on dovetailed guides. Our Metal Milling & Drilling Machines have been fitted up to offer you the best selection of features and come standard with Perspex safety guards and all e stops to ensure all round safe operation.

Geared Head Drills
Each geared head metal drilling machine comes fully guarded with halogen lights. The castings on these machines are of good quality and will offer years of rigidity and accuracy. Coolant, power feeds, digital depth display, large tee slotted tables, large MT spindles are some of the features we offer. Some models also have power raise and lower on the tables. Our Metal Geared Head Drilling Machines come standard with Perspex safety guards and all e stops to ensure all round safe operation.

Radial Arm Drills
Our radial drilling range offered geared head drills from 1000mm in arm length up to our 2000mm heavy duty range. Hydraulic power locking on the column and power up and down for the larger models, power feeds, coolant and heavy-duty tee slotted box tables are all features. The castings on these machines are of good quality and will offer years of rigidity and accuracy. All our radial drilling machines are pre commissioned prior to delivery.

Magnetic Based Drills
Steelmaster Industrial also offer our ALFRA German Magnetic Based Drills. These machines are the perfect off-site partner. Our range covers the smaller Piccolo model upto the larger Junior Heavy Duty Model. Strong magnetic adhesion and quality German build ensure you years of magnetic based drilling.For More information on any of these metal drilling machines, go to or contact a Steelmaster industrial Rep
