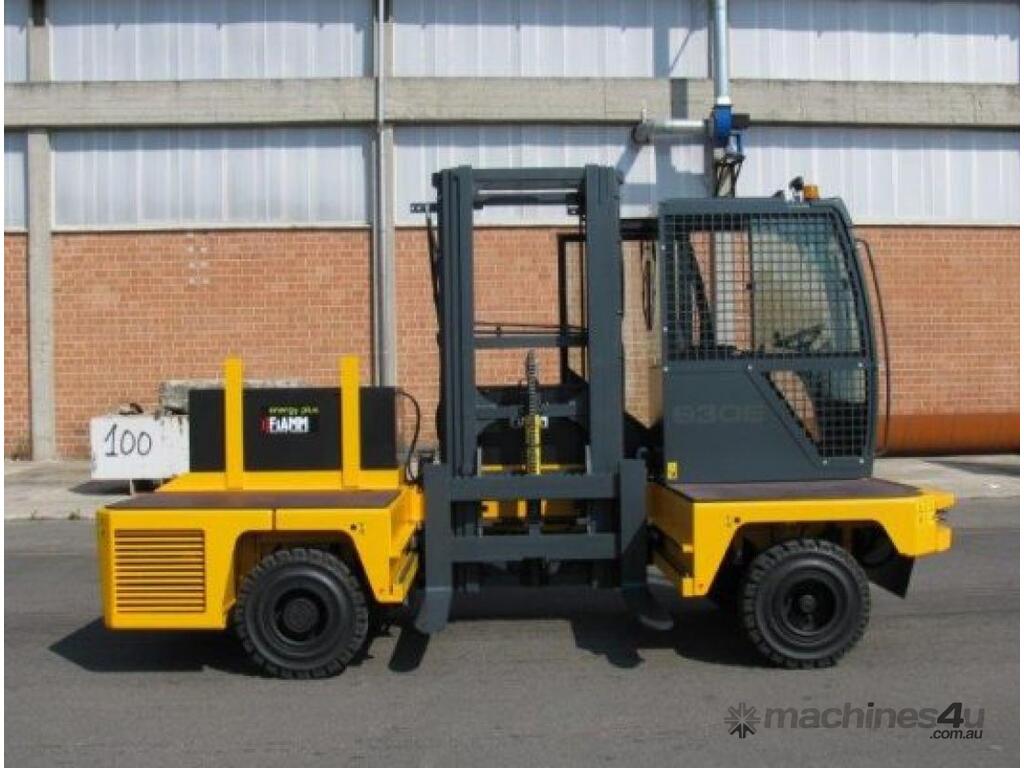

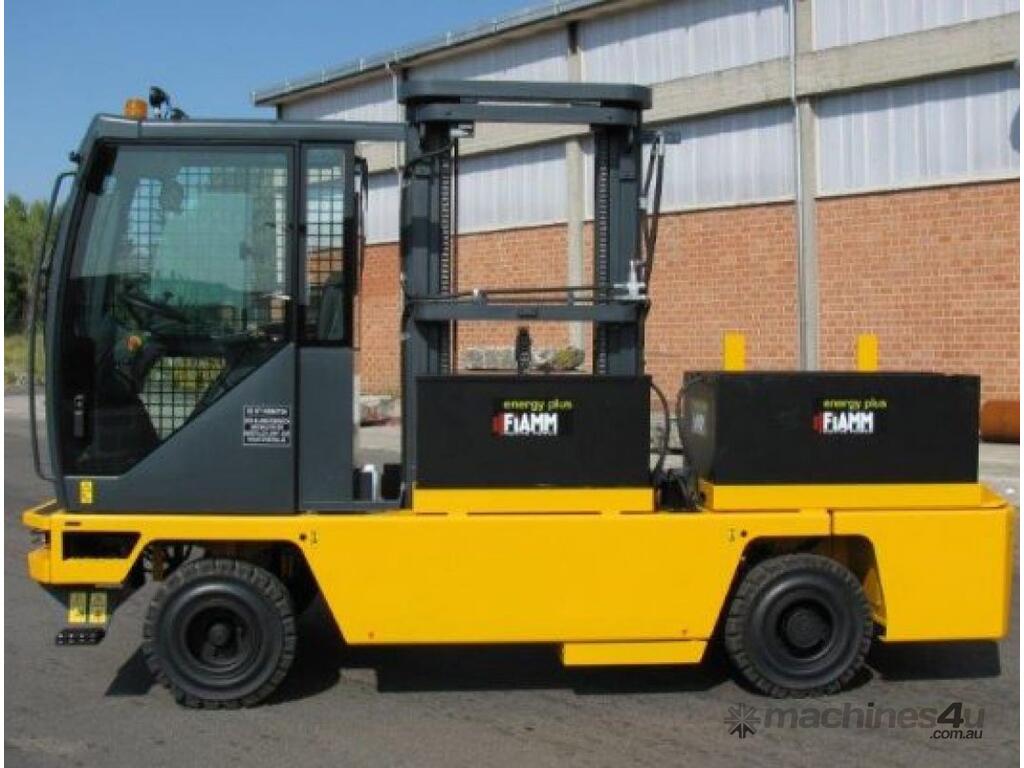

SLE30 - Side Loader - Hire

BP Side Loaders – Electric

The electronic side loader model SLE30 is equipped with superelastic tires for driving and handling materials indoor and also outdoor in yards over even and uneven grounds. Thanks to the speed, strength and reduced dimensions in relation to the lifting Capacity: the SLE50 can be utilised both in outside operating areas or in inside storage warehouses.

FEATURES & BENEFITS

About eight hours continuous operation
Two front steering wheels with power steering (servo assisted): and one traction AC motor plugged into the differential system providing for maximum power reliably transmitted to the rear axle and steering system
AC multi programmable system
Regenerative release braking with energy regeneration
Special steel profiles on lifting mast with traverse guide rollers mounted on high resistance bearings
Front steering axle is one single-cylinder with power steering
In-out crossed cylinders mast for fast and high precision motion, granting maximum safety at extreme load conditions at the same time
Equipped with all mandatory Safety Devices and Systems as specified by EU directive 2006/42/EC (Machinery Directive):, 2004/108/EC (Electromagnetic Compatibility): and 2006/95/EC (Low Voltage Directive):
Supplied with Usage and Maintenance Instruction Book, Spare Parts Catalogue and Certificate of Conformity to EU directive 2006/42/EC (Machinery Directive):, 2004/108/EC (Electromagnetic Compatibility): and 2006/95/EC (Low Voltage Directive):

SPECIFICATIONS

Capacity: (kg):
3000
Fork Length (mm):
1200/1400
Load Center (mm):
600/700
Voltage:
80 Volts
Power Supply
DC
Tyres:
Pneumatic 27×10-12
Electric Motors:
2 x 12 kW (Traction): – 22 kW (Pump):
Tilting:
Chassis
