Weighing in at 36,498kg, the Cat 336DL is a mid-range excavator that excels in a wide range of tasks, like digging, demolition and loading.

Designed to push your efficiency to the top, the Cat 336DL provides up to 9% more power than the 330CL, while utilising a Tier 3 compliant engine and separate cooling system to reduce emissions and maximise comfort.

Caterpillar has worked hard to create an excavator that pushes the limits of what a worksite can do and with the selection of optional technology that can be integrated throughout the machine—the Cat 336DL is a great way to ensure your projects are finished on time.

Cat 336DL Specs

Engine Model Cat C9 ACERT
Net Flywheel Power 200 kW (268 hp)
Net Power—ISO 9249 200 kW (268 hp)
Net Power—SAE J1349 198 kW (266 hp)
Net Power—EEC 80/1269 200 kW (268 hp)
Operating Weight 36,498 kg
Fuel Tank Capacity 620 L
Maximum Digging Depth* 8,461 mm
Maximum Loading Height** 7,542 mm

*Results with the R3.9DB reach boom. ** Results with the R3.9DB reach boom.

The additional power and performance afforded by the redesigned engine and component layout means the Caterpillar 336DL is able to handle increased workloads and larger tasks than other excavators in the series.

The Cat 336DL In Action

*Model shown may be an overseas model. Models available in your region may differ.

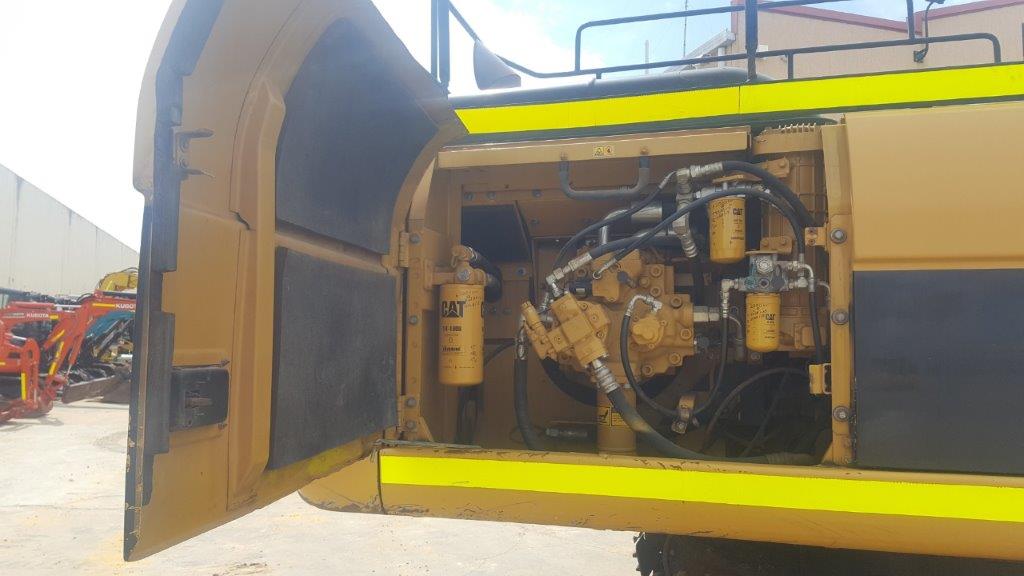

Increased ServiceabilityCat 336DL Service Area

To help reduce maintenance costs and downtime, Cat has designed the 336DL with easily accessible service locations for quick, simple access to the main components. For instance, the radiator is behind the rear left service door, which opens wide for easy access to the oil cooler, engine radiator and air-to-air cooler.

While on the right side of the machine, you’ll find a service door on the upper structure. This provides ground-level access to the pump and pilot filter. To go with this efficient design, Cat has fitted the 336D L with S-O-S sampling ports and hydraulic test ports for the:

  • Hydraulic system
  • Engine oil
  • Coolant

To go with serviceability is the complete customer care that dealers provide. New machines come with warranty and the option for customer support, and regular repair and maintenance program.

Of course, Cat technicians are also experts when it comes to their machines and you can count on that expertise when they are repairing or doing regular servicing on your excavator.

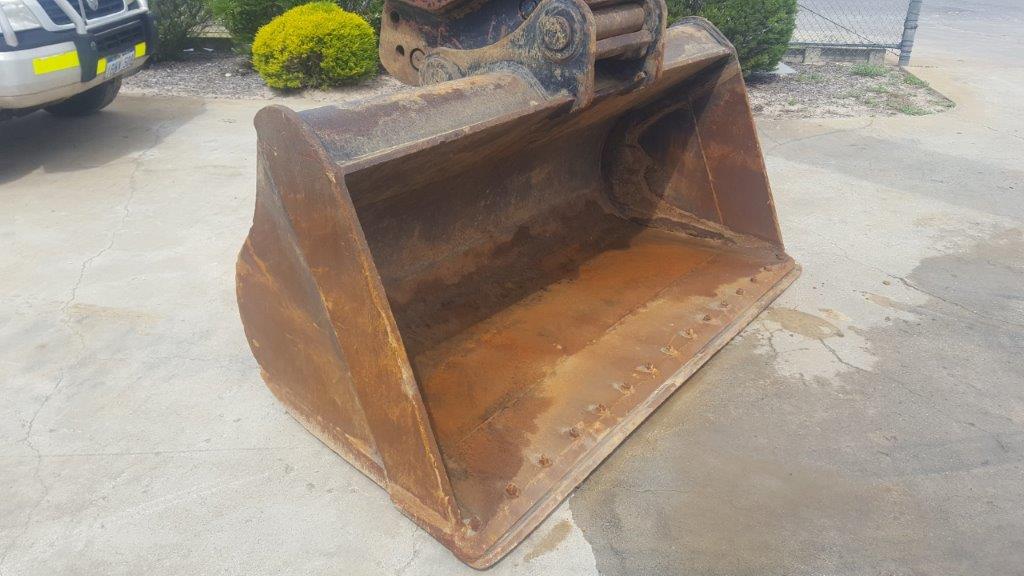

Cat 336DL AttachmentsCat 336dl attachment - bucket

Want to get the most out of your Cat 336DL? Then make use of Caterpillar’s wide range of work tools and attachments. With a variety of booms, buckets, hammers and grips available from your Cat dealer, there’s usually the right attachment for your job available.

Just some of the attachments available include:

  • Reach booms
  • Mass excavation booms
  • Heavy-duty buckets
  • Heavy-duty rock buckets
  • Thumbs
  • Multi-processors
  • Hydraulic hammers

Don’t see the attachment you need in this list? Don’t worry! Attachments are often included, whether you’re buying an excavator from auction or brand new from the dealer. And if the attachment you need isn’t included, your local Cat dealer can usually source it for you. Or you can find a range of new and used excavator attachments available here.

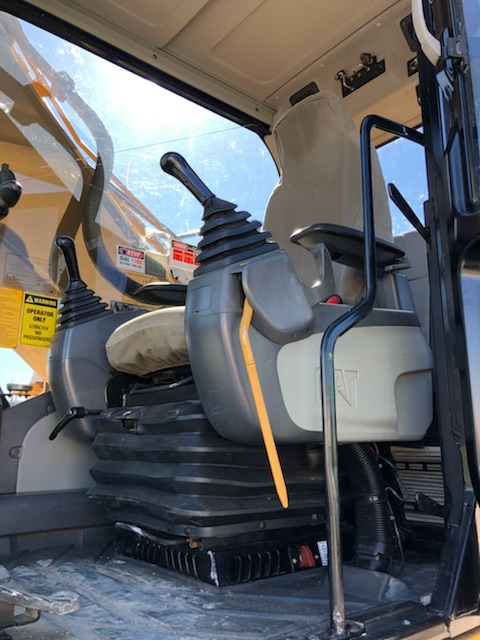

In the 336DL CabCat 336DL cab

In the cab, you’ll notice the wide, adjustable armrests and a retractable seatbelt. To go with comfortable seating is an ergonomic control layout,  increasing operator efficiency.

Each Cat 336DL excavator is fitted with an LCD display, capable of displaying information in 27 different languages. As well as an automatic climate control system that automatically adjusts temperature and flow, ensuring your operator works in comfort all day.

The gauge display is conveniently placed to ensure the operator is able to quickly and easily monitor key information, like:

  • Fuel level
  • Hydraulic oil
  • Temperature
  • Coolant temperature

To really make the cab feel more inviting the Cat 336DL has an enlarged skylight with sunshade attached. Providing excellent visibility and ventilation.

Cat 336DL Price

The price for the Cat 336DL comes down to the usual factors—age, condition and attachments. You’ll find a used Cat 336DL excavator for sale for anywhere between $150,000 and $250,000*. The 336DL has been in production for a long time, so older models will be a lot cheaper than a newer, more recent model.

If the Cat 336DL isn’t quite what you’re after, have a look through other available Caterpillar excavators. Or, browse through our excavator auctions.


*Prices are averages based on data from www.machines4u.com.au. Always consult with your dealer/seller before purchasing.
