Pure Breakout and Power With CASE Wheel Loaders

Pure Breakout and Power With CASE Wheel Loaders

Presented by CASE Construction

CASE wheel loaders are renowned for their service, reliability and performance. And with an Australian legacy of over 100 years, it’s really no surprise. So, what’s their secret? Machines4U spoke with Simon Leutogi, CASE Construction ANZ Marketing Manager, to find out what makes CASE wheel loaders so popular.

In this article:

  • CASE Wheel Loader F-Series Overview
  • Unique Features
  • F-Series Wheel Loader Specs

CASE Wheel Loaders F-Series Overview

With a spacious cab, impressive all-round visibility and massive torque, the F-series wheel loaders are ideal for a range of applications, including infrastructure, recycling, quarrying and agriculture jobs. From the smaller 521 through to the 1121 for big jobs, the F-series offers easy maintenance, high efficiency and cabs fit for a king.

But what makes them truly unique from other wheel loaders in the market?

Unique CASE Wheel Loader Features

There’s a reason CASE have become market leaders in wheel loader performance and reliability.

“We have a few unique features on our machines compared to other manufacturers in the market,” says Simon.

These features include a cooling cube design (unique to CASE Construction wheel loaders), as well as general ease of maintenance, serviceability, reliability and of course—performance.

CASE unique cooling cube design

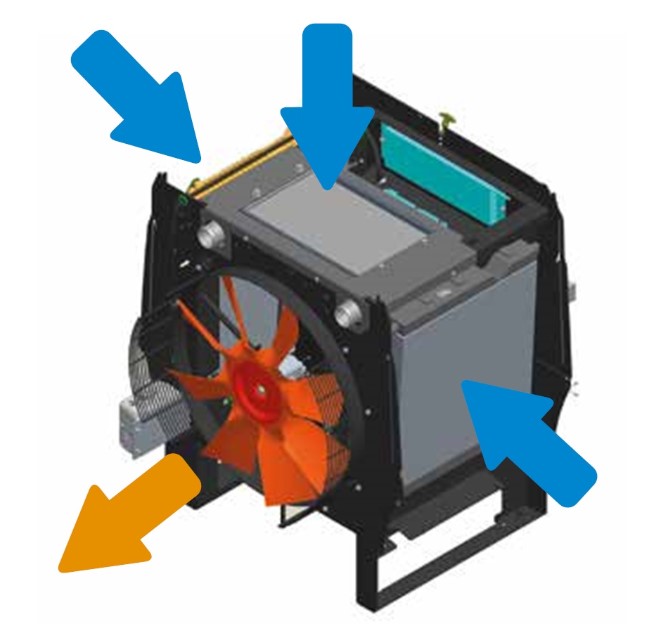

CASE wheel loader cooling cube
Pictured: CASE Construction’s cooling cube design. Source: Supplied.

When it comes to keeping your wheel loader’s systems at an even temperature, CASE Construction have thought of just about everything. Investing time and effort into a unique cooling cube design, which is made up of 5 radiators mounted to form the cube shape, the result is a wheel loader that can go and go and go without overheating.

“Our cooling cube is what we’re known for,” says Simon. “Our cooling packages on all our wheel loaders, from the 521 through to the 1121, are in a cube design. So each cooler gets the same amount of air flow over it at any one time.”

This ensures the radiators receive fresh, clean air, which helps maintain constant fluid temperatures and prevents those overheating problems.

“We have a big hydraulic fan that is reversible from inside the cab, but also switches automatically. Around every 7 minutes the fan will reverse the flow of air and blow the coolers out, then reverse itself again.”

Simon says the conventional cooling packages use a stacked system, which can’t always provide the same level of cooling efficiency.

“A stacked cooler is where the radiator, intercooler, oil cooler and air-conditioning condenser are all in line with each other. At some point, a fan will be blocked and not all of them are going to get the same amount of cooling efficiency, which can result in a cooling issue.”

CASE have made maintaining their wheel loaders as easy as possible, thanks to their external service points, electric tilting hood and other modifications.

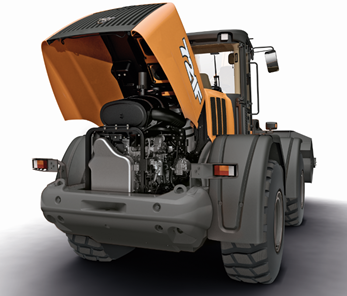

Case wheel loader electric hood
Pictured: A 3D diagram of CASE Construction’s tilting hood on their F series wheel loaders. Source: Supplied.

“Everything on our wheel loaders is ground-serviced maintenance, so you can get to everything without having to climb over the machine,” says Simon.

Engine placement

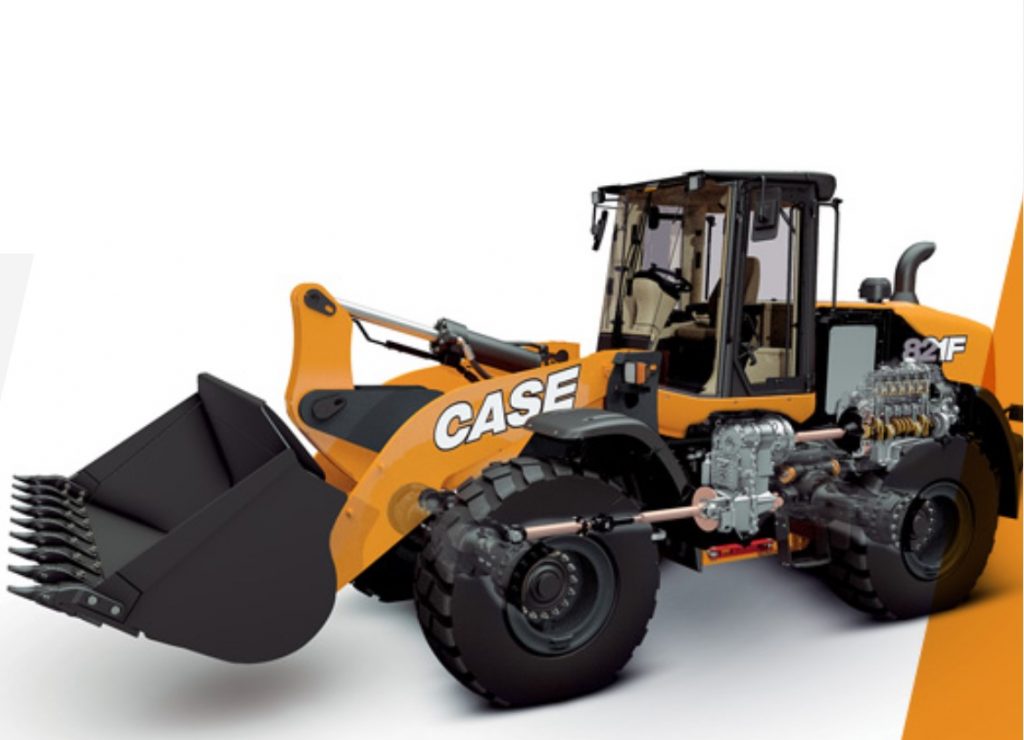

CASE wheel loader engine placement
Pictured: How the engine is placed in a CASE 821F wheel loader. Source: Supplied.

Another major feature for these wheel loaders is the location of the engine.

“Our engine placement is pretty much the only one that does it out on the market,” says Simon.

“The engine and transfer cases are connected via a driveshaft, instead of your general gearbox-to-engine set up. This allows our engine to sit lower within the frame of the machine, backwards and downwards.”

“The transmission sits underneath the cab, yet the engine sits behind the rear axle and then we have the driveshaft that drives the two of them.”

So instead of the engine being placed towards the front of the machine, CASE wheel loaders are located further back and closer to the ground.

This unique engine placement does 2 things:

  1. Gives you a lower rear hood, which enhances rear visibility, and
  2. Acts as a second counterweight against the machine, for extra stability and heavy payload

Simon adds, “So if you put our machine spec-for-spec up against similar weight classes, we normally have a heavier payload. Our wheel loaders can lift more because of the engine’s location.”

“Our engine is designed and manufactured by Fiat Powertrain (FPT), which is the largest engine and drivetrain manufacturer in the world. So there’s the service and reliability that comes along with that.”

Performance

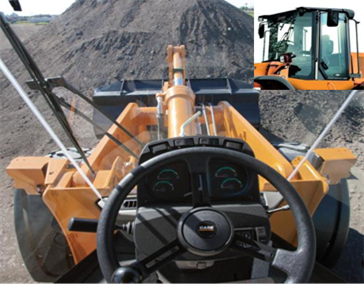

CASE wheel loaders F-series visibility
Pictured: Heightened visibility in the cab allows for greater performance. Source: Supplied.

In terms of performance, CASE wheel loaders are leaders in the market. This comes down to everything mentioned above, as well as their unique boom designs, each with their own advantages.

“We have 2 different boom designs,” Simon explains, “the 521, 621, 721 F wheel loaders have 2 boom/loader frame configurations available. One we class as the XT or ‘tool carrier’, and the other is a Z-bar design.”

“The XT is designed around material handling, normally fitted with a factory quick-hitch, so when you’re using a set of forks you have a clear vision directly through the loader arms.”

“Whereas the Z-bar design is a conventional loader frame, and is more for digging power and breakout force.”

CASE Wheel Loaders F-Series Specs

521F

621F

721F

821F

921F

1021F

1121F

Min. Operating Weight (kg)

10,448 (Z-Bar)

11,189 (XT)

12,116 (Z-Bar)

12,562 (XT)

14,225 (Z-Bar)

14,915
(XT)

17,694 (Z-Bar)

17,510 (XT)

19,857 (Z-Bar) 24,399 (4.2 m3 bucket) 26,831 (4.0m3 bucket)

Engine Power (HP)

142 172 195 230 255 320 320

Bucket Capacity (m3)

1.7 – 2.1  2.0 – 2.2 2.4 – 2.7 2.8 – 3.4 4.0 4.2 – 4.4 4.2 – 4.4

Transmission

All wheel drive with planetary axles

Travel Speed Range (km/hr)

6-11-22-36 F

2.4-12-23 R
7-13-24-39 F

7-14-25 R

8-13-25-37 F

8-13-26 R

7-12-23-37 F

7-13-25 R

7-12-23-36 F

7-13-24 R

7-13-19-38 F

7-13-27 R

7-12-18-38 F

7-13-26 R

Lift Capacity From Ground (kg)

8,889 (Z-Bar)

10,236 (XT)

11,224 (Z-Bar)

13,633 (XT)

13,607 (Z-Bar)

13,096 (XT)

18,055 (Z-Bar) 21,148 (Z-Bar) 23,413 (4.2 m3 bucket) 26,620 (4.0m3 bucket)

For more specs or further information about the CASE Construction F-series wheel loaders, head to https://www.casece.com/apac/en-anz
