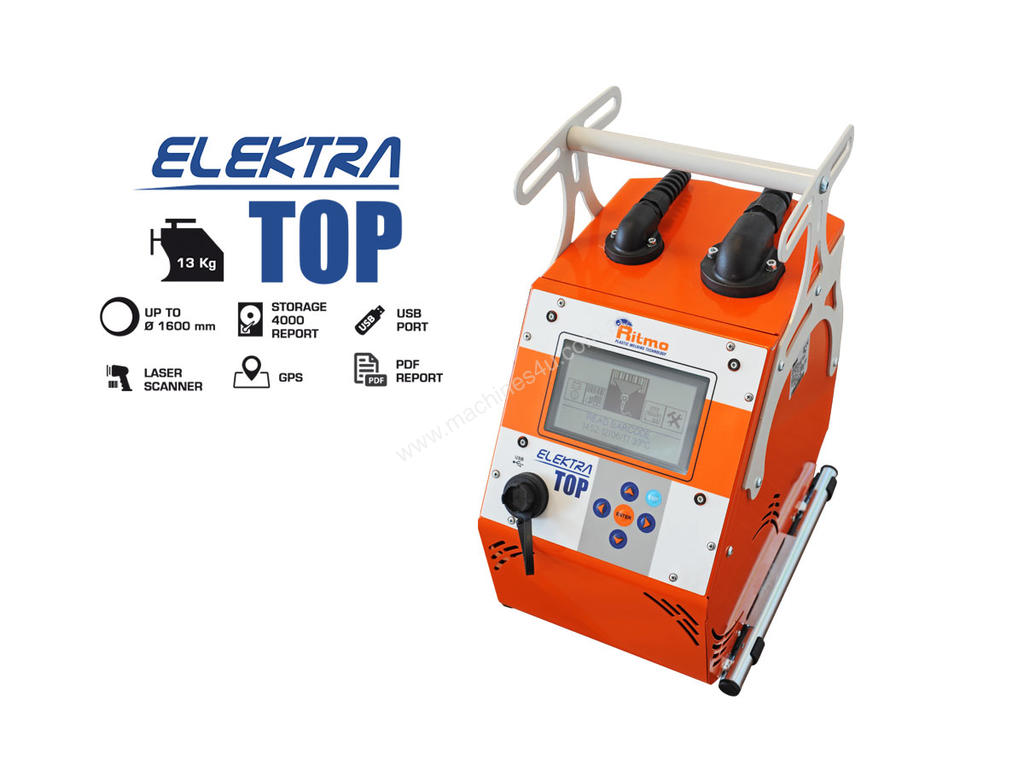

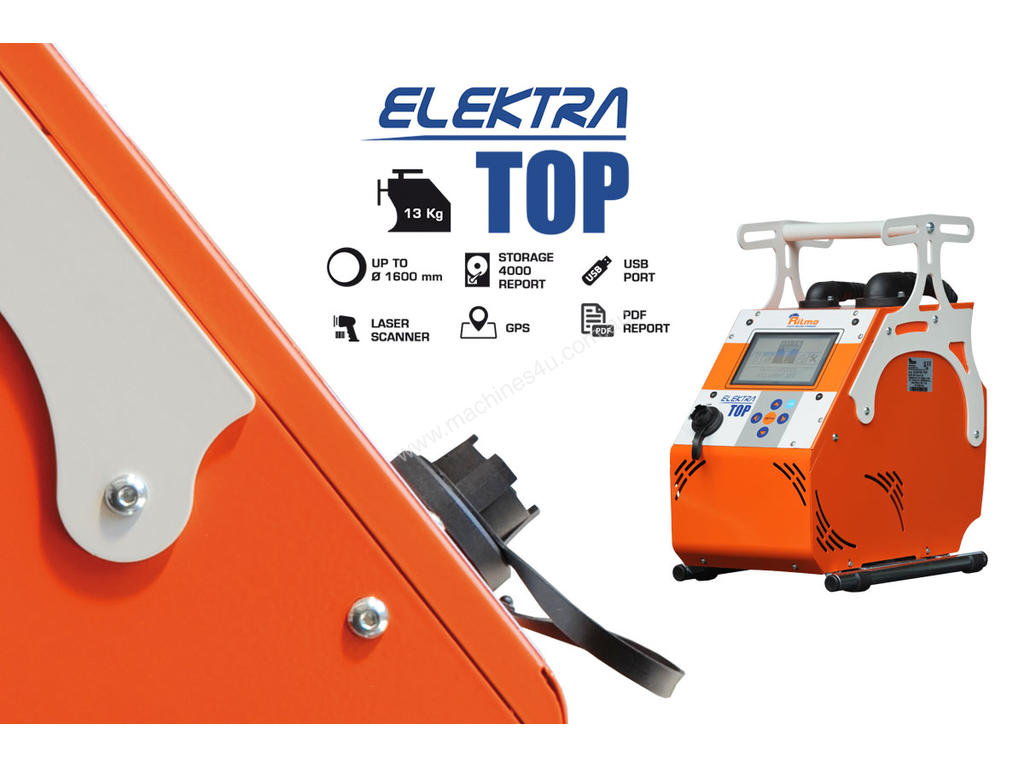

Elektra Top EF Welder Hire
Looking for lightweight and hardworking EF Welder to hire?
- The Elektra Top is the lightest inverter type Electrofusion Welder currently available.
- This unit comes complete with an alloy carry case, plugged and tagged with a 15amp lead.
- Forget fiddling with a pen scanner or optical hand scanner, this machine comes with a laser scanner that reads your barcode reliably in seconds.
- Multi-fit lead ends do away with lead adaptors - these leads connect to both 4mm and 4.7mm with a spring loaded collar.
- Require weld reports upon job completion? Simply connect a USB with the cable supplied and a pdf report file will automatically download to your USB showing date, time, ambient temp, fitting type, brand, operator name and weld status.
Matrix Piping Systems also offers servicing, calibration and spare parts for Ritmo poly welding machinery. Our experienced team of service technicians can assist you with diagnosing and repairing any issues that may arise. Call us today to find out more!
Machine Composition:
- Steel machine frame containing the newest Ritmo’s electrofusion technology.
- Safe transportation thanks to Elektra Top’s wide handle which enables a perfect grip and cable winding.
- 4000 welding reports memory.
- Welding reports can be downloaded in PDF file format, CSV, or BIN (Software Ritmo Transfer required) in to an external pen drive through the machine USB port, which allows also the welder firmware updating, or a printer ESC-POS connection.
- Large graphic display 6,5” LCD.
- Intuitive control panel.
- Universal connectors 90° 4 - 4,7 mm; no need of adaptors.
- Laser scanner - bar code reading system that allows the welding parameters automatic setting. Possibility to set the welding parameters manually: by setting the welding tension/time, or by entering the fiitting’s numerical code indicated under the bar code. Traceability function ISO 12176.
- Universal adaptor Ø 4,0 - 4,7 mm
- Laser scanner
- Transport case
- Manual scraper
Technical features:
Materials: HDPE/PP/PP-R
Working range: Ø 20 ÷ > 1600 mm (1/2" IPS ÷ 63" DIPS
Power supply: *230 V single phase 50/60 Hz
Total absorbed power (60% Duty Cycle output): 3500 W
Max output current: 120 A
Working temperature range: -20° +50° C
Memory capacity: 4000 reports
Protection degree: IP 54
Dimensions: 259 x 342 x 428 mm
Case dimensions: 480 x 350 x 400 mm
Weight: 13.9 Kg
