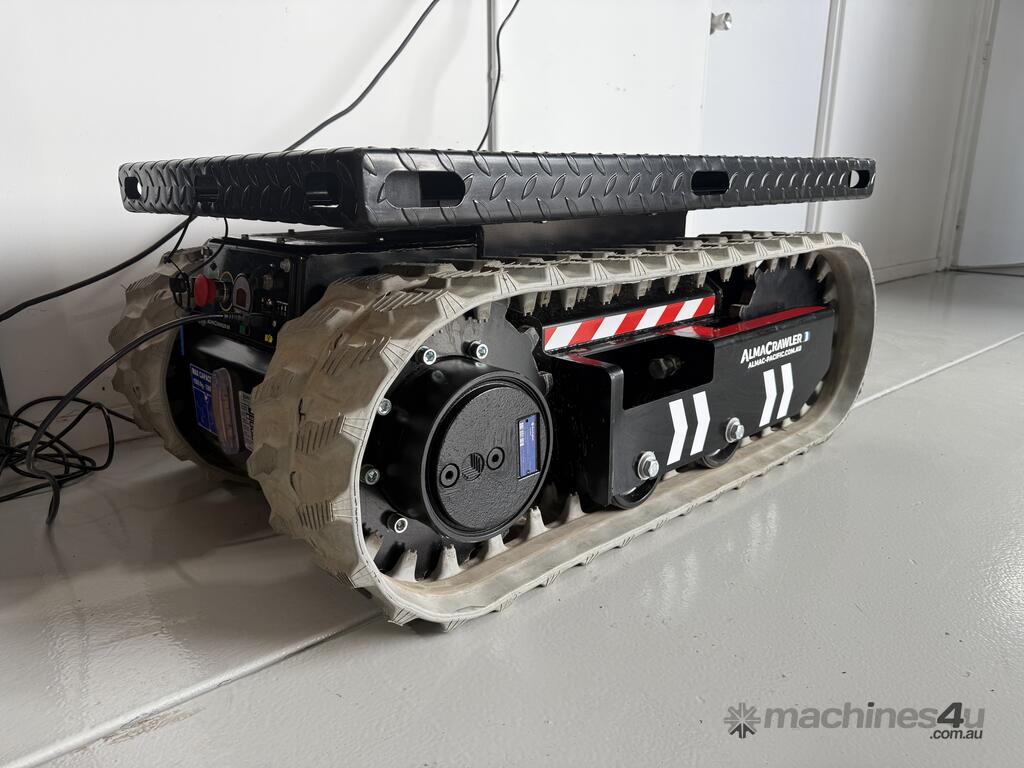

Alma Crawler Multi-Loader ML 1.5 FX

Under Utilised Equipment. Almost brand new. Massive savings from new.

This fully electric tracked transporter is set to revolutionise the way industries handle materials, providing exceptional performance and efficiency, following suit with the Italian companies other Multi-Loader range products.

The ML 1.5 FX is specifiy tailored for crane rental companies, industrial material handling, routine and extraordinary maintenance operations, and the glass and glazing sector.

With its compact size and impressive transport capacity of up to 1500kg, the ML 1.5 FX offers unprecedented versatility.

One of the ML 1.5 FX’s standout features is its fully electric drive system, setting new standards in sustainability and operational excellence.

Equipped with two powerful electric motors generating a robust 10.6kW of power, the ML 1.5 FX ensures immediate traction and accelerates to a maximum speed of 2.8km/h. The two-speed functionality allows operators to choose between optimal speed and power, depending on the task at hand.

The electric drive system delivers exceptional performance while eliminating the need for hydraulic oil. This design feature not only makes the ML 1.5 FX IP67 rated, but also enhances operational and environmental safety.

Powered by 55Ah AGM batteries, the ML 1.5 FX boasts remarkable efficiency. With a charging time of just 6 hours, the batteries provide uninterrupted operation, eliminating the need for maintenance. Additionally, the transporter’s ground clearance of 4cm and a gradability of 45° ensure seamless navigation across various terrains.

Its versatility makes it ideal for a range of applications, including industrial operations, maintenance work, glazing industry, and even the food and pharmaceutical sectors, thanks to its IP67 rating.


Technical data

Max Capacity:
1500 kg (3300 lbs)

Max Gradients:
Max Longitudinal Gradient: 45°
Max Lateral Gradient: 30°

Dimensions:
Width: 700 mm (2'-3.6")
Length: 1170 mm (3'-6.2")
Platform Ground Height: 500 mm (1'-7.7")
Track Length: 794 mm (2'-7.3")
Track Width: 200 mm (7.9")
Ground Clearance: 40 mm (1.6")

Performance:
Max Speed: 2.8 km/h (1.7 mph)
Electric Motor Power: 10.6 kW
Voltage: 48 V
Battery Capacity: 55 Ah
Battery Type: AGM
Recharge Time: 6 hours
Charge Input: 7.5 A
Controller: Remote Radio Control

Weight:
Gross Weight: 465 kg (1025 lbs)

Attachments
- Dolly
Max Capacity: 1500 kg (3310 lbs)
Weight (Empty): 125 kg (275 lbs)
- Multiframe
Max Capacity: 1300 kg (2870 lbs)
Weight (Empty): 145 kg (320 lbs)
- Forest Kit
Max Capacity: 1450 kg (3200 lbs)
Weight (Empty): 50 kg (110 lbs)
- Swivel Plate
Max Capacity: 1400 kg (3090 lbs)
Weight (Empty): 100 kg (220 lbs)
