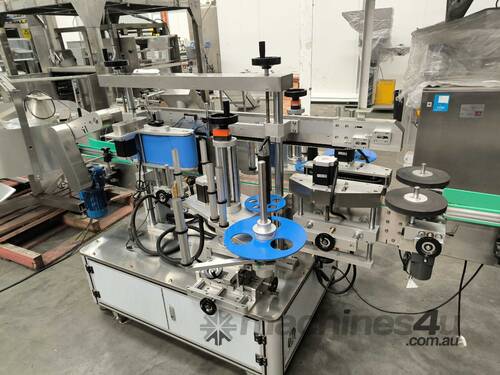

Don't look further as this labelling machine will do it all.
Application:
--It will apply back and front on square and ovale bottles.
--Will also apply at high speed single label on a round bottle.

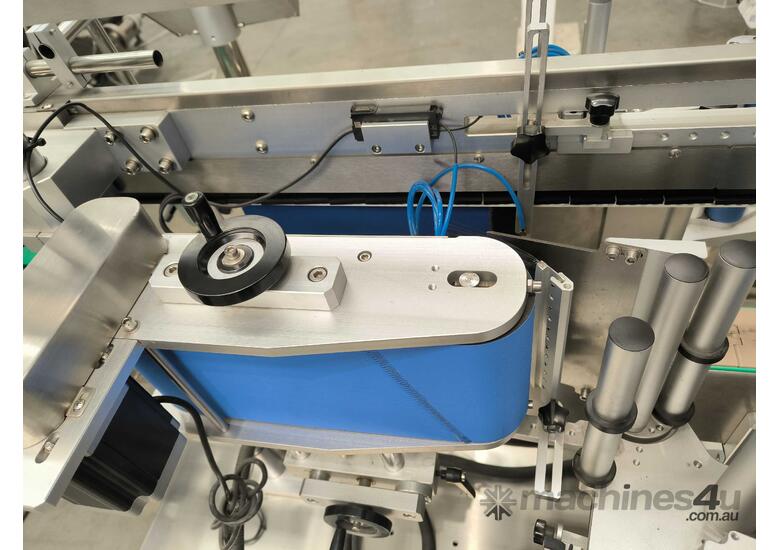

--Will also apply double side label on a round bottle at high speed using wrapping belt.
--Will also apply double side label on a round bottle at a lower speed using nip roll assembly.
Standard options:
--Top belt for square and oval bottle label application.
--2 X Spacing wheels. To keep gap betwen the bottles constant.
--2 X Aligment wheels. To center the bottle to the top belt.
--2 X Gap sensor Sick for opaque labels. (Optional clear label sensor available)
--Inkjet coding printer 12.7mm with touvh screen interface. Solvent ink: white, green, black, yellow.
The Two-Sided Front & Back Labeler provides an impressive yet cost-effective solution for pressure sensitive adhesive label application. This Labeler is suitable for various one-sided or two-sided labeling. This unit comes as standard with 2 different options, a wrap arround station and nip roll system for round bottles single and double side.
Speed up to 120bpm (Label length 40mm)
Specifications:
Label Specification Adhesive sticker, transparent or opaque
Labeling Tolerance ±1mm
Capacity(pcs/min) 30~180
Bottle size(mm) L:40~400; W:40~110 H:25~330 (Can be customised)
Suit label size(mm) L:25~250;W(H):15-220
Machine Size: L3000*W1450*H1600(mm)
Voltage: 240V/50HZ
Power: 2000W
N.W(KG): 330.0
Label Roll: ID: 76mm; OD:?280mm
PLC: Delta
HMI: Weinview
Stepper motors on all axis except spacing wheels: Leadshine open loop (close loop optional)
KG Equipments supply a complete range of Vertical Form Fill Seal machines, filling machine, carton erector which are highly reliable, heavy duty and technologically advanced. Our packaging machines are supported by a team of factory trained engineers who are customer focused and committed to keeping you producing efficiently.
We specialise in bagging systems and pouch packing solutions.
Our goal at KG Equipments is to supply, design and manufacture flexible packaging systems. Equipment that our customers can confidently rely upon for their current and future production needs. All the machines are tested in full production before bein offered to our clients.
Rental available on a monthly base contract.
