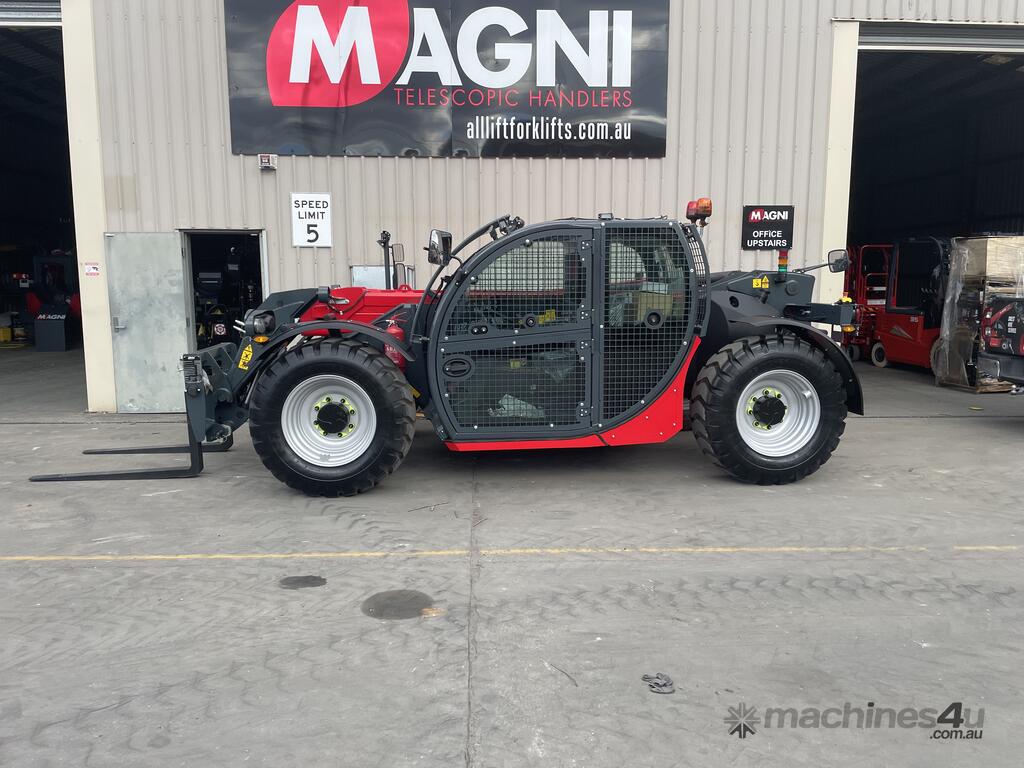

The TH U 5.8 is specifically designed to meet the demands of mining operations, combining power, versatility, and safety features to excel in challenging mining environments.
• Extra lowered design to access areas with low ceiling
• Compact design for unmatched manoeuvrability
• Deutz Stage 5 engines
• 350 bar L/S hydraulic system
• Includes Fire Suppression
• Includes Remote Control
• Includes EWP with overhead protective structure
• Includes 5t Hook
• Lockable Battery & Starter Isolator
• Dual -E-Stops
• 350 bar L/S hydraulic system
• Safety Features: Includes directional driving and reversing lights
• Load monitoring system via the RCL system (Rated Capacity Limiter) for added safety.
• Emissions Control: Incorporates a 50 PPM catalytic converter for emissions control.
• Air Conditioning: Features an air conditioning system for operator comfort.
• Fire Extinguishers: Equipped with 1kg & 4.5 kg external fire extinguishers for safety.
• Maximum height of the vehicle of 2 m.
This feature makes it suitable for entering the narrow passages of tunnels and mining sites. The design is also compact, offering a machine with small dimensions and excellent manoeuvrability. In addition, the hydrostatic transmission and 4-wheel drive make it suitable for any type of terrain, ensuring maximum traction and grip even on the bumpiest grounds. The tyres are semi-solid, made of a special anti-cut compound that provides excellent heat resistance. This makes them suitable for all operations on rocky surfaces
The cab is FOPS (Level 2)/ROPS certified and equipped with an upper grill guard to guarantee operator safety even during the most delicate operations. The cabin is also airtight and fully pressurised, to always ensure a safe working environment for the operator.
