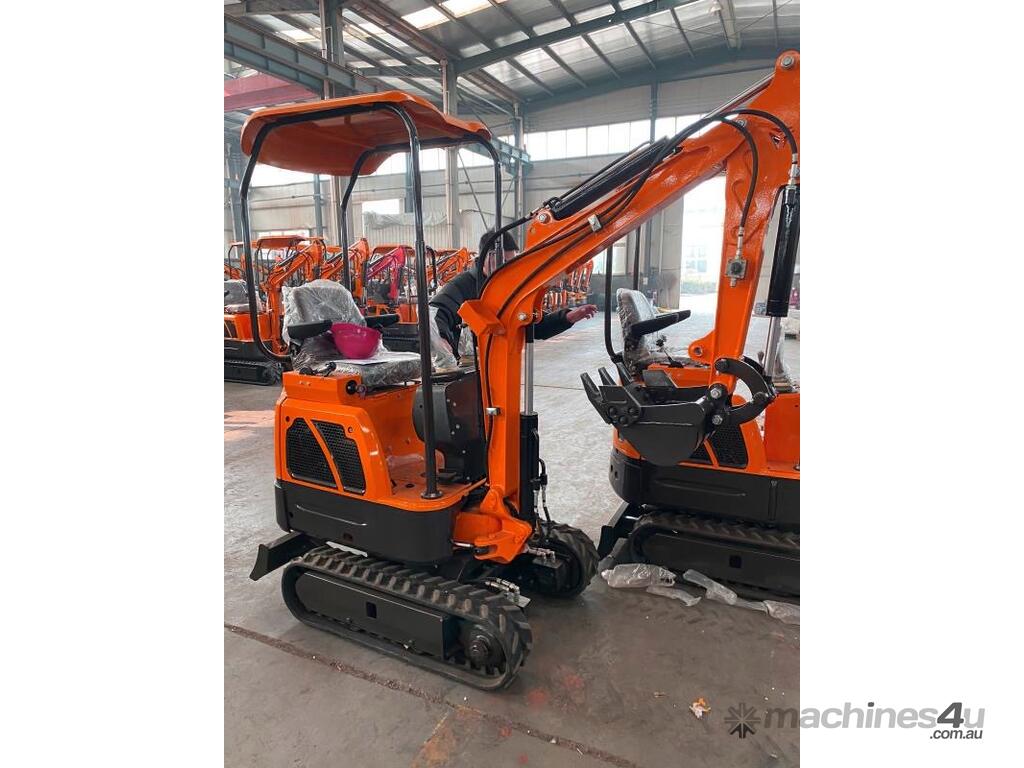

Mini Excavator 1.2 Ton - Yanmar engine, swing boom plus free attachments

The EMED Mini Excavator EM1.2, ideal for small-scale projects, is priced at $18,500 including GST, with finance options from about $89 per week. It features a reliable Yanmar engine, known for high power and efficiency with low fuel consumption and minimal noise. Its YANMAR TNV direct injection diesel engine ensures powerful performance with eco-friendly emissions, as well as having an advanced hydraulic system that enhances power output and speeds up work while reducing fuel use, making it a cost-effective and environmentally conscious choice for various tasks.

Main dimensions
Overall dimension (L x W x H) 2770x896x1490 mm

Wheelbase: 770mm

Chassis width: 896mm

Total length of track: 960mm

Track width: 180mm

Chassis ground clearance: 132mm

Specifications
Machine Weight: 1100 Kg

Operating Weight 1200kg

Bucket Capacity: 0.025 m³/120kg

Bucket Width: 340mm

Engine: Yanmar 3TNV70

Rated power: 10 kw/13.4hp/2200r/min

Track type: Rubber track

Displacement 854 CC

Max Torque 51.9N.M/1600r/min

Fuel Capacity 16.4L Diesel

Operating Pressure 16MPa

Main pump Zaneda Gear Pump

Hydraulic flow rate 18L/min

Hydraulic Oil capacity 16L

Free standard inclusions
• 200mm Bucket

• 340mm Bucket

• 500mm Bucket

• 800mm Bucket

• Mechanical Quick Hitch

• Ripper

• Rake

• Log Grab

• Filter Kit

• Pins

Operating range

Max. Digging depth: 1650mm, Max.

Vertical digging depth: 1376mm Max.

Digging height: 2365mm Max.

Dumping height: 1655mm Max.

Digging radius on ground: 2560mm Min.

Rotation radius: 1200mm

Warranty
3-year warranty and lifetime support

We will supply parts and labour for the first year, meaning if in the unlikely event your machine breaks down during the first year, we will supply the parts and labour to get your machine operational again. This might mean taking your machine to a local repair centre, having your local mechanic visit you, or us organising another method. You are fully supported and backed up with our 1-year parts and labour guarantee we will work with you to get you sorted asap.

In addition to the above we also offer a 3-year parts warranty from the date of purchase. If you have any issue with your machine outside of normal wear and tear items such as tracks, washers, batteries, fan belts etc. We will supply all parts to you so you can quickly and easily replace them and keep the machine operational.
