127mm Tilting Rotary Table TSK-5, Tilting Rotary Table for Lahte Milling Machine

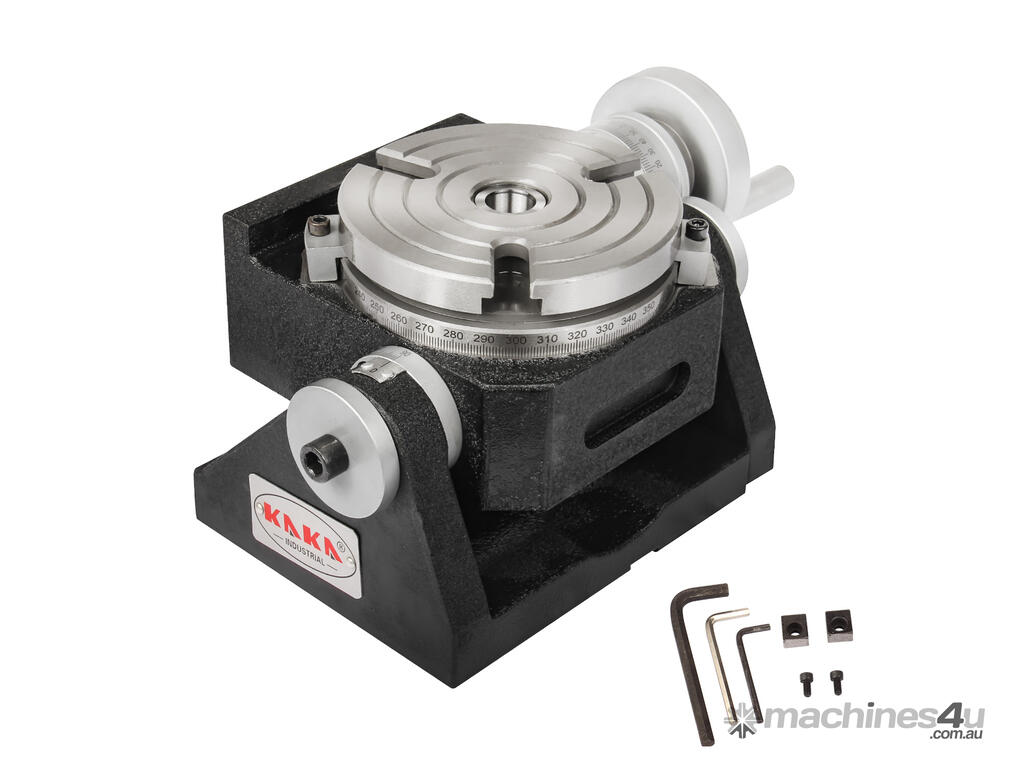

Kang Industrial Tilting Rotary Table TSK-5

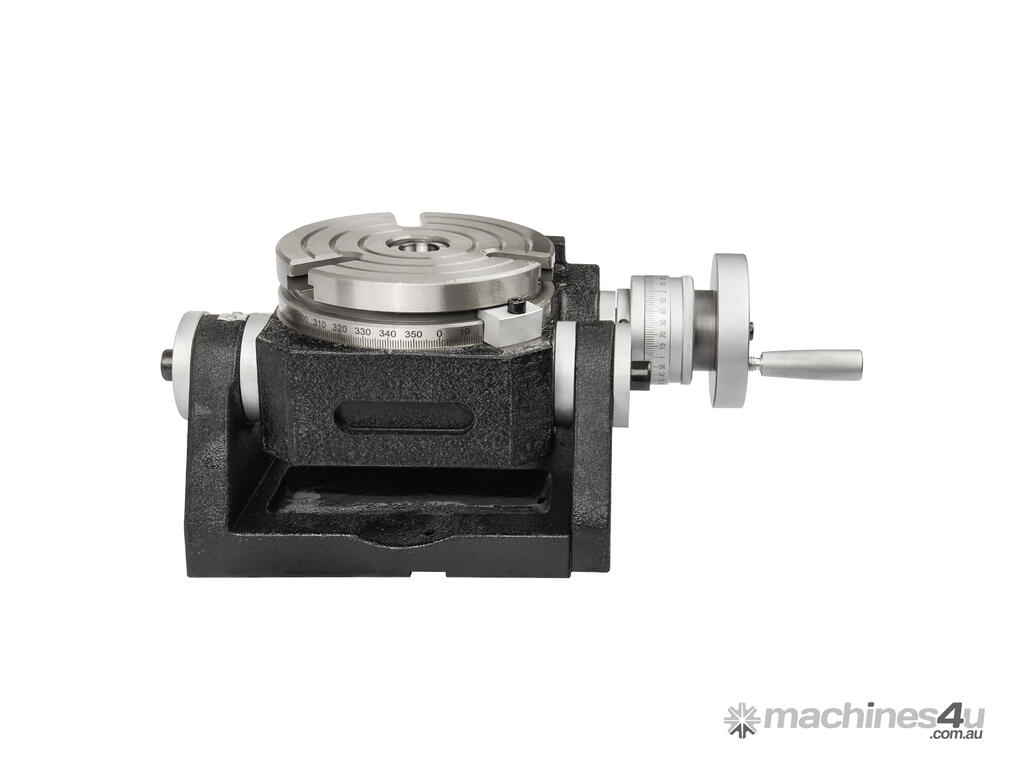

The TSK-5 Tilting Rotary Table is a high-precision machining tool designed for versatile positioning in workshop operations, allowing seamless tilting from horizontal to vertical orientations.

Dual-Axis Versatility Workpiece Holding Table. Unlike standard horizontal/vertical tables, the "Universal Tilting" feature eliminates the need for separate angle plates. You can transition from a flat milling job to a 45-degree angle boring task in seconds.

Compact for Small Mills. Its low profile makes it ideal for the benchtop milling machines popular in home workshops, where Z-axis clearance is often limited.

Industrial Build Quality Tilting Table. High accuracy and durability c. The hardened and ground worm gear ensures minimal backlash.

Rigid Locking Rotary Table. It utilizes a dual-screw locking system for the tilting arc, ensuring the table remains rock-steady even under heavy cutting loads.

Features

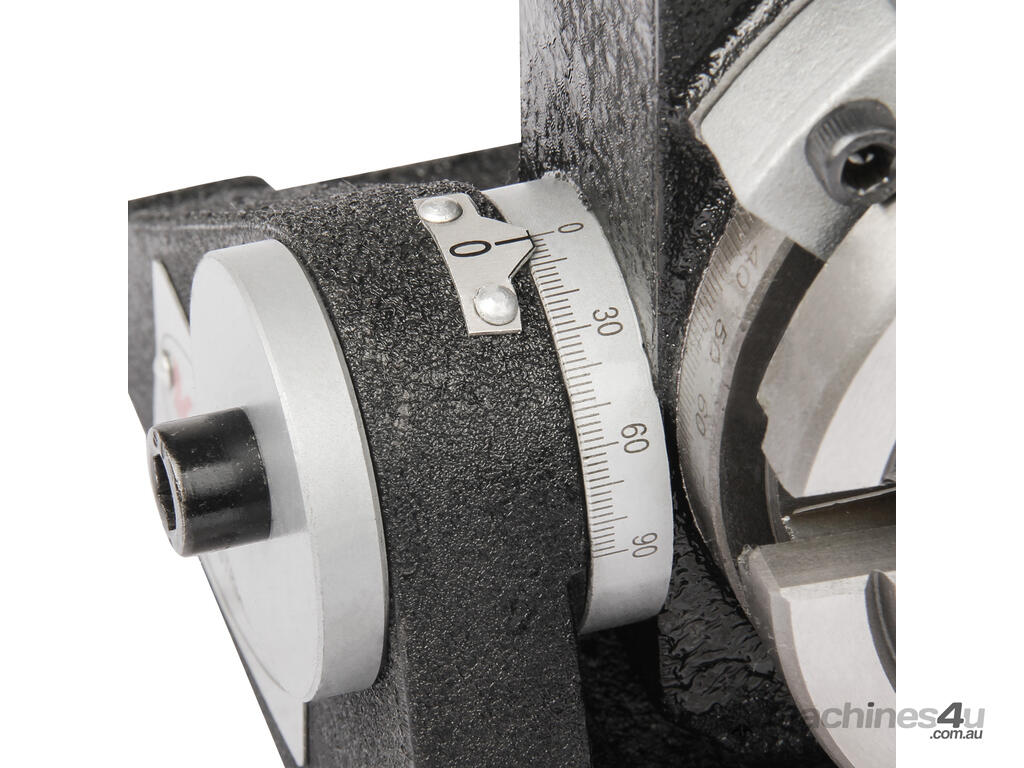

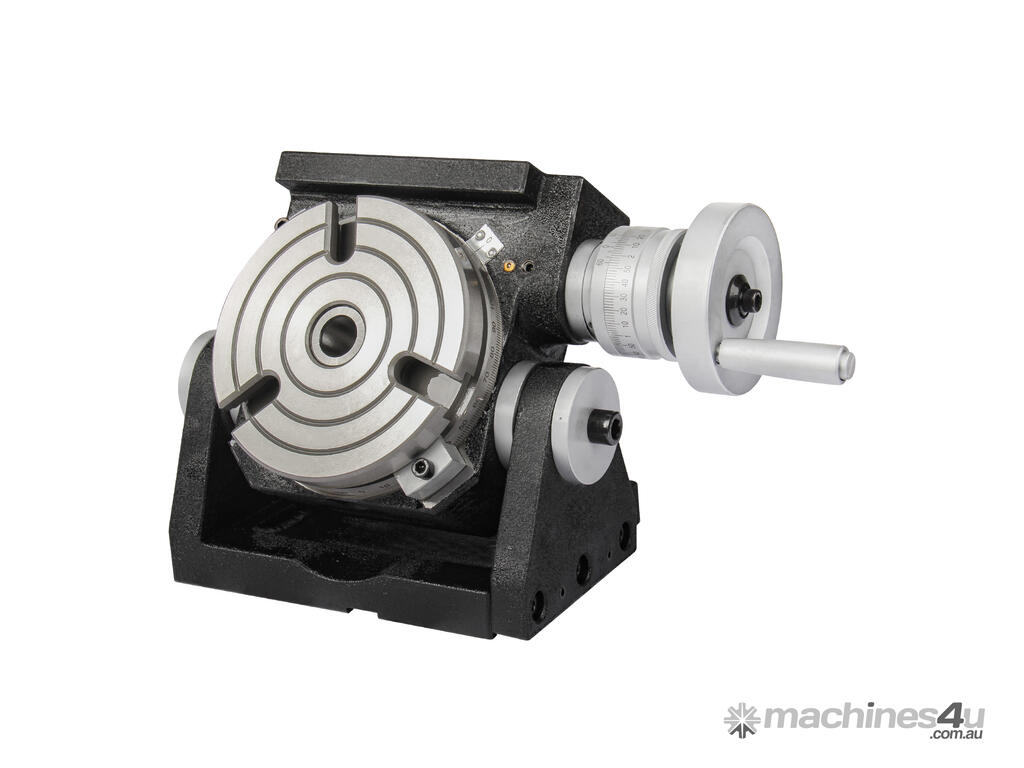

Tilting Mechanism: Features a tilting range of 0° to 90° (horizontal to vertical), allowing for angled cuts and hole patterns.

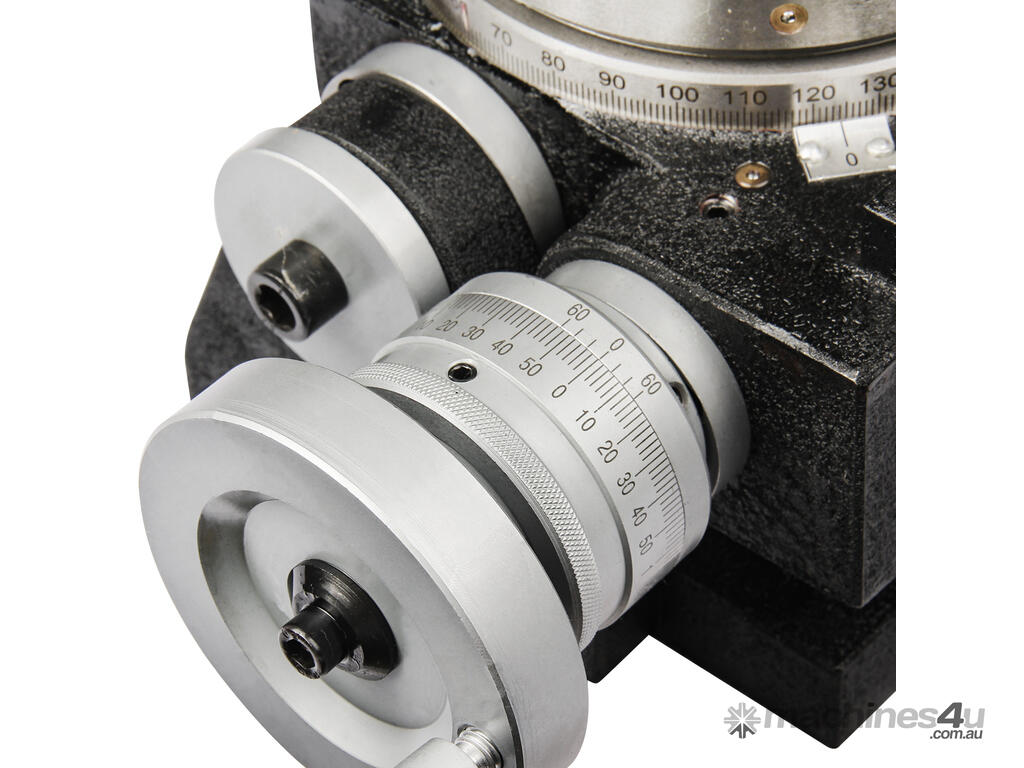

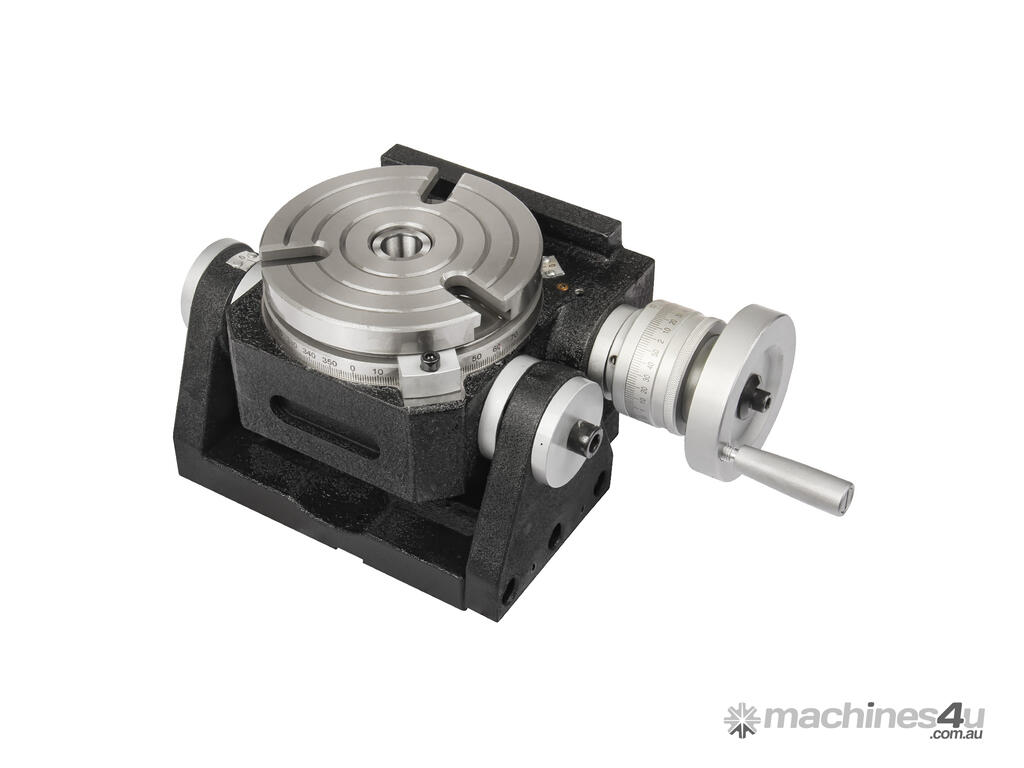

Indexing Precision: The worm gear ratio is 72:1. One full 360° turn of the handwheel rotates the table by 5°. The micro collar is graduated in 2-minute increments, and a vernier scale allows for readings down to 10 seconds.

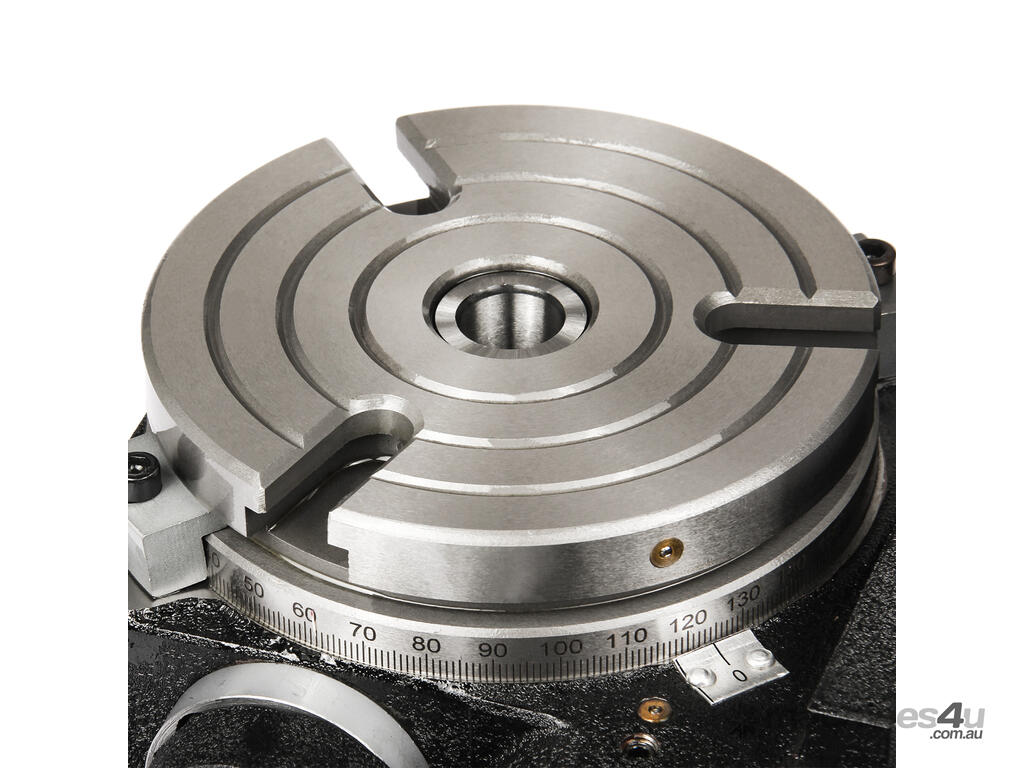

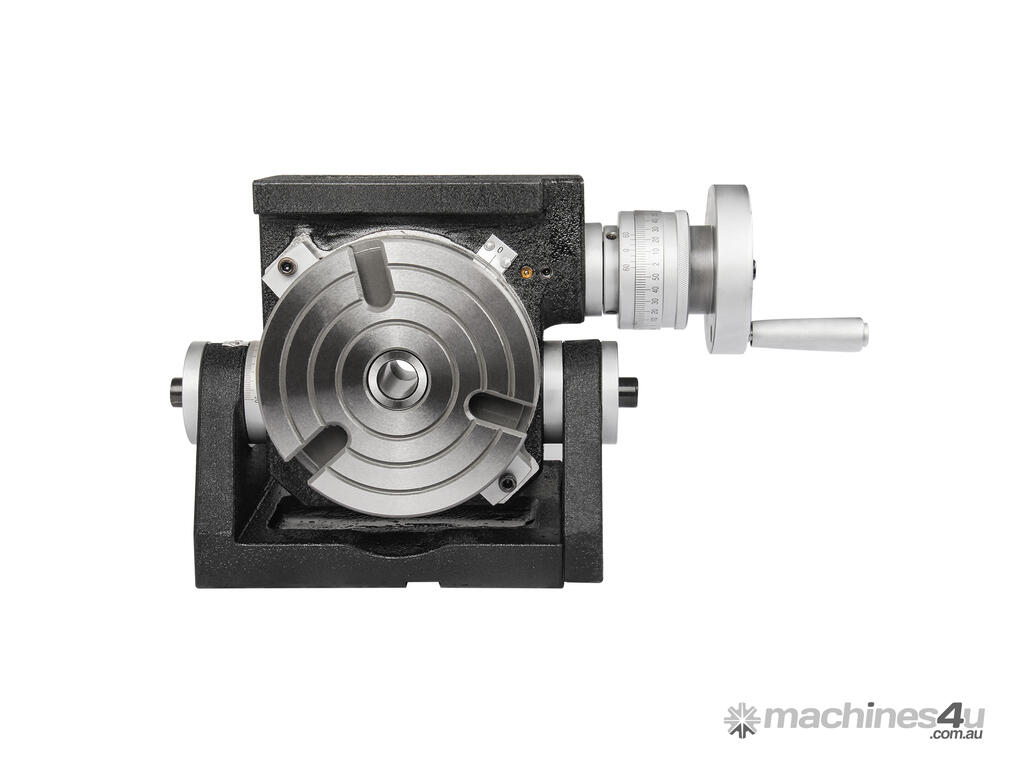

Capacity: The table diameter is 127mm (4 inches), featuring 3 T-slots for secure workholding.

Internal Taper: Comes with an MT2 center bore, enabling the use of standard collets or centers

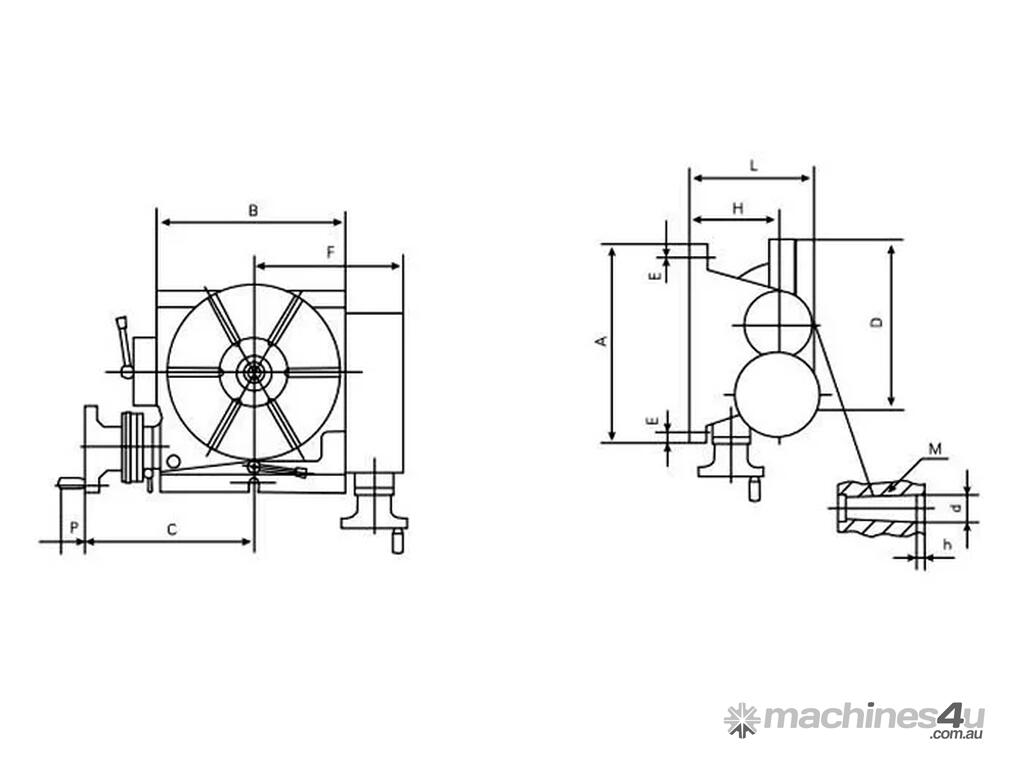

Specifications
SKU 162315
Model TSK-5
Table dia. ø 127 mm
Morse taper of the center hole MT2
Width of T-slot 12 mm
Modules of worm and worm gear 1
Width of the locating key 16 mm
Adjacent angle of T-slot 120°
Transmission ratio of the worm gear 1:72
Gradation of the table 360°
Tilting angle 0~90°
Readout of the handwheel  1"
Min. value of vernier 10"
Min. reading of tilting vernier 1°
Indexing accuracy 60"
Packing size 32x12x19 cm
N.W./G.W. 17/19 kg
