12kW CNC Fiber Laser Cutting Machine – 1.5x3m Sheet Metal Laser

High-Power CNC Fiber Laser for Sheet Metal Fabrication

The IMS 12kW Fiber Laser Cutting Machine is designed for high-speed, high-precision cutting of sheet metal in modern fabrication environments.

Supplied by A&S Machinery Sales Pty Ltd, this advanced fiber laser system combines a heavy-duty machine structure with high-quality international components to deliver excellent cutting performance and reliability.

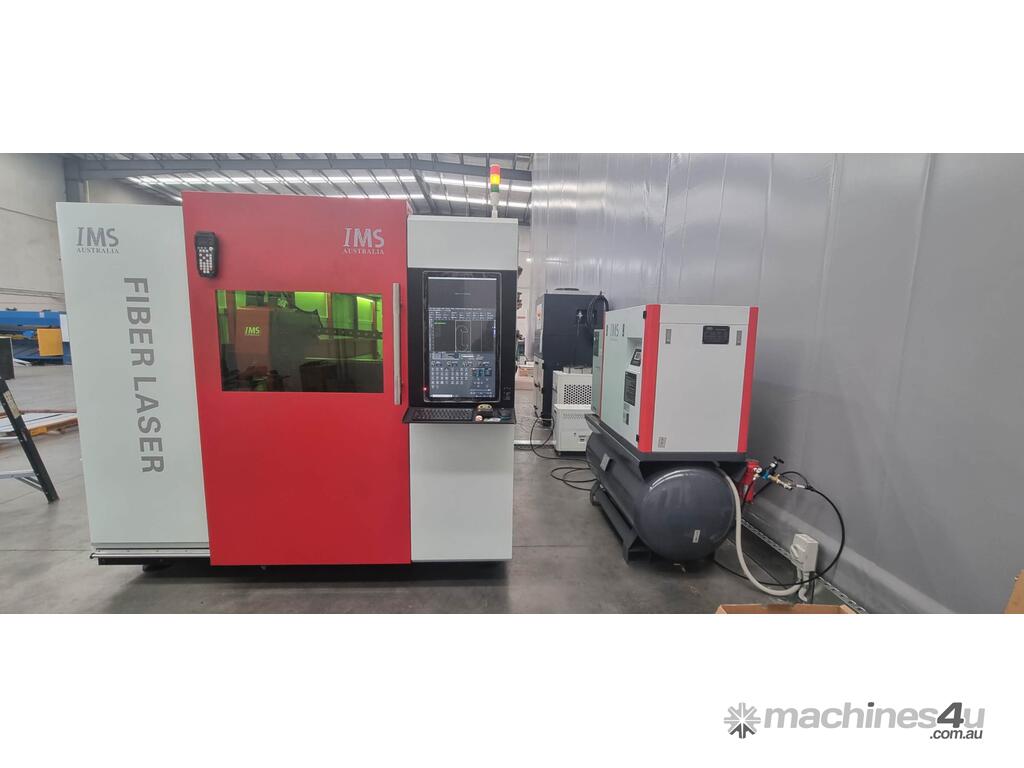

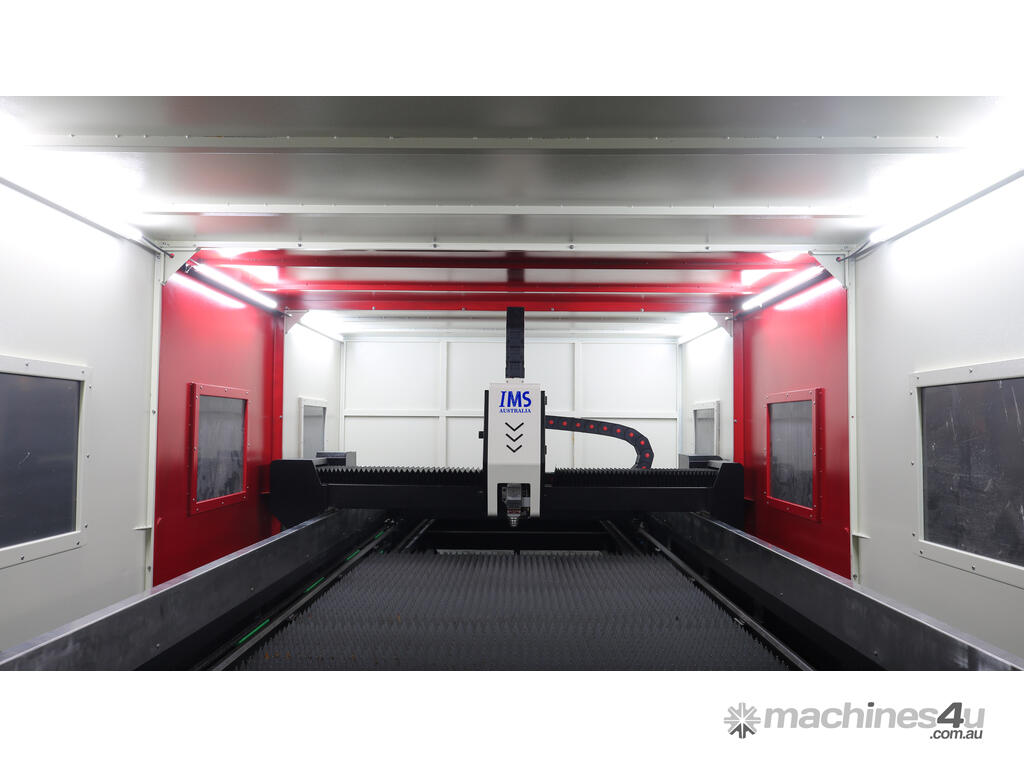

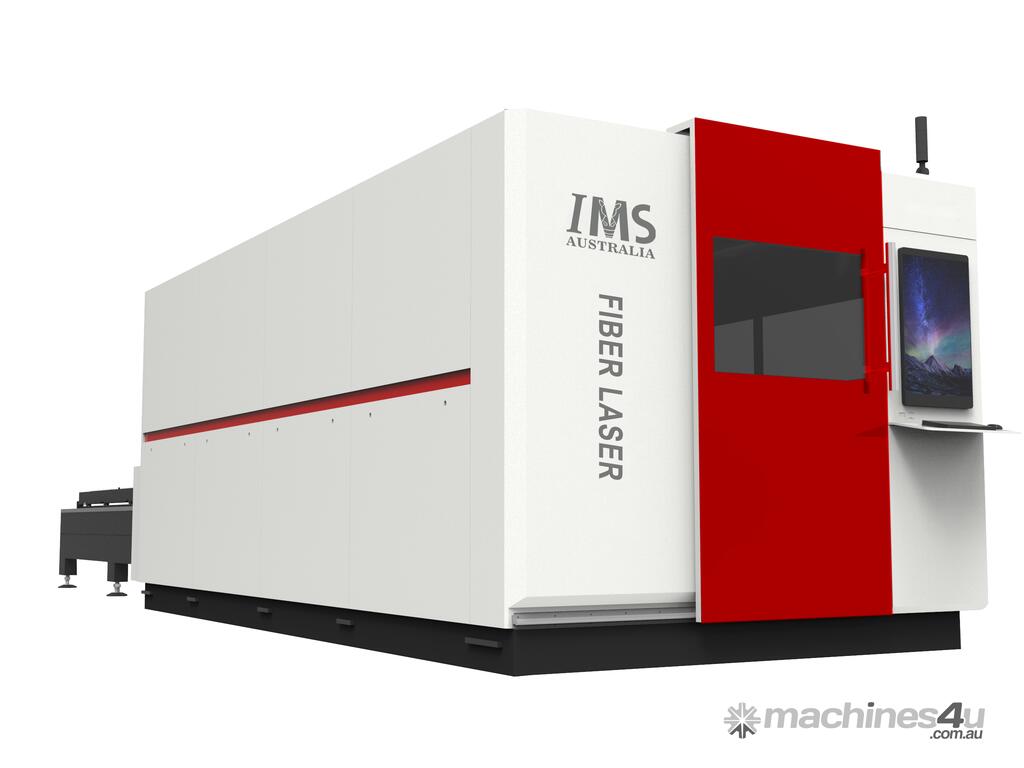

The machine features a fully enclosed cutting area that meets Australian safety standards, along with an automatic exchange table for continuous production and increased productivity.

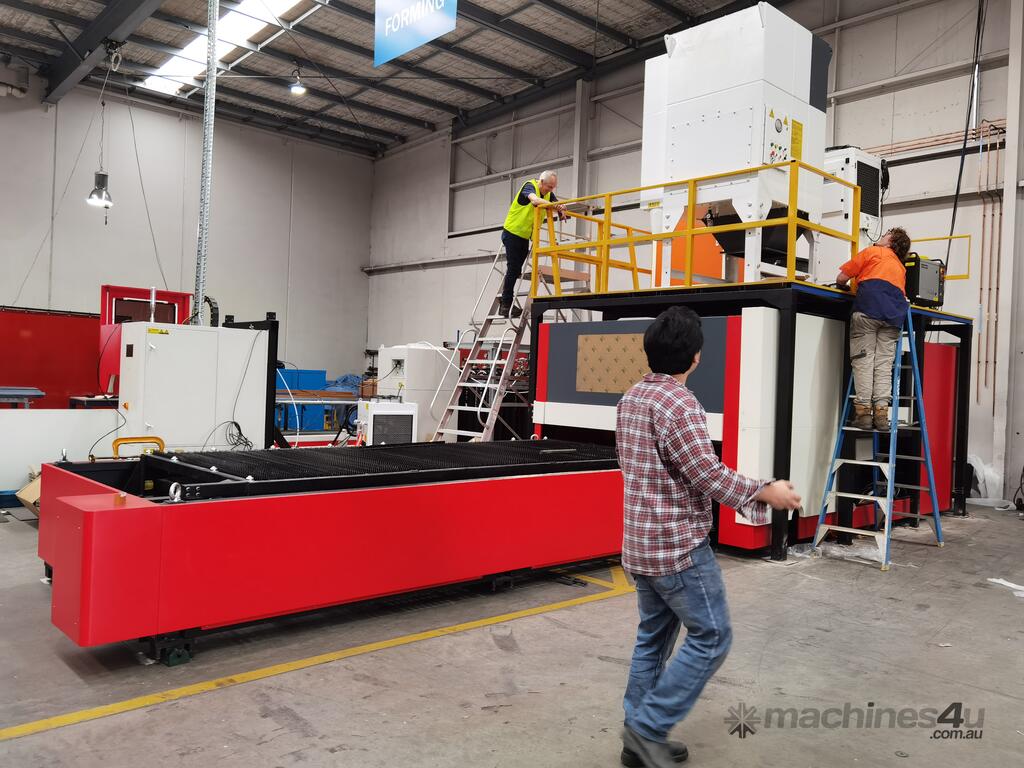

Delivery and installation can be arranged within major capital cities.

Machine Specifications

Laser Power: 12 kW
Working Area: 1530 mm × 3050 mm

• X-axis running area: 1510 mm
• Y-axis running area: 3050 mm
• Z-axis running area: 320 mm

Maximum Running Speed: 140 m/min
Acceleration: 1.5G

Position Accuracy: ±0.03 mm
Repeat Position Accuracy: ±0.02 mm

Power Supply: 3 Phase 380V ±5% / 50Hz

Machine Size: 11000 × 2315 × 2000 mm

Key Features

• Heavy-duty gantry welded machine structure

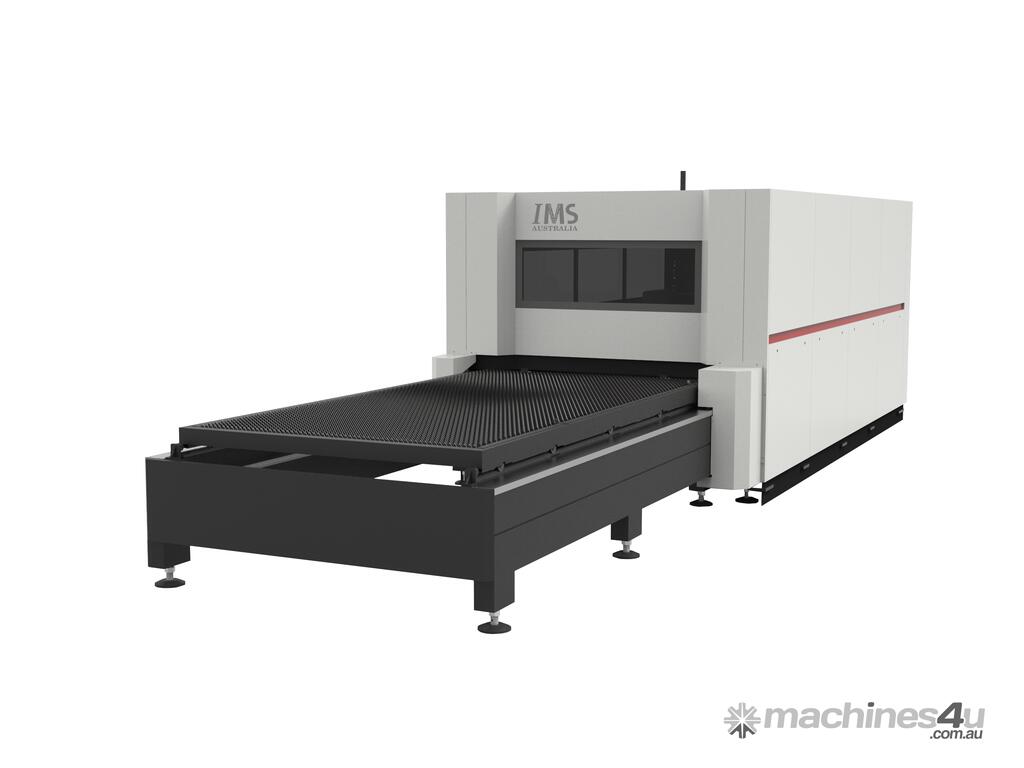

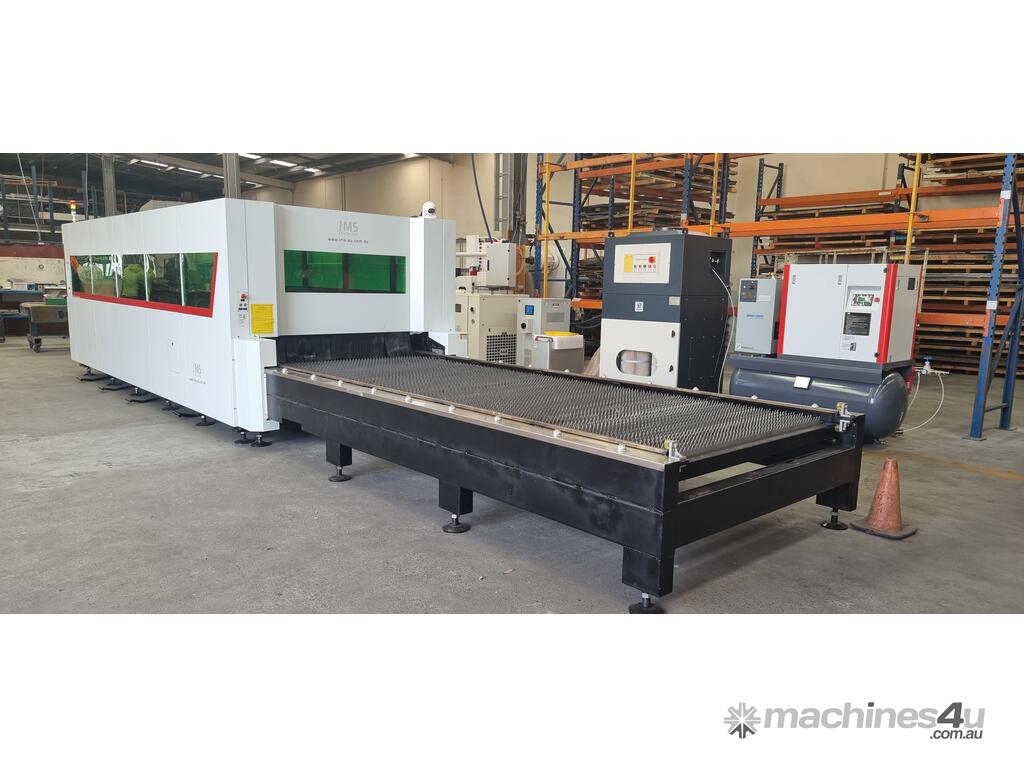

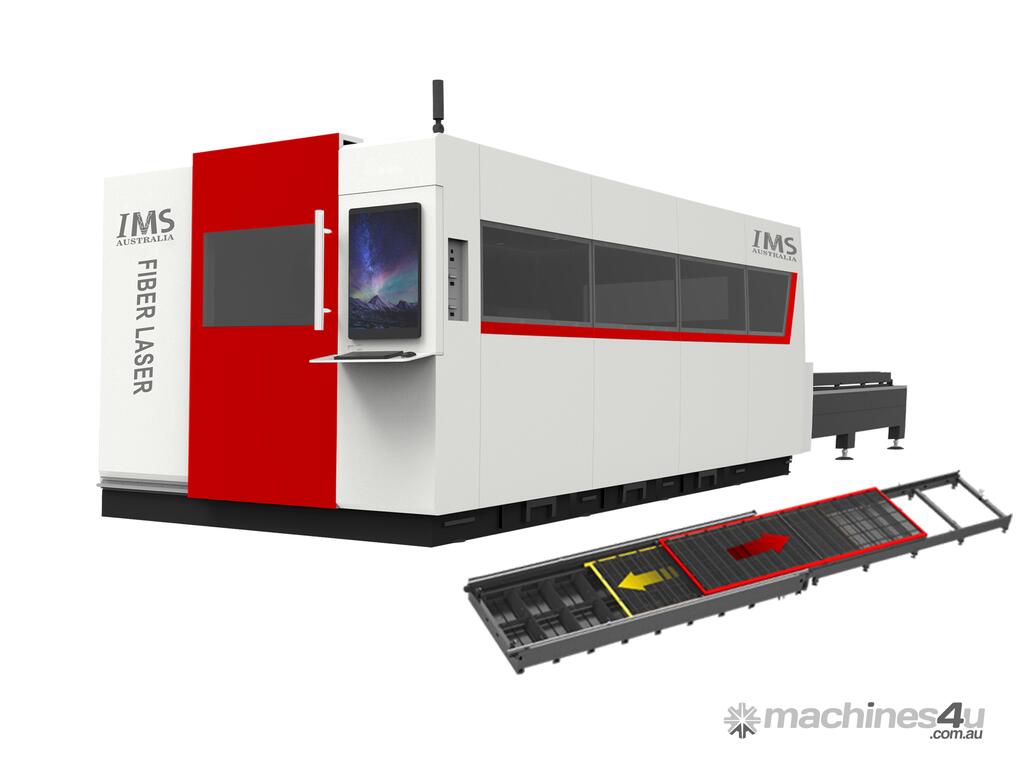

• Automatic exchange table system
• Extruded aviation aluminium crossbeam
• Fully enclosed working area meeting Australian safety standards
• Large monitor screen with safety camera
• Advanced CNC control system with easy operation
• Automatic lubrication system
• High dynamic performance with premium components
• Wireless mobile controller for machine operation
• Built-in industrial PC and rotating control screen

Laser System Components

• Laser Source: 12 kW Fiber Laser

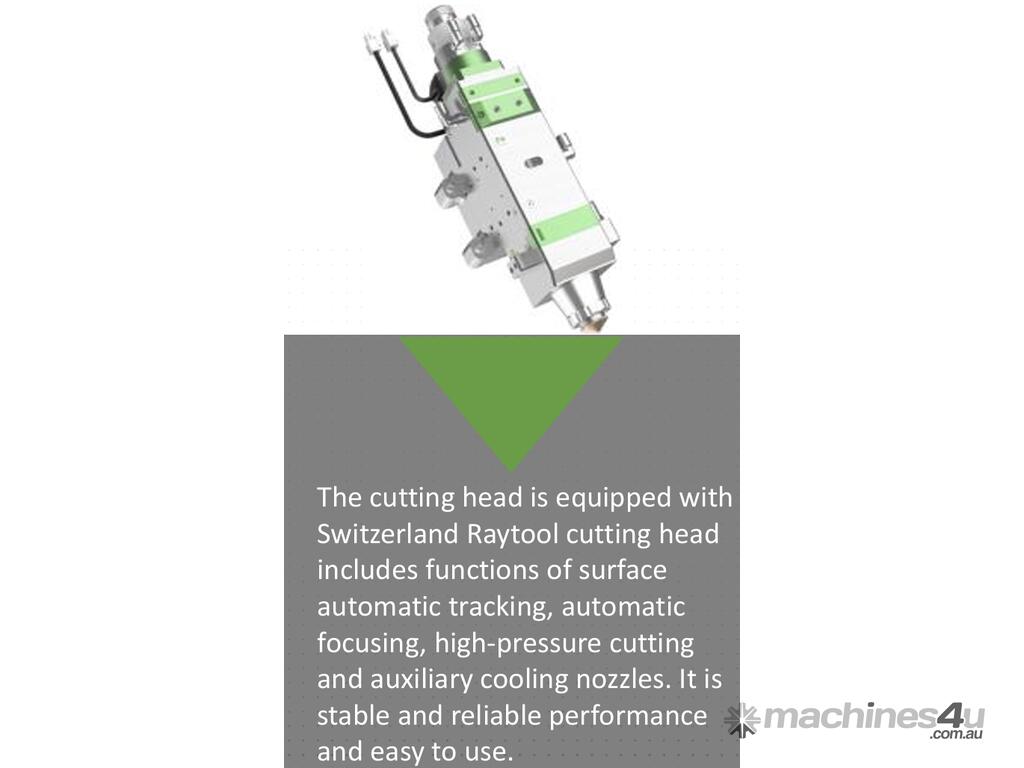

• Laser Cutting Head: Raytools (Switzerland)
• Chiller: Teyu or Tongfei
• Rack and Pinion: YTC (Taiwan)
• Reducer / Decelerator: ROUST (Germany)
• Linear Guide Rails: ROUST (Germany)
• Pneumatic System: SMC (Japan)
• Electrical Components: Schneider (France)

Software and Control

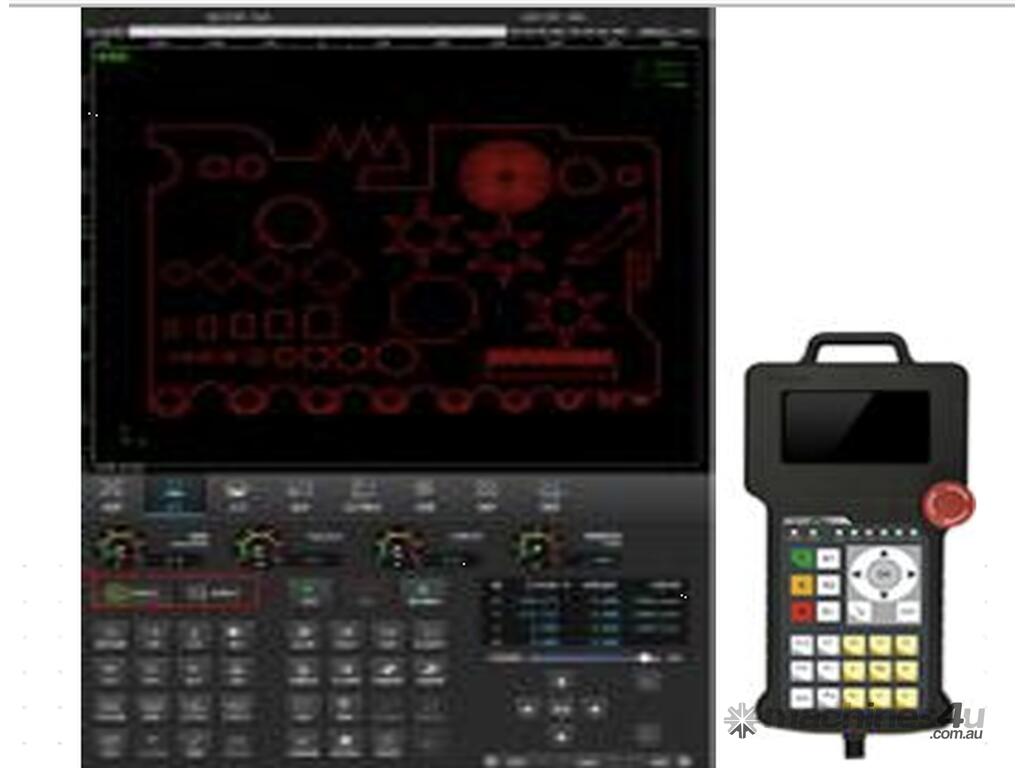

The machine includes advanced laser cutting software powered by a high-performance industrial PC, allowing operators to easily design and process graphics and text.

This system optimises cutting paths, improves production efficiency and simplifies machine operation.

A hand-held controller is also included for manual test cuts, severance cuts and servicing operations.

Support and Services

• Free software updates
• Remote support via phone and video
• Training and maintenance programs available
• Delivery and installation available within capital cities

Optional Equipment

Optional equipment available at additional cost:

• Voltage stabiliser power supply
• Fume extraction system
• Compressed air system
• Material lifting system (500 kg)

Enquire Now

Contact A&S Machinery Sales Pty Ltd to discuss:

• Machine pricing and availability
• Delivery and installation
• Additional laser sizes and power options
• Training and technical support
