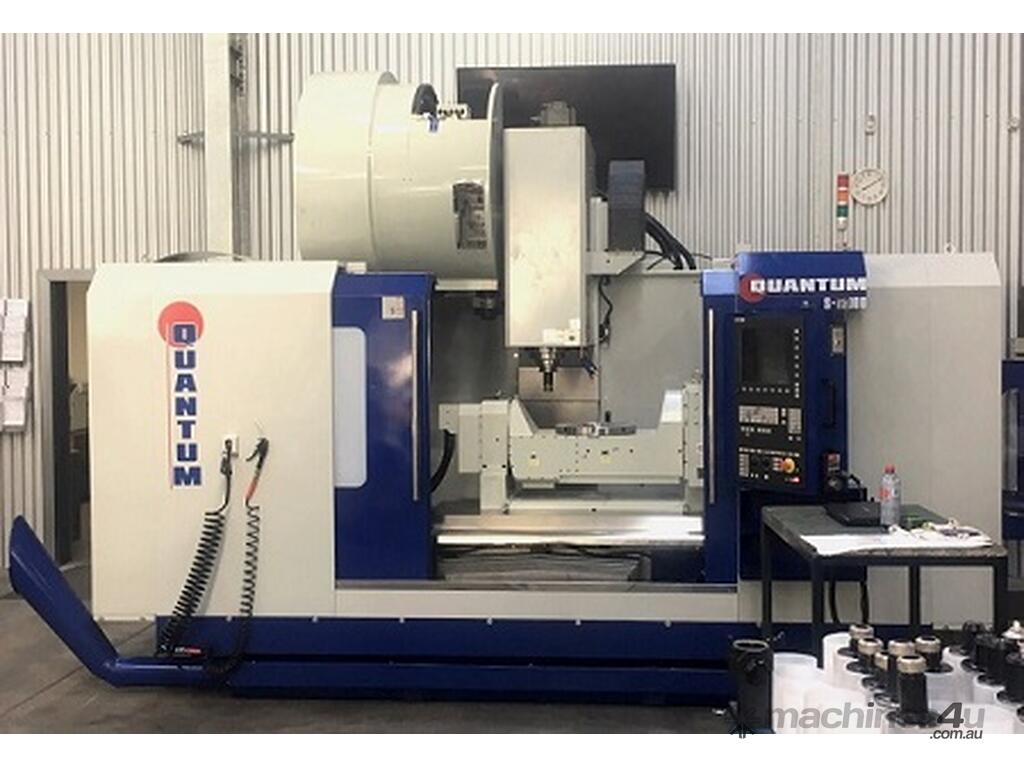

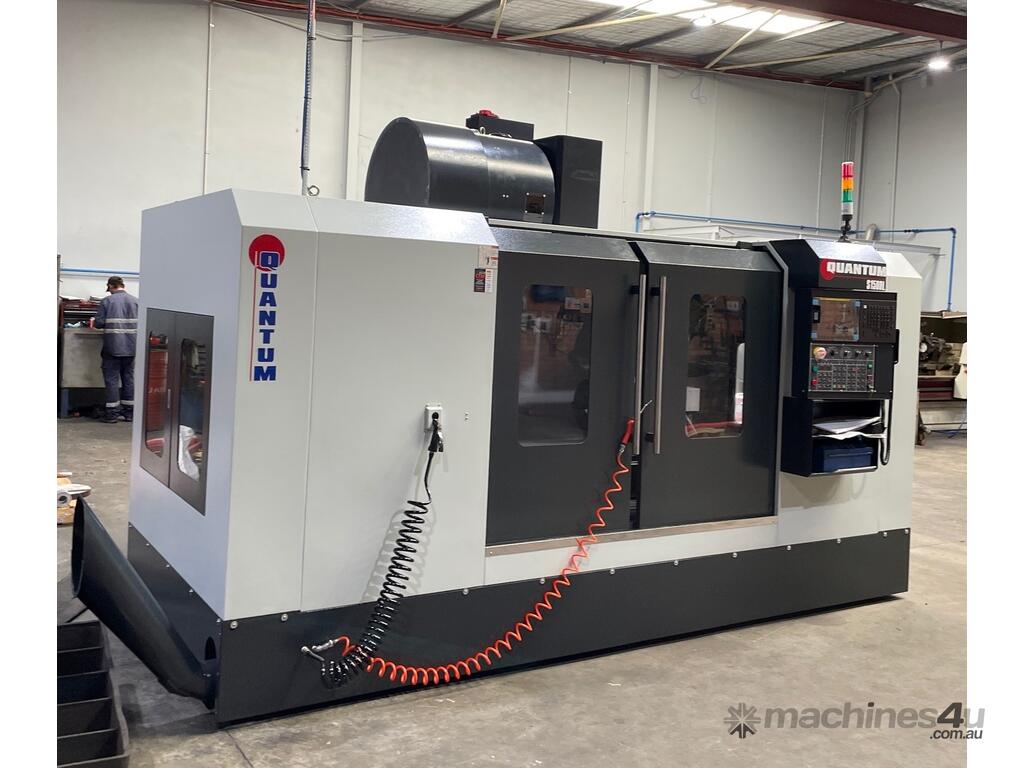

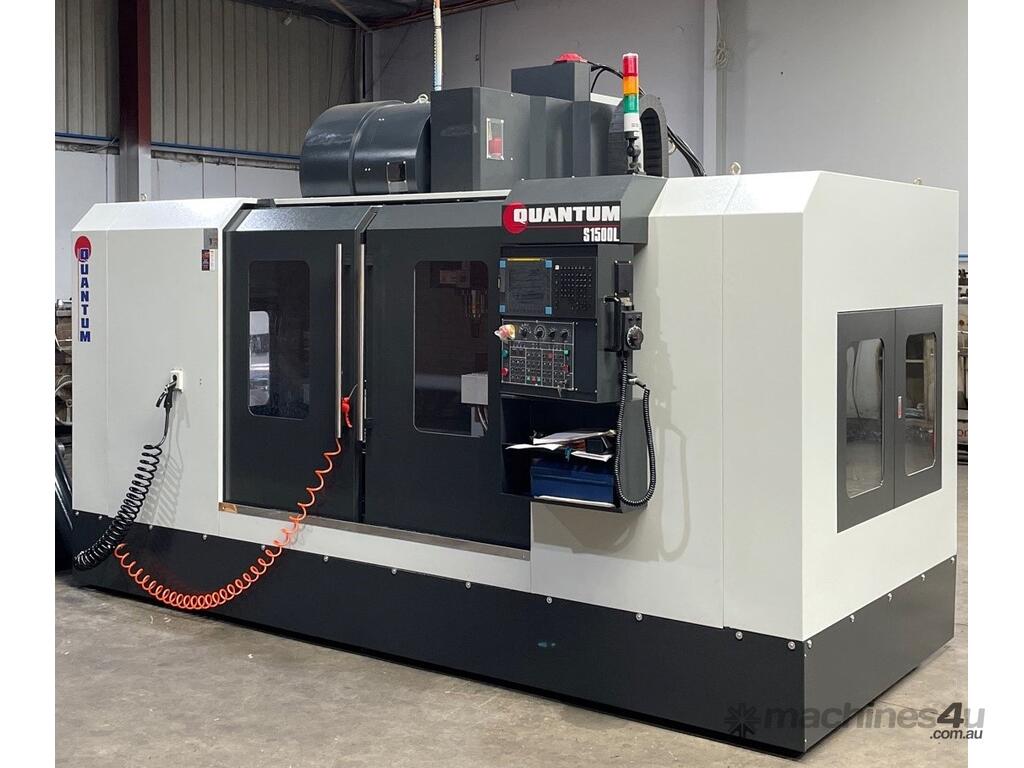

New QUANTUM Taiwanese Machining Centres. S1500D with box slideways S1500L with linear guides

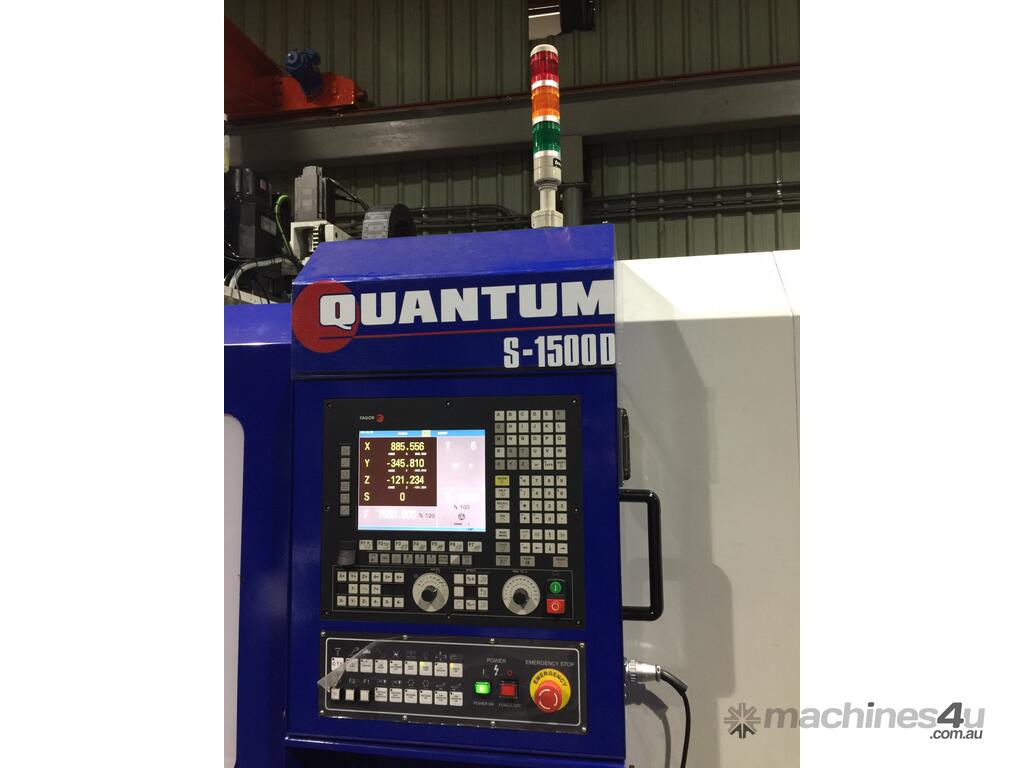

Fagor or Fanuc controls.

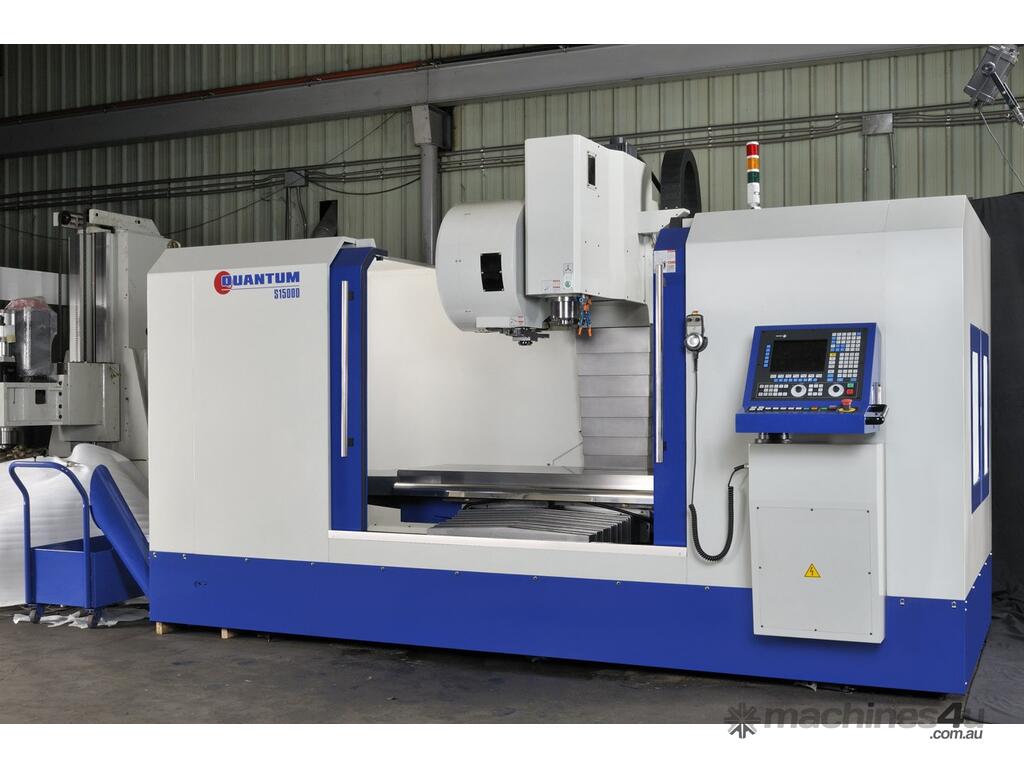

S1500D
Table size: 600mm x 1700mm
Travel—X 1500mm, Y 700mm, Z 900mm
3 axis ballscrews — X.Y.Z. 40dia P-10 C-5
BT40 Spindle 8000rpm (opt 10,000 or 6,000rpm BT50)
Spindle motor 11/15kW Fagor FM7-A110-S1C1-E01
Axis motors X &Y Axis (FXM55.30A E1.100); Z axis (FXM55.30A E1.110 with brake)
24 tool ATC
Coolant through spindle
Chip flushing
Full splash guard, screw type chip conveyor & chip cart
Heavy duty box slide ways
Direct coupled transmission for 3 axes

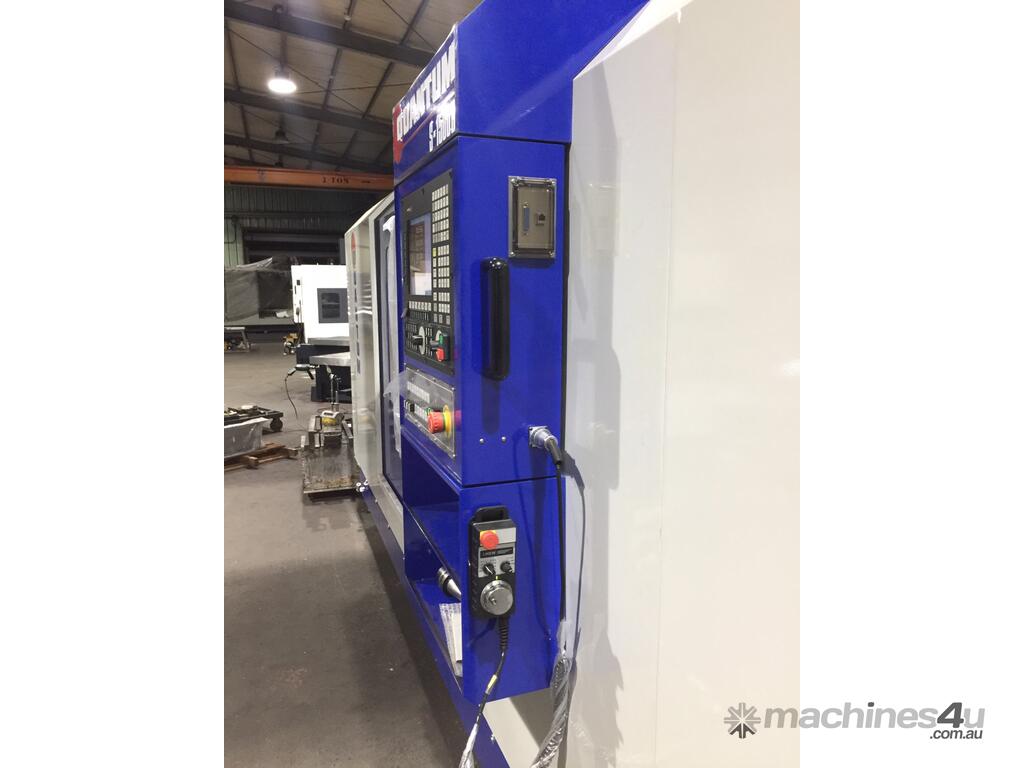

Portable MPG
Rigid Tapping

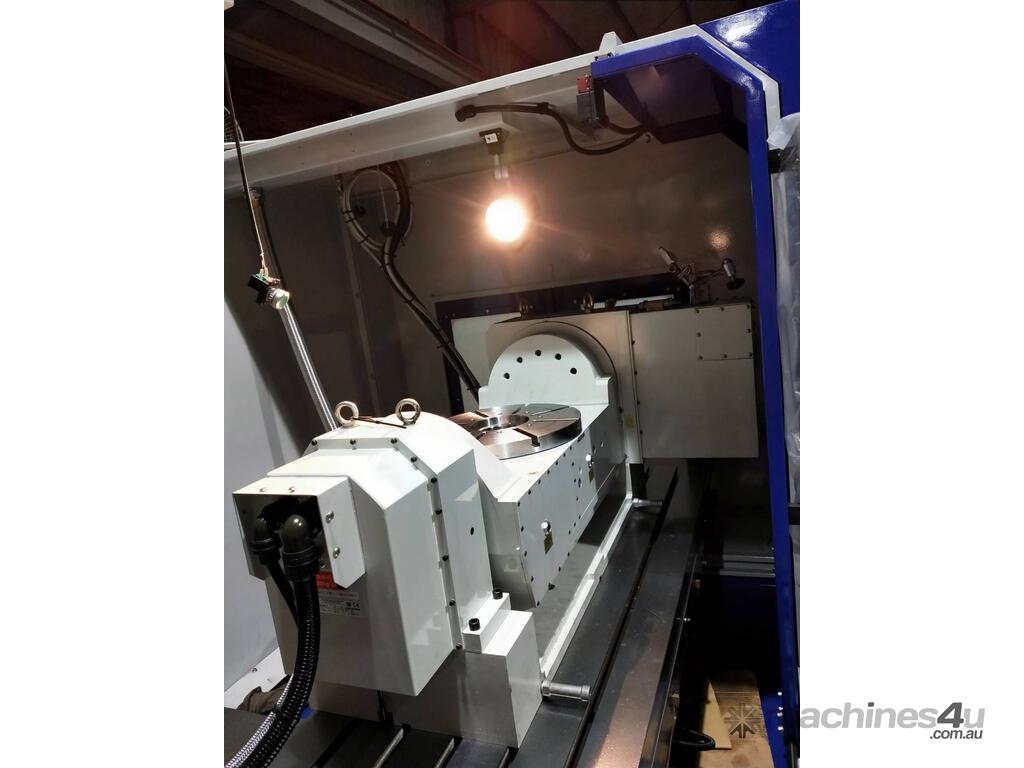

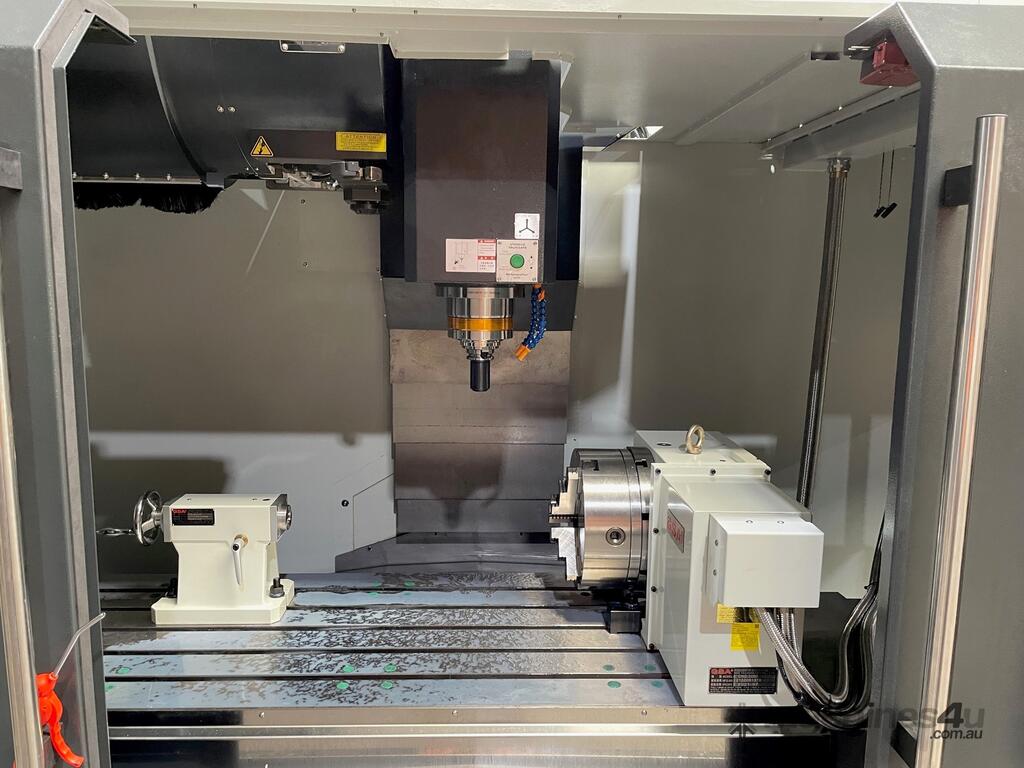

4th axis ready
We would be happy to provide a detailed quotation tailored to your needs.
Other capacities available.
Delivery, commissioning, training and ongoing support Australia wide.
Please call for additional information.
