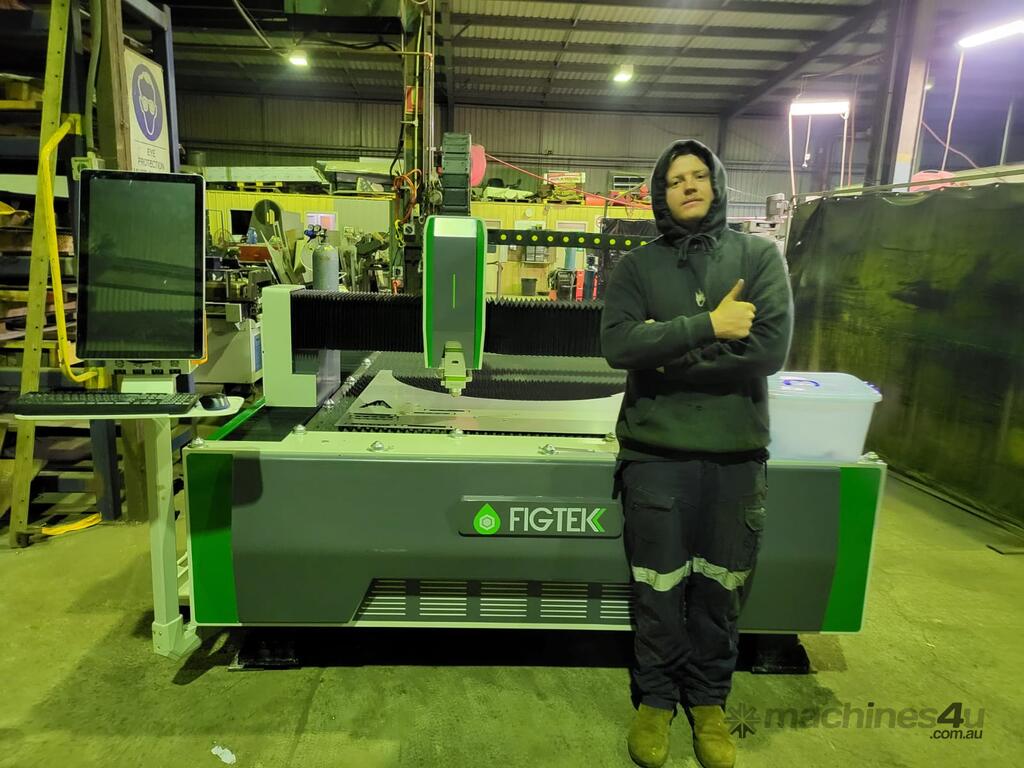

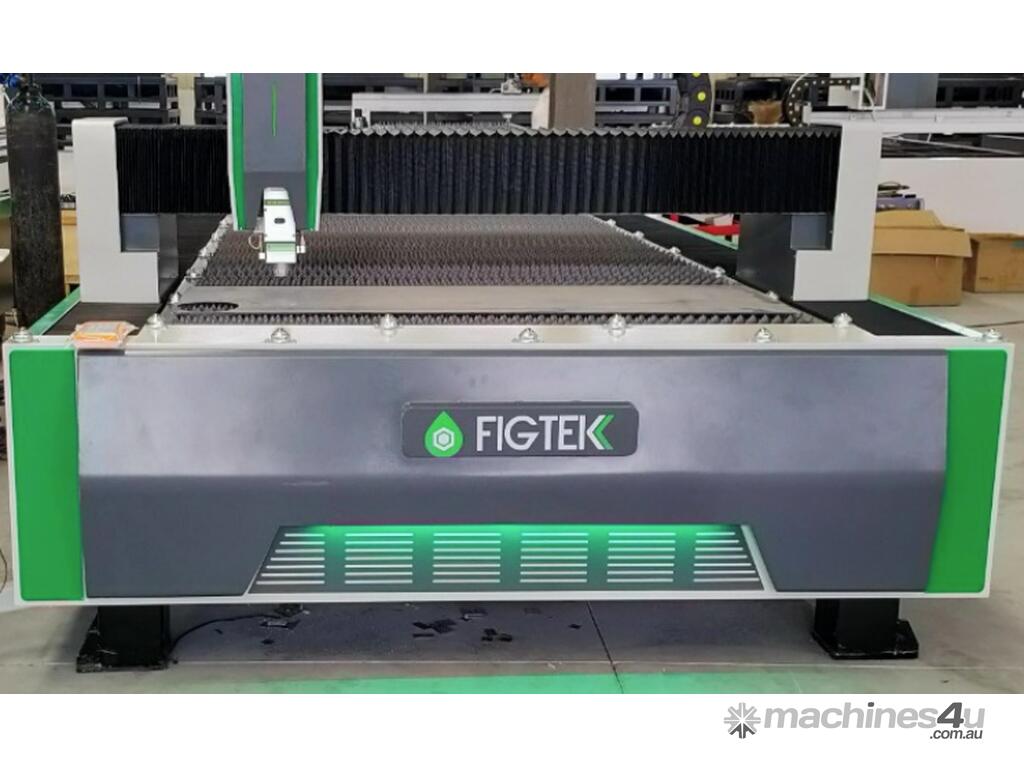

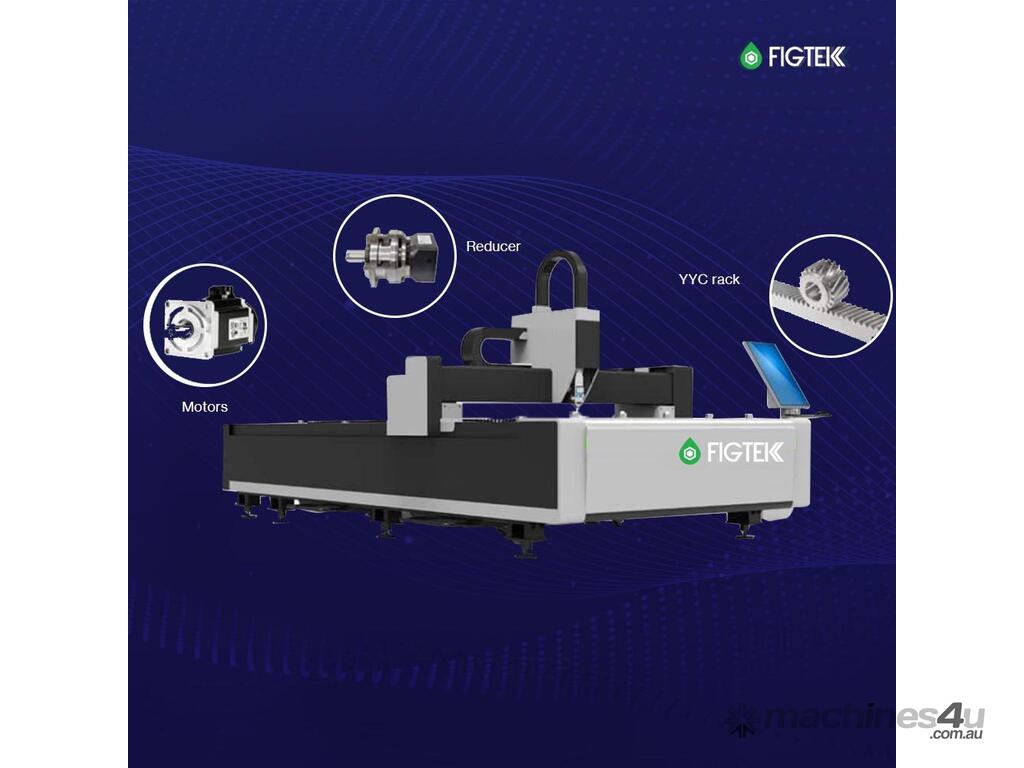

1530 Fiber Laser Cutting Machine - 1500W (Raycus)

Figtek is a group of small niche Australian businesses that complement and support each other to create a vast array of solutions for all of its client’s needs.

In Taiwan we employee a group of exceptionally passionate and experienced engineers that source the most reliable and cost-effective parts from around the world. They now build to our specifications, for our local market. This way we know we can satisfy all of our customer’s needs. This means we now control the design and quality of what we import. We now import, service and support all of these machines Australia wide!

Inclusions:

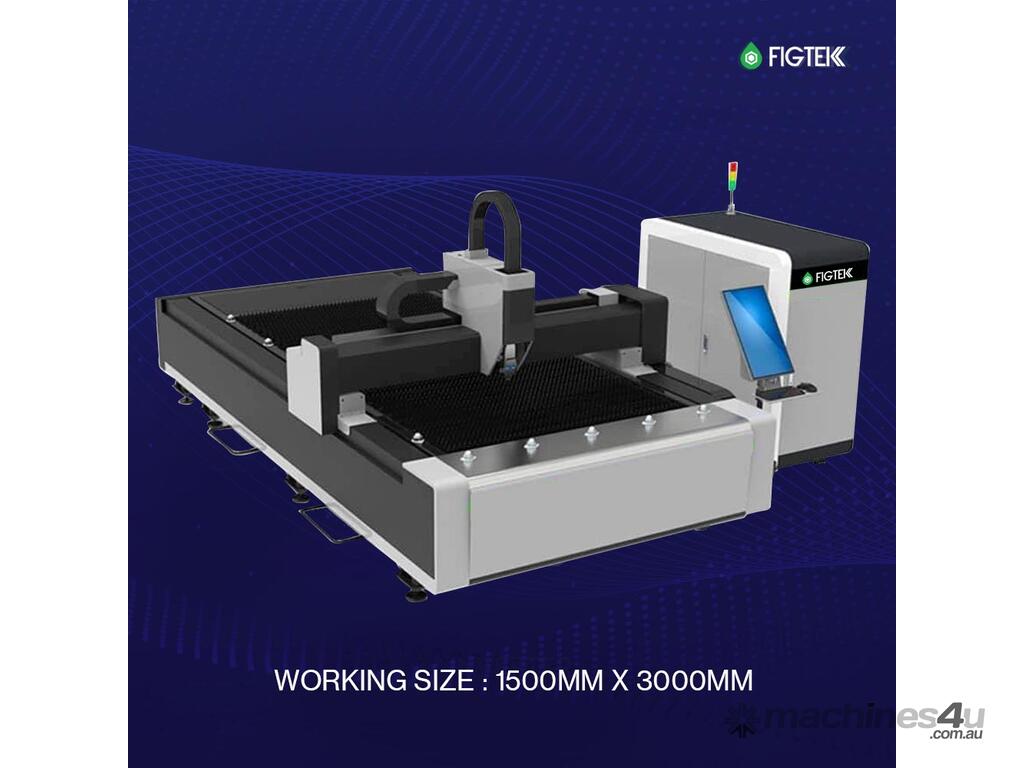

• Working Size: 1500mm x 3000mm
• Cutting Head: Raytools

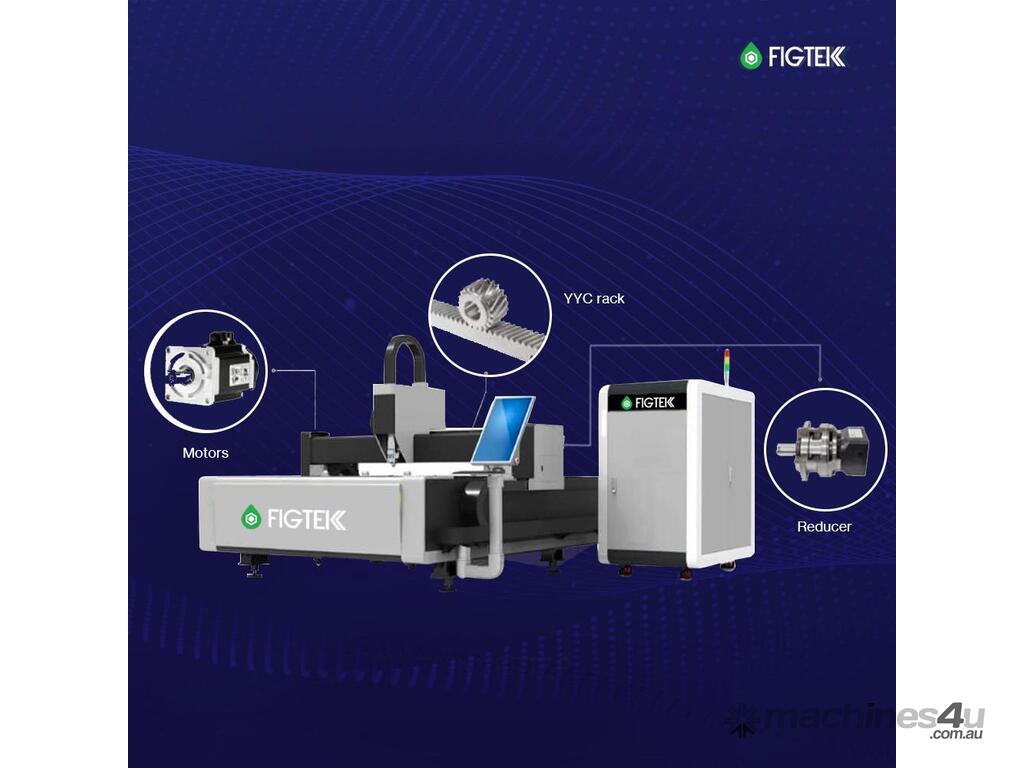

• Fuji Servo Motor
• Taiwan HIWIN Guide Rails
• Reducer: France Motovalia
• Pneumatic Part: Taiwan Air Tec
• Cooling Way: Hanli Water Chiller
• Voltage:380V/50HZ,3 Phase
• Watts: 1500W
• AC Servo Motor and Driver
• Fiber Laser Cutting Data Base
• External optical path and cutting head

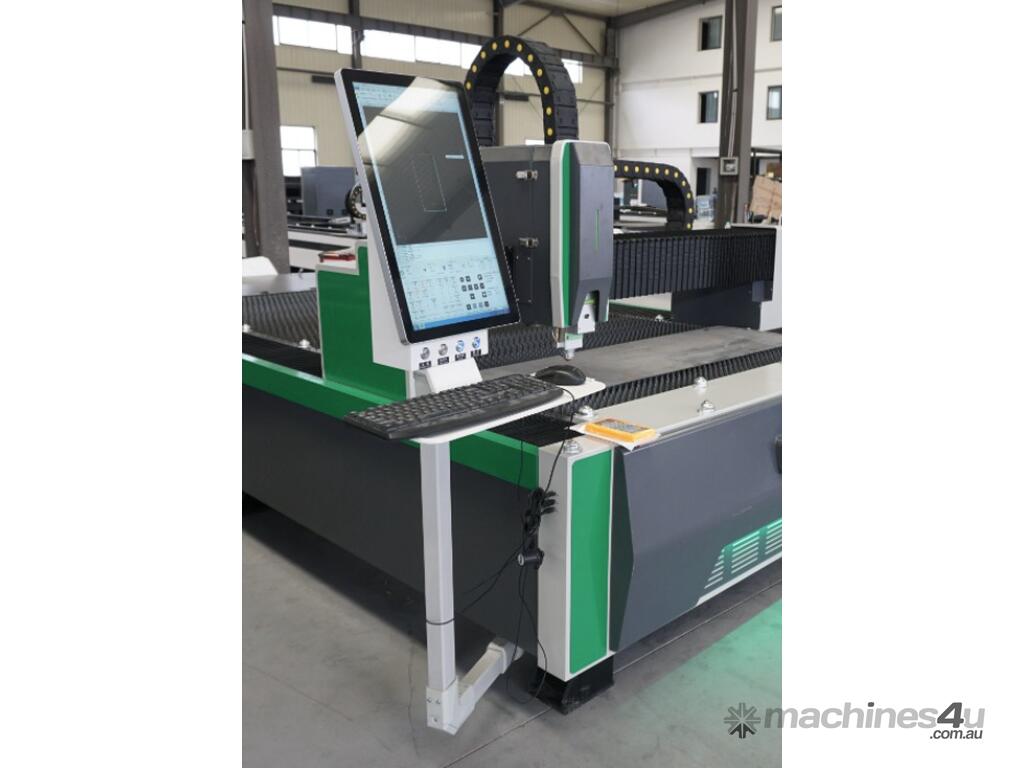

• CNC Control and Software System
• High-precision linear guide transmission system
• Electrical Components and Pneumatic Systems
• CYPCUT CNC Control System

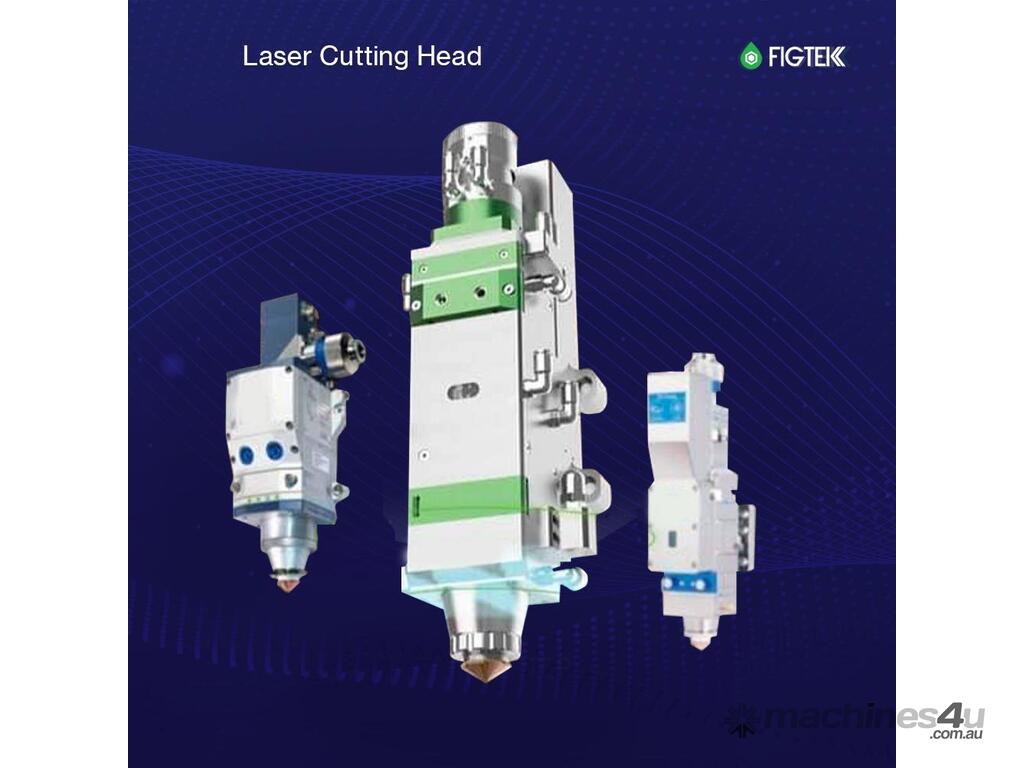

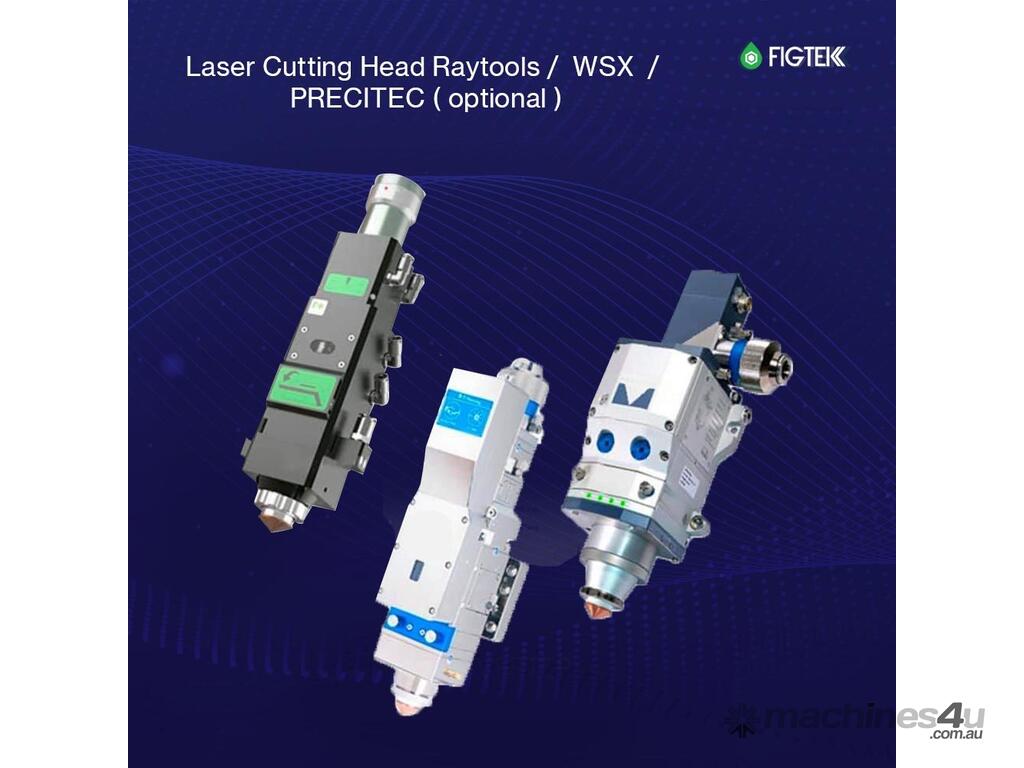

Laser Head Features:
• Optimized optical configuration and smooth and efficient airflow design.
• Knob type of focus adjustment, meticulous and flexible, Adjustable range is 15mm, accuracy is 0.05mm.
• Drawer-type of lens mount, quick and easy access to the cover glass.
• Modular design, can be equipped with crash protection devices.
• Optional elongated nozzle link for 3D cutting.
• Optional with 2D/3D magnetic breakaway crash protection.
• With a variety of optical interfaces, can be adapted with a variety of fiber lasers.

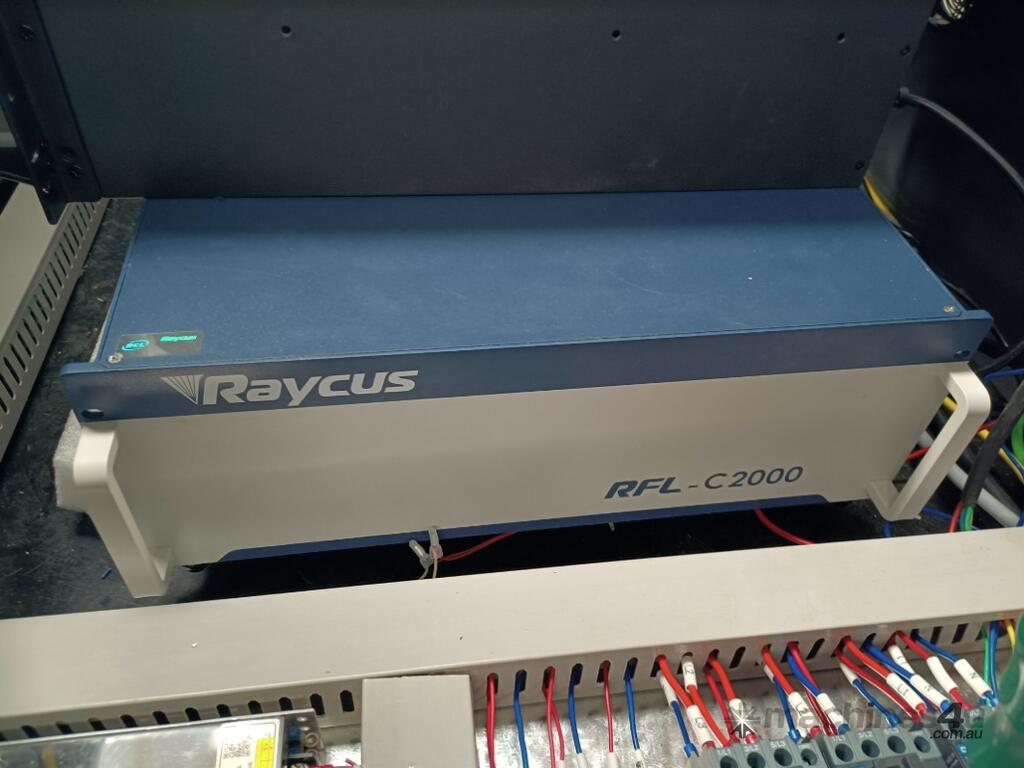

Laser Resource:
• High electro-optical conversion efficiency
• Altitude stress-resisting capacity
• Sheet cutting efficiency
• Customized output fiber length
• Maintenance-free operation
• Wide modulation frequency range

Servo Motor and Driver:
• Japan servo motor and drive improves cutting speed and stability.
• The X and Y axis are made of servo motors, and the Z axis are equipped with Z axis servo motors. The combination ensures stability and efficiency.
• The servo system ensures the possibility of precise positioning with excellent dynamic response acceleration characteristics and closed loop control mode, and the mechanism runs smoothly, reliably and without maintenance.

Applications:
• Industry and advertising industry for Plate Cutting
• It is mainly used for cutting carbon steel, stainless steel, low carbon steel and aluminium profiles. It has the advantages of high speed, high precision, high efficiency and high cost performance. It is the metal cutting equipment that the metal processing industry first considers.


Services we provide:
• We offer installation and training
• We deliver machines anywhere in Australia
• We also commission it to ensure the machine is performing as it should at your factory.
• We also ensure calibration is done
• We train and up-skill you on how to use the machine and software on-site


The Facts:

• We build the machines from scratch
• Wired to Australian Standard
• All machines undergo heaps of testing and calibration
• Engineers with over 30 years' experience
• Plug and Play option available - Ask us what's this about
• We import to the customer - Out of the container and to you.
• Local Brand: Australian Local Support
• Quality: Highest quality materials used

Why Buy Our Fiber Laser Machine?
• Australian Local Support
• Only the best quality parts used
• Engineers with over 15 years of experience
• Custom built to your specifications
• 3 year Australian warranty - If installation package is chosen
