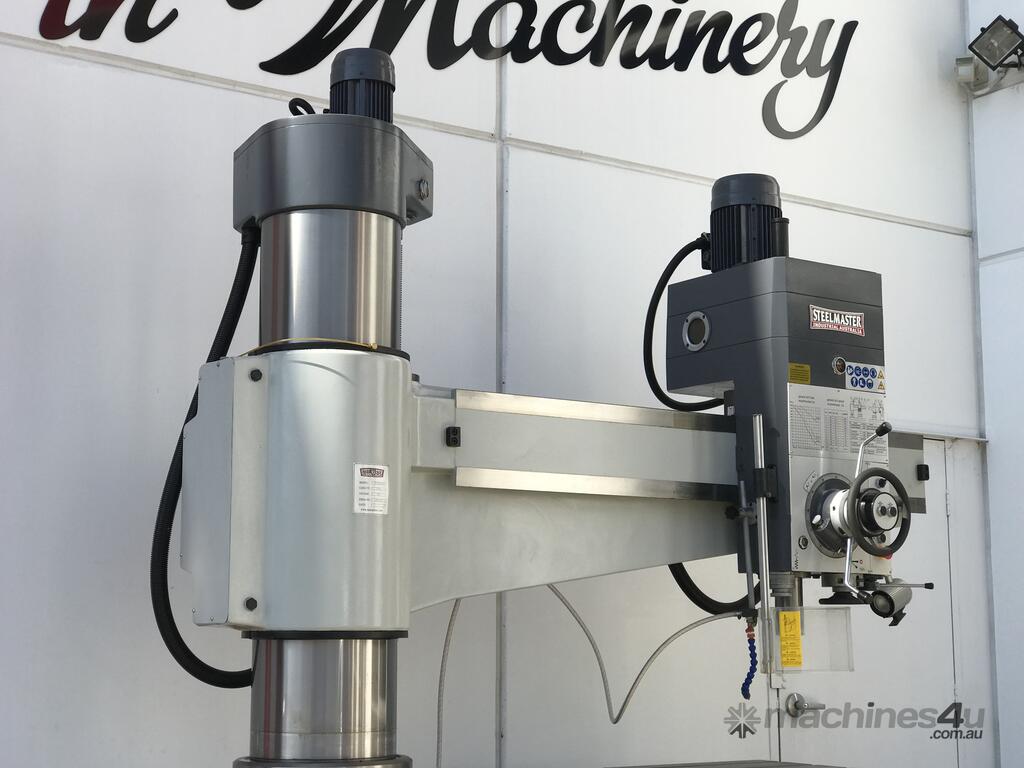

Description

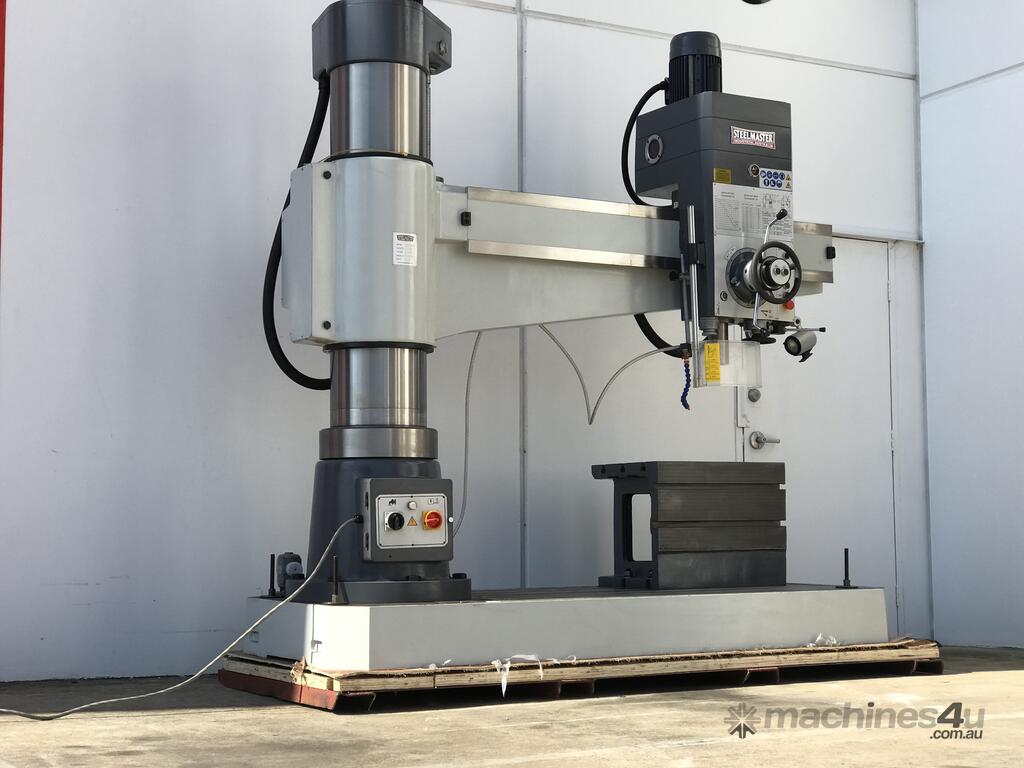

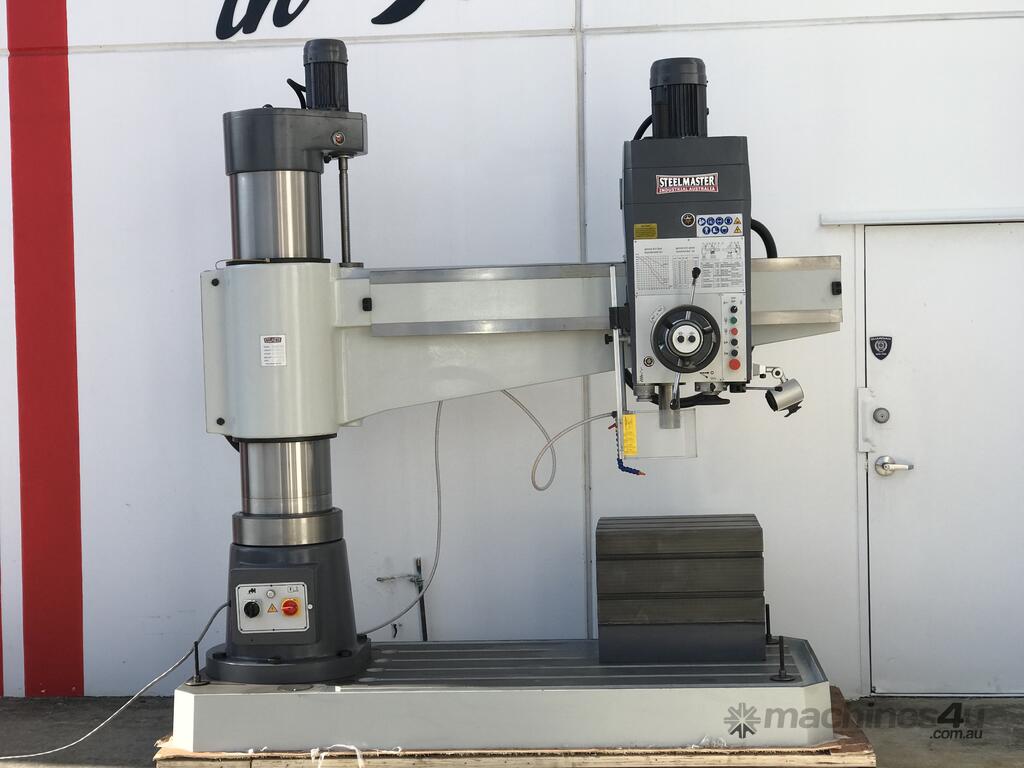

This Radial Drill has long been accepted in the market as a machine that can handle the work of machines costing thousands of dollars more.
We go one step further and offer you this improved model with a super-large box table.
It comes standard with drill chuck and standard accessories.
Features
made from high quality fine grain cast iron with heavy duty ribbing to ensure extremely low vibration

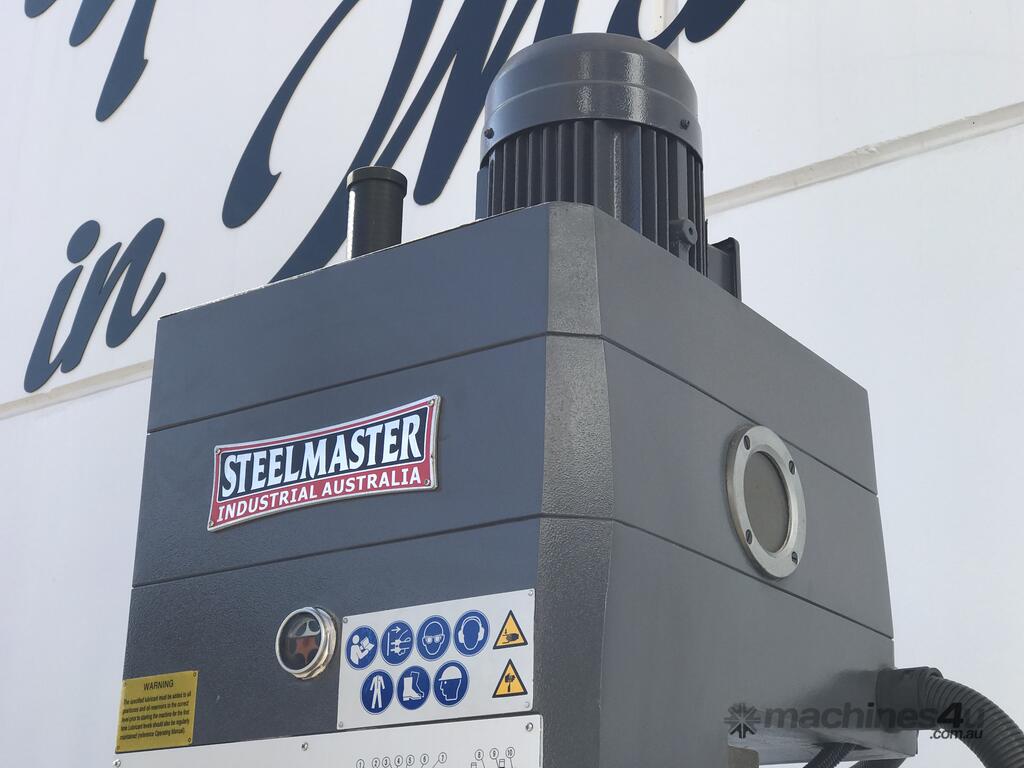

oil bath lubricated gearbox with hardened, precise ground gears
quiet operation

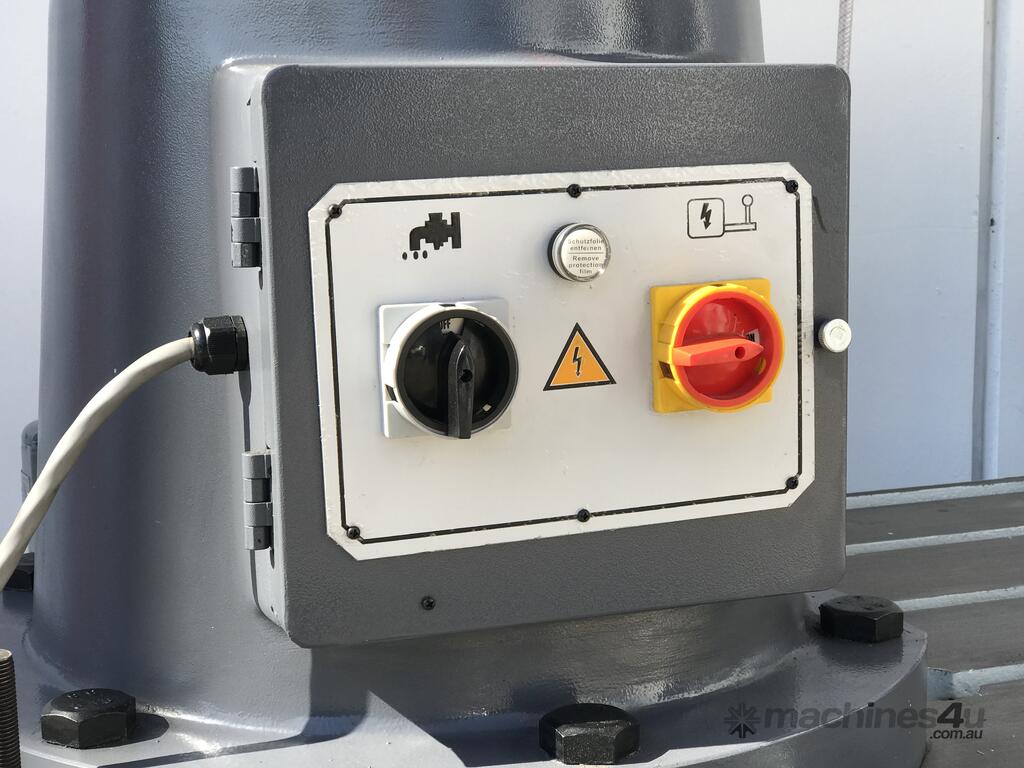

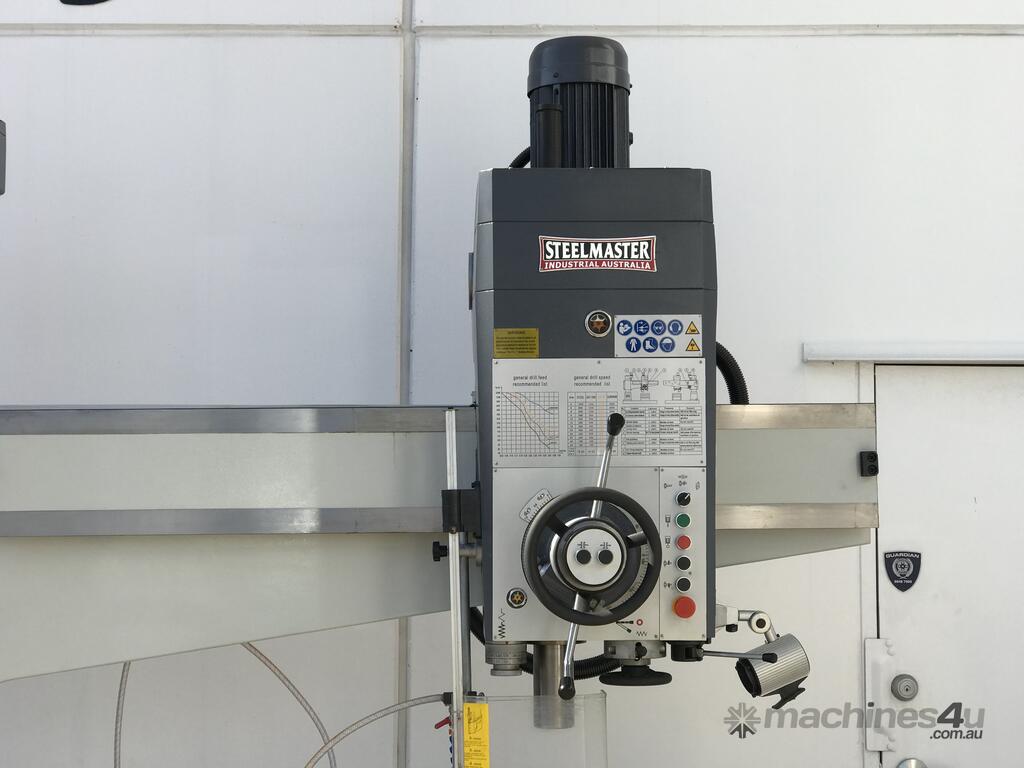

easily accessible front panel to electrical and mechanical controls

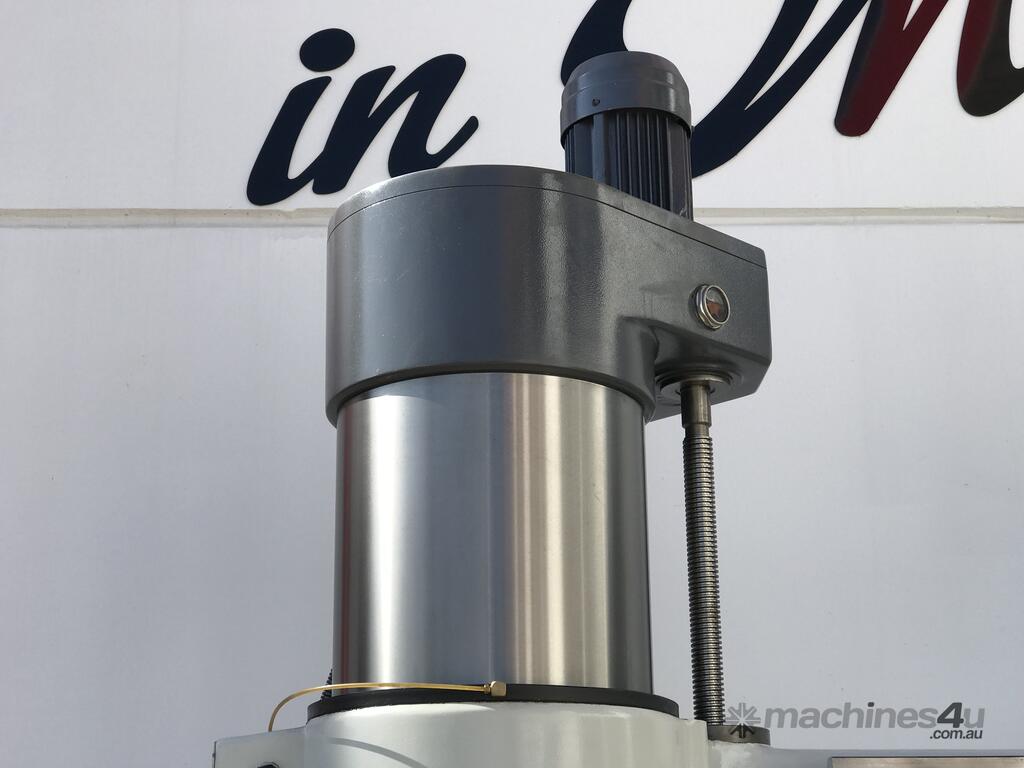

arm height adjustment through elevating screw and elevating motor
hardened and ground guide ways

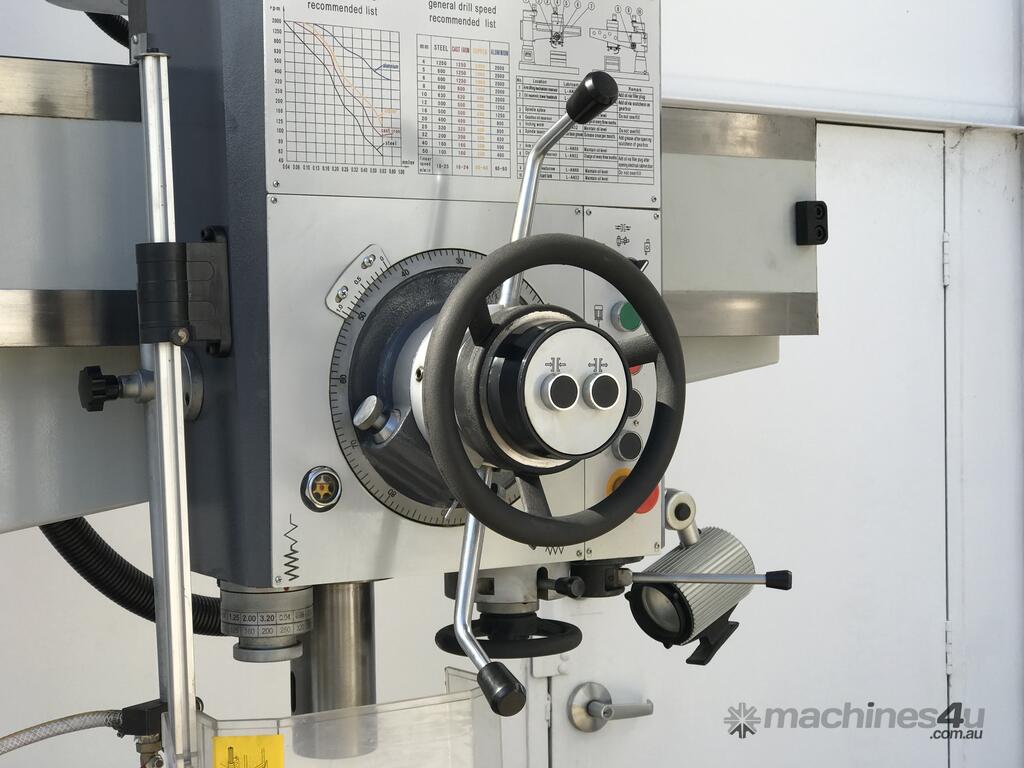

power operated feed and spindle drive system ensuring long life

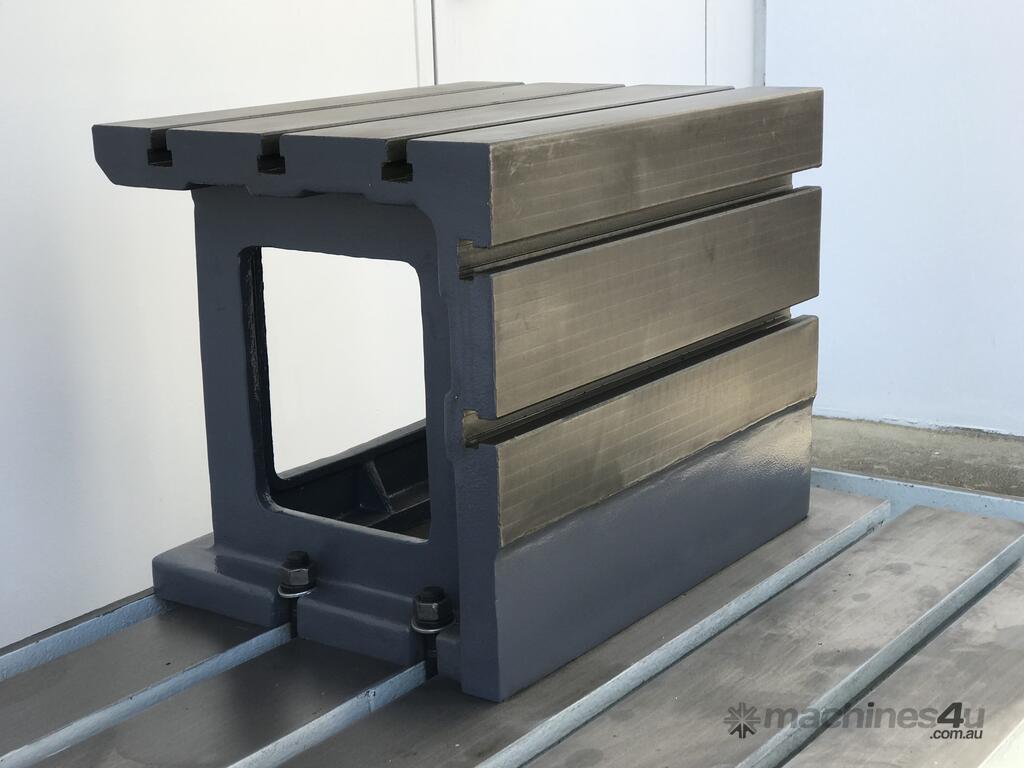

heavy duty tee slotted box table
up to 3000 mm capacity available
TECHNICAL DATA
sku(#)11-0404
drilling capacity (max)(mm) 50
threading capacity (max)(metric)m42
spindle travel(mm)315
spindle to column travel (max)(mm)1600
spindle to column travel (min)(mt)350

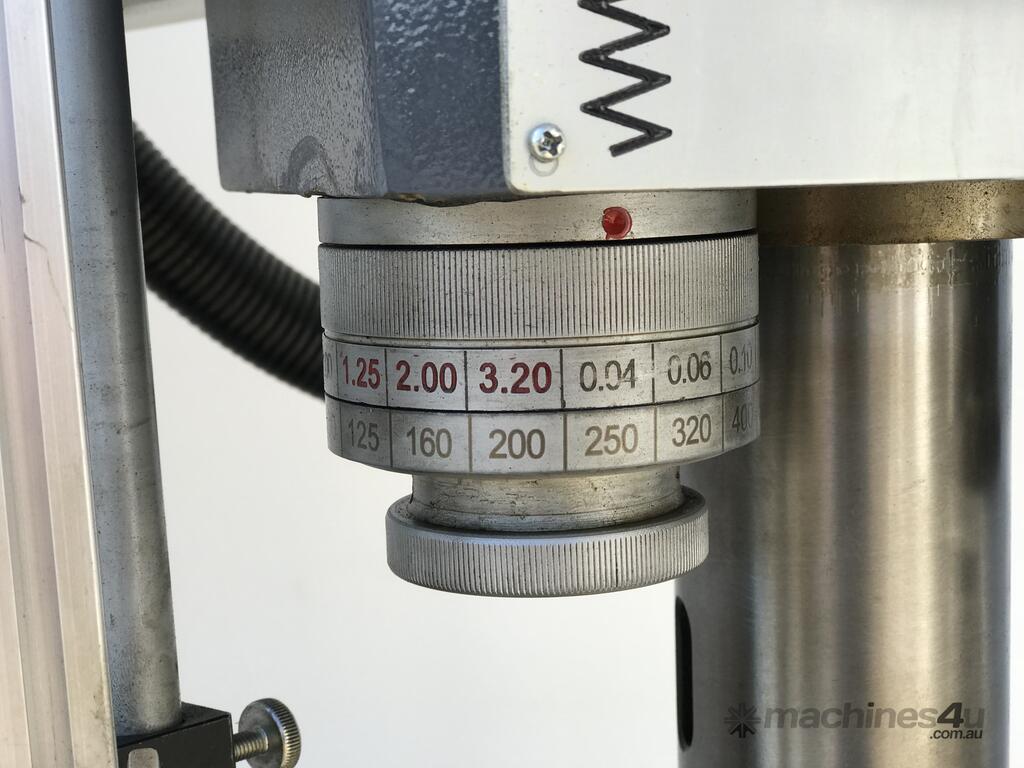

power spindle feed(mm/rev)0.04 ~ 3.2 / 16
spindle holding fixture(mt)5
distance spindle / table (min)(mm)670
distance spindle / table (max)(mm)1220
working table surface (l x w x h)(mm)630 x 500 x 500
t-slot size(mm)18
drilling table swivel(deg)360°
spindle speeds(rpm)25 ~ 2000
number of steps(steps)16

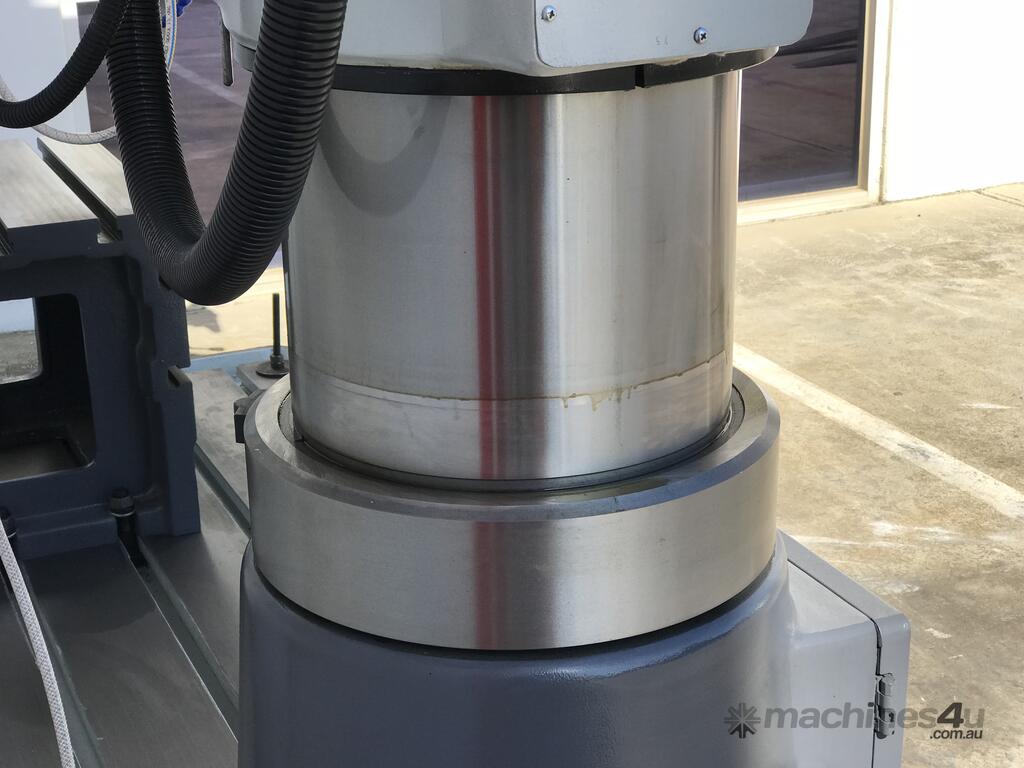

upright diameter(mm) 350
motor power(kw/V)4.0 /
dimensions (l x w x h)(mm)2490 x 1060 x 2625
weight (nt)(kg) 4350
Steelmaster Metal Drilling Machines.
When looking for a quality metal drill, look no further than Steelmaster Industrial. Steelmaster Industrial metal drilling machines offer the machinist a very high quality machine with superb features and tight tolerances at reasonable prices. Steelmaster carries over 12 models of metal drilling machines in stock at all times for quick shipments. Steelmaster Industrial's ever growing line of metal drilling machines consists of belt drive drills, magnetic based drills, mill drills, radial arm drills, along with a large range of accessories. Depending on your needs we have the drill for you, starting with our cost effective belt drive drills to our large radial arm drills.
Belt Drive Drills
Depending on your needs, Steelmaster has a great line of cost effective belt drive drilling machines. With several models to choose from these models give the best ``bang for the buck`` of any of the Steelmaster drills. These metal drilling machines come standard with many of the features that are most important. Each drill comes standard with a stand, tee slotted table, adjustable height control, calibrated depth setting, generous spindle mount sizes, safety guards and interlocks are also all included.
Mill Drills
Steelmaster Industrial offer one of the best selections of milling and drilling machines around. From our belt drive SM-B32 to our fully spec's SM-MD45XL with 3 Axis DRO and Power up and down on dovetailed guides. Our Metal Milling & Drilling Machines have been fitted up to offer you the best selection of features and come standard with Perspex safety guards and all e stops to ensure all round safe operation.
Geared Head Drills
Each geared head metal drilling machine comes fully guarded with halogen lights. The castings on these machines are of good quality and will offer years of rigidity and accuracy. Coolant, power feeds, digital depth display, large tee slotted tables, large MT spindles are some of the features we offer. Some models also have power raise and lower on the tables. Our Metal Geared Head Drilling Machines come standard with Perspex safety guards and all e stops to ensure all round safe operation.
Radial Arm Drills
Our radial drilling range offered geared head drills from 1000mm in arm length up to our 2000mm heavy duty range. Hydraulic power locking on the column and power up and down for the larger models, power feeds, coolant and heavy duty tee slotted box tables are all features. The castings on these machines are of good quality and will offer years of rigidity and accuracy. All our radial drilling machines are pre commissioned prior to delivery.
Magnetic Based Drills
Steelmaster Industrial also offer our ALFRA German Magnetic Based Drills. These machines are the perfect off site partner. Our range covers the smaller Piccolo model upto the larger Junior Heavy Duty Model. Strong magnetic adhesion and quality German build ensure you years of magnetic based drilling.For More information on any of these metal drilling machines, go to or contact a Steelmaster industrial Rep
For More information on our machine, go to or contact a Steelmaster industrial Rep
