185 kw 250 hp 4-pole 1480 rpm 415v Foot Mount 315L frame IP66 AC Electric Motor Type PPA 315L85-4

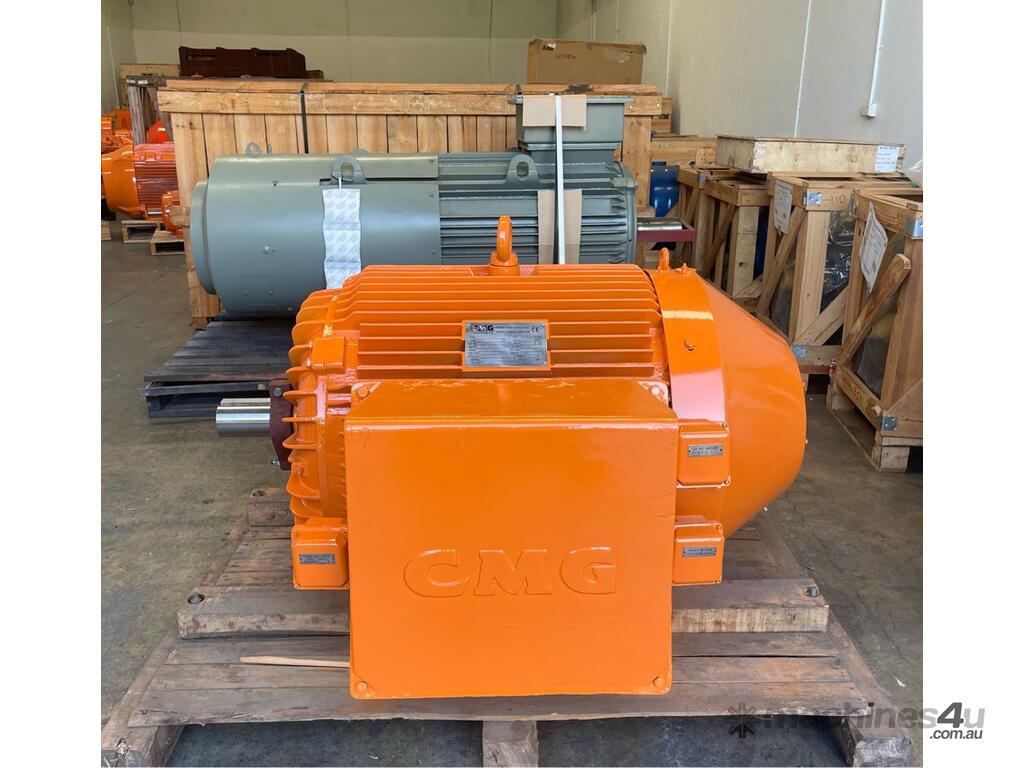

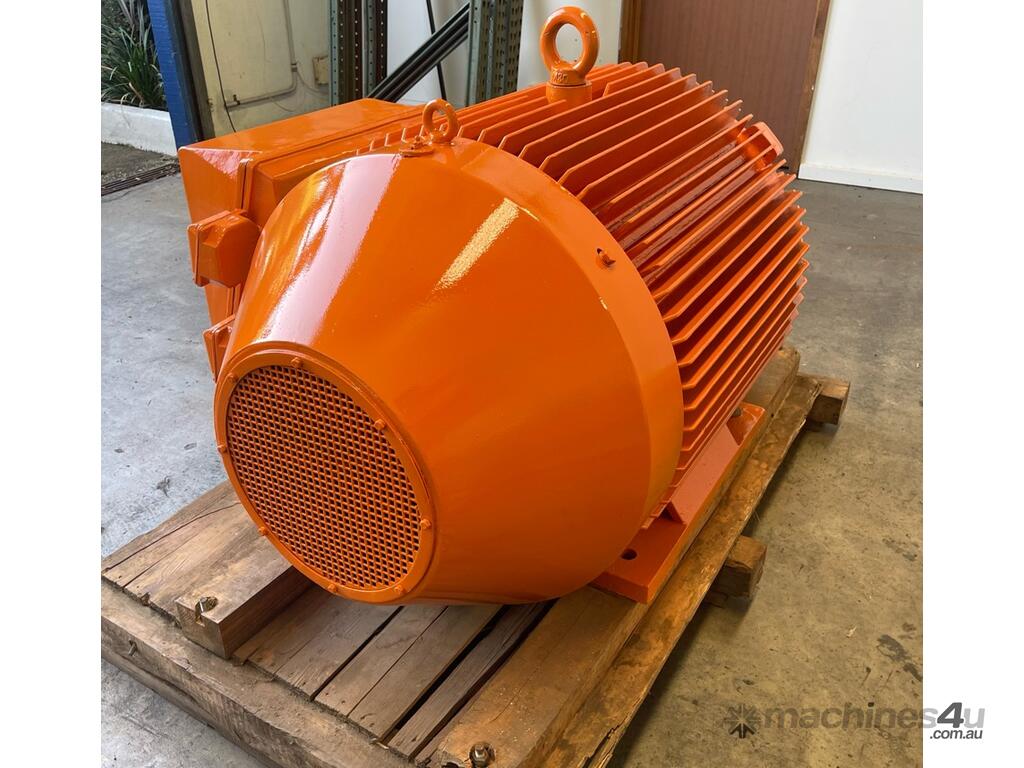

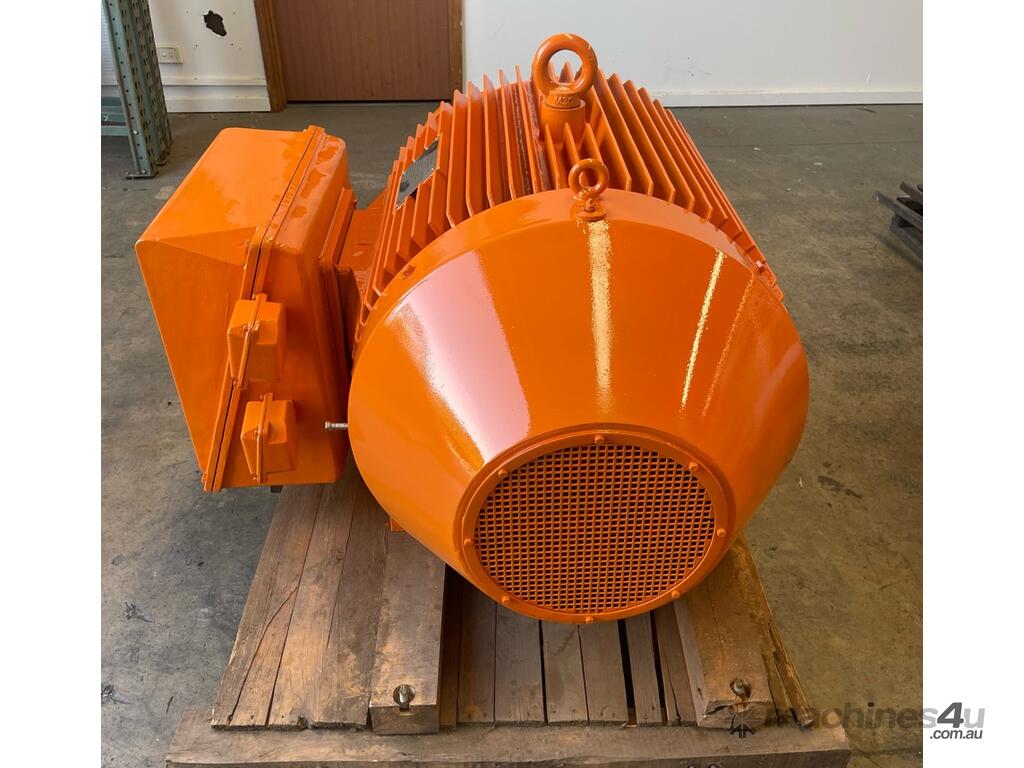

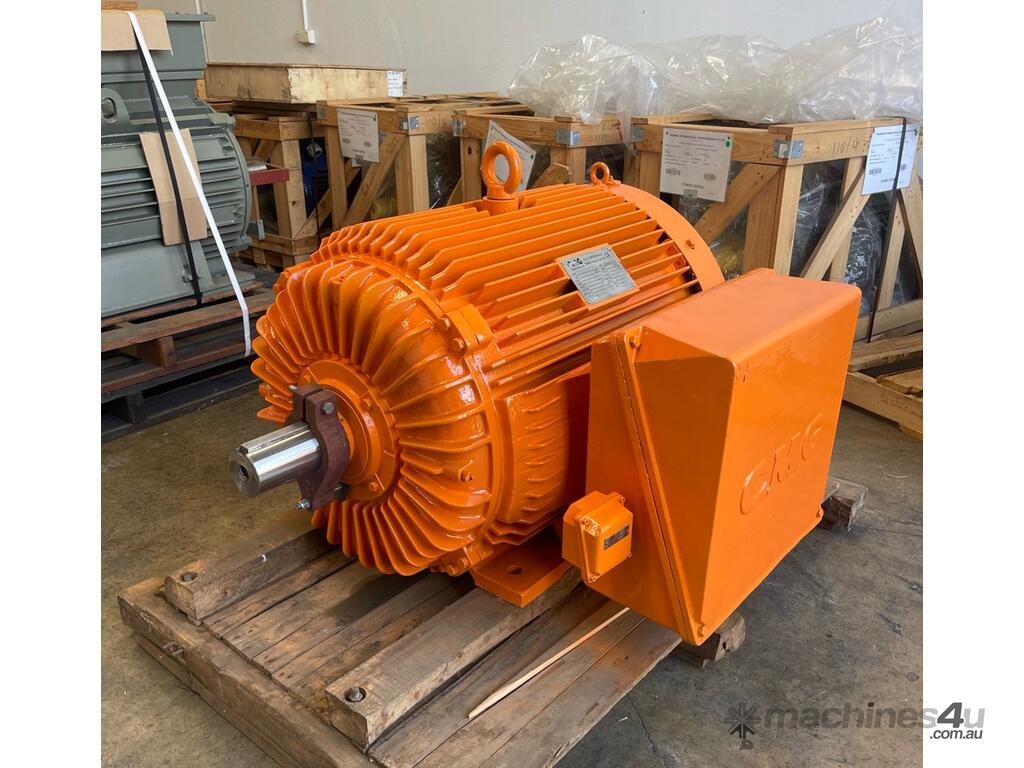

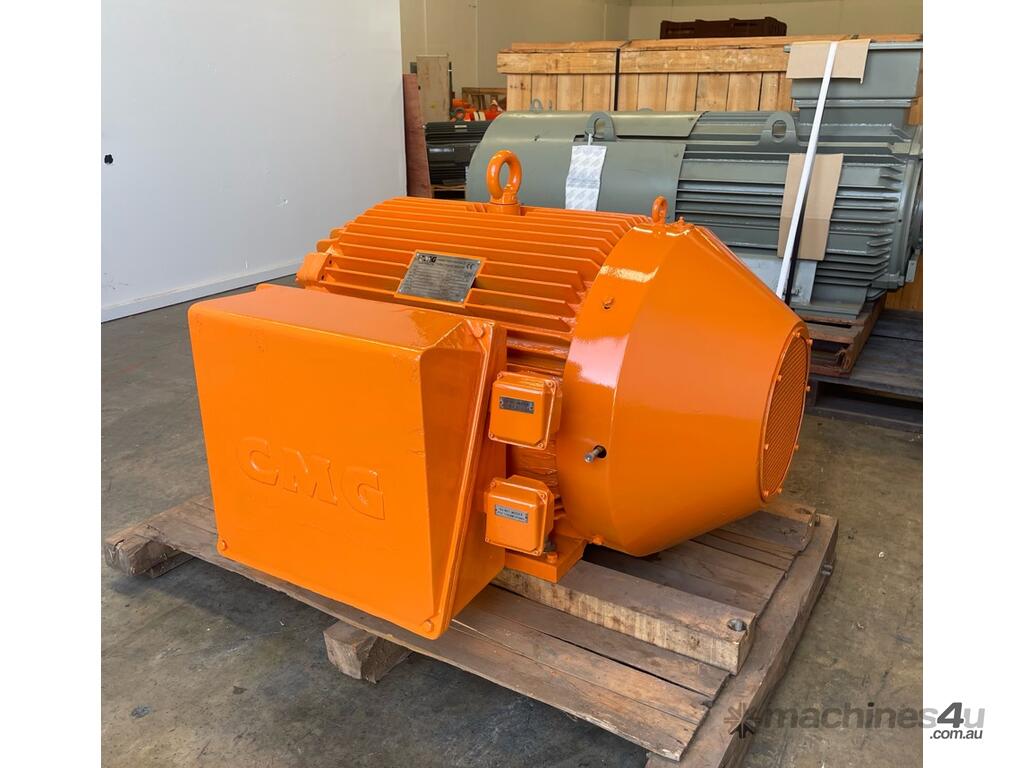

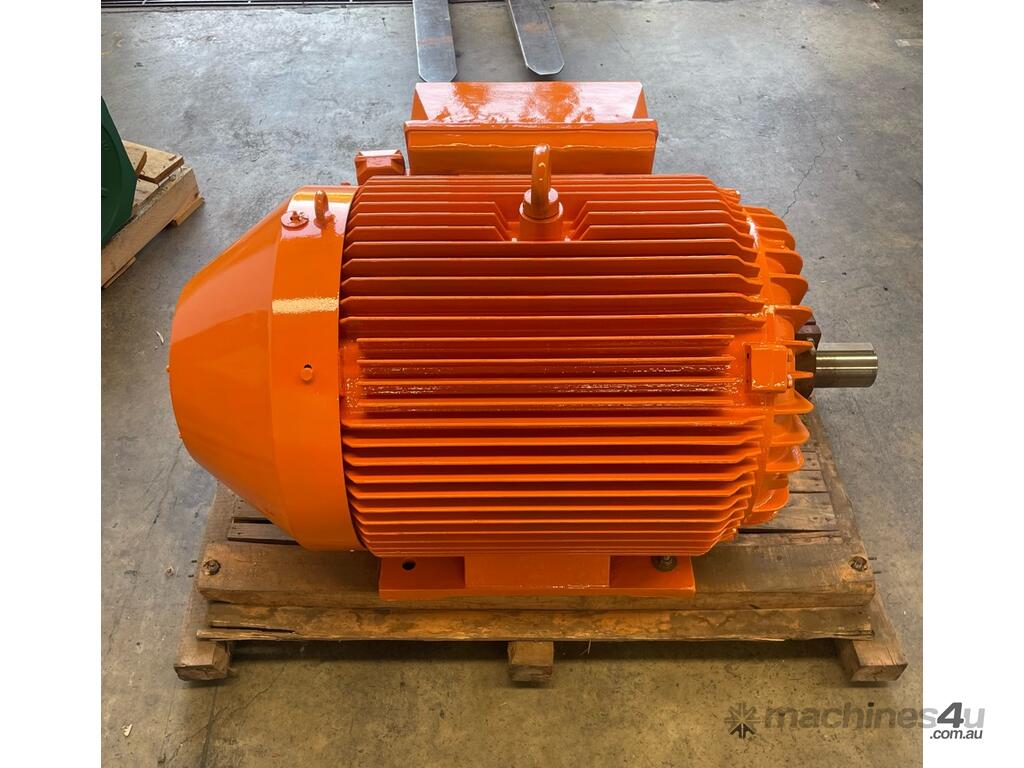

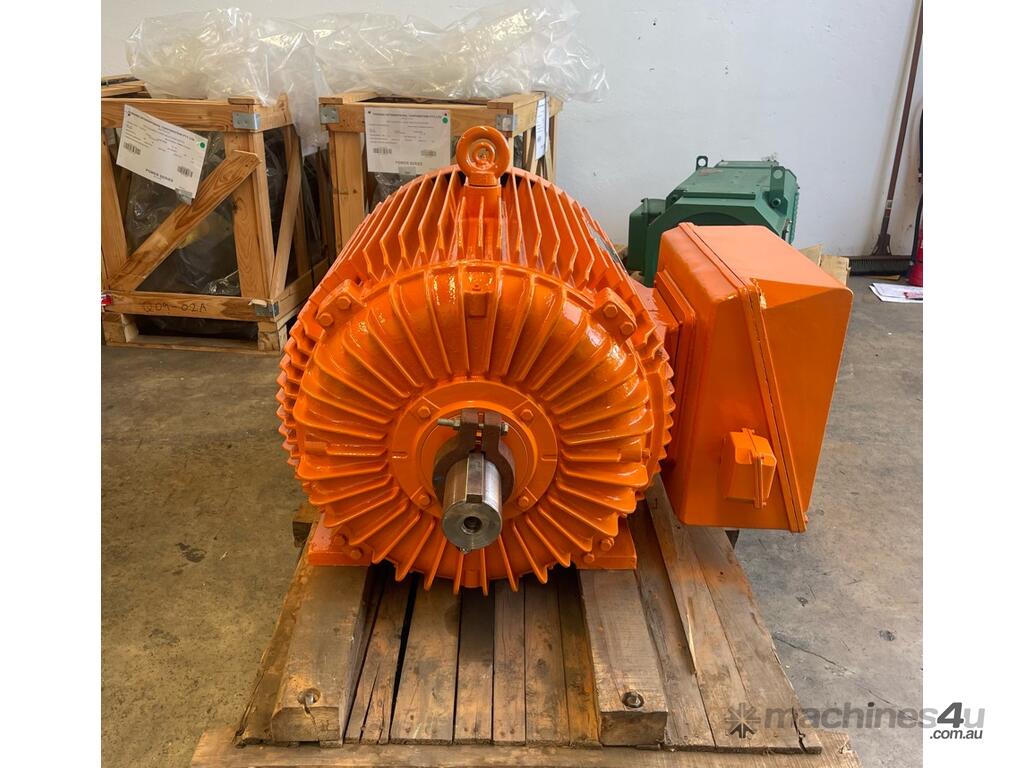

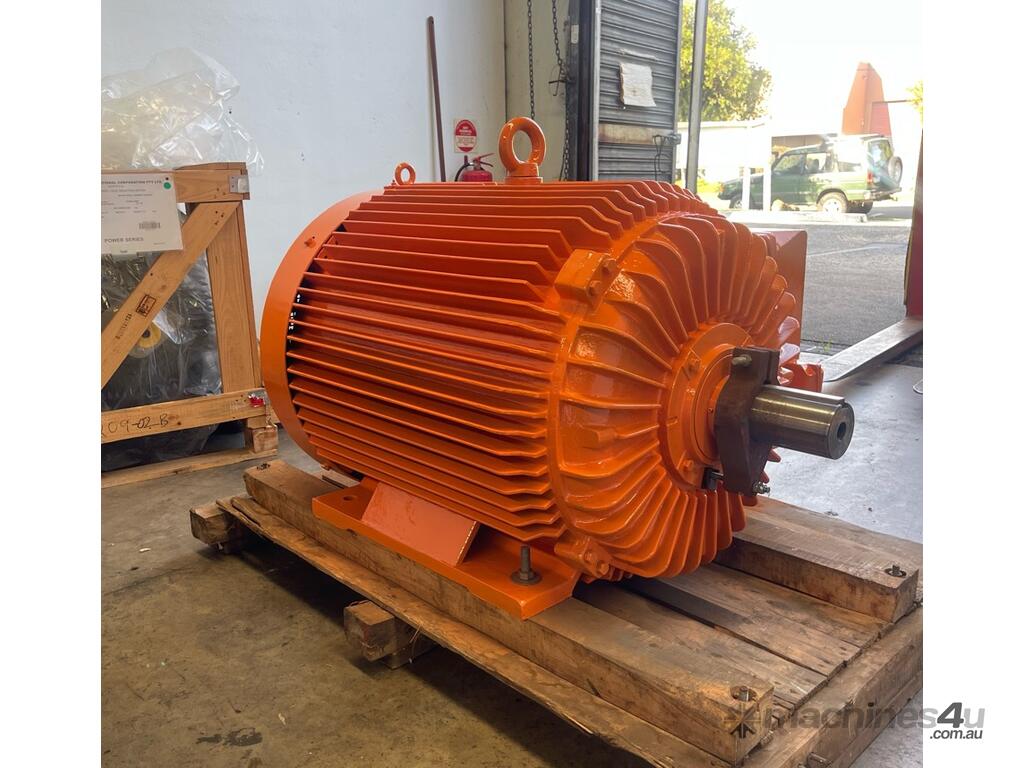

185 kw 250 hp 4-pole 1480 rpm 415 volt Foot Mount 315L frame IP66 Mining Spec AC Electric Motor Type CMG PPA315L85-4 Unused in crate

Category: AC Squirrel Cage Electric Motor
3-phase induction motor

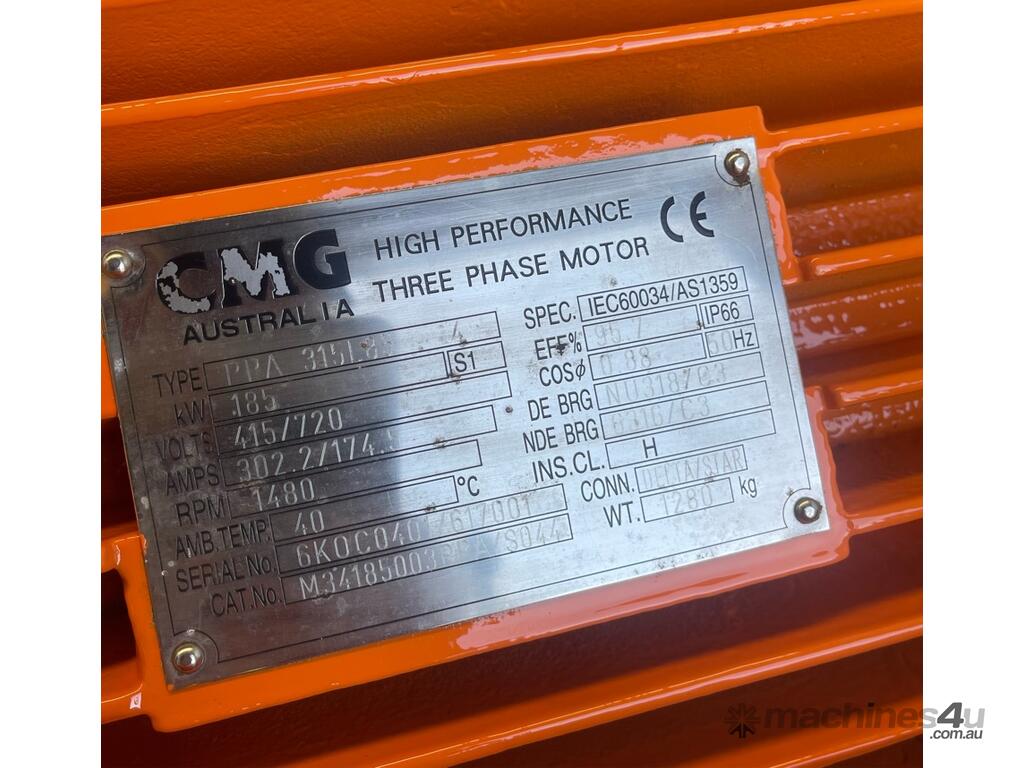

Make: CMG
Model: PPA 315L85-4
Power: 185 KW (250 HP)
Speed: 4-pole (1480 rpm)
Rated Frequency: 50 hz
Rated Voltage: 415v
Full Load Amperage: 302 A
Protection Rating: IP66 Mining
Mounting: B3 Foot
Frame: 315L
Terminal Box: Standard RHS to D.E.
Weight: 1280 kg
Inclusions:
- D.E. Roller Bearing NU318 C3 (for pulley-driven application)
- Heaters / RTD's / Thermistors

Critical DIMS:
Total Length: 1285 mm (incl. shaft)
Total Width: 921 mm (incl. RHS box)
Total Height: 775 mm
Feet Hole measurements: Across 'A' - 508 mm, Front to Back 'B' - 508 mm
Front Hole to Shaft 'C' - 216 mm
Shaft DIA: 85 mm
Shaft Length: 170 mm

Available QTY: 1
Condition: Unused in Crate. N/L test run in motor workshop. Warehouse storage.
exStock Seaford VIC 3198 Australia
Available for immediate despatch - Delivery Australia-wide available on request
