2000 x 1000mm M28 Pro Series Welding Table WT28-2010N Plasma Nitriding Coating Ø28mm Holes

METALMASTER 2000 x 1000mm M28 Pro Series Welding Table WT28-2010N Plasma Nitriding Coating Ø28mm Holes
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W08255

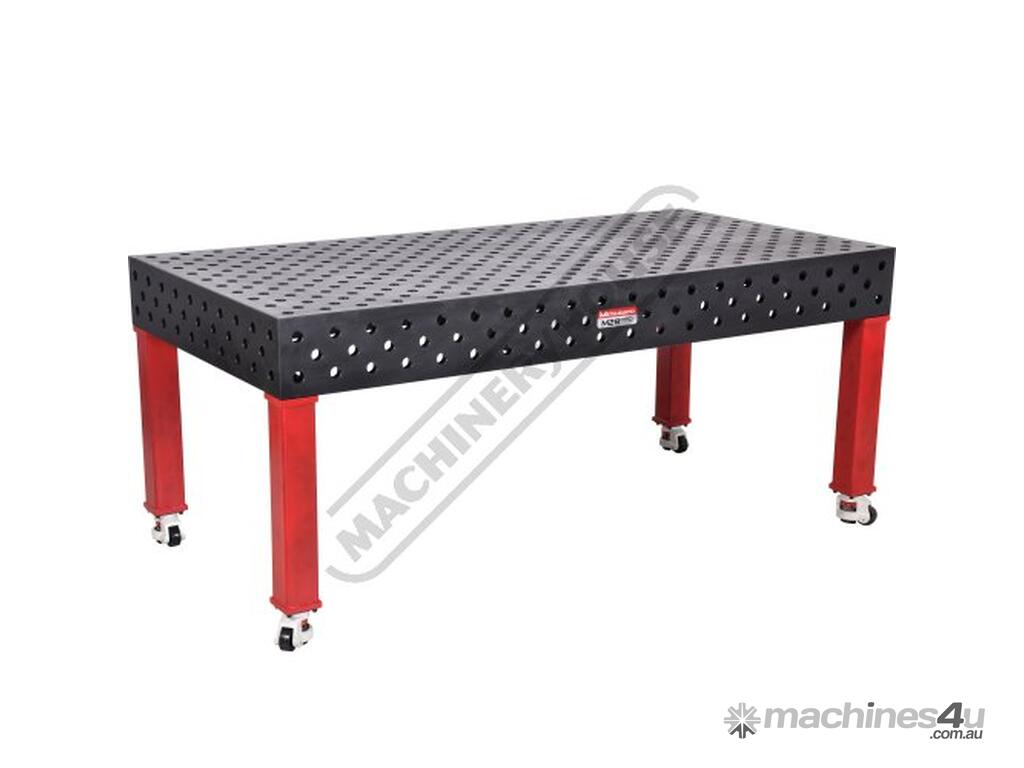

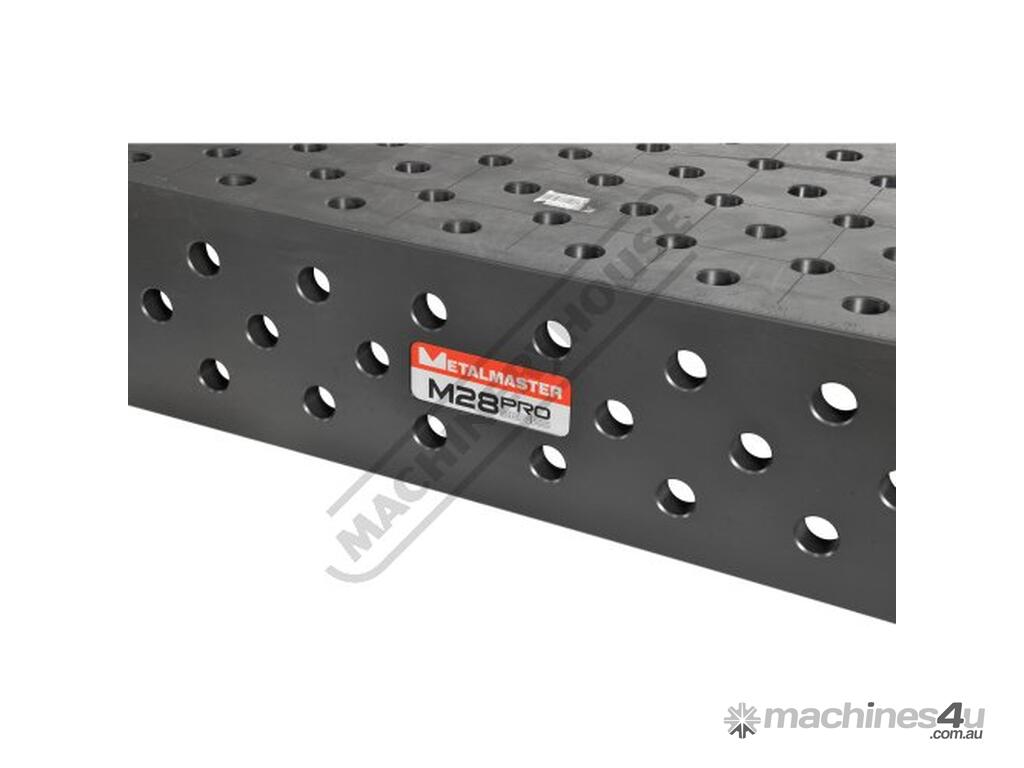

When accuracy, strength and reliability matter, the Metalmaster M28 Pro Series Welding Table delivers uncompromising performance for professional fabricators. Manufactured from heavy-duty S355 steel and engineered with advanced CNC machining technology, the Pro Series provides an exceptionally flat, durable and versatile work surface designed to maximise productivity on every project.

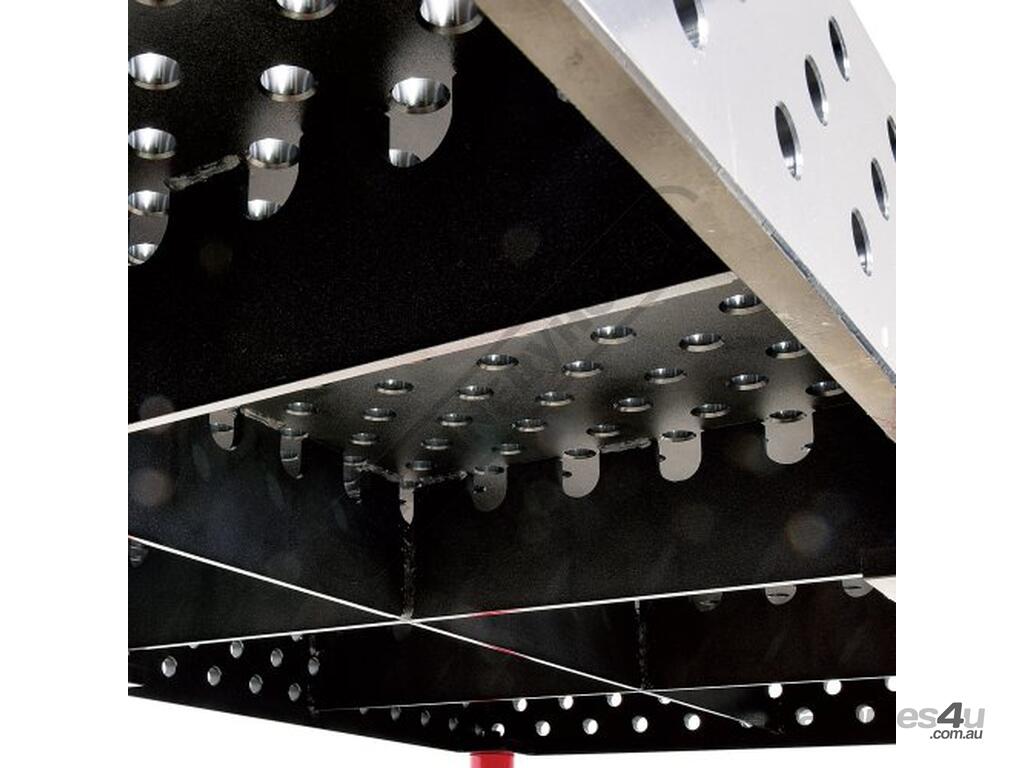

Every table begins with a fully welded, interlocking rib construction that creates an incredibly rigid foundation capable of handling demanding fabrication work. The tabletop and sides are CNC machined to a finished 25mm thickness, achieving an outstanding flatness tolerance of ±0.1mm over 1m² for precision assembly and welding.

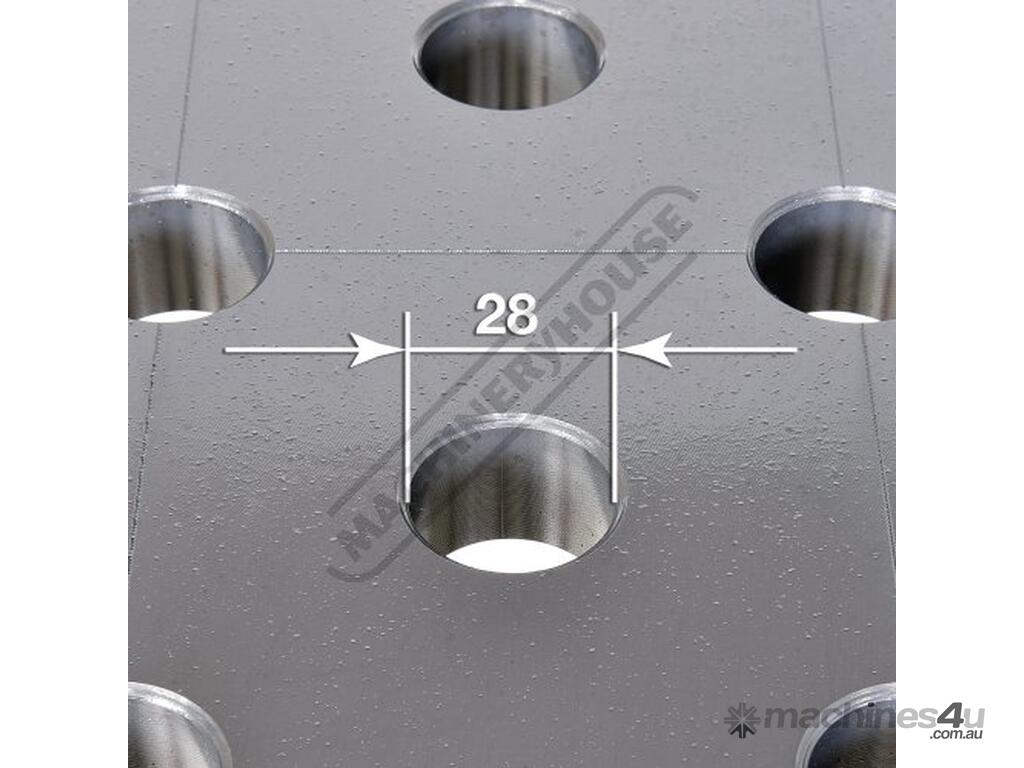

Precision doesn't stop at the surface. Each Ø28mm fixture hole is CNC bored to an exact tolerance of ±0.05mm, ensuring perfect compatibility with professional fixturing systems. The newly radiused hole edges allow fixtures and clamps to slide into place smoothly, making setup faster, easier and more efficient.

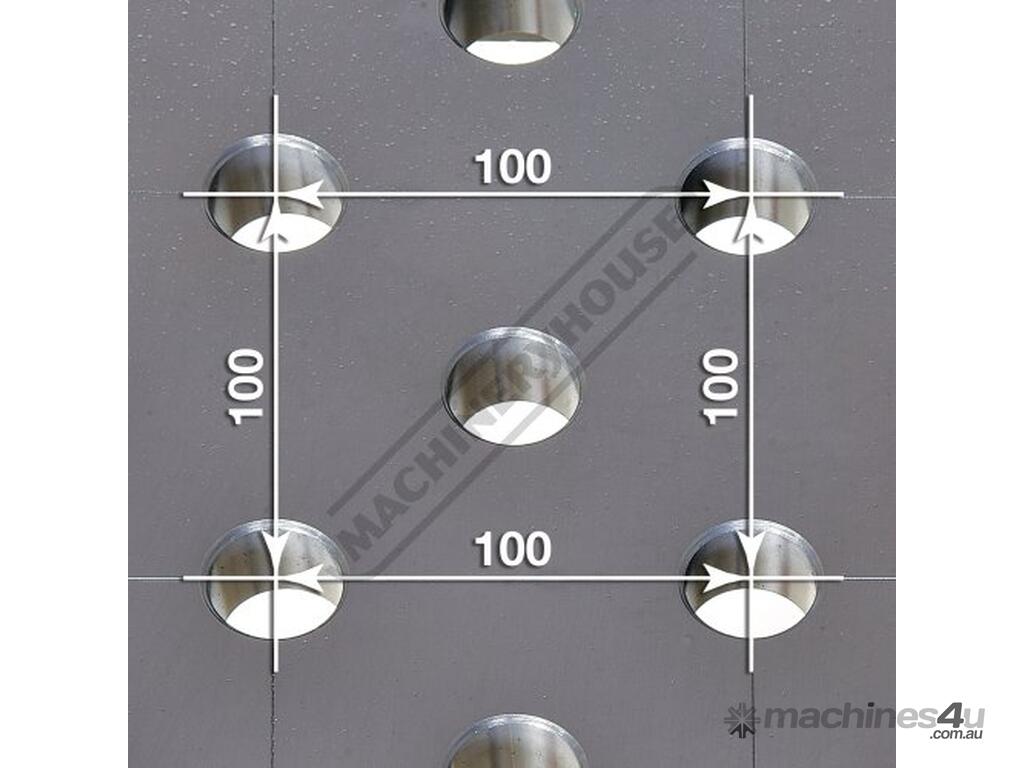

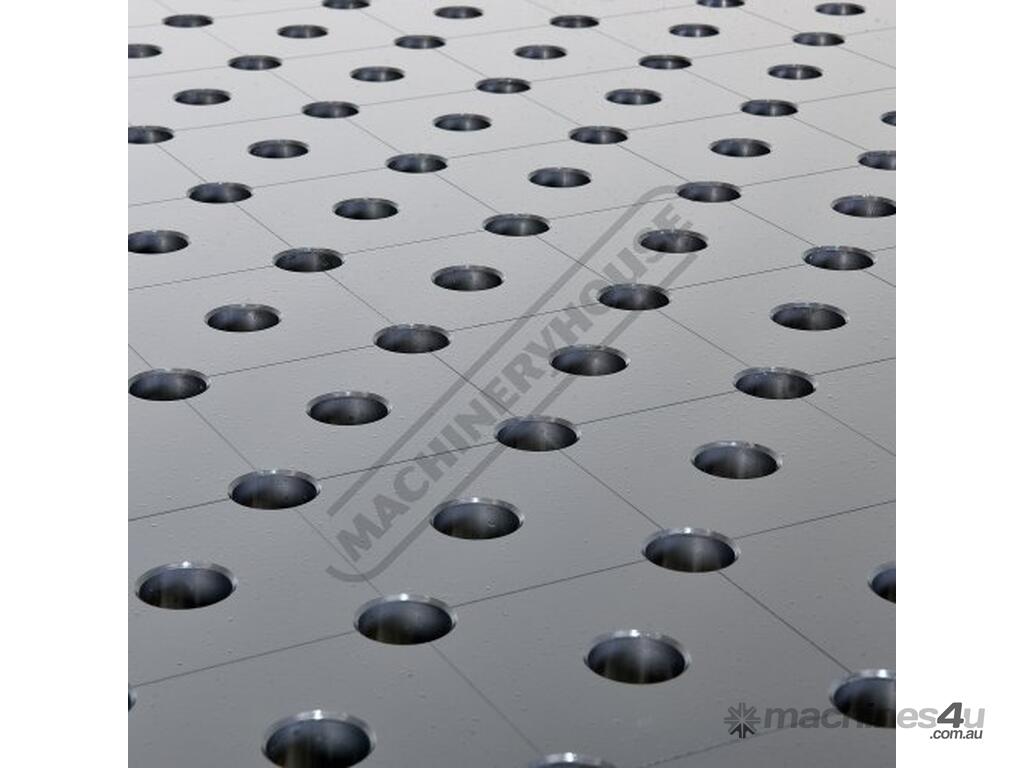

The industry-standard 100 x 100mm diagonal hole pattern, complete with an additional centre hole, provides virtually unlimited clamping and fixturing possibilities for projects of every size. Precision-engraved 100mm grid lines and a perimeter ruler allow accurate positioning, helping reduce errors while increasing productivity.

To ensure years of dependable service, every M28 Pro Series table receives a plasma nitriding treatment that thermochemically hardens the surface. This premium finish dramatically improves resistance to weld spatter, wear and corrosion while maintaining the precision-machined surface.

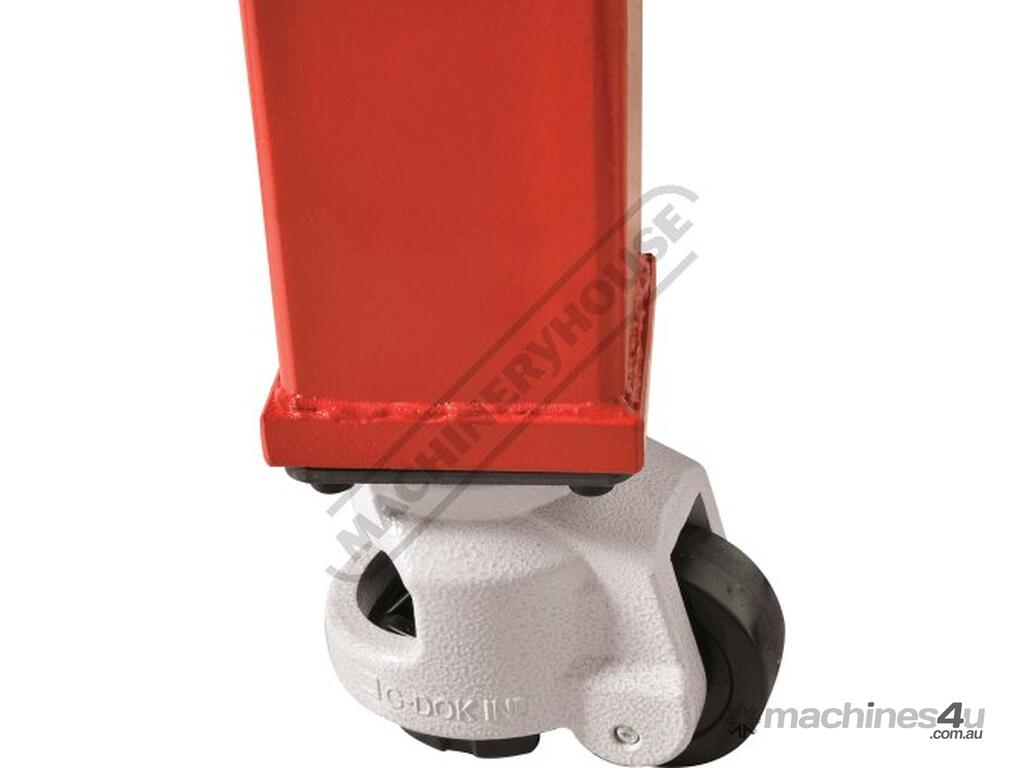

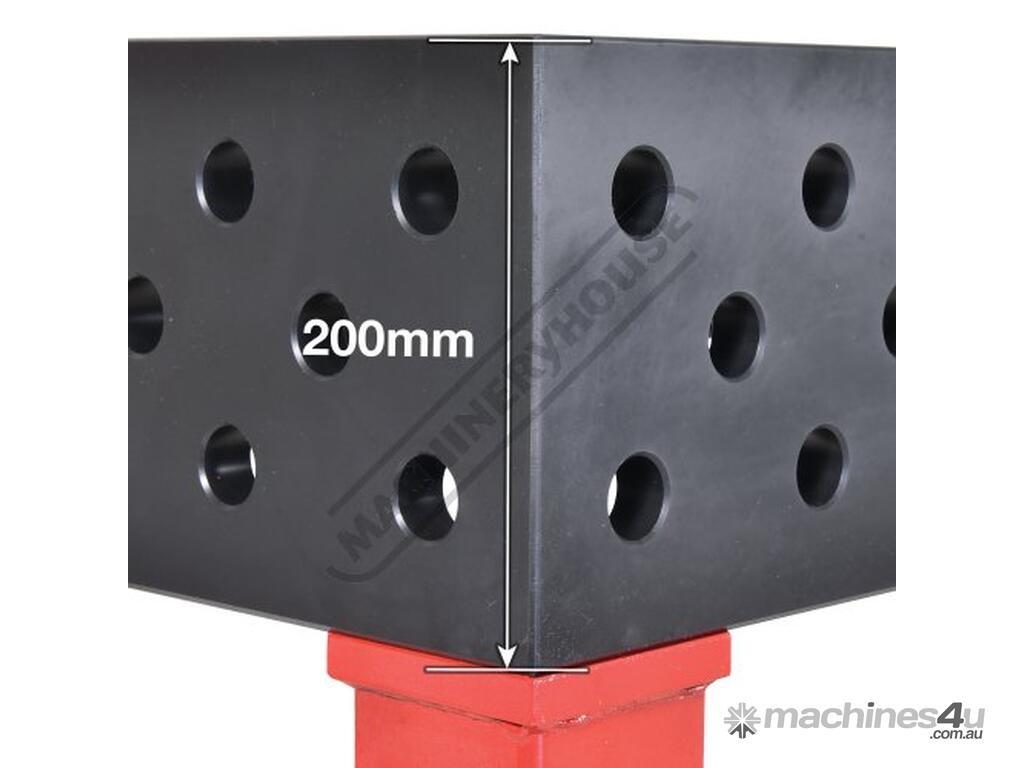

Designed for serious fabrication environments, the Pro Series features 200mm high reinforced sides, interlocking solid steel ribs and adjustable heavy-duty legs fitted with 125mm lockable swivel castors, providing outstanding stability with the flexibility to move your workstation wherever it's needed.

Complete your setup with Metalmaster's extensive range of Pro Series clamps, stops and fixturing accessories to create the ultimate modular welding system. Whether you're fabricating one-off custom work or tackling large production jobs, the M28 Pro Series gives you the precision, durability and versatility to take on every project with confidence.

Features:

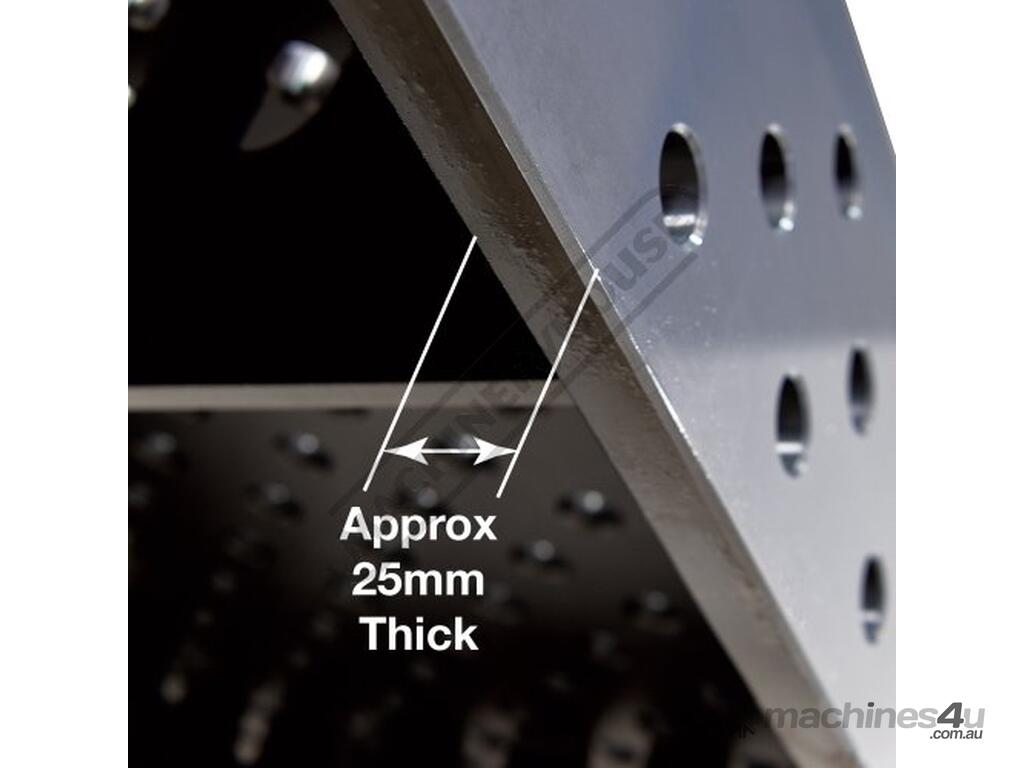

Heavy-duty 25mm S355 steel tabletop and sides
Precision CNC machined to ±0.1mm flatness over 1m²
Ø28mm precision-bored fixture holes with ±0.05mm accuracy
Radiused holes for smoother fixture and clamp insertion
Industry-standard 100 x 100mm diagonal hole pattern with additional centre holes

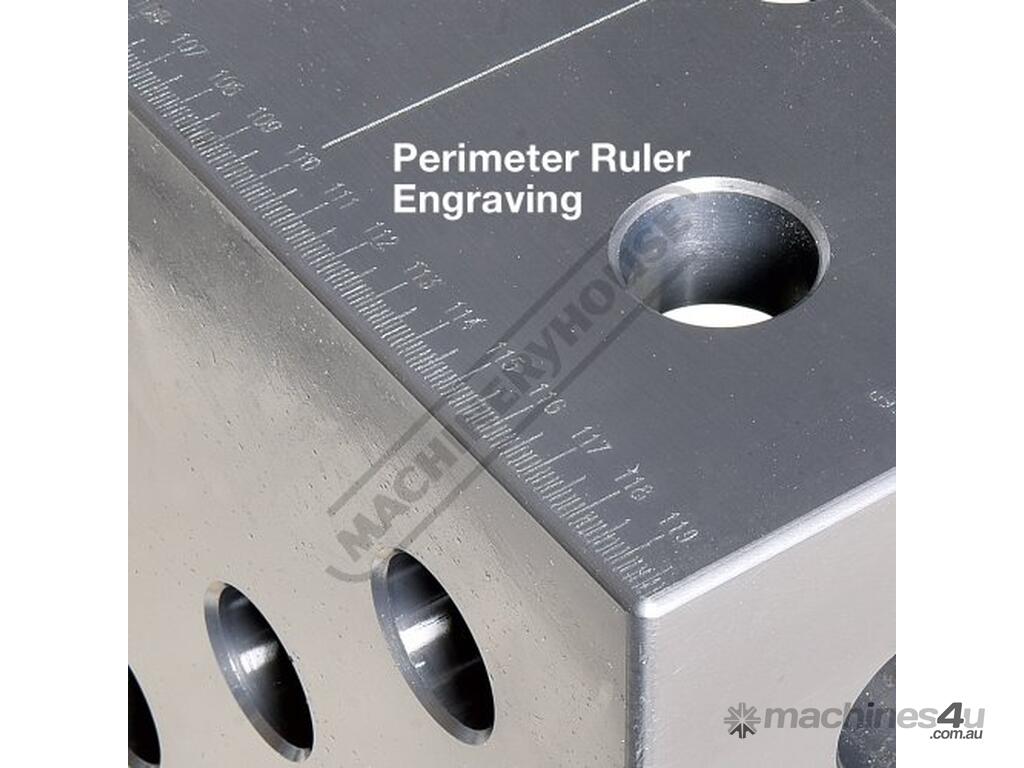

Precision engraved 100mm grid lines and perimeter ruler
Plasma nitrided surface for superior hardness rust wear and spatter resistance
Reinforced interlocking rib construction for maximum rigidity
200mm high sidewalls for exceptional load capacity
Adjustable heavy-duty legs with lockable 125mm swivel castors

Includes:
- 4pcs of adjustable heavy steel legs c/w swivel caster with brake



Specifications:
ORDER CODE: W08255
MODEL: WT28-2010N
Table Hole Diameter (Ø): 28
Table Top Finish (Type): Plasma Nitriding Coating
Table Top Size (mm): 2000 x 1000
Grid Pattern (mm/Type): 100 x 100 / Diagonal
Table Height (mm): 700~860
Table Side Height (mm): 200
Top Plate Thickness (mm): 25
Table Slots (mm): ~
Static Load Capacity (kg): 3000
Total W.L.L. (kg): ~
Number of Legs (No.): 4
Nett Weight (kg): 655
