200KVA Cummins Silenced Diesel Generator 415V

Main Features

• 4 pole brushless alternator with zero THD delivering clean stable energy.
• Safe to use on digital electronic equipment
• Water-cooled diesel engine for round the clock use in extreme conditions.
• User friendly controller with instruction manuals available.
• ATS/Auto start connection equipped.
• Compliant with Australian safety standards.

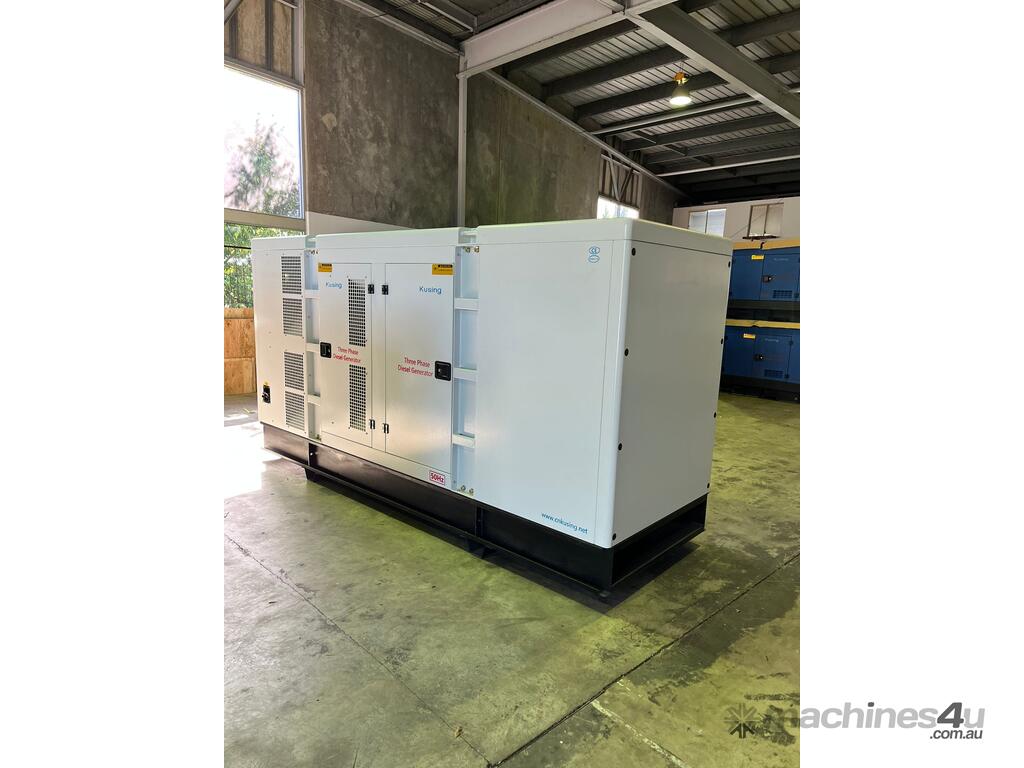

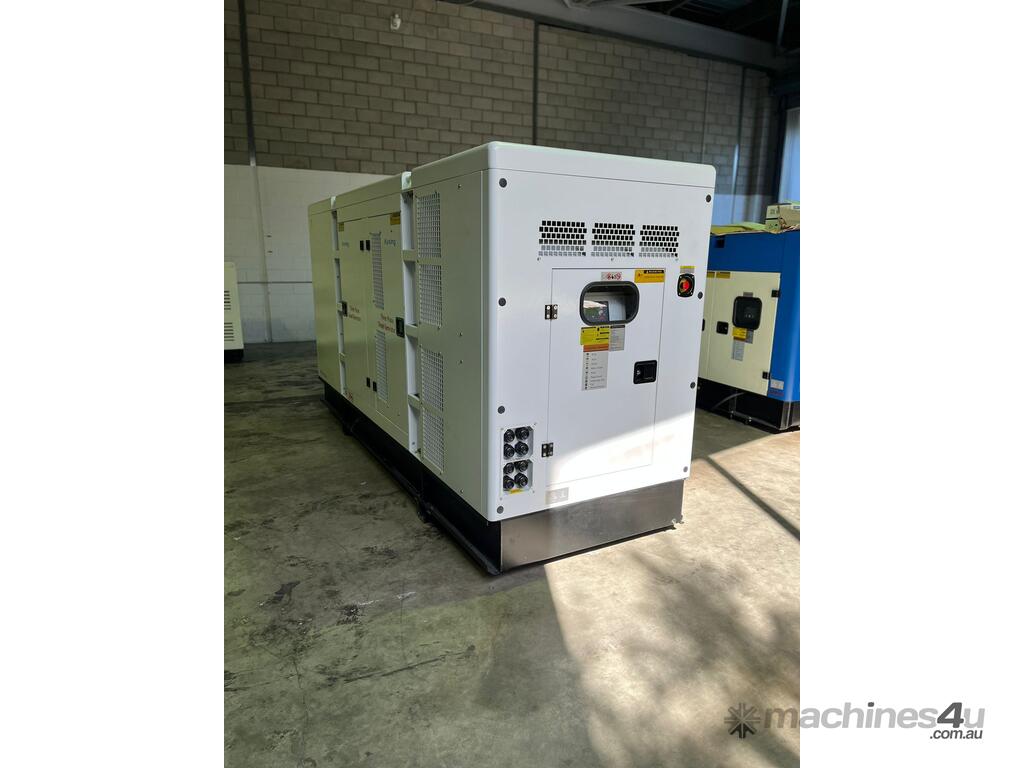

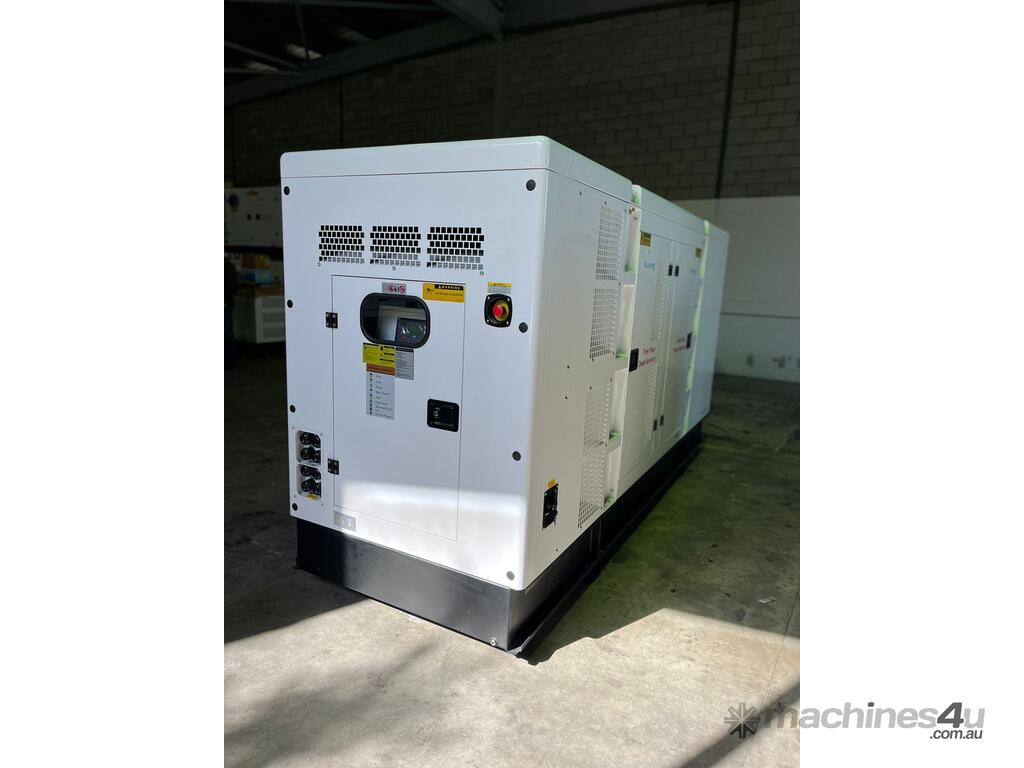

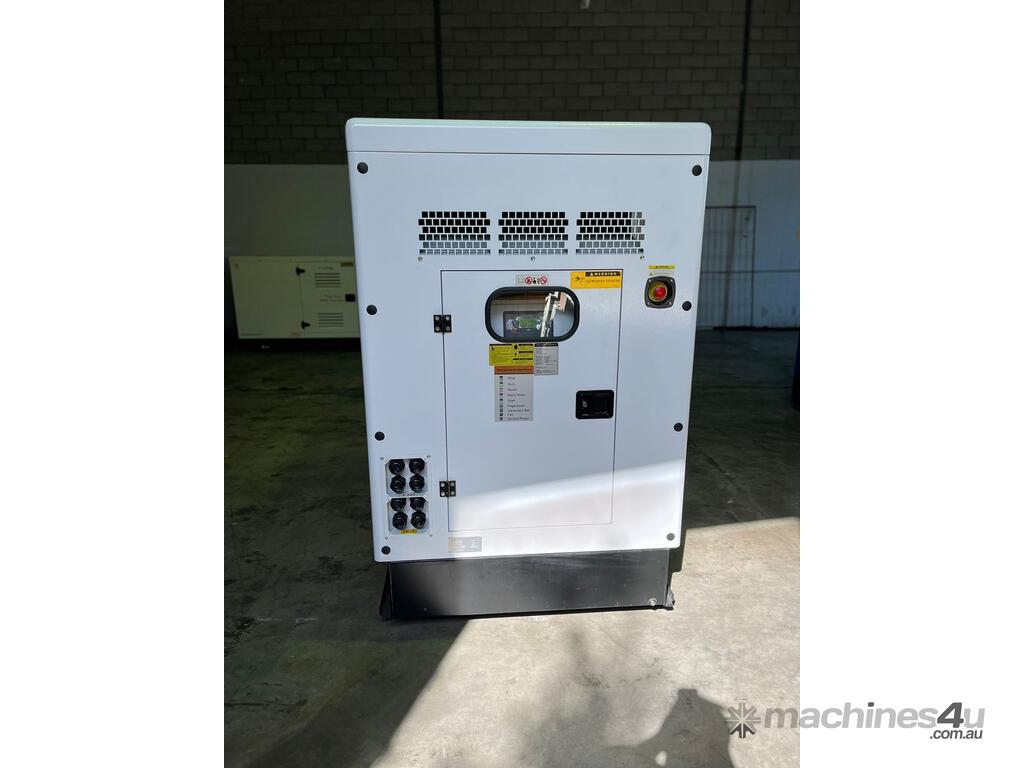

• Strong weatherproof silent canopy with various lifting locations
• See full spec sheet among photos.

Recommendations

• To maintain a healthy engine, it is recommended to run a minimum load of 40% to prevent cylinder glazing or wet stacking.
• Even loading across all 3 phases will ensure a long life of your alternator.
• This generator is weatherproof however, it is recommended to station the generator under cover if possible.
• Change all fluids after 50 hours and continue with the scheduled service plan as per instruction book.
• If using the generator in a remote location, a distribution board can offer different sized power outlet options (see your electrician for advice).
• Compatible for stationary and transportable use.

Safety Features

• Emergency stop
• Battery Isolator
• Over temperature protection
• Low oil protection
• Low fuel alarm
• RCD protection
• Over current protection
• Battery DC charge fault alarm
• Phase imbalance parameter setting at 30%
• Full canopy soundproofing with lockable doors
• Poly baffled fuel tank
• Fire extinguisher (by request)

Specifications
Generator Model CK31600
Prime Power 200KVA
Standby Power 220KVA
Rated Current 288 Amps per phase
Canopy Silenced
ATS (Auto Transfer Switch) 2 wire quick connection / 400A ATS (Add $3600)
Fuel Tank Capacity Est. 300 Litres
Noise Level 75dB 7m

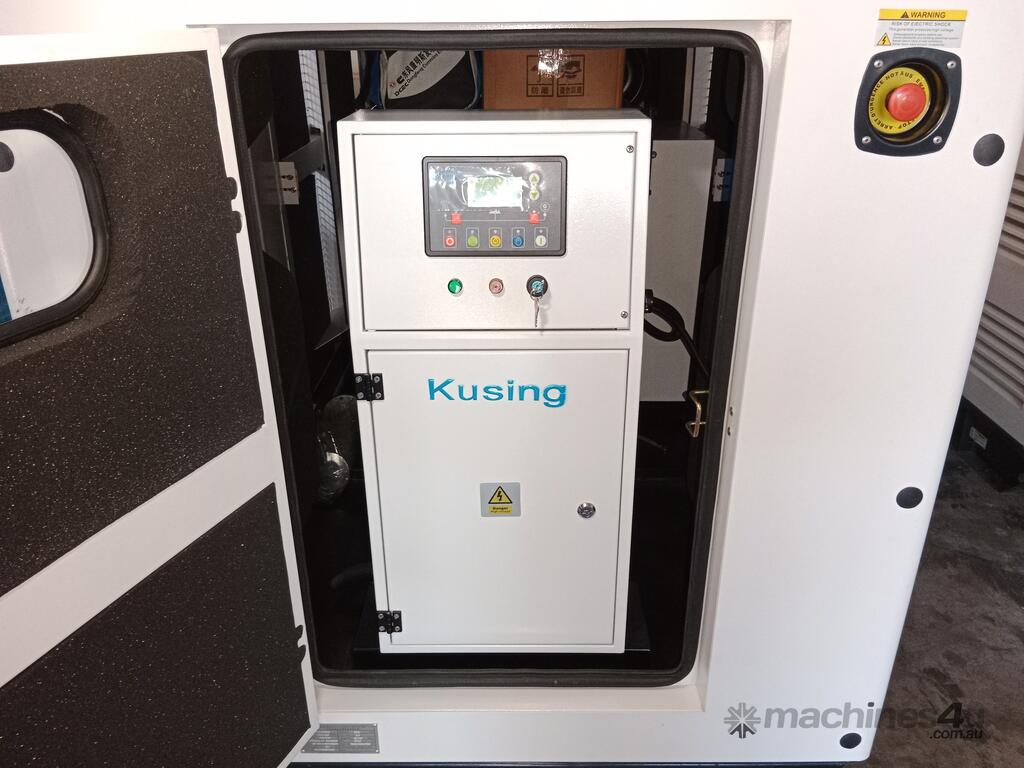

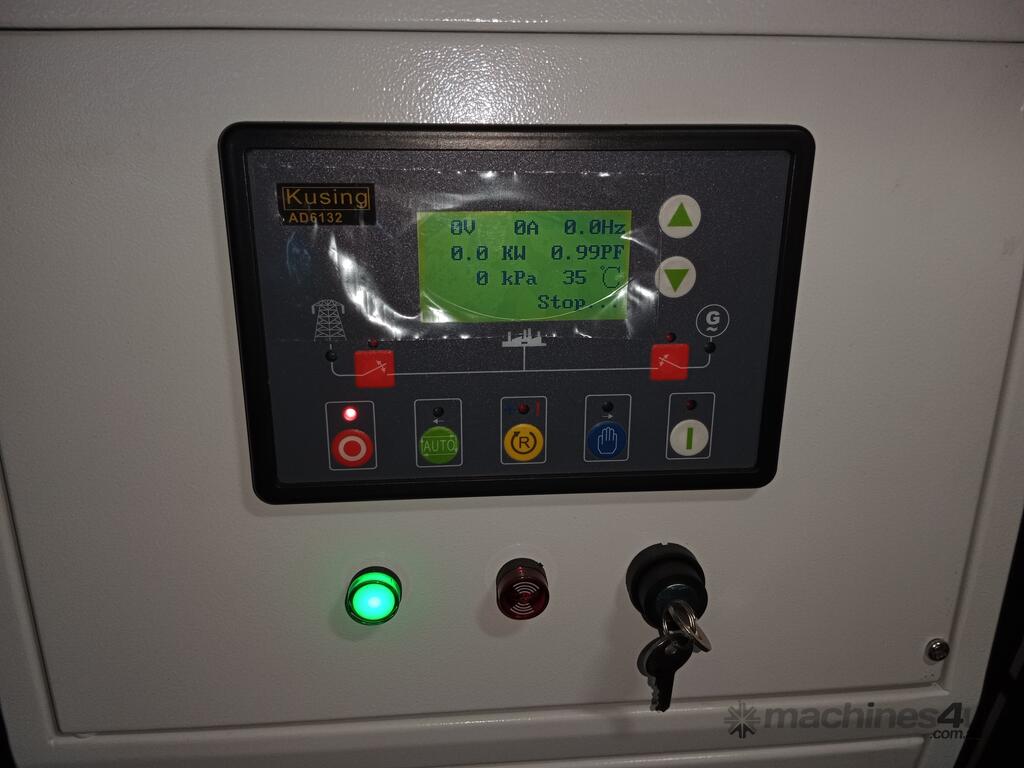

Controller Kusing AD6132
Main Breaker Switch 400A
Internal Protection IP23
Dimensions 5600L x 1200W x 1900H mm
Weight 3500kg

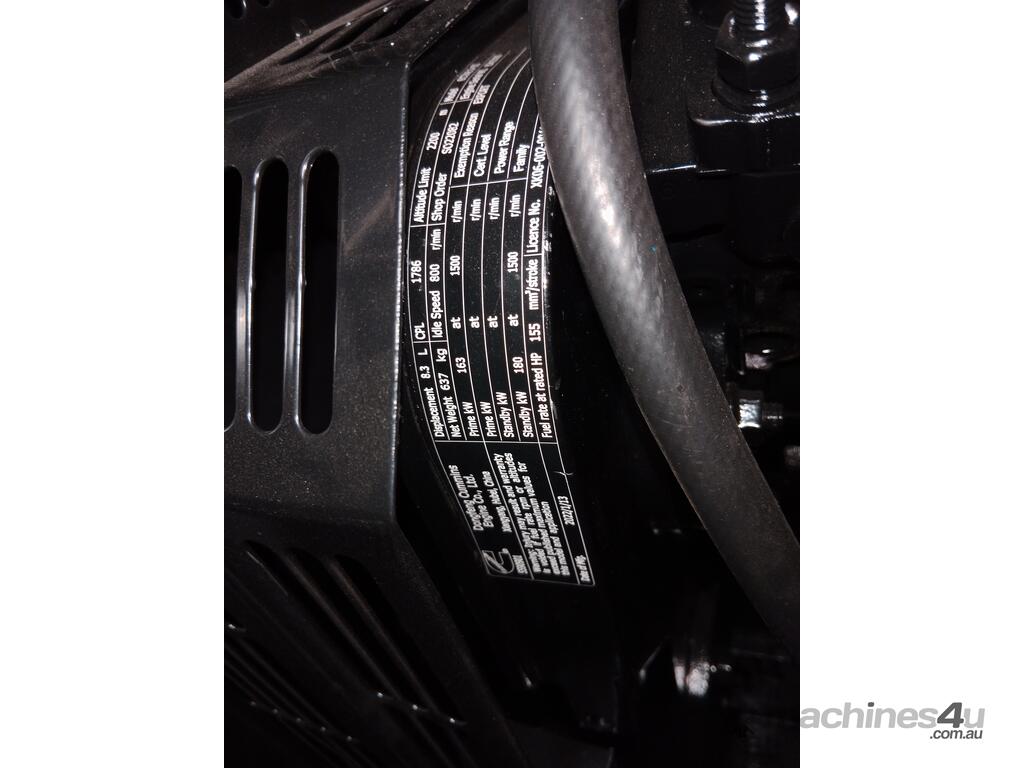

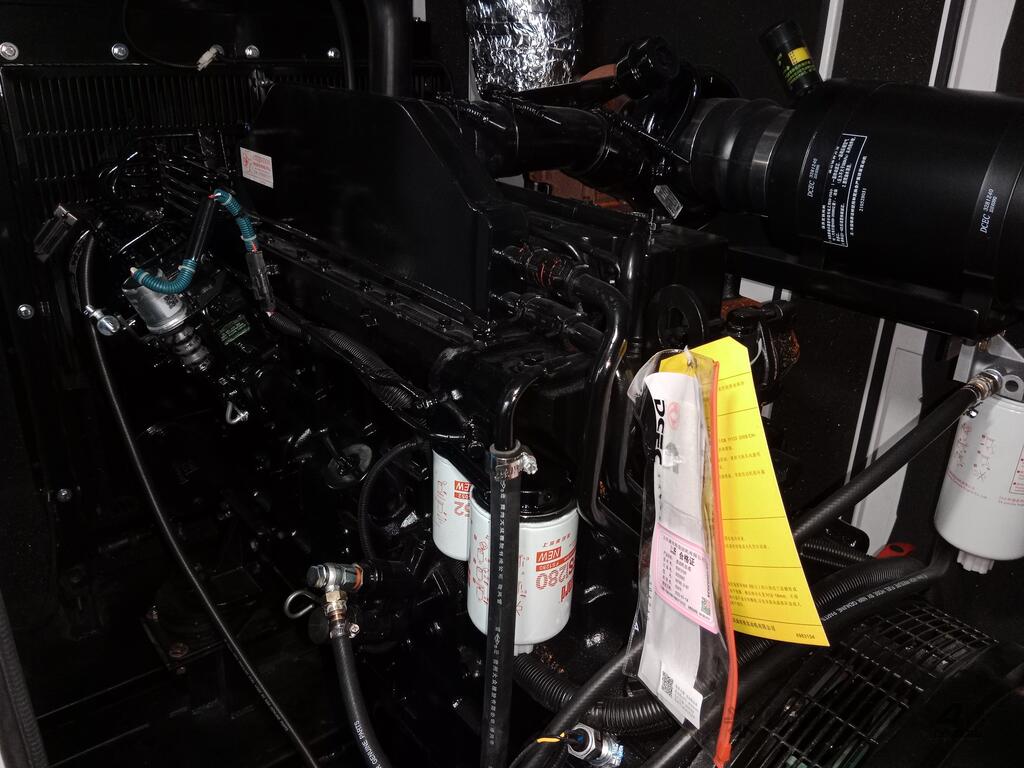

Engine Make Cummins

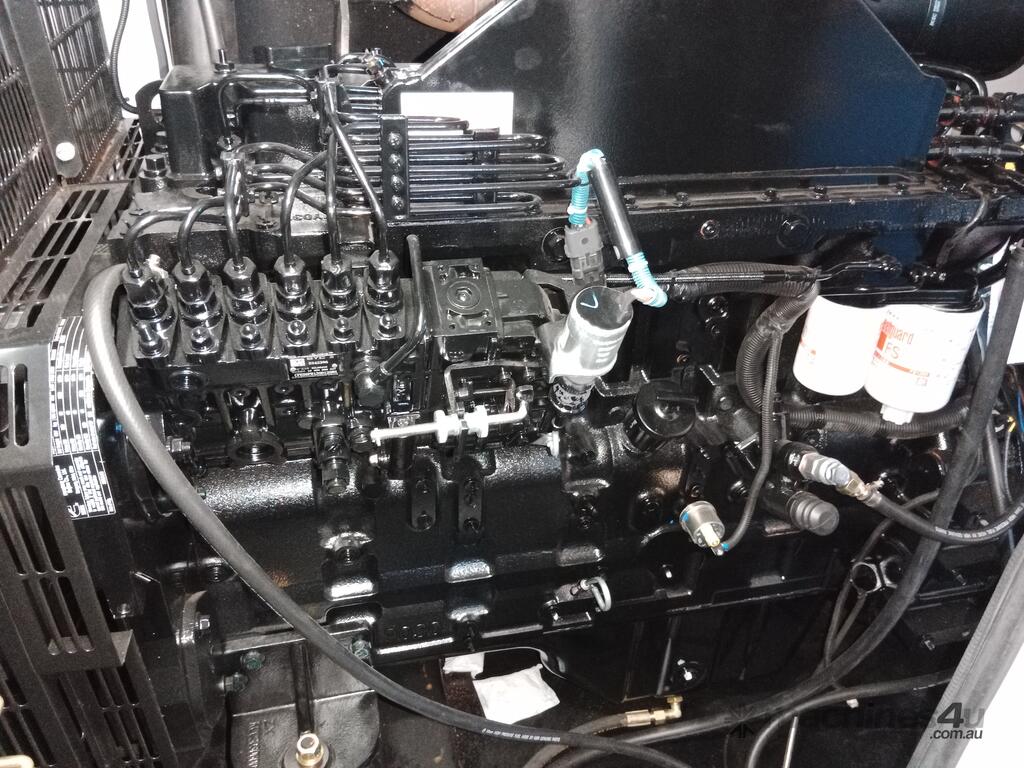

Engine Model 6CTA8.3-G2
Bore 102mm
Stroke 120mm

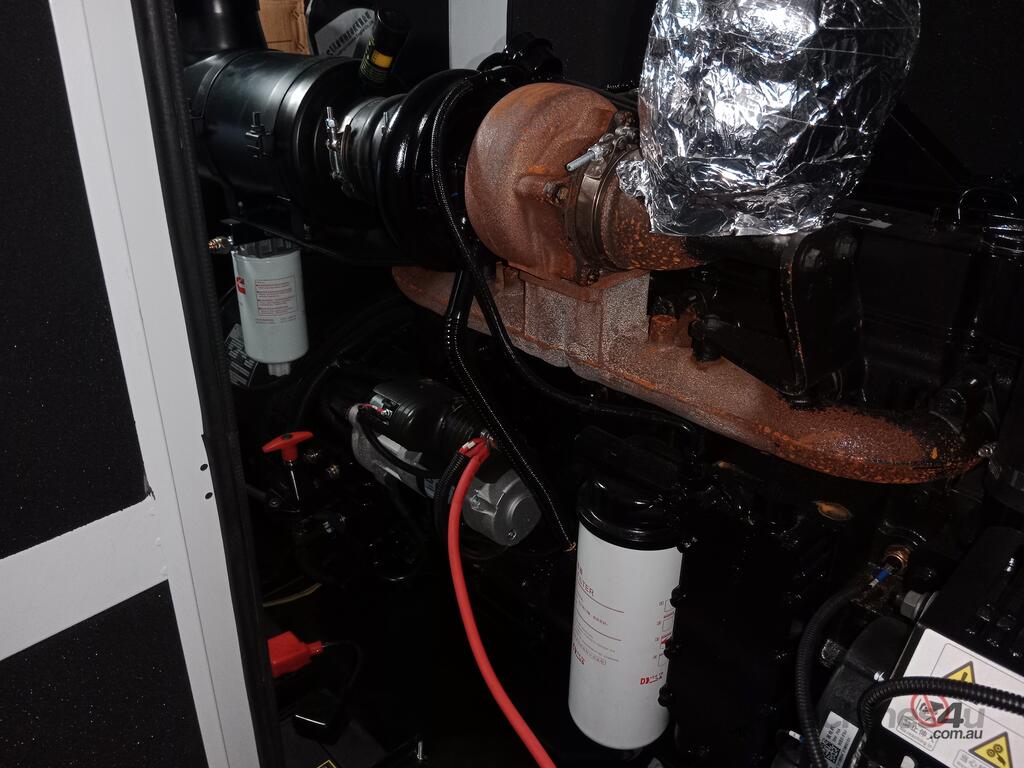

Air Aspiration Turbo Charged
RPM 1500
Speed Governor Electronic
Start System 24V Batteries included
Fuel Consumption 37 L/hr at 100% load
Oil Specification 15W/40
Oil Sump Capacity 30 Litres
Coolant Capacity 30 Litres
Alternator Make Kusing
Alternator Model KAL274K5
Voltage 415V
Phase 3 phase
Frequency 50Hz 1500 RPM
Power Factor 0.8 (lagging)
Voltage Tolerance +/- 1%
Insulation Class H

Warranty

All of our industrial diesel generators come with a standard 12 month/1000 hour warranty. Expert presales advice and after sales service provided by a real person and no frustrating computer answering nonsense.

Wellku Power Pty Ltd have been manufacturing diesel generators worldwide for over 20 years. Our factory currently produces industrial diesel water-cooled machines from as small as 8KVA up to 3000KVA or more.

Wellku Power focus mostly on manufacturing their generators using premium brand components like Cummins engines, Stamford alternators and a variety of popular brand Controllers. We also sell less expensive machines using our Kusing brand components which give customers great value for money whilst maintaining a reliable source of prime & standby power.

All generator sets have gone through rigorous testing before being released to the marketplace, including 50% load, 75% load, 100% load, 110% load.

If you require a custom build to meet specific requirements, we are your supplier who can provide exactly what you want.

Wellku Power offer attractive wholesale pricing discounts for bulk orders & and discounted prices for repeat customers.

Shipping

For a shipping price to deliver to your location, please contact us.
We deliver anywhere in Australia with a few exceptions, also servicing PNG and the South Pacific regions.
For all deliveries, please ensure you have a method of unloading from the semi-trailer otherwise we recommend delivery to your nearest major centre for depot collection.
