200mm Drilling Milling Vice TSL-200, Deluxe Heavy Duty Drilling & Milling Vise

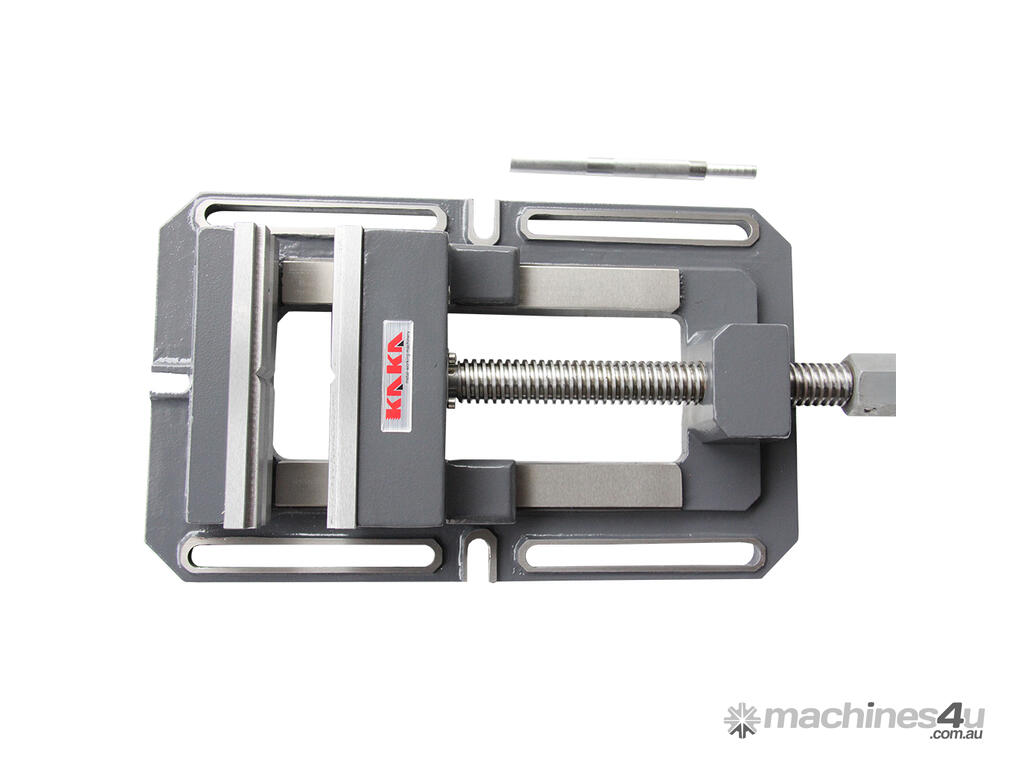

Kang Industrial Drilling & Milling Vice TSL-200

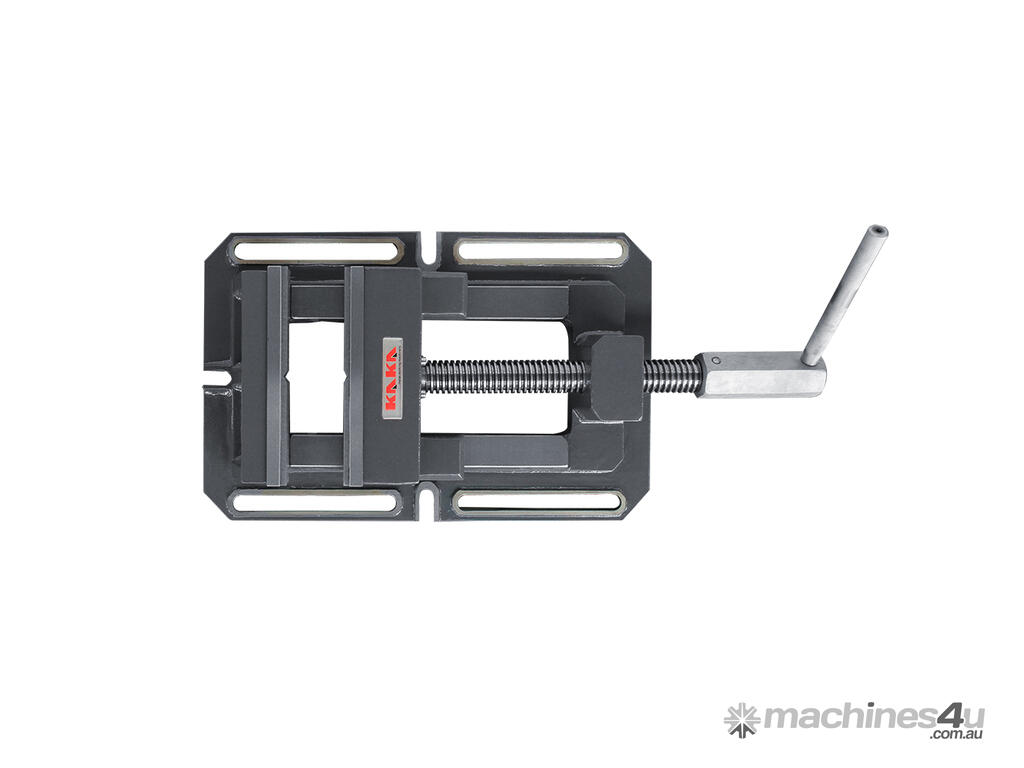

The KANG 200mm Deluxe Drill Press Vice is a professional-grade, heavy-duty clamping solution designed for secure workpiece holding on drill presses, pillar drills, milling machines, and light machining centres. Constructed from cast iron, this robust vise provides excellent rigidity, minimal vibration, and outstanding durability for demanding workshop tasks in metalworking, fabrication, and general engineering.

Largest Clamping Capacity in the Range. With a full 200mm jaw width and 200mm opening, it handles significantly wider and larger workpieces makes it ideal for bigger metal stock, timber beams, pipes, or batch work in workshops.

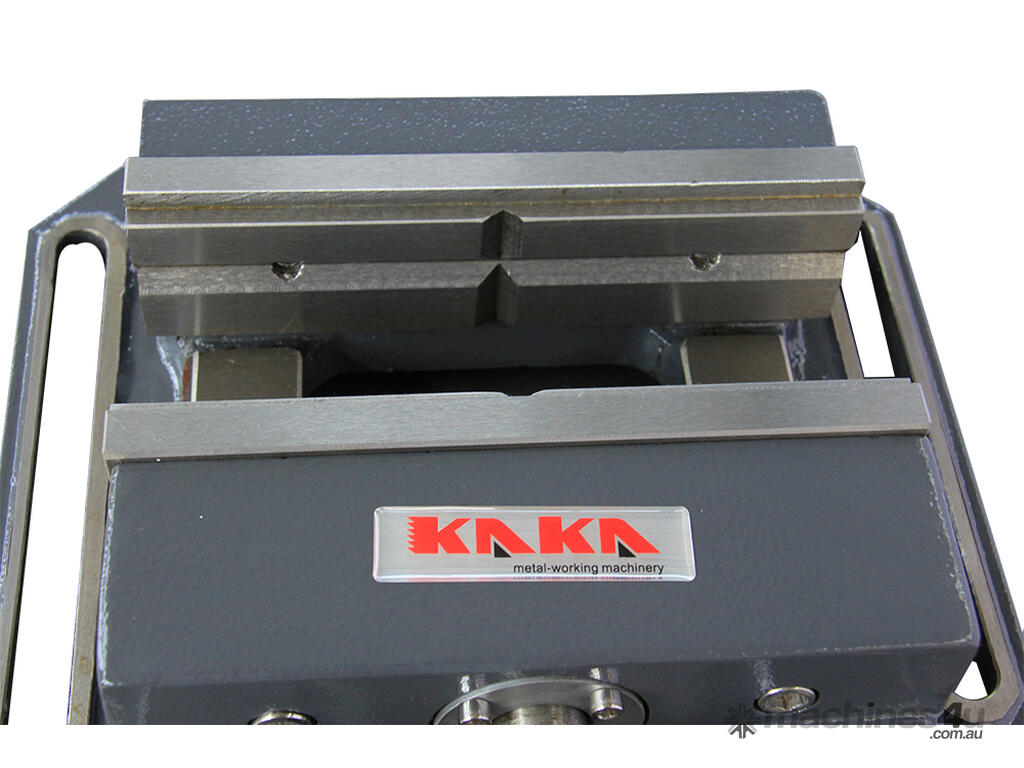

Prismatic Hardened Jaws for Superior Grip on Round Stock. The stepped steel jaws include a precision prismatic (V-groove) fixed jaw that securely clamps round materials horizontally or vertically.

Heavy-Duty Cast Iron Construction Clamping Vice. Provides exceptional rigidity and vibration damping compared to lighter alternatives. The substantial weight keeps the vice planted on the table, improving drilling/milling accuracy and operator safety.

Precision-Ground Base & Easy Mounting Drilling Milling Vice. The flat, precision-ground base ensures stable, level mounting. Wide slots allow quick and secure bolting to most standard drill press or milling machine tables.

Versatile for Drilling & Milling Workholding. Suitable for drill presses, light milling machines, tapping, reaming, and general workshop use. The design supports both precision drilling and light machining tasks.

Features

200mm Jaw width and jaw opening

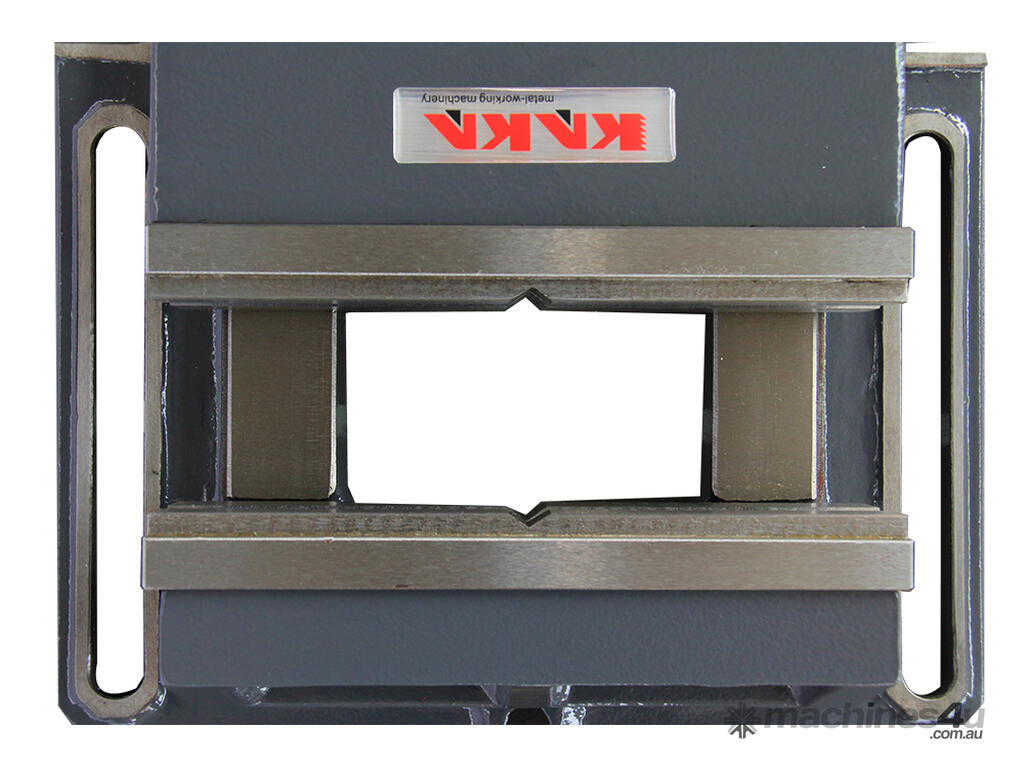

Changeable jaws with cross V-grooves

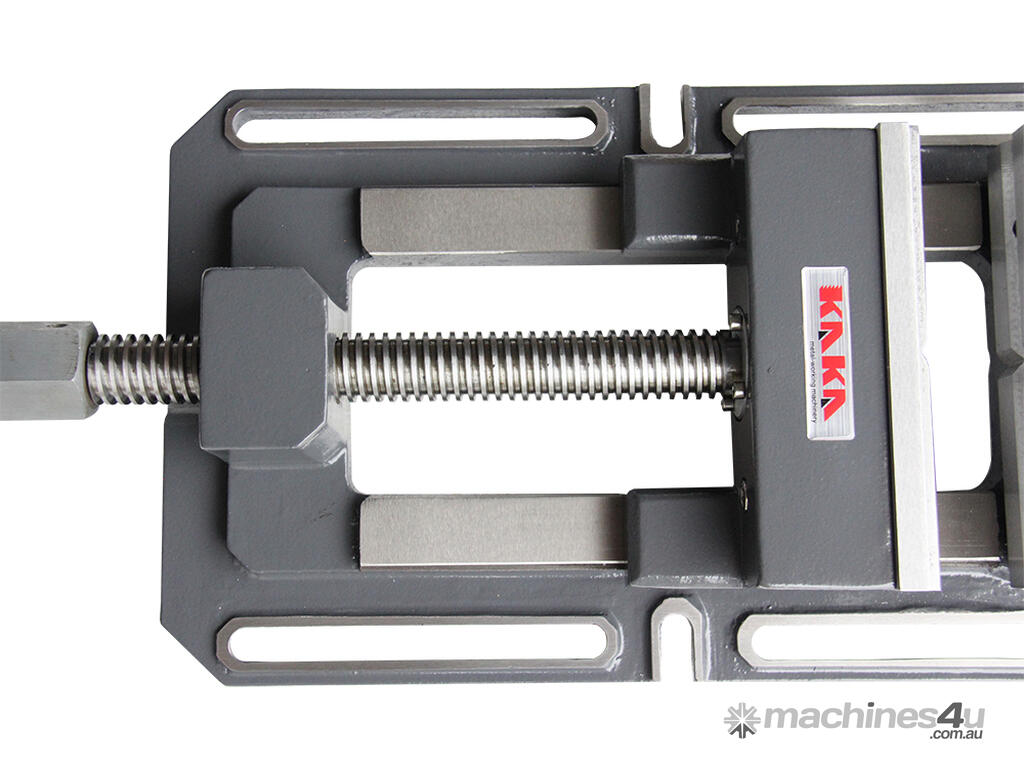

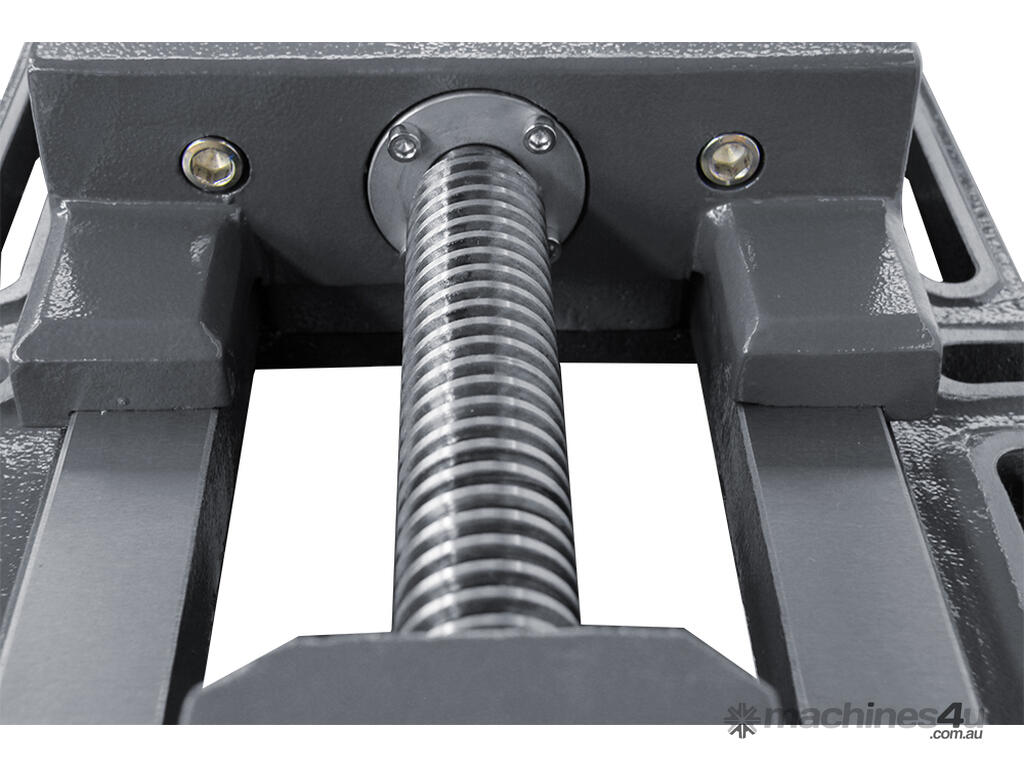

Jaws slide on a steel bar for precise alignment

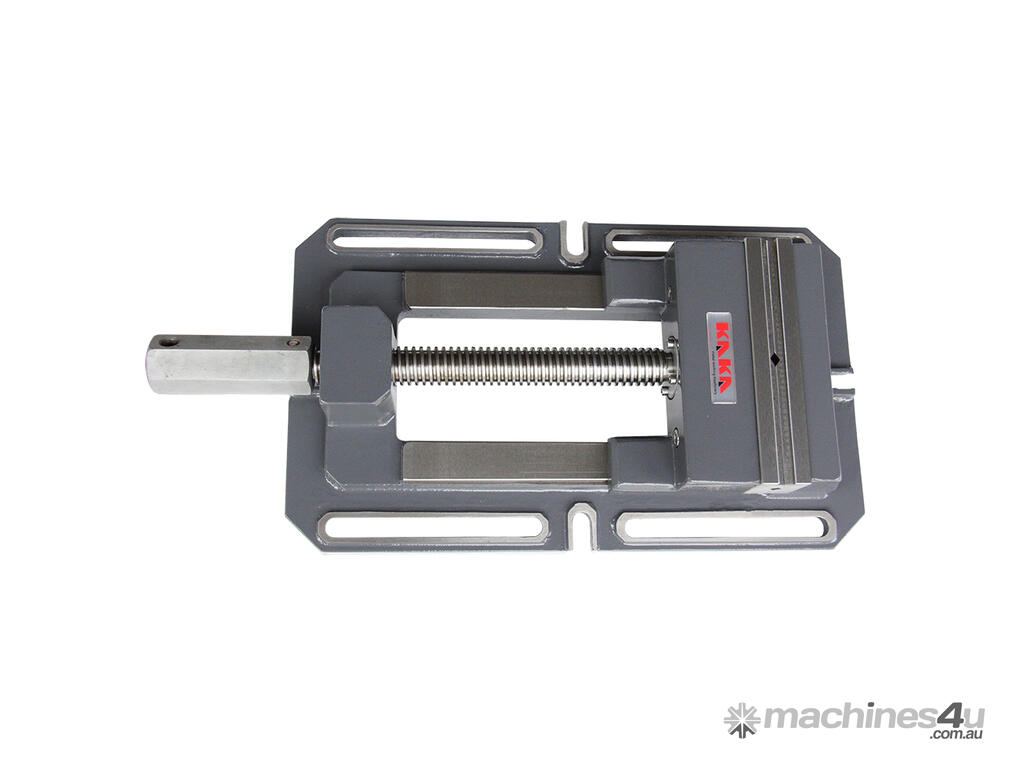

One-piece cast iron body

16mm width mounting slots

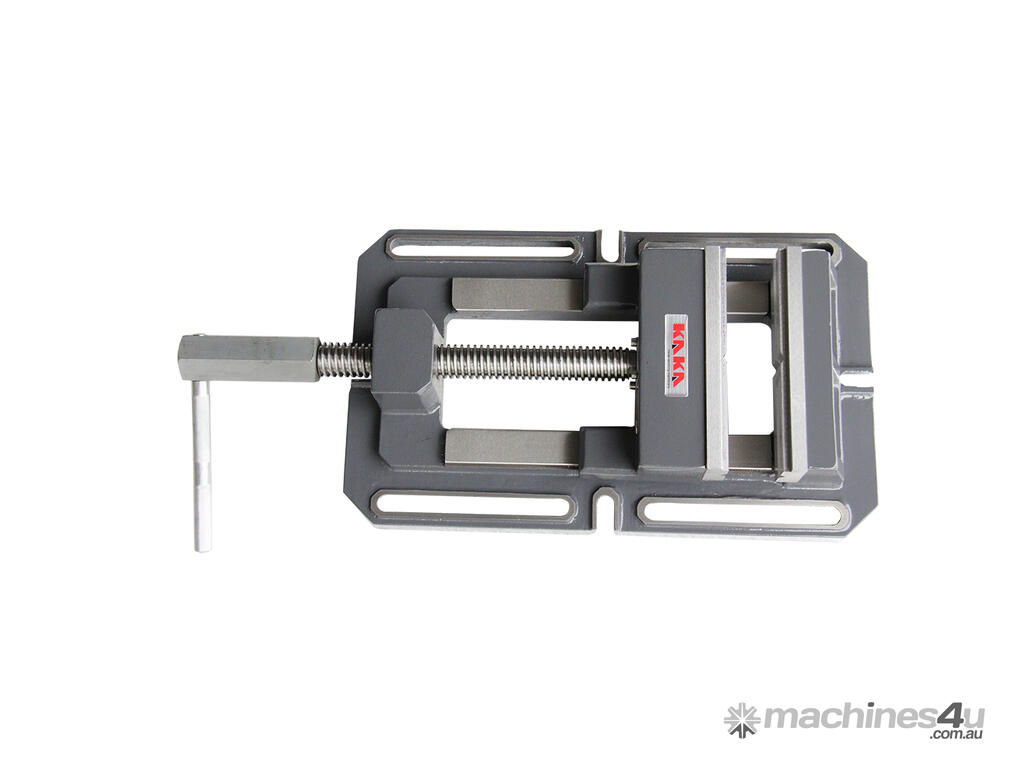

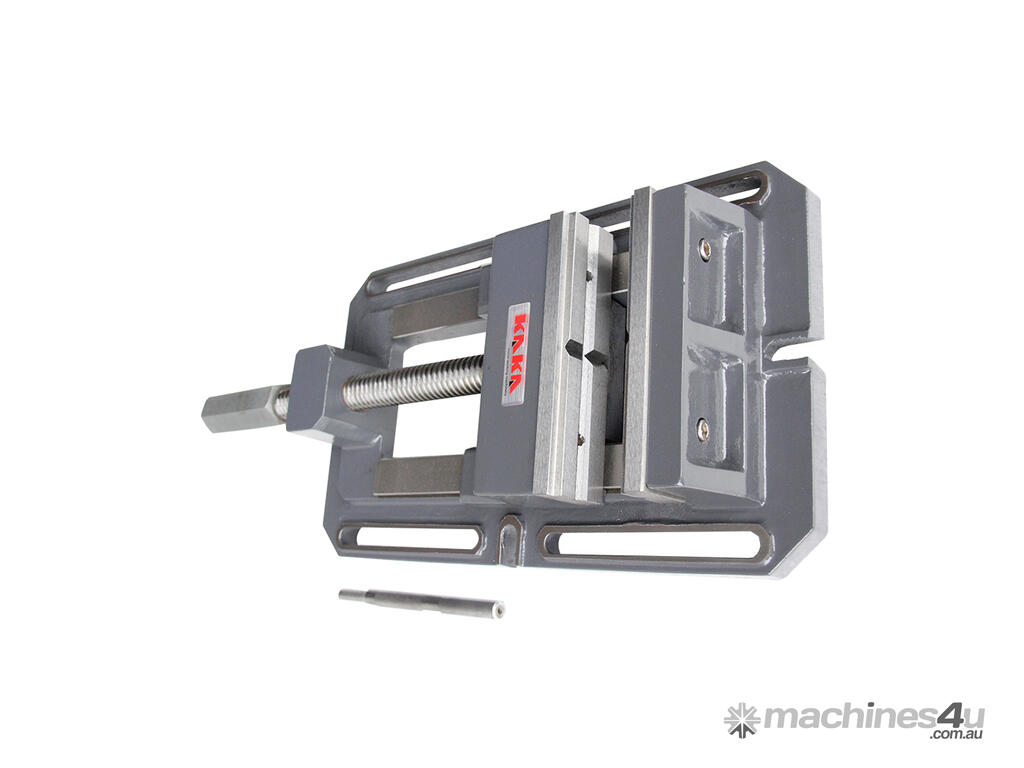

Hexagon handle with lever pin for powerful clamping of the material


Different sizes available: TSL-100, TSL-140 & TSL-200, perfect for mechanics, fabricators, engineers, hobbyists, and home workshops

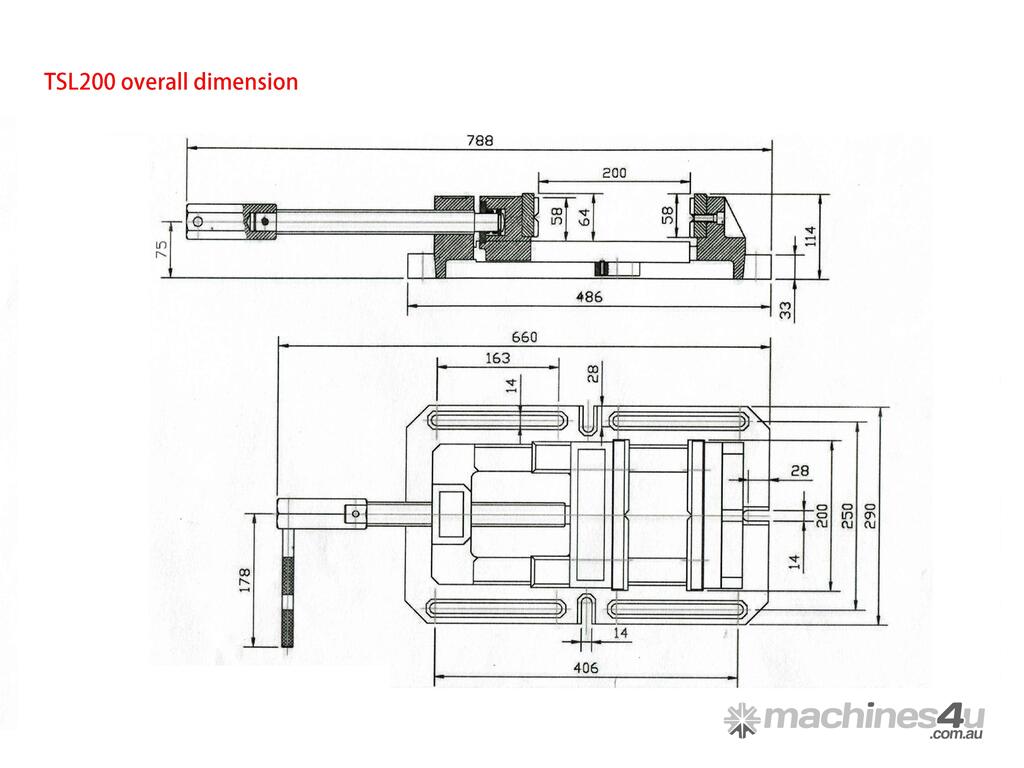

Specifications
SKU 176312
Model TSL-200
Jaw width 200 mm
Jaw height 64 mm
Jaw Opening 200 mm
Packing size 63x35x17 cm
N.W./G.W. 38/39 kg
