2750KVA Containerized Industrial Diesel Generator 415V

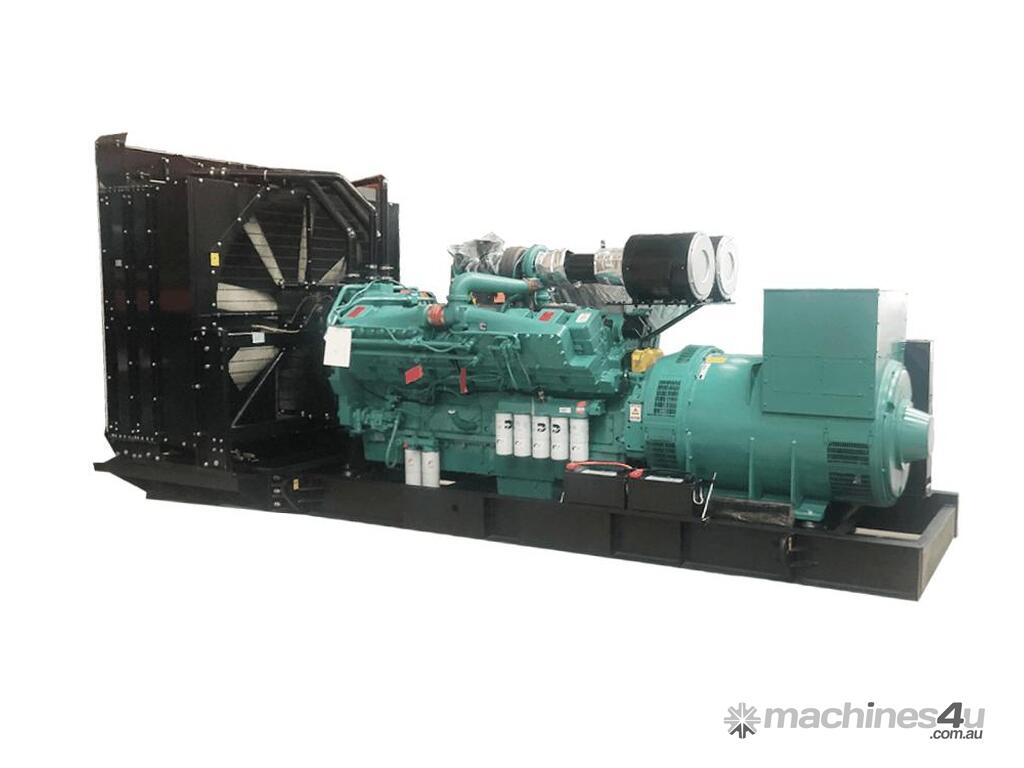

The 2750KVA industrial diesel generator is powered by a V18, 77.6 Litre Cummins QSK78-G9 diesel engine paired with a reliable Evo TCU528B alternator.
With superior performance and durability for various applications, its advanced design and features makes this genset an excellent choice for reliable power supply in both prime and standby situations.

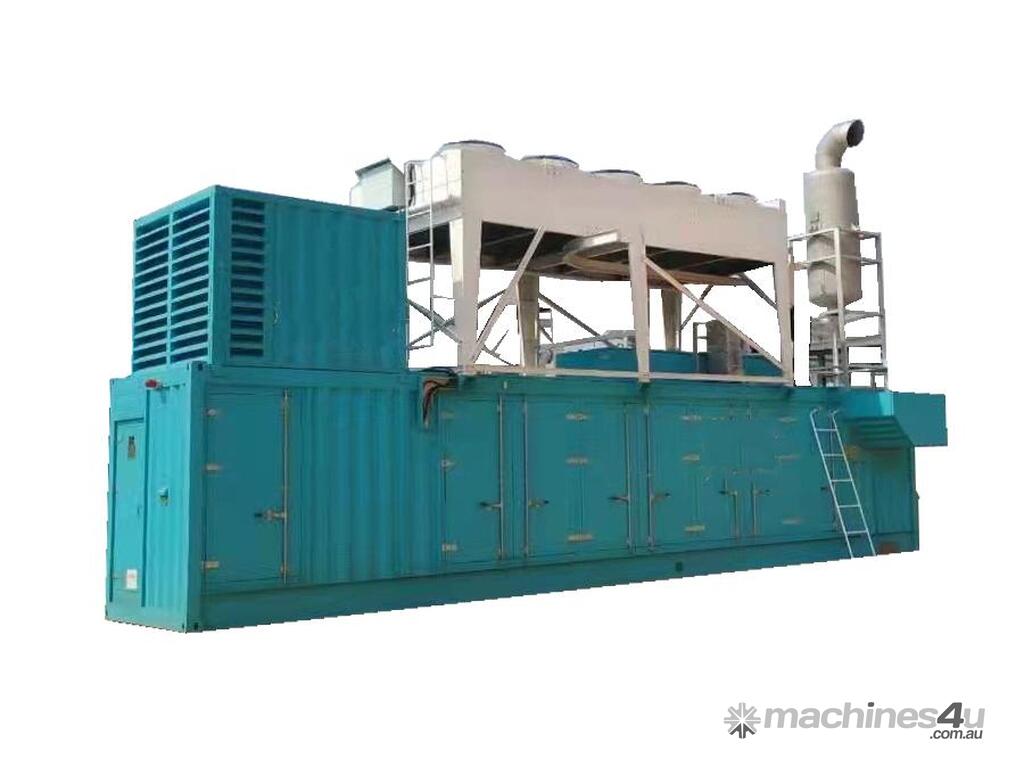

This Goliath diesel generator comes in a 40 foot container with a base fuel tank with 8-10 hours operating time. External fuel tanks are easily adaptable to this genset along with optional alternators available from Stamford, Marathon, Leroy Somer & our own Kusing brands.

Key Features:
High-performance brushless, self-excited, IP23, insulation class H alternator.
24V DC starter motor and batteries for reliable starting.
Equipped with a 50°C radiator as standard for optimal cooling.
Standard digital control panel with optional digital auto-start panel available.
Optional open or silenced containerized type configurations to suit various environments.
Rigorous testing conducted at 50%, 75%, 100%, and 110% load, ensuring full protection features (overspeed stop, high water temperature, low oil pressure, battery charging failure, and emergency stop).

Basic Specifications:
Generator Model CK322000
Prime Power 2750KVA
Standby Power 3025KVA
Rated Current 3830 Amps per phase
Canopy 40 Foot Container
ATS & Parallel Capable
Base Fuel Tank Capacity Est. 8-10 Hours run time / External tank Compatible
Noise Level 80 Dba 7 metres
Controller Comap or Deepsea
Main Breaker Switch CHNT 4000A
Internal Protection IP22
Dimensions N/A
Weight N/A
Engine Make Cummins V18 / 77.6L
Engine Model QSK78-G9
Bore 170mm
Stroke 190mm
Air Aspiration Turbo Charged
RPM 1500
Speed Governor Electronic
Start System 24V Batteries included
Fuel Consumption 528L per hour 100% Load
Oil Specification 15W/40
Oil Sump Capacity 465 Litres
Coolant Capacity N/A
Alternator Make Evo
Alternator Model TCU528B 4 Pole Synchronous + AVR
Voltage 415V / 240V
Phase 3 phase
Frequency 50Hz 1500 RPM
Power Factor 0.8 (lagging)
Voltage Tolerance +/- 1%
Insulation Class H

Any of the containerized class generators have a lead time of 10-12 weeks which must be preordered.
The listed price includes GST and the genset landed in the Australia.
For delivery to any other country please inquire and we will supply an overall price in US dollars to deliver to your country of choice.
Please contact us for more technical information and we can discuss any queries or concerns over the phone.

More photos and a video of one of our containerized gensets will be supplied from our factory and uploaded soon.
