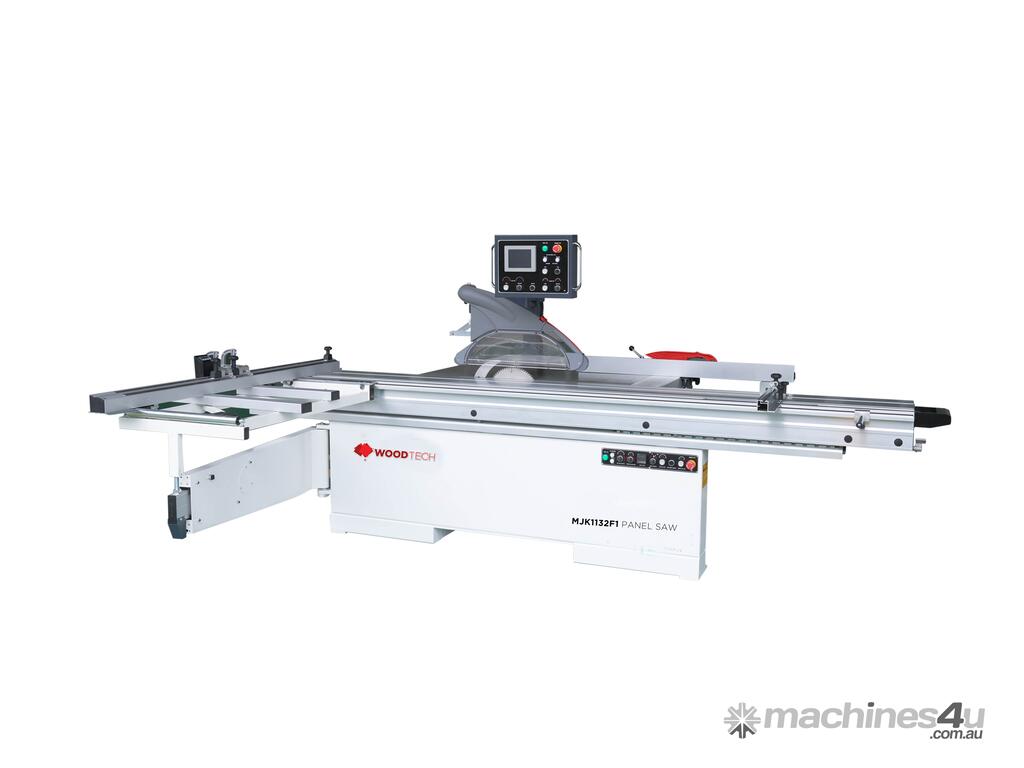

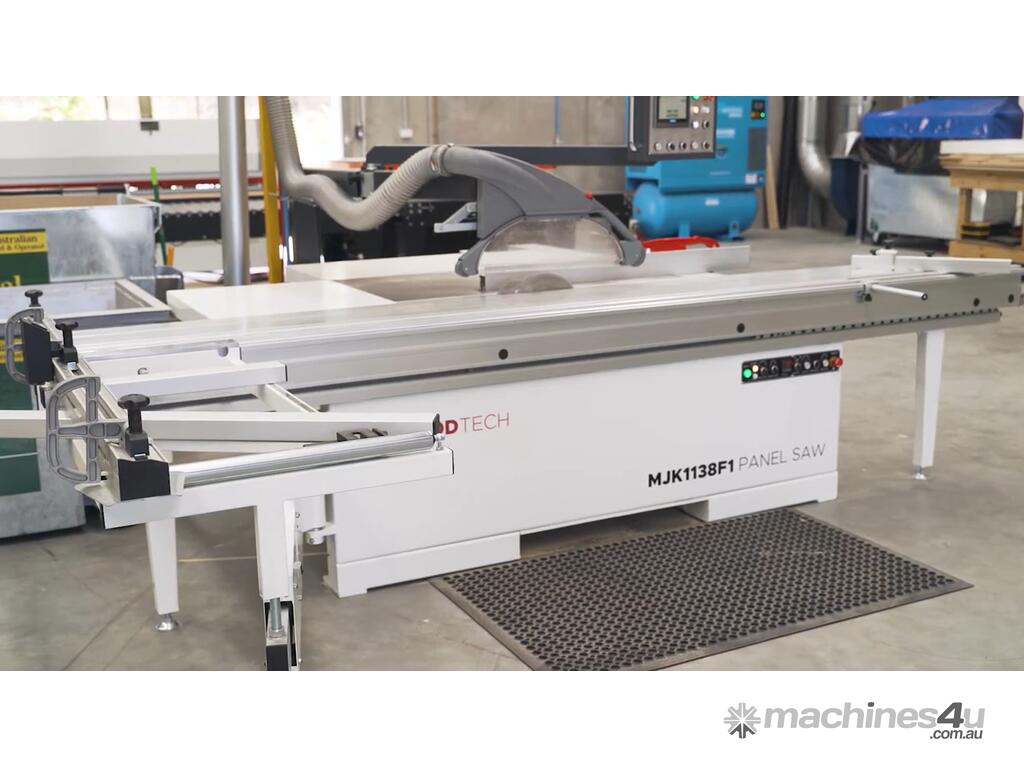

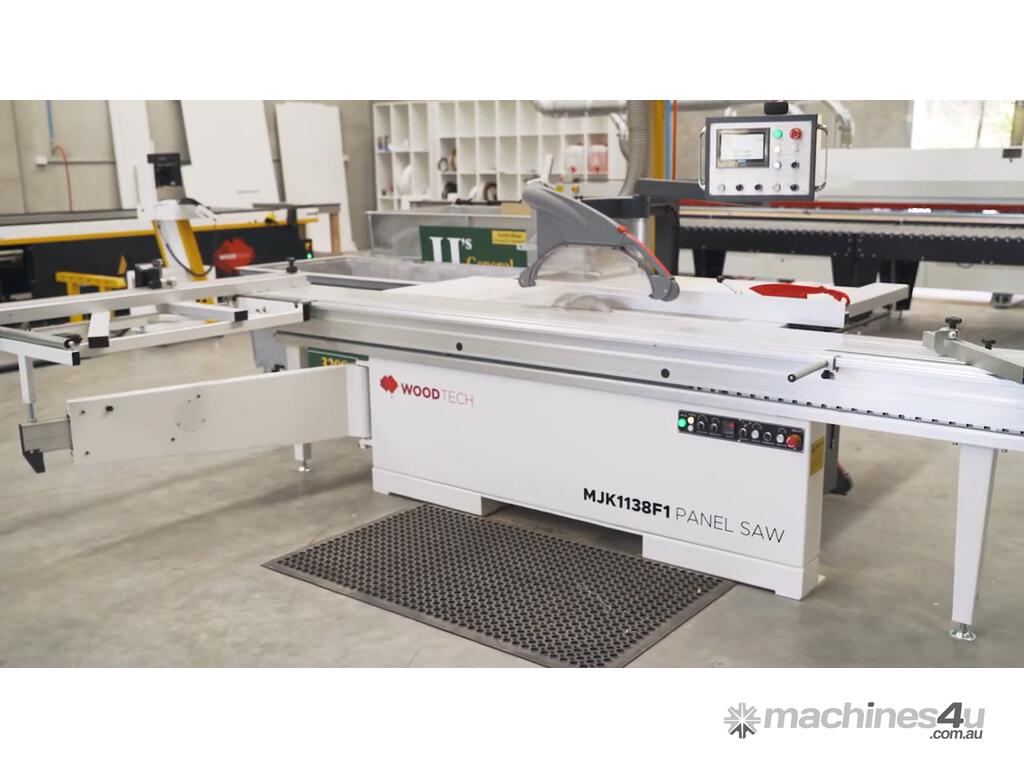

The Wood Tech MJK1138F1 is a serious panel which delivers exceptional value for money. A smooth sliding carriage extendable to 3800 mm is coupled with electric rise, fall and tilt adjustment to 46°. All this and crosscut fence adjustments are controlled by the overhead touchscreen controller.

- Touch Controller
- Electric rise and fall of the blade
- Automatic blade tilt (0 to 45°)
- Powered scoring unit with separate motor (side adjustment)
- Powered Rip fence
- Sliding table locking in all positions
- Overhead guard

BASE FRAME
The steel frame welded with heavy steel plates is made by metal processing centre. After heat treated and constructed, the steel frame is solid and stable that permits high capacity cutting.

CONTROL CABINET
Compact and simple structure save space.
All electric components adopted famous brand for higher quality and stability.

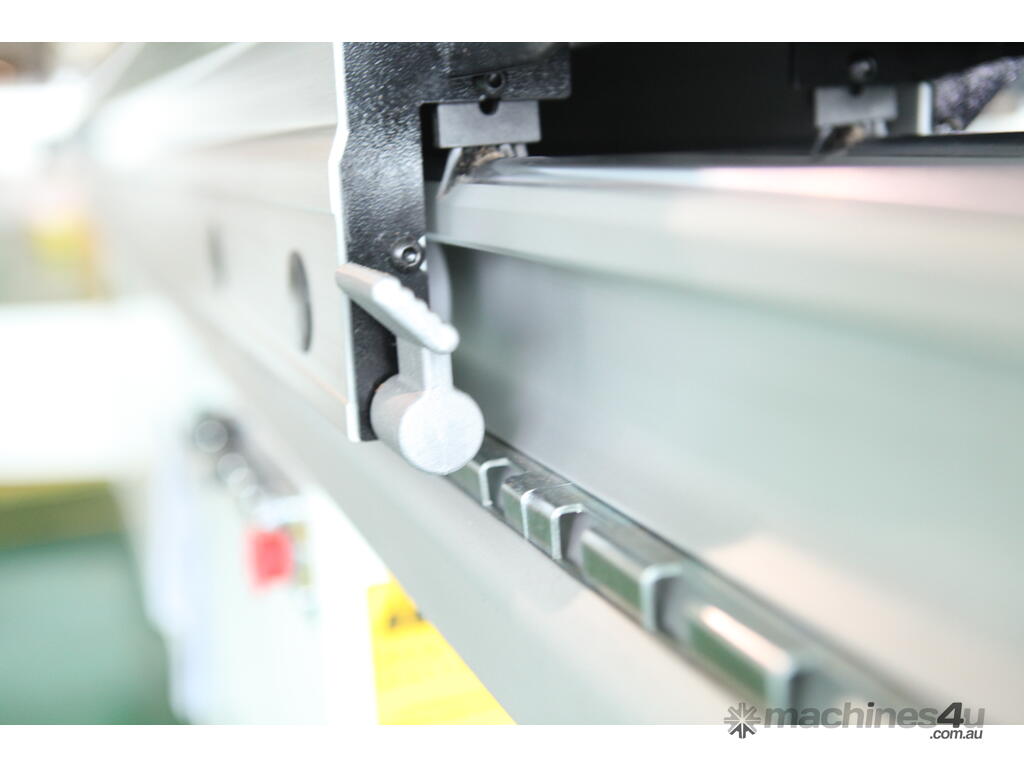

SLIDING TABLE
Easy running sliding table ensures straight accurate cutting. The sliding table can be locked at any position along the rail to make it easy to cut intended dimension.

MITRE FENCE
Single sided mitre fence helps for precise cutting of mitres. It is easy to set and fixed on the sliding
table.

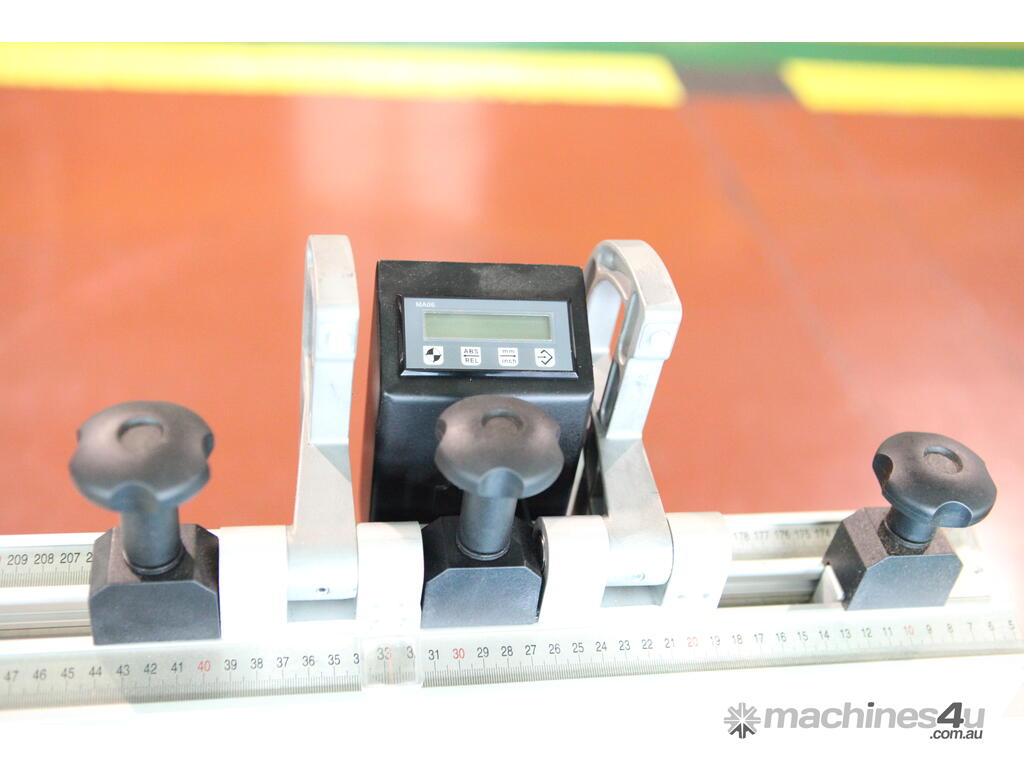

DIGITAL CROSSCUT FENCE
Cross-cut fence can easily move from the front to the back for different cutting requirements
ensuring precise cutting. Double rulers coupled with magnifying site help the operator to read
setting.

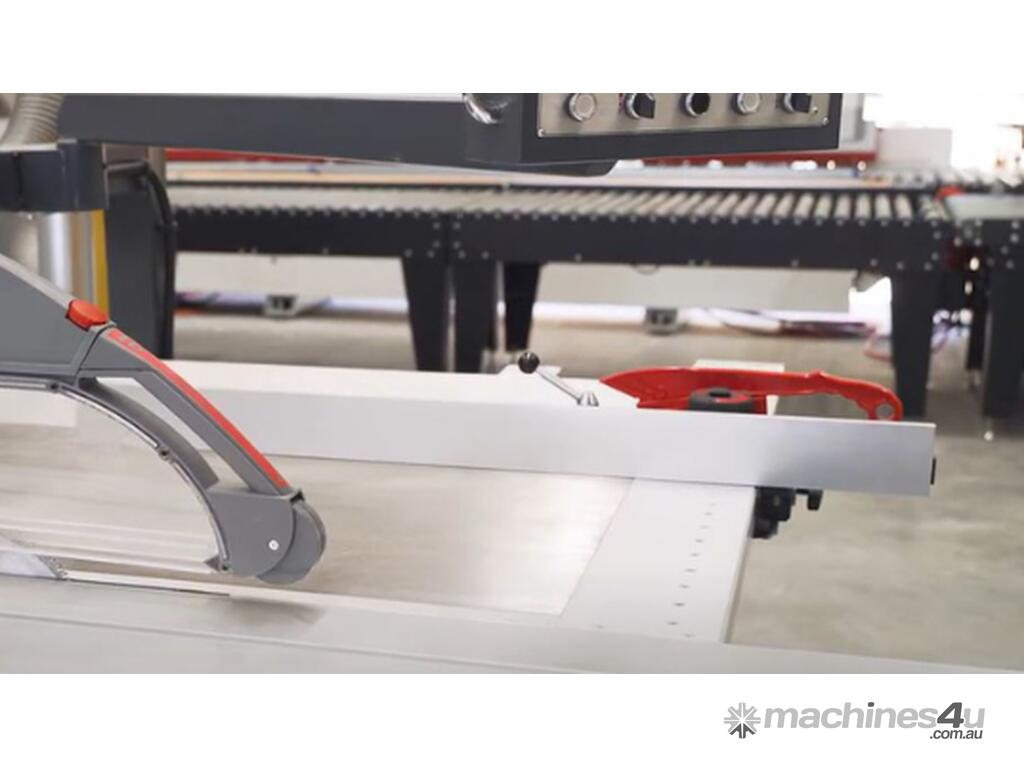

SERVO RIP FENCE
Movement of rip fence is automatically by just inputting number in touch screen.

OPERATIONAL PANEL
Rip fence enables to move to required position by inputting number in user-friendly touch screen which offers machine max operation convenience.

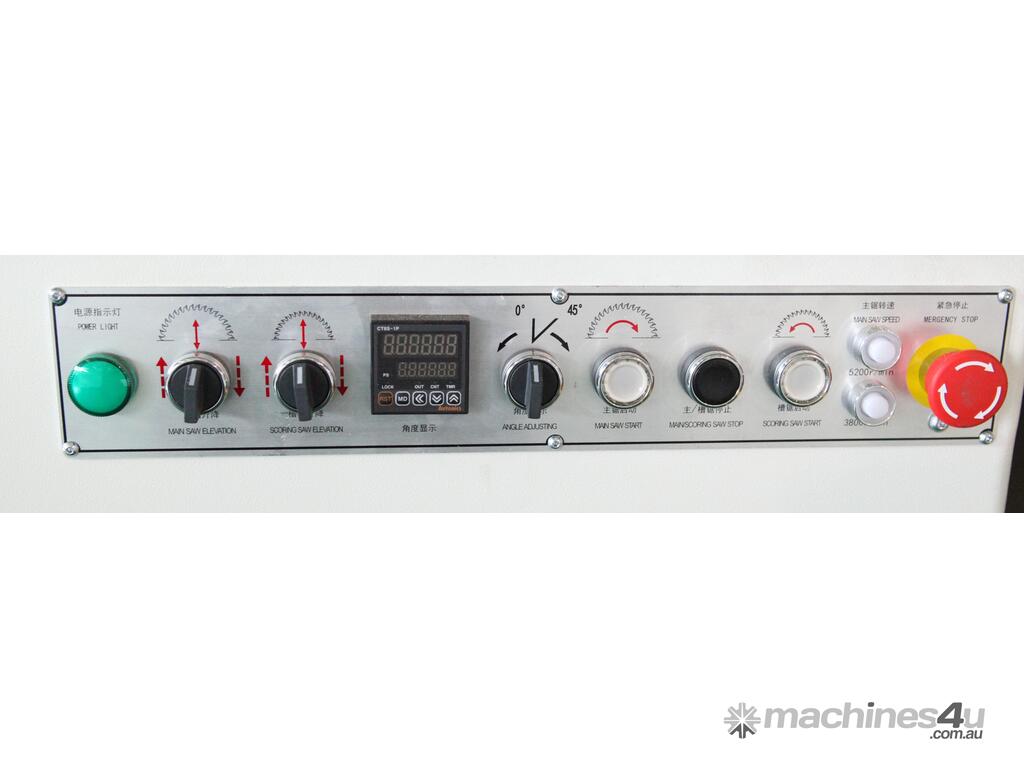

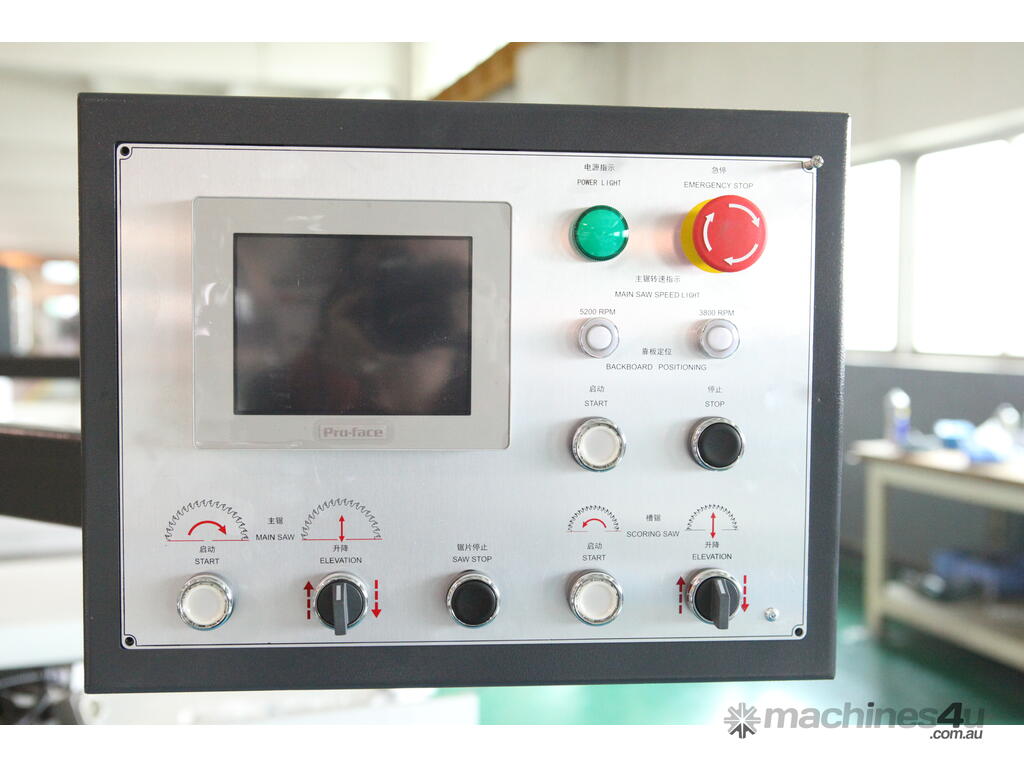

CONTROL PANEL
Up, down and tilting of main saw and scoring saw blades is controlled electrically by just
pressing buttons with an Emergency Stop Button featured.

SAW MOTOR
5.5kW Main Saw: 3800/5200RPM
1.1kW Scoring Saw: 9000RPM

EXTENTED WORKTABLE
Extended working table with high rigidity and stiffness to support large pieces being processed.

PUSH STICK
The push stick is important safety tools for cutting narrow workpieces. The push stick is used for
cutting workpieces within the danger zone of the saw blade (<120 mm). The push stick must be
used for cutting narrow workpieces.

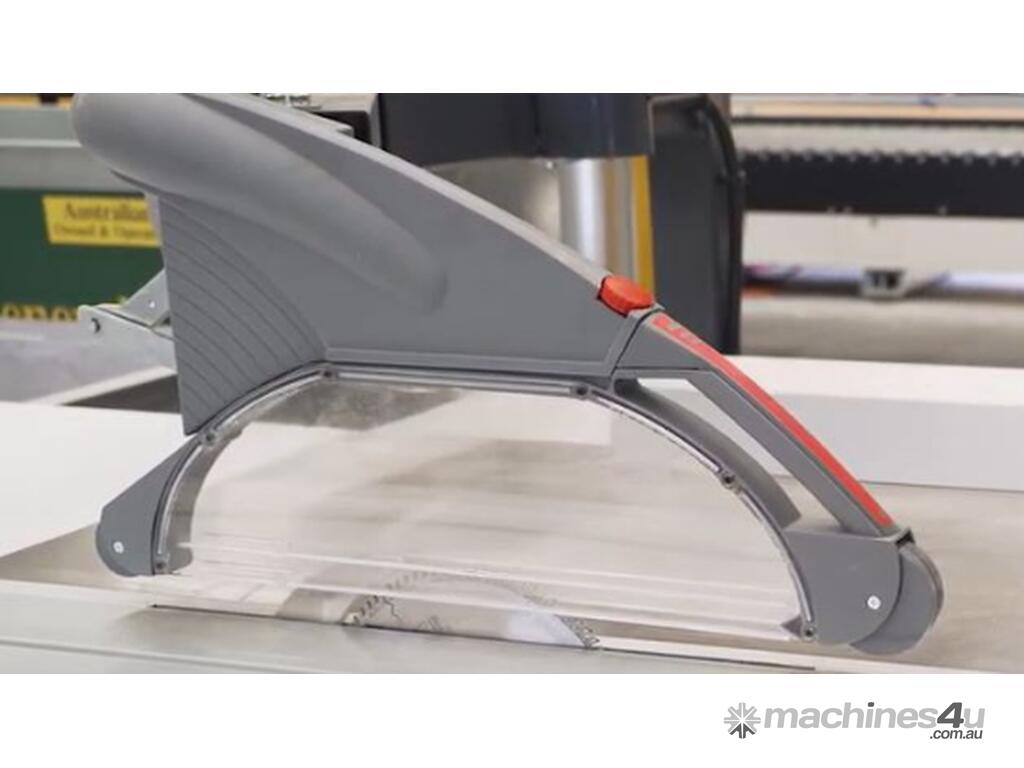

DUST EXTRACTION
CE compliant saw blade guard with quick exclusion. Easily adjusted vertically to suit the panel thickness using a dedicated knob. Quick rotation, with the machine stopped, giving a wide work area (machine cleaning, large panels etc.) On the machines base there is a 120mm Diameter exit
used to clear dust from the main / scribe blade areas.

TOOL HOLDER
Tool holder on the machine provides maximum convenience to change saw blade or other
applications.

LUBRICATION UNIT
Lubrication for keeping machine components running smoothly.


TECHNICAL SPECIFICATIONS:
Cutting:
Max cutting length: 3800mm
0° max cutting thickness: 0° 100mm
45° max cutting thickness: 45° 70mm

Main Saw:
Speed: 3800 - 5200 rpm
Motor: 5.5kw

Scoring:
Speed: 9000 RPM
Motor: 1.1kw
Saw blade Tilting: 0 - 45°
Dust Collection: 120mm Diameter
Total Power: 6.6kw
Dimensions: 3800mm x 3430mm x 1670mm
Weight: 1100kg
