350KVA Industrial Diesel Generator - PR Power WPS350S-AU

In excellent condition, it has not been used.

Powered by a Perkins diesel engine coupled to a Leroy Somer Alternator. Complete with lockable access doors, control panel and long range fuel tank.
The diesel generator has been designed to meet Australian and European standards and is available for sale Australia wide.

It is reliable and durable, which means that they can be used as a prime continuous power supply, or simply as standby to supply quick emergency power.

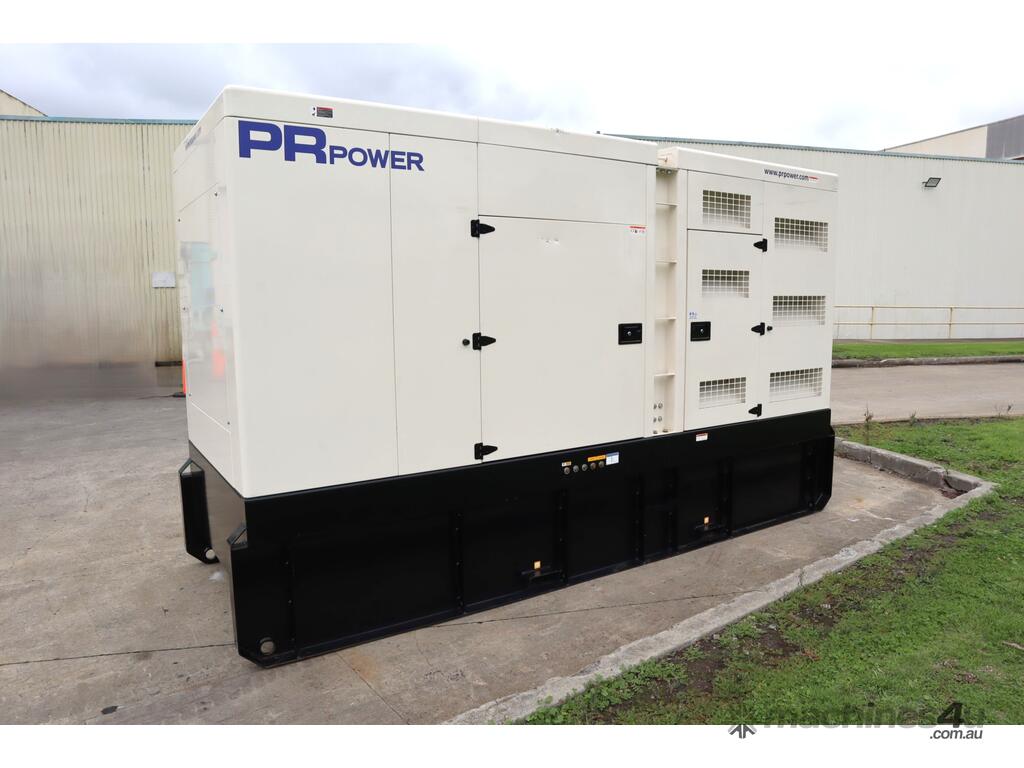

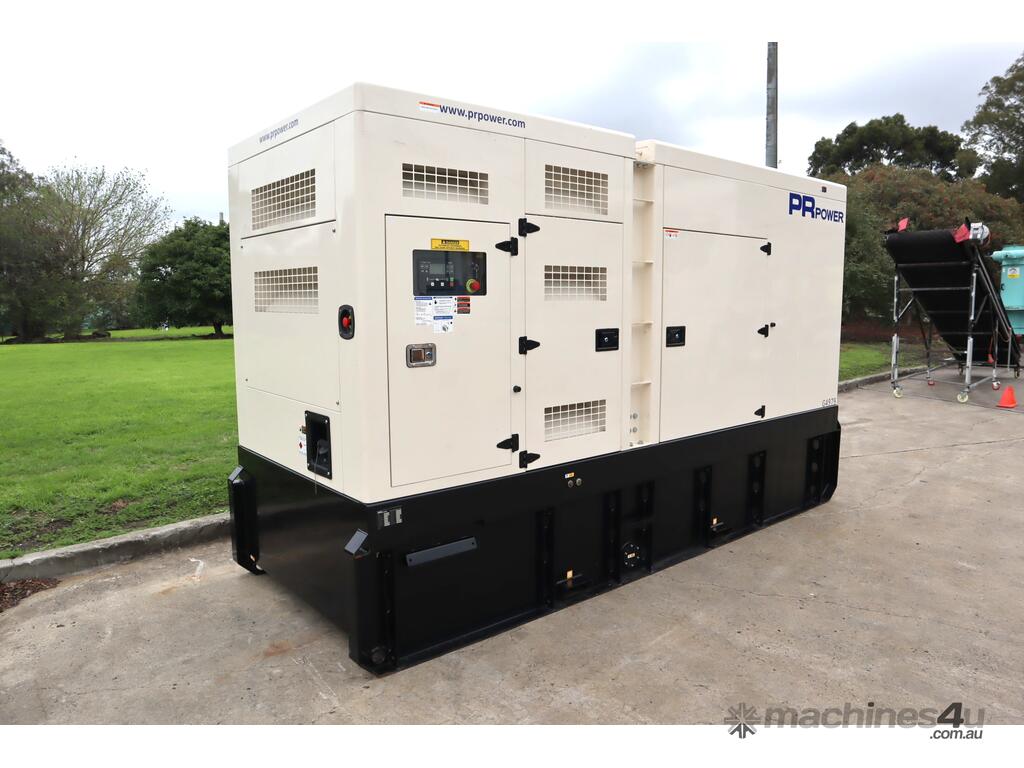

Prime 350kVA, 280kW 3PH 240/415V 50Hz housed in a weatherproof lockable sound attenuated enclosure made of high grade steel protected by powder coat paint finish.

Genset Details

• The generator set is resiliently mounted on vibration isolation mounts inside the canopy.

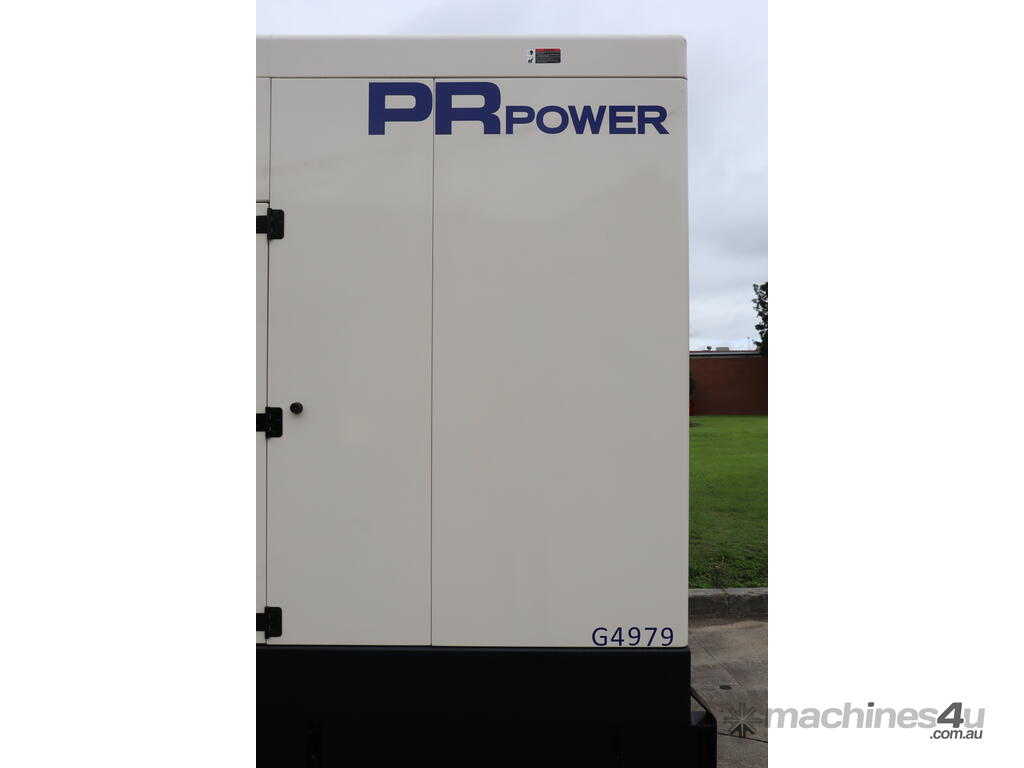

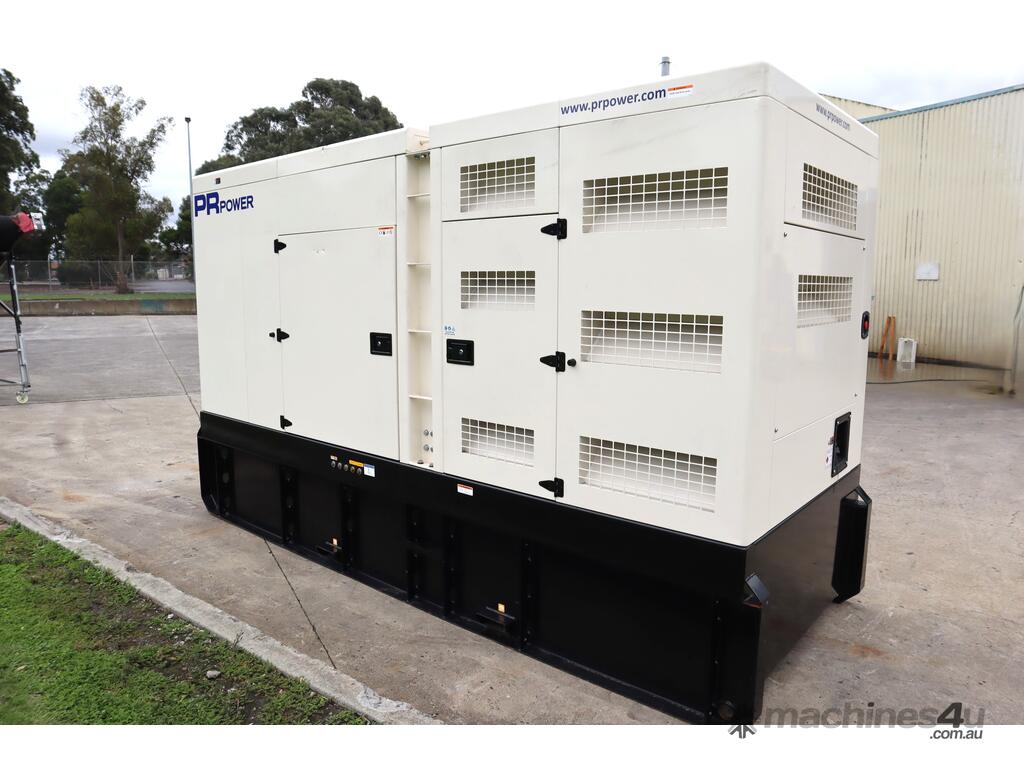

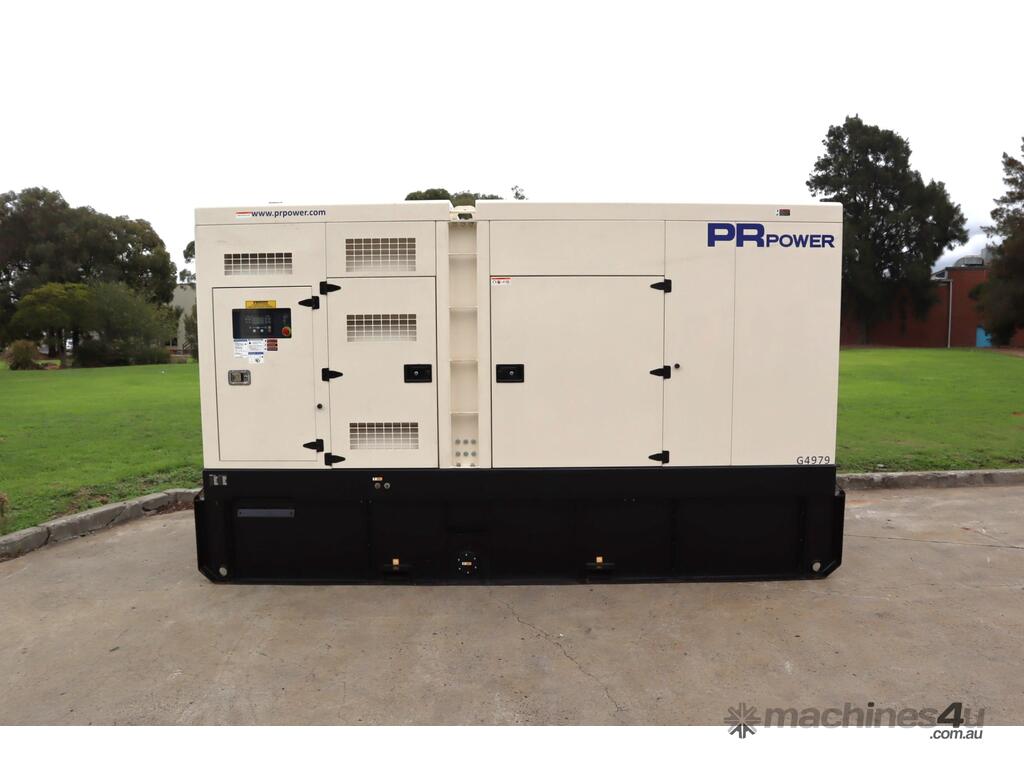

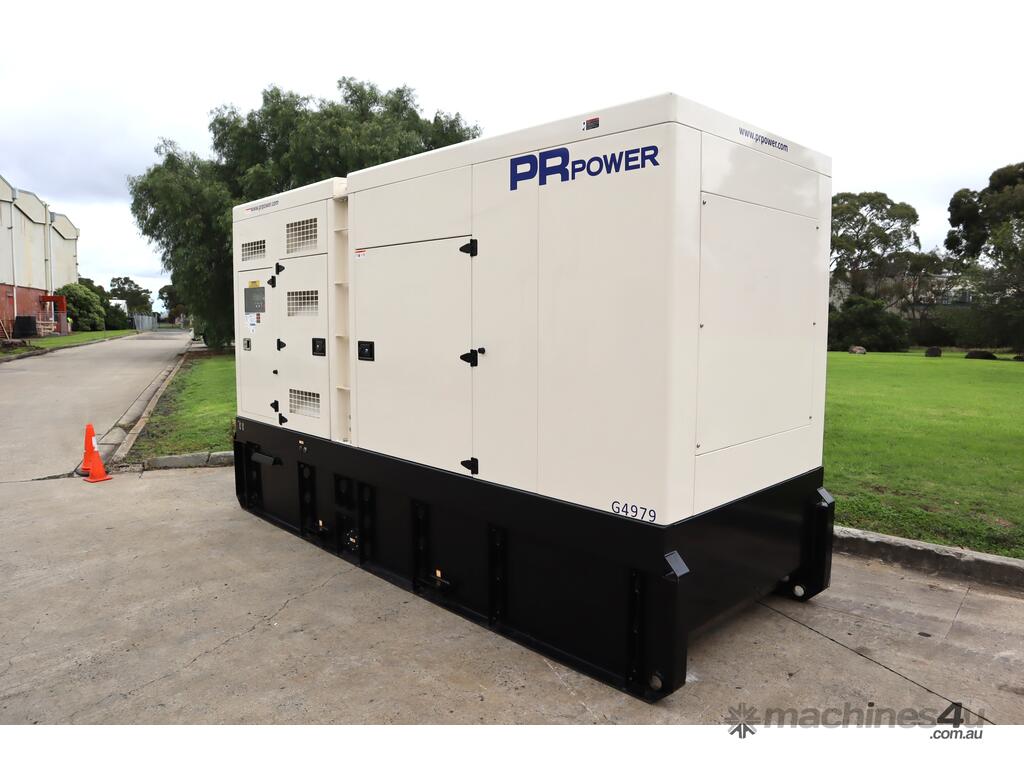

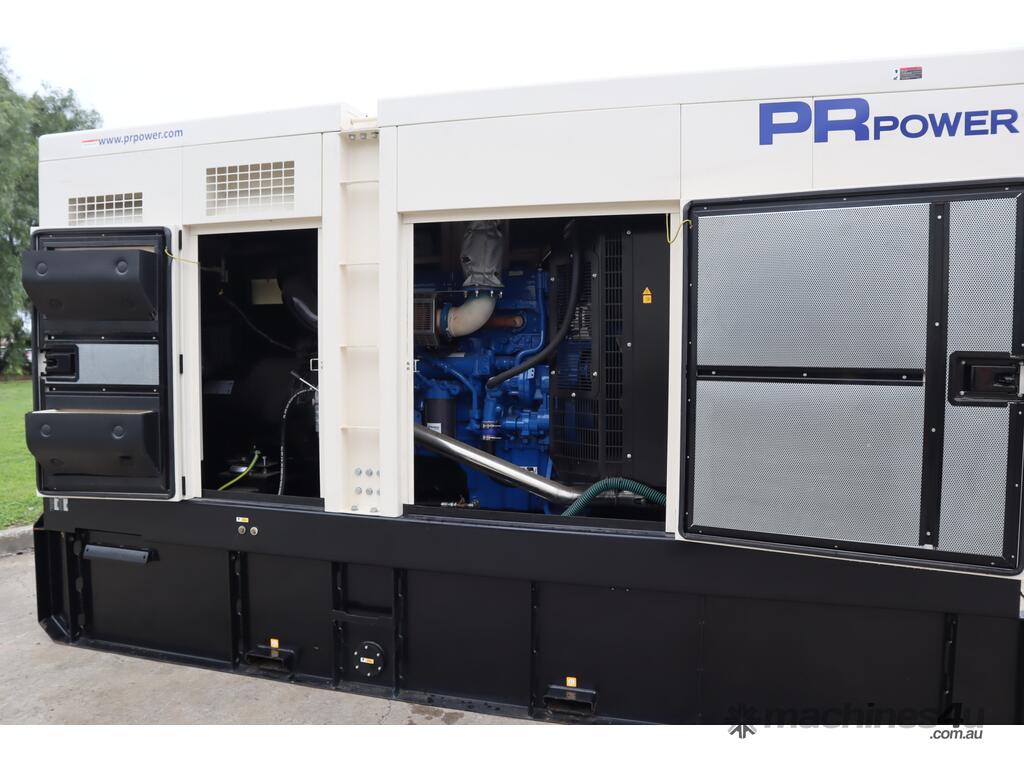

• The complete generator set assembly is housed inside a weatherproof lockable sound attenuated enclosure.

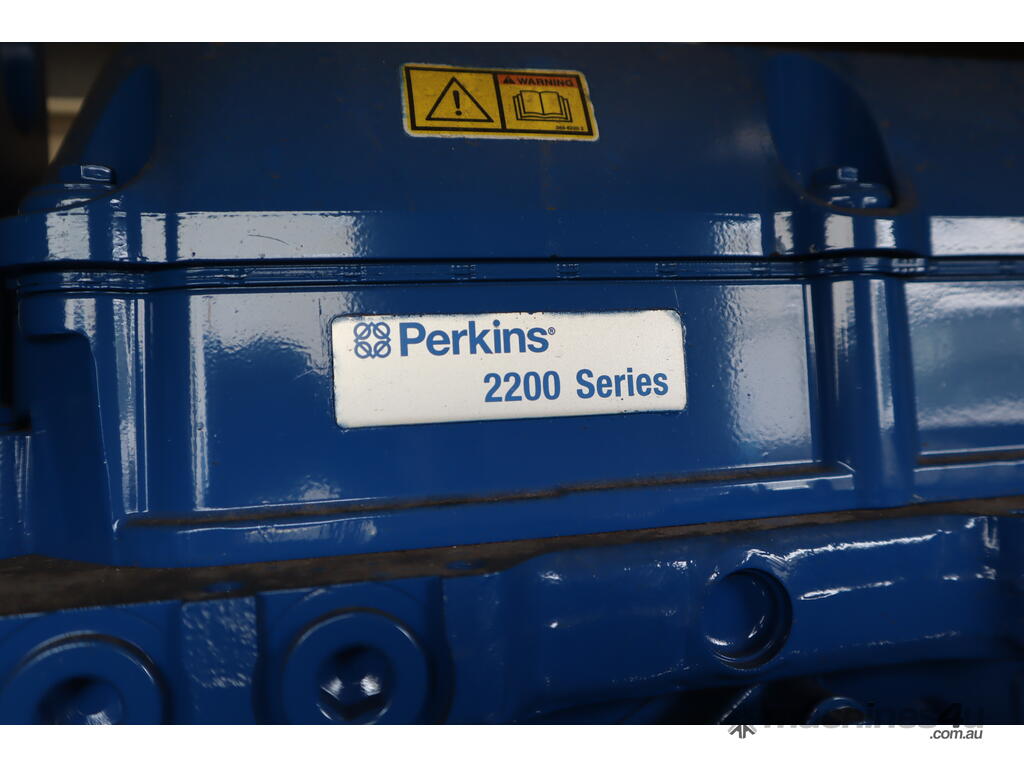

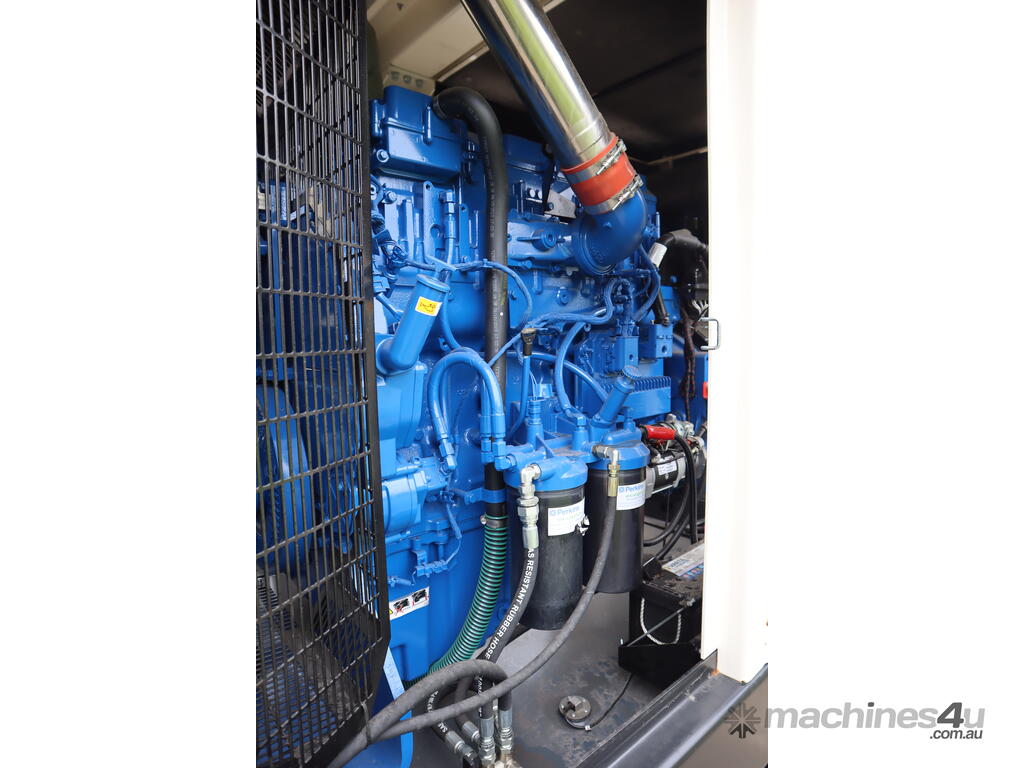

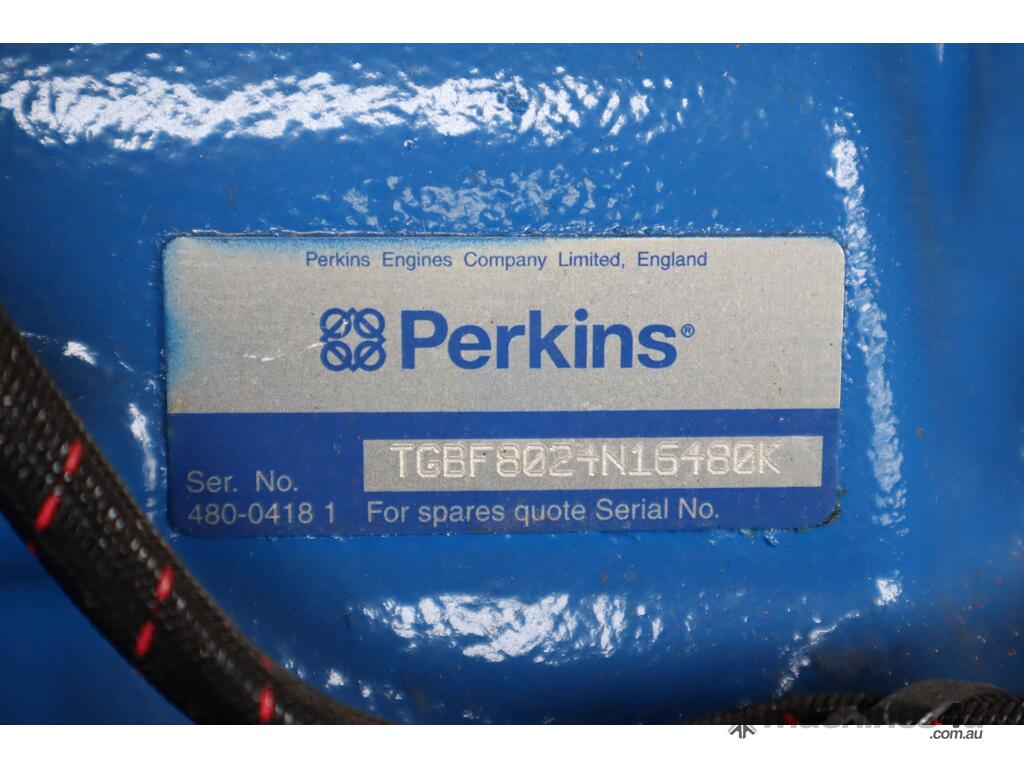

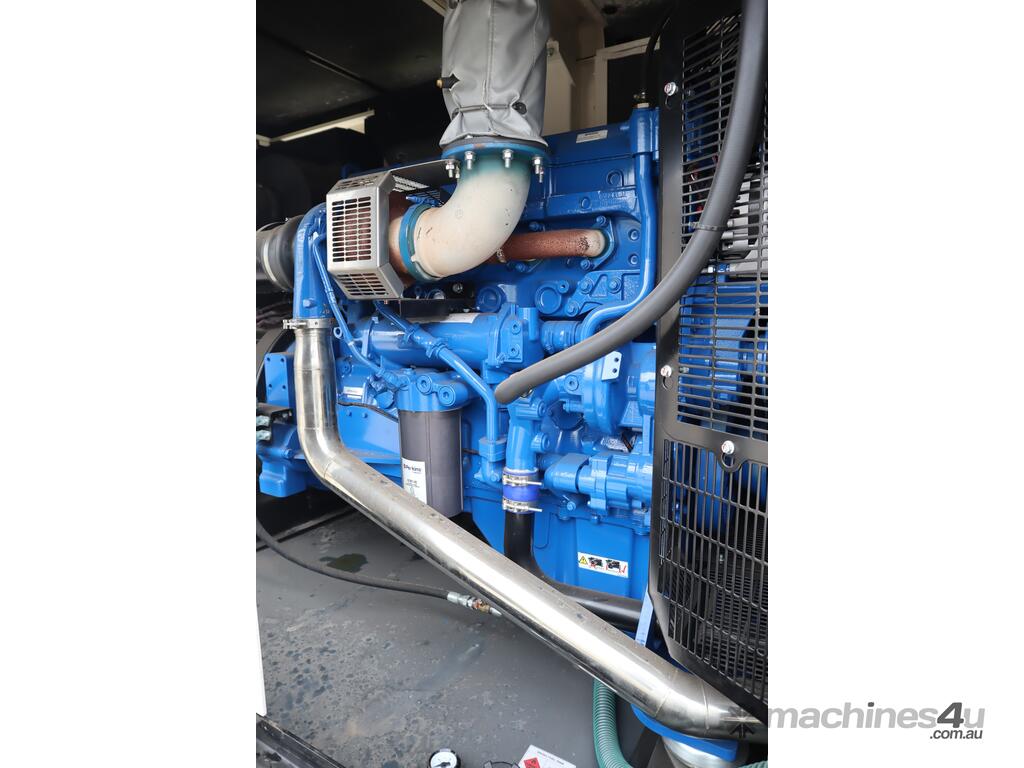

• Diesel engine – Perkins 2206C-E13TAG2, 4 stroke 1500rpm, 24V electrics and set mounted radiator.
? Engine oil sump manually operated evacuation pump fitted.

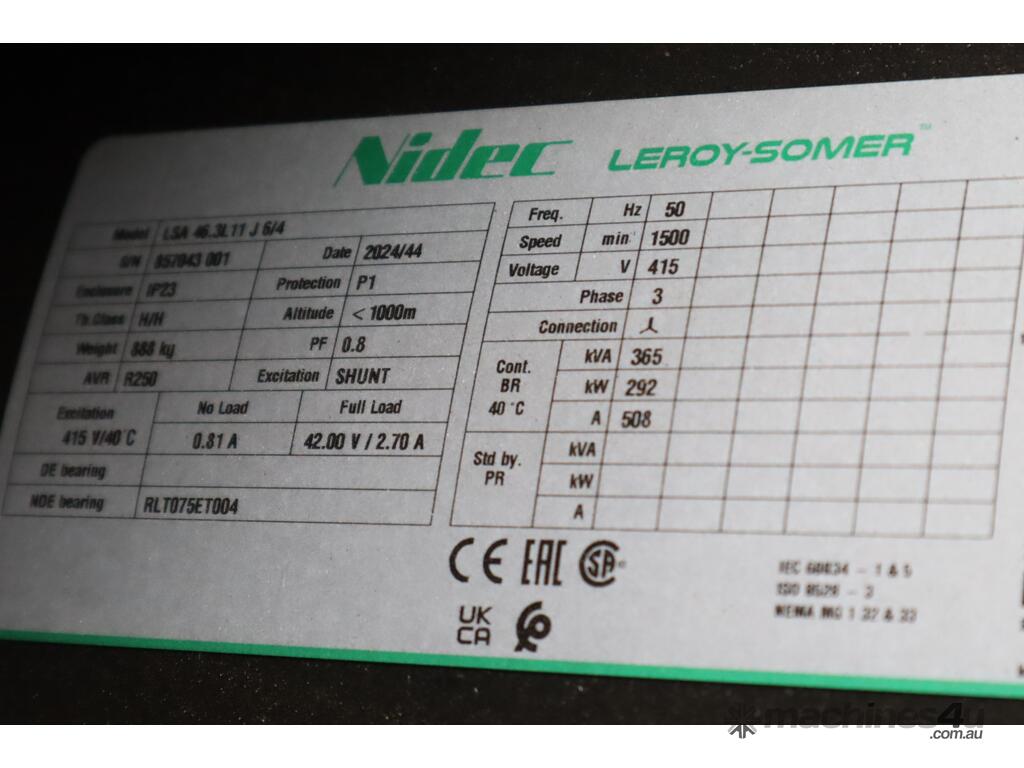

• Alternator – close coupled Leroy Somer LSA46.3L11, brushless alternator with Shunt excitation and AVR

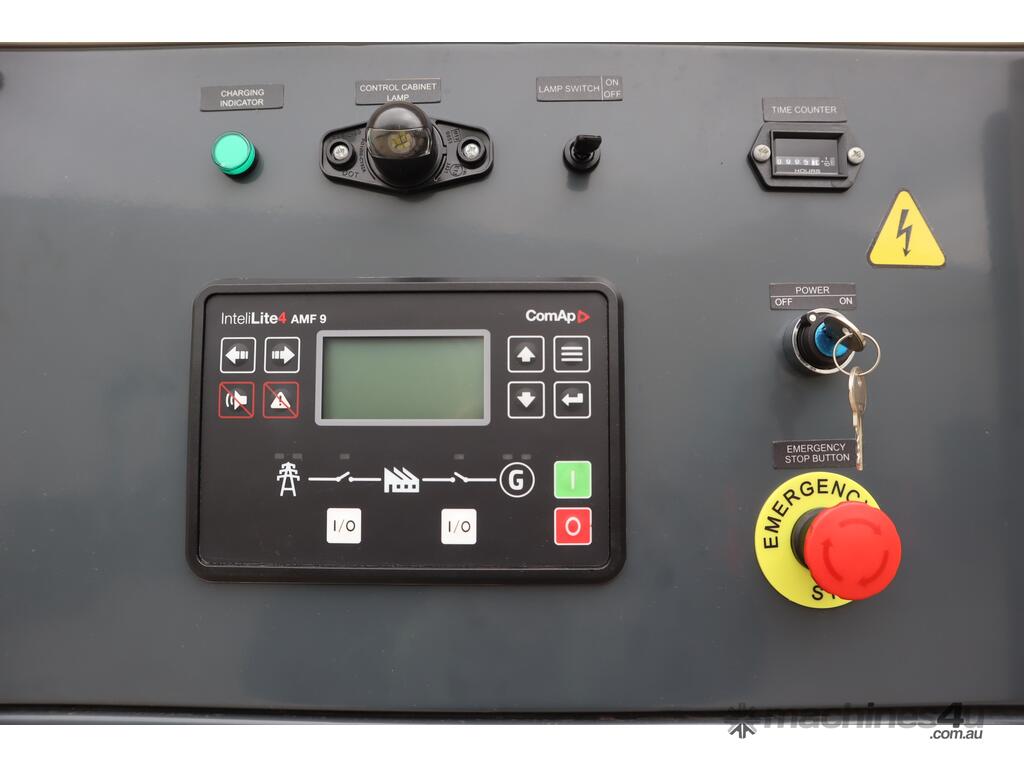

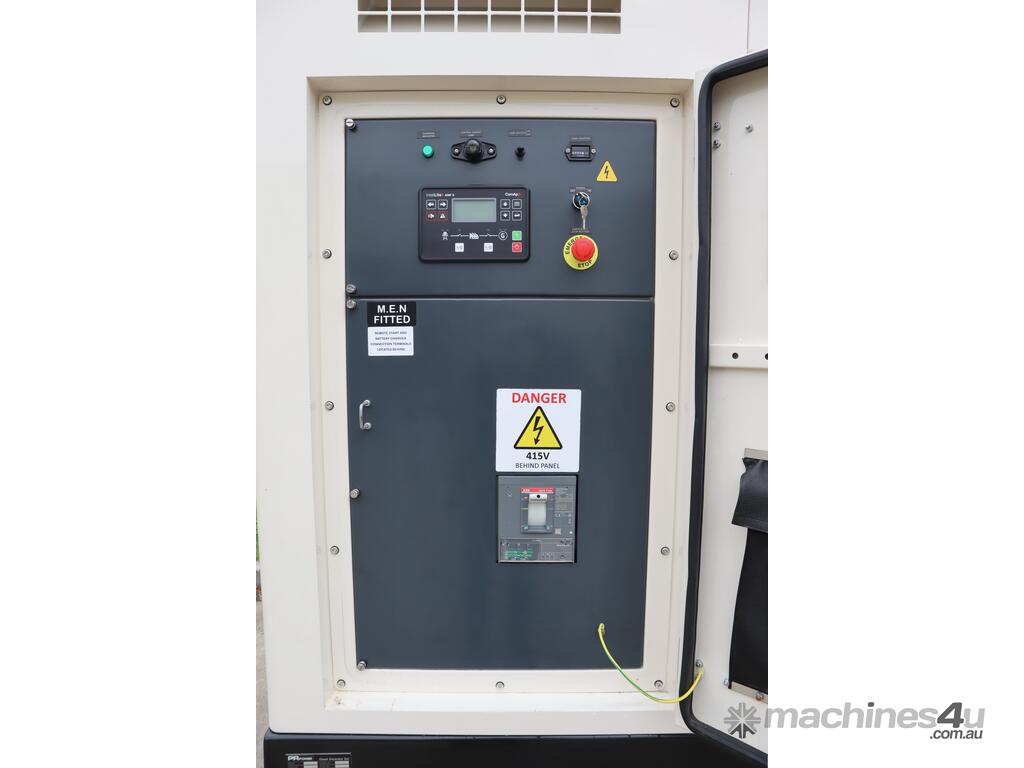

• Control panel – set mounted Comap InteliLite4-AMF9 digital control panel with 2 wire remote start in AUTO.
? Watchdog monitoring and protection for engine and alternator and key start isolator switch fitted.
• Battery charger 24V fitted (mains 240V powered)

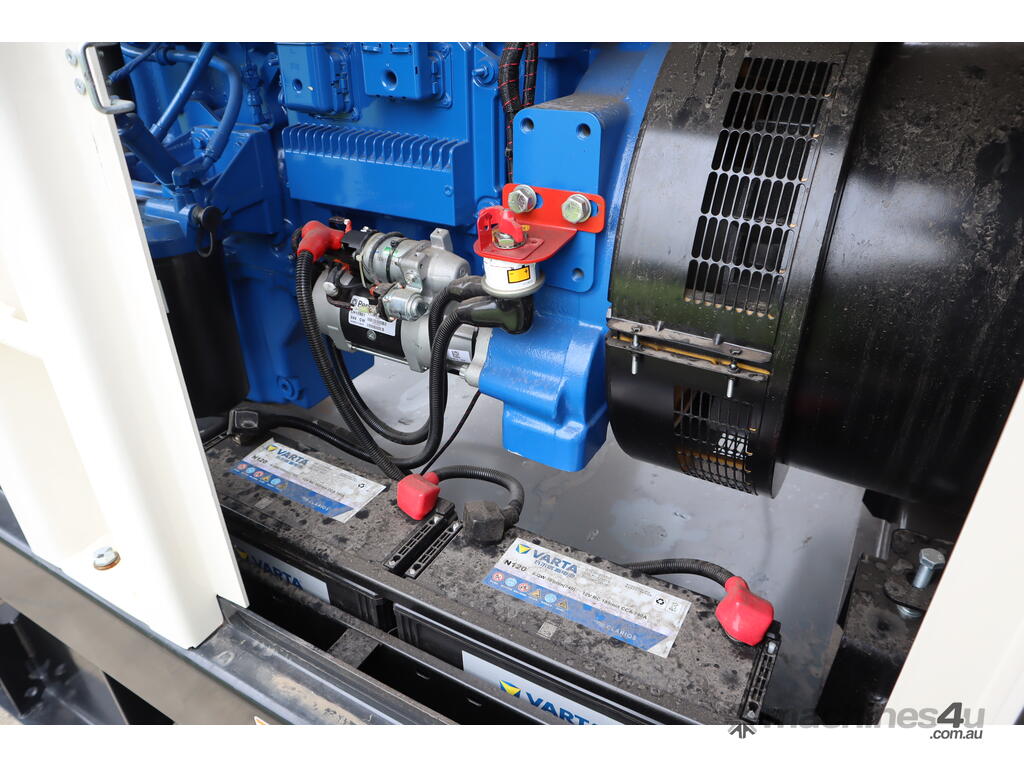

• Maintenance free lead acid batteries, rack, and cables
? Lockable single (1) pole battery isolator switch fitted.
• Main output four (4) pole standard ABB circuit breaker fitted for customer connection direct to their load.

Fuel Tank Details

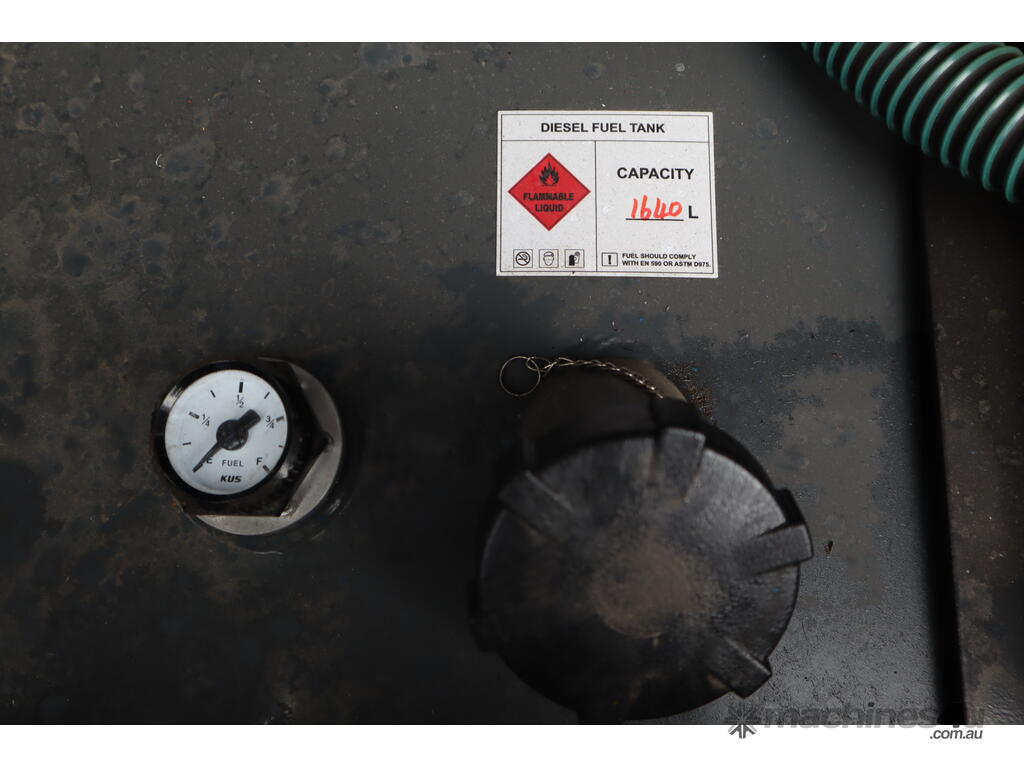

• Bunded base fuel tank 1,640L capacity equal to approx. 27 hours run time at 75% load. Fuel is not included.
• Tank mounted in spillage free captive base frame with local fill point and level gauge inside the canopy
• Manually operated 3-way valves fitted inside the genset enclosure to select either genset fuel tank or user's external above ground bulk fuel tank supply and return

Enclosure Details

• Weatherproof, Lockable, Sound attenuated enclosure rated (74.4dBA 7M) +/- 5% at 100% load, free field.
• Canopy constructed from high grade sheet metal. Polyester Powder coated. Color RAL 9001 (cream white)
• External emergency stop push button
• Heavy Duty Skid Base with Fork Pockets, Drag Lugs and Central single top lifting point

Overview

• Perkins engine 2206C-E13TAG2
• Close coupled to Leroy Somer alternator LSA46.3L11
• Microprocessor controller ComAp InteliLite4-AMF9
• ABB main circuit breaker: 500A
• Rotate speed governor: Electronic
• Excitation System: Self Excited
• A.V.R.Model: R250
• Key switch
• Emergency stop switch
• ATS (automatic transfer switch) receptacle
• Remote run connector
• 2x12V/120AH sealed for life maintenance free battery
• Lockable battery isolator switch
• Powder coated canopy
• 50? radiator
• Oil pump on the engine
• Non-returning valve for fuel inlet hose of the engine
• Steel base frame with forkslots
• Vibration isolators between the engine/alternator and base frame
• Dry type air filter
• Base fuel tank for 20hours running
• Drain points for fuel tank
• Breather valve for fuel tank

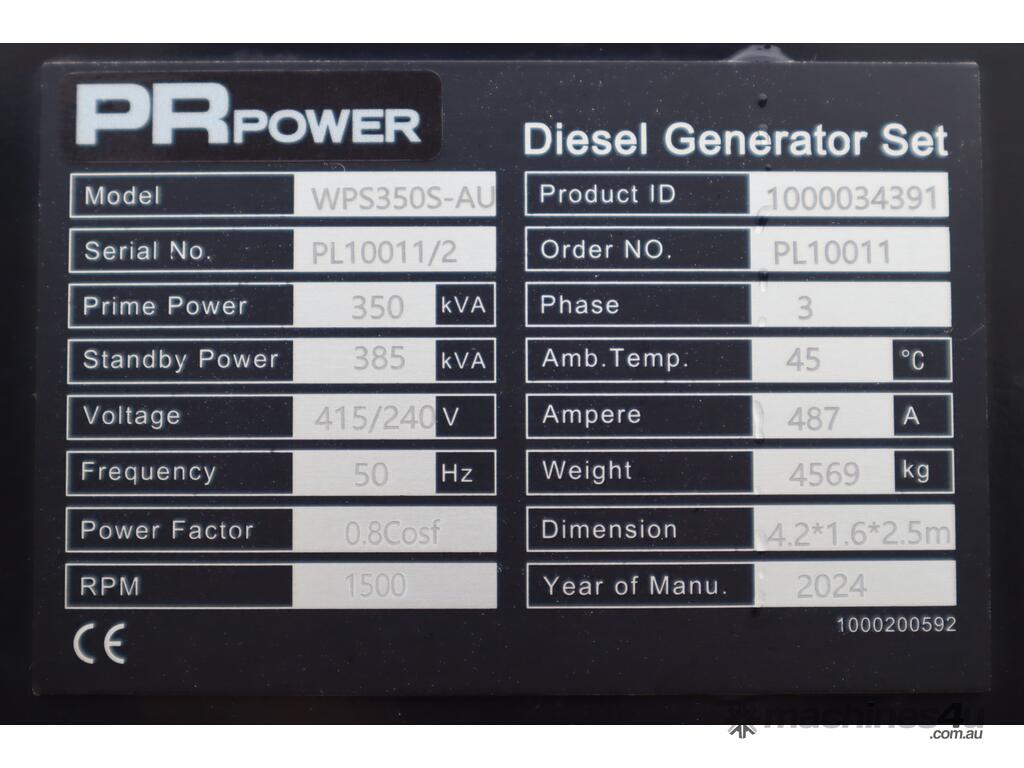

Make: PR Power
Model: WPS350S-AU
Year: 2024

Specs

Tank capacity: 1640L
Dry weight: 4565kg
Standby Power: 385kVA/308kW
Prime Power: 350kVA/280kW
Voltage/Current: 415V/486.9A

Overall Dimensions (mm): 4200 x 1600 x 2500
